Makita 4305 Electric Saw Parts

Makita 4305 Parts

Download Schematic

Time to buy a new tool?

Makita 4305

Engraving Cutter 2-P...

$5.99

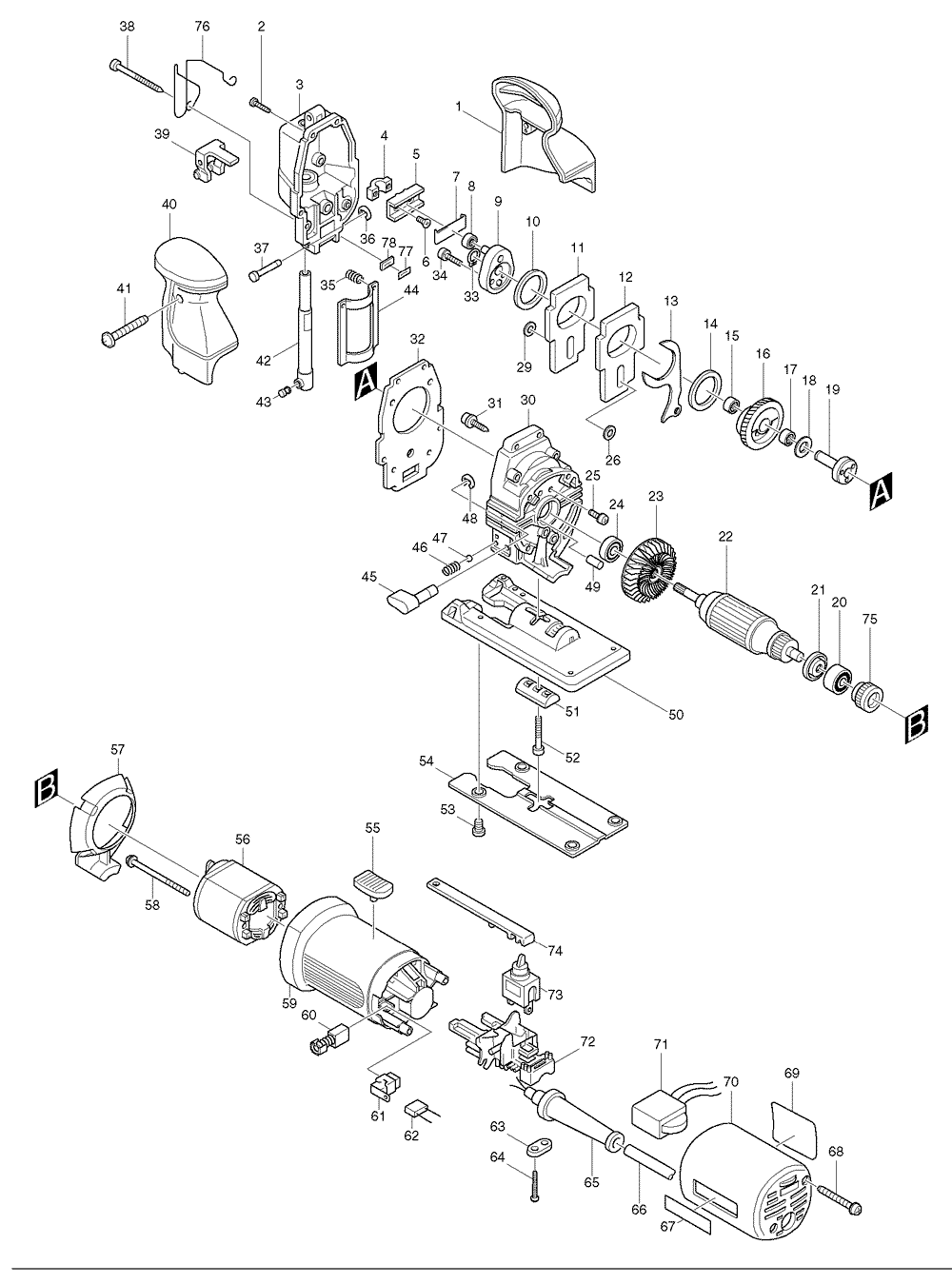

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	182681-3	HEAD COVER SET, 4305	$13.18
2	266034-5	TAPPING SCREW 4X16, 9524NB	$0.53
3	153389-6	GEAR HOUSING COVER, 4334DWD	$29.37
3	159716-5	GEAR HSG.COVER CPL., 4304, T1	$37.02
4	316608-3	HOLDER, 4304	$5.92
5	310028-3	SLIDER, 4334D	$17.47
6	265035-0	C.S.H. SCREW M4X10, 4304	$1.48
7	344232-2	THRUST PLATE, 4304	$0.97
8	212010-7	N. BEARING 607, 4330DWA	$14.61
9	152454-8	CRANK COMPLETE, 4304	$10.32
10	253792-2	F. WASHER 26, 4304	$1.63
11	344330-2	BALANCE PLATE, 4304	$5.92
12	344330-2	BALANCE PLATE, 4304	$5.92
13	344134-2	PUSH PLATE, 4304	$3.06
14	253792-2	F. WASHER 26, 4304	$1.63
15	212043-2	NEEDLE BEARING 8-10, N900	$3.06
16	226428-6	HELICAL GEAR 51, 4304	$43.86
17	212043-2	NEEDLE BEARING 8-10, N900	$3.06
18	253139-0	F. WASHER 8, 6510LVR	$1.34
19	322691-0	GEAR SHAFT, 4334DW	$15.27
20	211021-9	BALL BEARING 607LLB, LS1013	$8.78
21	681636-0	INSULATION WASHER, GA4030	$3.72
22	517096-9	ARMATURE ASS'Y 115V, 4304	$92.10
23	241875-0	FAN 54, 4334DWD	$2.84
23	240039-3	FAN 54, 4304	$1.63
24	211031-6	BALL BEARING 608LLB, 9227C	$10.98
25	911111-5	P.H. SCREW M4X10, LS1011	$0.53
26	253715-0	F. WASHER 6, NHP1310	$1.34
27	253811-4	F. WASHER 5, 5007NK	$1.34
28	961011-9	STOP RING E-4, 4301BV	$1.48
29	253715-0	F. WASHER 6, NHP1310	$1.34
30	151594-9	GEAR HOUSING, 4304,T2	$33.15
31	266045-0	TAPPING SCREW 4X20, 9046	$1.19
32	442123-2	PACKING, 4304,T2	$0.97
32	442119-3	PACKING, 4304,T1	$3.61
33	961004-6	RETAINING RING S-8, DA391D	$0.53
34	922126-7	H.S.H. BOLT M4X16, 4330DWA	$1.34
35	231314-8	COMP. SPRING 4, 4301BV	$0.86
36	961017-7	STOP RING E-3, 4304, SH01	$0.53
37	256693-3	HEADED PIN 4, 4305	$5.37
38	266147-2	TAPPING SCREW 4X55, 6824	$1.96
39	152947-5	RETAINER CPL.,4334DWD	$8.12
40	182681-3	HEAD COVER SET, 4305	$13.18
41	266053-1	P.T. SCREW 4X35, 4304	$1.48
42	165089-6	ROD, 4304	$44.26
43	265894-2	SET SCREW M6X8, 4330DWA	$0.86
44	344137-6	SLIDE PLATE, 4334DWD	$3.06
45	272231-3	LEVER 17, 4304	$8.78
46	231314-8	COMP. SPRING 4, 4301BV	$0.86
47	216008-6	STEEL BALL 4.0, 5007NK	$0.53
48	961018-5	STOP RING E-5, LS1011	$0.53
49	263002-9	RUBBER PIN 4, 5007NK	$0.86
50	316883-1	BASE, 4330DWA	$17.91
50	316605-9	BASE, 4304-T1	$26.52
51	331435-7	CLAMP PLATE, 4333DWD	$4.49
52	922146-1	H.S.H. BOLT M4X25, 6830	$1.34
53	266055-7	C.S. SCREW M5X8, 4304	$0.86
54	344443-9	BASE PLATE, 4304T	$6.80
55	415523-9	SWITCH LEVER, 4305	$1.63
56	633286-7	FIELD 115V, 4304	$34.68
57	415535-2	BAFFLE PLATE, 4304	$3.06
59	415748-5	MOTOR HOUSING, 4304	$11.75
60	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.12
61	643923-5	BRUSH HOLDER, HR2410	$1.63
63	687063-9	STRAIN RELIEF, 4323K	$1.26
64	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
65	682502-4	CORD GUARD 8-85, HP2010N	$2.51
65	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
66	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
66	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
67	819063-3	MAKITA LABEL, DA3010F	$0.96
69	857557-0	NAME PLATE, 4305	$1.12
70	415531-0	REAR COVER, 4305	$10.32
71	631675-0	CONTROLLER, 4304	$18.35
72	687070-2	SUPPORT, 4305	$4.49
73	651418-4	SWITCH, 9564CV	$17.25
73	651428-1	SWITCH, 4341FCT	$13.84
74	415522-1	SWITCH ROD, 4305	$1.63
75	421494-0	LABYRINTH RUBBER RING,HR2455, DA3010F	$4.49
76	322893-8	SAFETY WIRE, 4304T	$2.84
77	344784-3	SEAL PLATE, 4304T	$0.97
78	443106-5	FELT 10-20, 4304T	$0.75
1001	783201-2	HEX WRENCH 3, AF501	$3.40
1002	410048-8	WRENCH HOLDER, JR3000V	$1.26
1003	415524-7	ANTI SPLINTERING PLATE, 4304	$4.40
1004	415887-1	PROTECTOR, 4304T	$4.20
1004	415525-5	PROTECTOR, 4304	$2.73
1007	792729-9	JIG SAW BLADE, BR-13 5/PKG., 4304	$7.40
