Makita 4304 Electric Saw Parts

Makita 4304 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

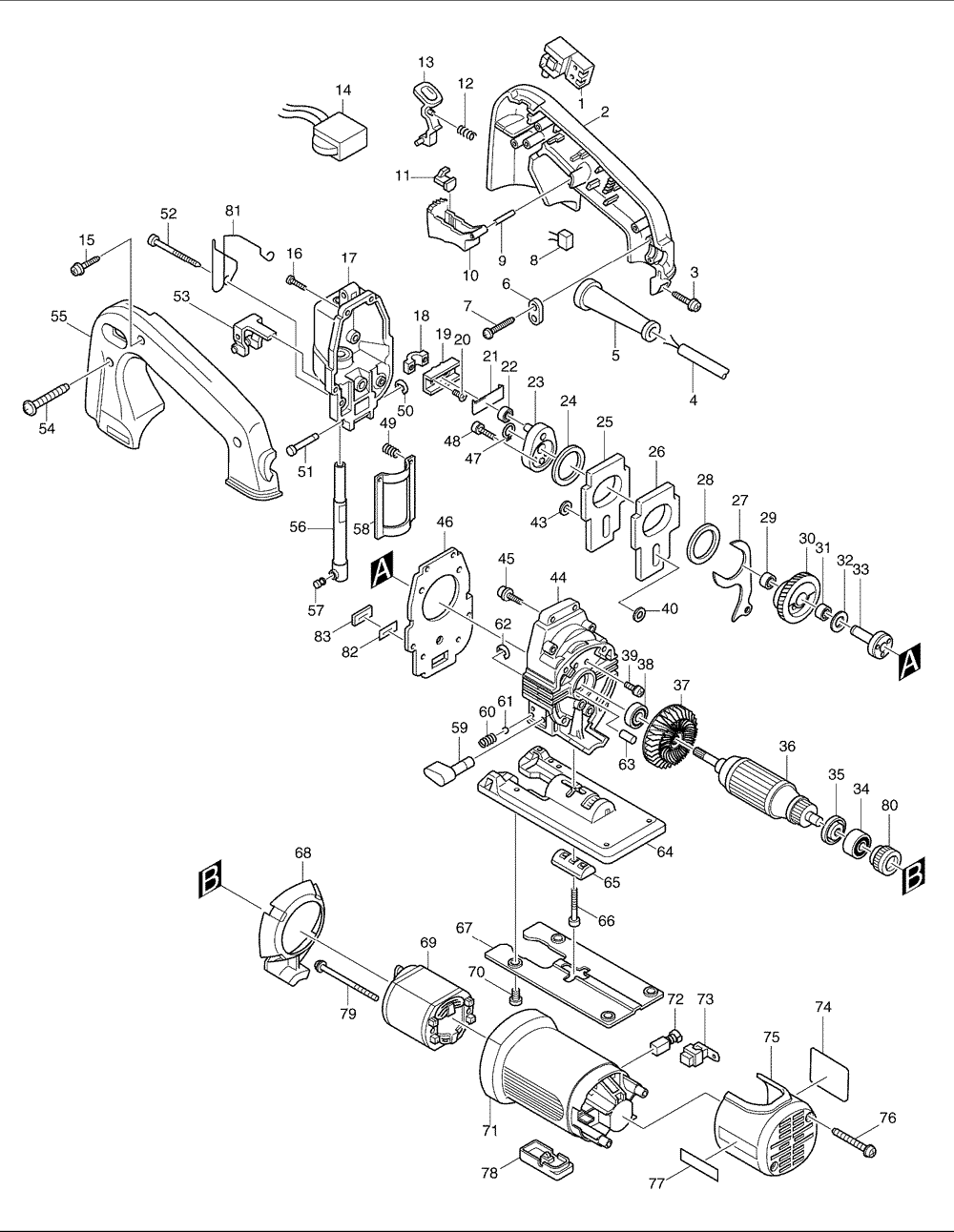

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
52	266147-2	TAPPING SCREW 4X55, 6824	$1.96
1	651922-3	SWITCH, HM1303B	$19.45
2	182680-5	HANDLE SET, 4304	$18.90
3	266045-0	TAPPING SCREW 4X20, 9046	$1.19
4	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
4	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
5	682502-4	CORD GUARD 8-85, HP2010N	$2.51
5	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
6	687063-9	STRAIN RELIEF, 4323K	$1.26
7	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
9	256221-4	PIN 3, JR3020	$1.19
10	415158-6	SWITCH LEVER, JR3020	$4.49
11	415159-4	SPACER, 4304	$4.49
12	233101-1	COMPRESSION SPRING 4, 4304	$0.86
13	415534-4	LOCK-ON LEVER, 4304	$1.63
14	631675-0	CONTROLLER, 4304	$18.35
15	266045-0	TAPPING SCREW 4X20, 9046	$1.19
16	266034-5	TAPPING SCREW 4X16, 9524NB	$0.53
17	153389-6	GEAR HOUSING COVER, 4334DWD	$29.37
17	159716-5	GEAR HSG.COVER CPL., 4304, T1	$37.02
18	316608-3	HOLDER, 4304	$5.92
19	310028-3	SLIDER, 4334D	$17.47
20	265035-0	C.S.H. SCREW M4X10, 4304	$1.48
21	344232-2	THRUST PLATE, 4304	$0.97
22	212010-7	N. BEARING 607, 4330DWA	$14.61
23	152454-8	CRANK COMPLETE, 4304	$10.32
24	253792-2	F. WASHER 26, 4304	$1.63
25	344330-2	BALANCE PLATE, 4304	$5.92
26	344330-2	BALANCE PLATE, 4304	$5.92
27	344134-2	PUSH PLATE, 4304	$3.06
28	253792-2	F. WASHER 26, 4304	$1.63
29	212043-2	NEEDLE BEARING 8-10, N900	$3.06
30	226428-6	HELICAL GEAR 51, 4304	$43.86
31	212043-2	NEEDLE BEARING 8-10, N900	$3.06
32	253139-0	F. WASHER 8, 6510LVR	$1.34
33	322691-0	GEAR SHAFT, 4334DW	$15.27
34	211021-9	BALL BEARING 607LLB, LS1013	$8.78
35	681636-0	INSULATION WASHER, GA4030	$3.72
36	517096-9	ARMATURE ASS'Y 115V, 4304	$92.10
37	241875-0	FAN 54, 4334DWD	$2.84
37	240039-3	FAN 54, 4304	$1.63
38	211031-6	BALL BEARING 608LLB, 9227C	$10.98
39	911111-5	P.H. SCREW M4X10, LS1011	$0.53
40	253715-0	F. WASHER 6, NHP1310	$1.34
43	253715-0	F. WASHER 6, NHP1310	$1.34
44	151594-9	GEAR HOUSING, 4304,T2	$33.15
45	266045-0	TAPPING SCREW 4X20, 9046	$1.19
46	442123-2	PACKING, 4304,T2	$0.97
46	442119-3	PACKING, 4304,T1	$3.61
47	961004-6	RETAINING RING S-8, DA391D	$0.53
48	922126-7	H.S.H. BOLT M4X16, 4330DWA	$1.34
49	231314-8	COMP. SPRING 4, 4301BV	$0.86
50	961017-7	STOP RING E-3, 4304, SH01	$0.53
51	256693-3	HEADED PIN 4, 4305	$5.37
52	266147-2	TAPPING SCREW 4X55, 6824	$1.96
53	152947-5	RETAINER CPL.,4334DWD	$8.12
54	266053-1	P.T. SCREW 4X35, 4304	$1.48
55	182680-5	HANDLE SET, 4304	$18.90
56	165089-6	ROD, 4304	$44.26
57	265894-2	SET SCREW M6X8, 4330DWA	$0.86
58	344137-6	SLIDE PLATE, 4334DWD	$3.06
59	272231-3	LEVER 17, 4304	$8.78
60	231314-8	COMP. SPRING 4, 4301BV	$0.86
61	216008-6	STEEL BALL 4.0, 5007NK	$0.53
62	961018-5	STOP RING E-5, LS1011	$0.53
63	263002-9	RUBBER PIN 4, 5007NK	$0.86
64	316883-1	BASE, 4330DWA	$17.91
64	316605-9	BASE, 4304-T1	$26.52
65	331435-7	CLAMP PLATE, 4333DWD	$4.49
66	922146-1	H.S.H. BOLT M4X25, 6830	$1.34
67	344443-9	BASE PLATE, 4304T	$6.80
68	415535-2	BAFFLE PLATE, 4304	$3.06
69	633286-7	FIELD 115V, 4304	$34.68
70	266055-7	C.S. SCREW M5X8, 4304	$0.86
71	415748-5	MOTOR HOUSING, 4304	$11.75
72	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.99
72	K38	Carbon Brush Set Replaces Makita (CB407), CB-419...	$8.50
73	643923-5	BRUSH HOLDER, HR2410	$1.63
74	857555-4	NAME PLATE, 4304	$1.12
75	415532-8	REAR COVER, 4304	$7.46
76	266050-7	P.T. SCREW 4X30, 4304	$1.19
77	819080-3	MAKITA LABEL, 9565CV	$1.48
78	415538-6	CAP, 4304	$1.52
80	421494-0	LABYRINTH RUBBER RING,HR2455, DA3010F	$4.49
81	322893-8	SAFETY WIRE, 4304T	$2.84
82	344784-3	SEAL PLATE, 4304T	$0.97
83	443106-5	FELT 10-20, 4304T	$0.75
1001	783201-2	HEX WRENCH 3, AF501	$3.40
1002	410048-8	WRENCH HOLDER, JR3000V	$1.26
1003	415524-7	ANTI SPLINTERING PLATE, 4304	$4.40
1004	415887-1	PROTECTOR, 4304T	$4.20
1004	415525-5	PROTECTOR, 4304	$2.73
1007	792729-9	JIG SAW BLADE, BR-13 5/PKG., 4304	$7.40
