Makita 4302C Electric Saw Parts

Makita 4302C Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

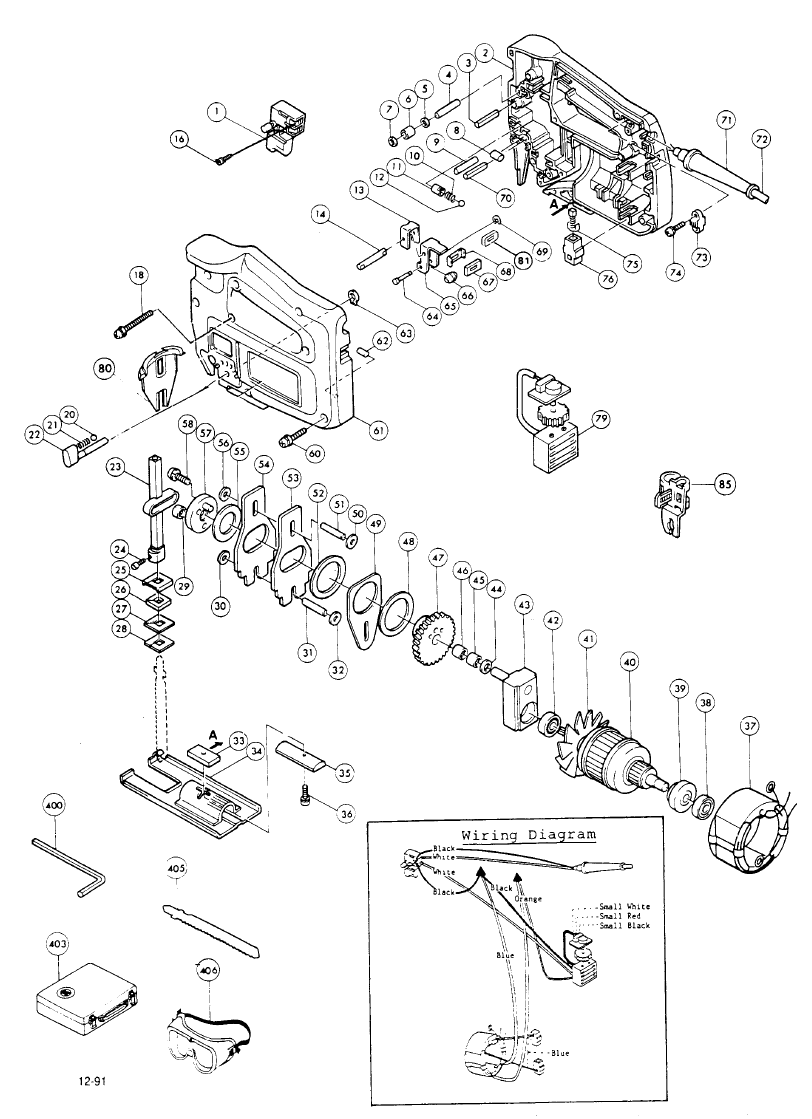

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
3	256171-3	PIN 5, 4303C	$3.61
4	256169-0	PIN 5, 4303C	$4.93
6	321988-4	ROLLER, 4303C	$4.49
7	267034-8	F. WASHER 5, 4303C	$1.63
5	267034-8	F. WASHER 5, 4303C	$1.63
8	256172-1	PIN 6, 4303C	$3.61
9	256171-3	PIN 5, 4303C	$3.61
10	231429-1	COMP. SPRING 4, 4303C	$1.63
11	322105-9	SPRING GUIDE, 4303C	$4.71
12	216011-7	STEEL BALL 5.6, 6222DWE	$0.86
13	343424-0	SPACER, 4303C	$1.63
14	256167-4	PIN 4, 4303C	$3.61
16	652008-6	P.H. SCREW M3.5X7, PV7001C	$0.49
20	216008-6	STEEL BALL 4.0, 5007NK	$0.53
21	231314-8	COMP. SPRING 4, 4301BV	$0.86
22	272220-8	LEVER 25, 4303C	$8.01
23	911268-2	P.H. SCREW M5X45, 5007NK	$1.19
24	168182-5	SLIDER, 4303C	$33.55
25	265894-2	SET SCREW M6X8, 4330DWA	$0.86
26	343408-8	DUST PLATE, 4303C	$1.63
20	421318-0	DUST SEAL, 4303C	$1.63
27	253340-7	T. WASHER 9, 4303C	$1.63
29	212010-7	N. BEARING 607, 4330DWA	$14.61
30	253804-1	F. WASHER 6, 6012HDW	$1.34
31	256170-5	PIN 6, 4303C	$5.37
32	253804-1	F. WASHER 6, 6012HDW	$1.34
33	343377-3	BASE HOLDER, 4303C	$3.06
34	164829-9	BASE, 4303C	$13.18
35	315953-3	CLAMP PLATE, 4303C	$3.06
36	922126-7	H.S.H. BOLT M4X16, 4330DWA	$1.34
38	211033-2	B. BEARING 608LB, 5091D	$8.78
39	681627-1	INS. WASHER, 4303C	$14.61
40	612906-6	ARMATURE, 4303C	$68.20
37	622646-8	FIELD, 4302C	$40.08
41	241044-3	FAN 68, 9218SB	$4.49
42	211033-2	B. BEARING 608LB, 5091D	$8.78
43	152304-7	HOUSING W/O BEARING, 4303C	$18.57
44	253165-9	F. WASHER 8, 4303C	$1.63
45	212005-0	N. BEARING 810, HR2410	$5.92
46	212005-0	N. BEARING 810, HR2410	$5.92
47	221752-2	H. GEAR 65, 4303C	$36.51
40	253880-5	F. WASHER 35, 4303C	$2.73
49	343379-9	PUSH PLATE, 4303C	$4.49
50	253804-1	F. WASHER 6, 6012HDW	$1.34
51	256170-5	PIN 6, 4303C	$5.37
52	253880-5	F. WASHER 35, 4303C	$2.73
53	343380-4	BALANCE PLATE, 4303C	$10.32
54	343380-4	BALANCE PLATE, 4303C	$10.32
55	253122-7	F. WASHER 26, 4303C	$1.63
56	253804-1	F. WASHER 6, 6012HDW	$1.34
57	152243-1	CRANK, 4303C	$17.69
58	911221-8	P.H. SCREW M5X16, JR3000V	$0.86
60	911243-8	P.H. SCREW M5X25, GA7911	$1.19
62	263002-9	RUBBER PIN 4, 5007NK	$0.86
63	961002-0	RETAINING RING S-6, 6012HDW	$0.53
64	256640-4	PIN 4, 4303C	$3.61
65	343378-1	RETAINER, 4303C	$7.46
66	321989-2	ROLLER, 4302C	$8.12
69	961017-7	STOP RING E-3, 4304, SH01	$0.53
70	256171-3	PIN 5, 4303C	$3.61
71	682502-4	CORD GUARD 8-85, HP2010N	$2.51
71	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
72	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
72	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
73	687002-9	STRAIN RELIEF, 9217SPC	$0.97
74	911133-5	P.H. SCREW M4X18, N9501B	$0.86
76	643605-9	BRUSH HOLDER, HP2010N	$1.63
79	631079-6	CONTROLLER, 4303C	$98.27
85	410048-8	WRENCH HOLDER, JR3000V	$1.26
400	783201-2	HEX WRENCH 3, AF501	$3.40
