Makita 4112H Electric Saw Parts

Makita 4112H Electric Saw Parts Image

Makita 4112H Parts
12 Inch Angle Cutter (AC/DC)

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 4112H
12 Inch Angle Cutter...
$455.99
Tool Diagram    (Click image to Zoom in) View larger Image

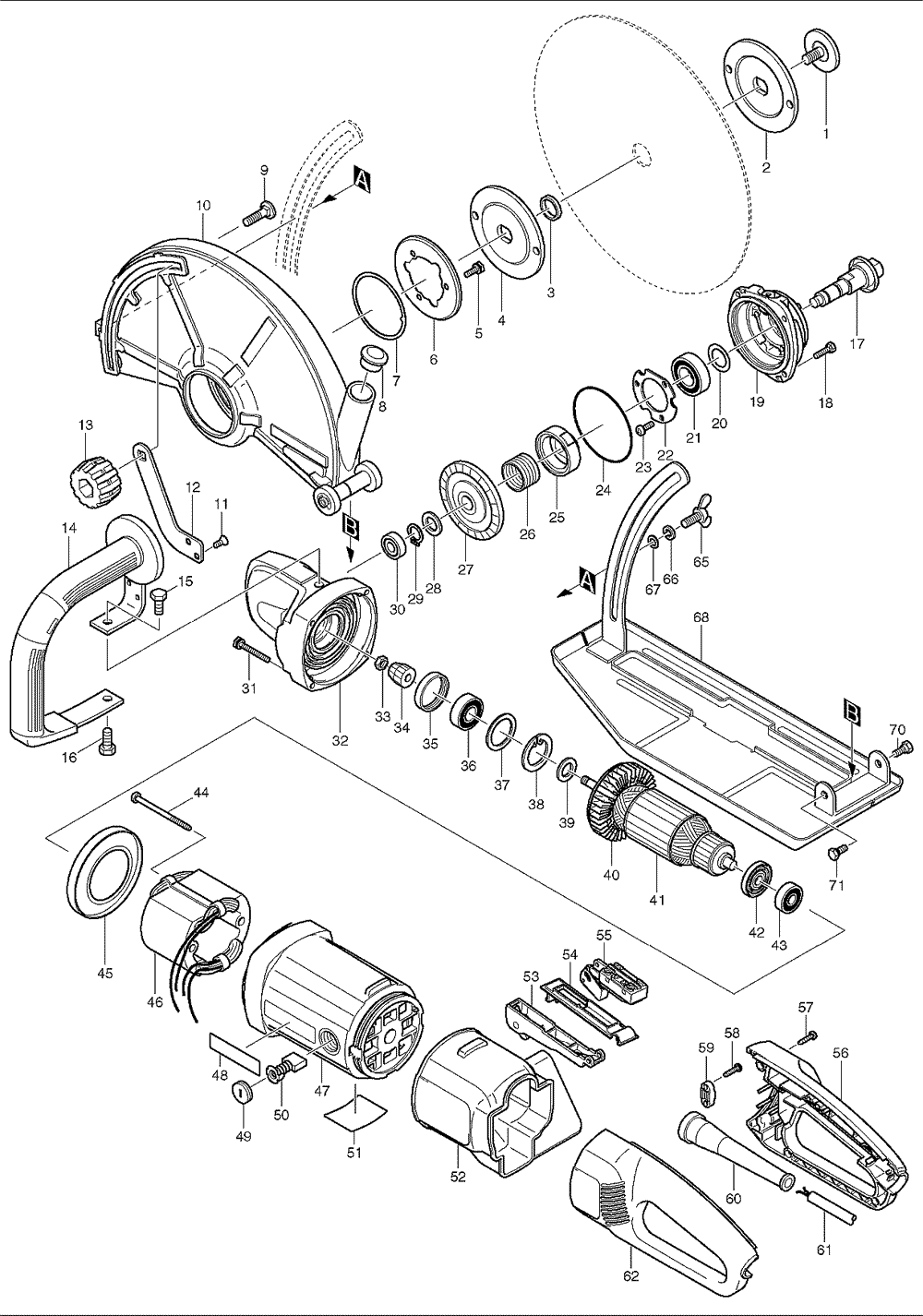

Makita 4112H Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 265265-3 HEX BOLT M10X25, 4110C $5.37
00 421833-4 SPONGE SHEET, 4112H $1.26
2 224184-2 INNER FLANGE 100 4112H $14.61
3 257054-0 RING 20, 4110C $3.06
4 224184-2 INNER FLANGE 100 4112H $14.61
5 925216-5 HEX BOLT M5X16, HM1301 $1.34
5 925221-2 HEX BOLT M5X12 $0.66
6 345269-2 PRESSURE PLATE, 4112H $4.16
7 341853-1 PLATE B, 4110C $1.63
8 286289-6 CAP 32, 4112H $4.71
9 265845-5 C.S.N.BOLT M8X30,5037NB $2.40
10 125184-4 WHEEL COVER ASS'Y, 4112H $92.60
11 912202-5 C.S.H. SCREW M5X8, 4110C $0.53
12 345291-9 LOCK PLATE, 4112H $4.16
13 252648-6 THUMB NUT M8,4112H $7.02
14 273655-6 GRIP, 4112H $31.72
15 921432-7 HEX BOLT M8X20, 5177B $1.34
16 921432-7 HEX BOLT M8X20, 5177B $1.34
17 153541-6 SPINDLE,4112H $25.06
18 265502-5 HEX BOLT, 4112H $1.96
19 153539-3 BEARING BOX, 4114 $42.63
20 267041-1 F. WASHER 20, 9077SL $1.63
21 211326-7 B. BEARING 2012DDW, 3612BRA $19.56
22 285708-9 BEARING RETAINER 50, 4114 $4.16
23 911221-8 P.H. SCREW M5X16, JR3000V $0.86
24 213757-6 O RING 80,4114 $1.74
25 331644-8 LOCK SLEEVE, 4112H $19.78
26 233922-1 LOCK SPRING 24, 4112H $12.74
27 227438-6 SPIRAL BEVEL GEAR 48, 4112H $56.20
28 267251-0 FLAT WASHER 15, 4112H $7.02
29 961055-9 RETAINING RING S-15, 5007F $1.19
30 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
31 925261-0 HEX BOLT M5X40, 4112H $1.34
32 153542-4 GEAR HOUSING CPL., 4112H $50.89
33 252178-7 HEX NUT M8-12, 4112H $1.34
34 227440-9 SPIRAL BEVEL GEAR 9, 4112H $22.09
35 262554-7 RUBBER RING 36, 4112H $1.74
36 211228-7 BALL BEARING 6202DDW, HM1303B $15.27
37 267250-2 FLAT WASHER 30, 4112H $3.72
38 962157-4 RETAINING RING R-40, GA7911 $1.96
39 267251-0 FLAT WASHER 15, 4112H $7.02
40 240060-2 FAN 80, 4112H $4.16
41 516886-7 ARMATURE ASS'Y 115V, 4112H $105.15
42 681630-2 INSULATION WASHER 10, GA7021 $3.72
44 266059-9 T. SCREW, FLANGE 5X75,2414B $4.93
45 416131-9 BAFFLE PLATE, 4114 $1.63
46 626131-3 FIELD 115V, 4112H $63.30
47 183564-0 MOTOR HOUSING,4112H $30.49
48 819064-1 MAKITA MARK, 5402NA $1.26
49 643710-2 BRUSH HOLDER CAP, HM1800 $2.84
50 194993-2 CARBON BRUSH SET CB-210,4112H $10.43
51 850448-4 NAME PLATE, 4112H $1.48
52 421831-8 DUST COVER, 4112H $6.80
53 153546-6 SWITCH LEVER CPL., 4112H $10.65
54 417313-6 SWITCH BASE, 9015A $4.16
55 651169-9 SWITCH, 4114 $29.47
56 183566-6 HANDLE SET,4112H $22.42
57 266045-0 TAPPING SCREW 4X20, 9046 $1.19
58 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
59 687052-4 STRAIN RELIEF, HM1500B $1.26
60 682560-0 CORD GUARD 10, HM1202C $4.16
60 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
61 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
61 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
62 183566-6 HANDLE SET,4112H $22.42
65 924426-1 THUMB SCREW M8X20, 5402A $3.28
66 942201-3 SPRING WASHER 8, 2414NB $0.90
67 941201-0 F. WASHER 8, 5007NK $0.75
68 165343-8 BASE, 4112H $14.61
70 265506-7 SHOULDER HEX. BOLT M6, 4112H $4.93
71 265506-7 SHOULDER HEX. BOLT M6, 4112H $4.93
1001 782210-8 SOCKET WRENCH 17,2414B $6.40
