Makita 4110C Electric Saw Parts

Makita 4110C Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

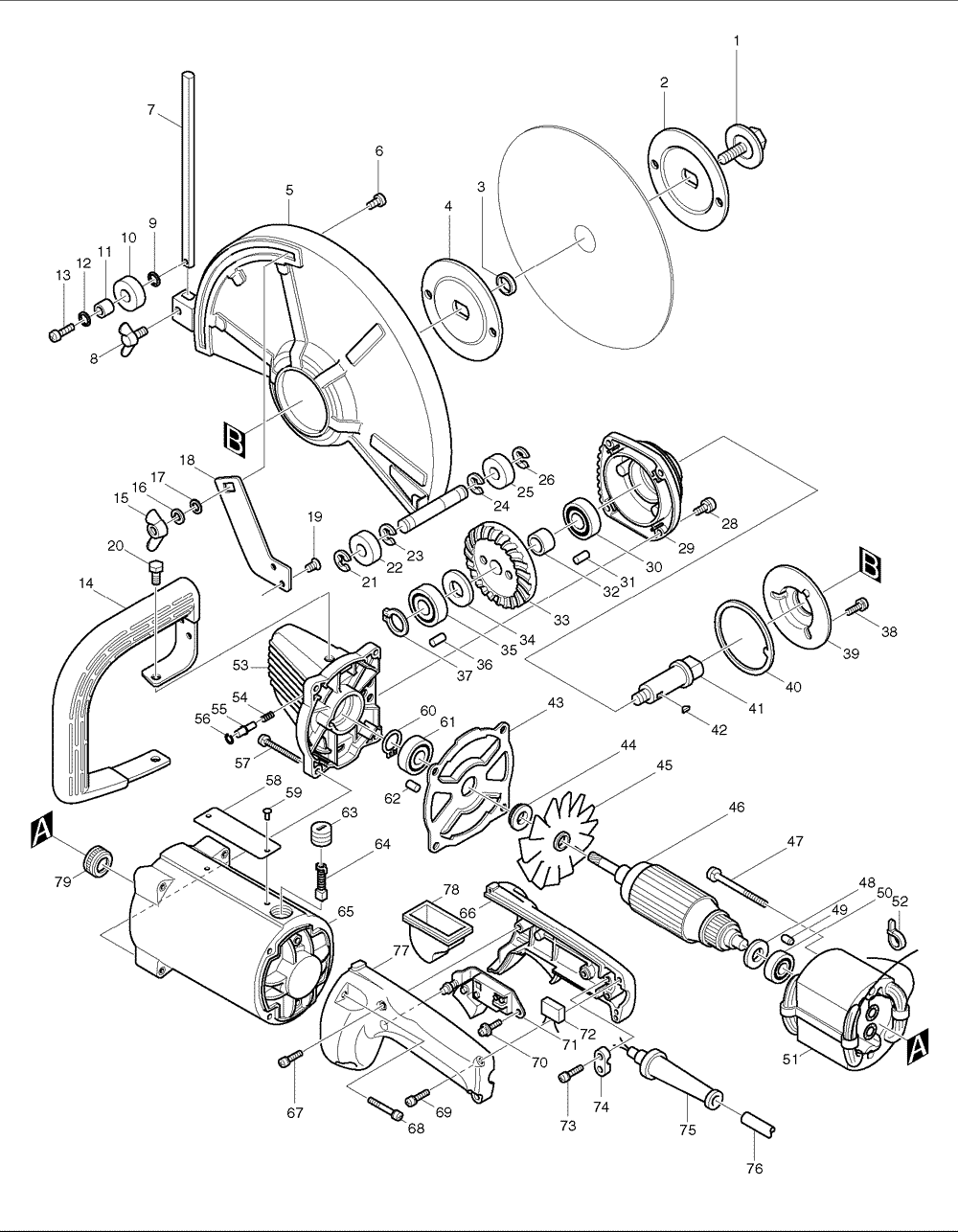

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	265265-3	HEX BOLT M10X25, 4110C	$5.37
51	524671-4	FIELD, 4110C	$86.50
2	224184-2	INNER FLANGE 100 4112H	$14.61
46	514711-6	ARMATURE, 4110C	$196.72
3	257054-0	RING 20, 4110C	$3.06
5	150180-3	SAFETY COVER COMPLETE, 4110C	$65.60
4	224184-2	INNER FLANGE 100 4112H	$14.61
5	150180-3	SAFETY COVER COMPLETE, 4110C	$65.60
6	251918-0	C.S.N. BOLT M8X24, 4110C	$2.40
7	256923-2	ROD 12-210, 4110B	$5.92
8	251859-0	THUMB SCREW M8X12, 4110B	$3.61
9	253143-9	F. WASHER 12, 2702	$1.63
10	257091-4	RING 12, 4110C	$4.49
11	257580-9	SLEEVE 8, 4110B	$1.34
12	253143-9	F. WASHER 12, 2702	$1.63
13	911432-5	P.H. SCREW M8X20, 4110C	$1.19
14	273615-8	GRIP, 4110C	$26.16
15	934401-9	WING NUT M8, 4110C	$1.96
16	942201-3	SPRING WASHER 8, 2414NB	$0.90
17	941201-0	F. WASHER 8, 5007NK	$0.75
18	341854-9	LOCK PLATE, 4110C	$4.49
19	912202-5	C.S.H. SCREW M5X8, 4110C	$0.53
20	921422-0	HEX BOLT M8X16, 4110C	$1.96
21	961015-1	STOP RING E-9, BO5021	$0.86
22	257091-4	RING 12, 4110C	$4.49
23	961015-1	STOP RING E-9, BO5021	$0.86
24	961015-1	STOP RING E-9, BO5021	$0.86
25	257091-4	RING 12, 4110C	$4.49
26	961015-1	STOP RING E-9, BO5021	$0.86
28	922236-0	H.S.H. BOLT M5X22, 4110C	$1.96
29	152203-3	HOUSING W/O BEARING,4110B	$26.92
30	211256-2	B. BEARING 6203LLB, GA7001L	$10.98
31	263002-9	RUBBER PIN 4, 5007NK	$0.86
32	257576-0	SLEEVE 17, 4110C	$3.06
33	221353-6	SPIRAL B. GEAR, 4110C	$71.30
34	253180-3	F. WASHER 10, 6906	$1.63
35	211066-7	B. BEARING 6200LLB, BO4552	$10.98
36	263002-9	RUBBER PIN 4, 5007NK	$0.86
37	961006-2	RETAINING RING S-10, N9501B	$0.86
38	911206-4	P.H. SCREW M5X10, 1806B	$0.53
39	162107-1	PRESSURE PLATE, 4110C	$5.92
40	341853-1	PLATE B, 4110C	$1.63
41	321443-6	SPINDLE, 4110C	$26.92
42	254001-2	WOODRUFF KEY 4, HM1810	$1.26
43	343453-3	BAFFLE PLATE, 4110C	$19.78
44	321444-4	BUSH 15, 4110C	$4.49
45	241317-4	FAN 100, 4110C	$10.32
46	514711-6	ARMATURE, 4110C	$196.72
47	911938-3	P.H. SCREW M5X85, 4110C	$3.61
50	211088-7	BALL BEARING 6000DDW, 9005B	$13.07
51	524671-4	FIELD, 4110C	$86.50
52	687010-0	BAND, 9005B	$0.46
53	157905-6	GEAR HOUSING, 4110C	$53.60
54	231240-1	COMP. SPRING 7, 2414B	$0.79
55	256633-1	PIN 6, LS1016L	$1.48
56	231928-3	RING SPRING 8, LS1013	$0.86
57	911261-6	P.H. SCREW M5X40, 9900B	$1.19
58	854730-3	NAME PLATE, 4110C	$3.67
59	953106-2	RIVET 0-5, HM1500	$0.49
60	961055-9	RETAINING RING S-15, 5007F	$1.19
61	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
62	263005-3	RUBBER PIN 6, BHP452	$0.86
63	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
64	CB154	CARBON BRUSH SET, Replacement of 194986-9	$8.12
65	156738-6	MOTOR HOUSING, 4110B,T1	$42.22
65	159687-6	MOTOR HOUSING, 4110C	$49.57
66	181442-8	HANDLE SET, 4110C	$26.38
67	911148-2	P.H. SCREW M4X25, 5057KB	$0.86
68	911248-8	P.H. SCREW M5X28, HM1500	$1.19
69	911148-2	P.H. SCREW M4X25, 5057KB	$0.86
70	911113-1	P.H. SCREW M4X10, 4301BV	$0.86
71	651131-4	SWITCH, HM1810	$28.56
73	911133-5	P.H. SCREW M4X18, N9501B	$0.86
74	687001-1	STRAIN RELIEF, 6013BR	$0.97
75	682505-8	CORD GUARD, 2711	$2.51
75	Boot-A	Strain Relief fits 14/3 AWG only	$4.19
76	664463-0	CORD (2X14X8 SJ), 5007NK	$21.76
76	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
77	181442-8	HANDLE SET, 4110C	$26.38
78	421279-4	DUST COVER, 4110C	$3.06
79	421417-8	RUBBER RING, 1805B(T1)	$4.71
79	421490-8	RUBBER RING 26, 4110C	$5.92
401	782210-8	SOCKET WRENCH 17,2414B	$6.40
404	122263-9	BASE SET ASSY, 4110B	$26.92
405	941201-0	F. WASHER 8, 5007NK	$0.75
406	942201-3	SPRING WASHER 8, 2414NB	$0.90
407	924416-4	THUMB SCREW M8X15, 4110C	$1.96
408	941151-9	F. WASHER 6, 5007NB	$0.75
409	942151-2	SPRING WASHER 6, 5007NB	$0.90
410	924311-8	THUMB SCREW M6X12, 3612BR	$1.96
