Makita 4101RH Electric Saw Parts

Makita 4101RH Electric Saw Parts Image

Makita 4101RH Parts
5 inch Wet Cutting Masonry Saw

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 4101RH
5 inch Wet Cutting M...
$324.99
Free Shipping

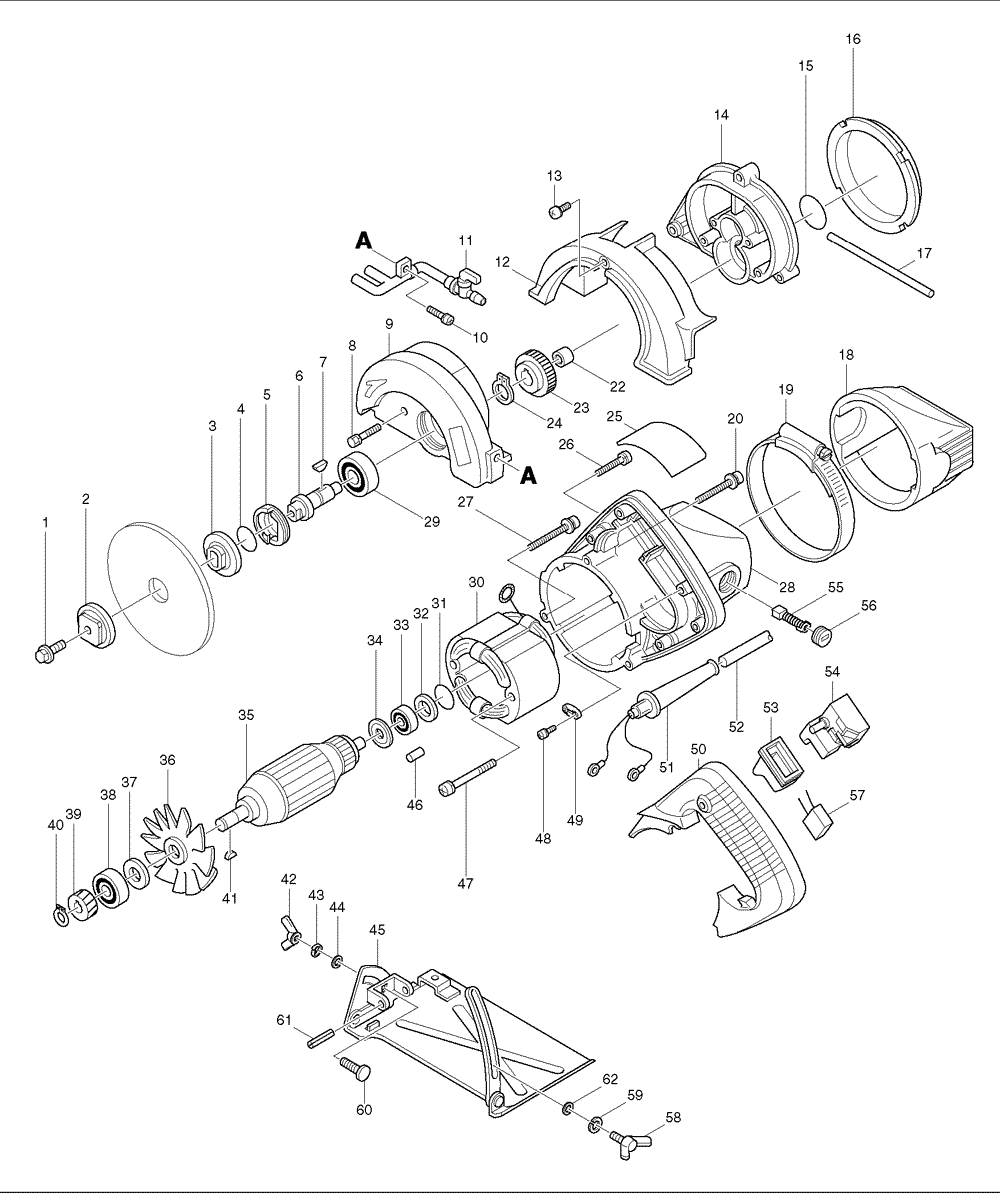

Tool Diagram    (Click image to Zoom in) View larger Image
Makita 4101RH Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 266133-3 HEX BOLT M6X20, 5620DWA $1.48
00 652257-5 CLAMP WASHER, 4101RH $0.75

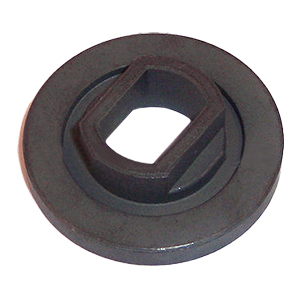

2 224081-2 OUTER FLANGE, 4200H $7.46
00 412087-4JPN VINYL TUBE 4, 4101RH $33.55

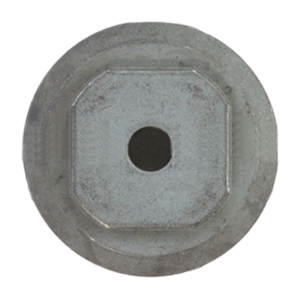

3 224080-4 INNER FLANGE, 4200H $8.78
4 213255-0 O RING 18, 4200H $0.86
5 285815-8 BEARING RETAINER, 4100NH $4.49
6 321197-5 SPINDLE, 4200H $16.04
7 254001-2 WOODRUFF KEY 4, HM1810 $1.26
8 925146-0 HEX BOLT M4X25, 4101RH $1.08
9 151509-6 BLADE CASE CPL.,4101RH $26.92
10 911123-8 P.H. SCREW M4X14, N9501B $0.86
11 153409-6 WATER SUPPLY PIPE CPL,4101RH $15.93
12 410910-7 COVER B, 4101RH $10.32
13 911203-0 P.H. SCREW M5X8, 4101RH $1.19
14 150926-7 GEAR HOUSING CPL.,4101RH $26.82
15 213407-3 O RING 26, 4200H $1.19
16 415403-9 BAFFLE PLATE, 4101RH $1.63
17 423155-8 SEAL RUBBER, 4101RH $1.26
18 414074-9 COVER A, 4101RH $8.78
19 163282-6 CLAMP 90, 4101RH $5.48
20 911258-5 P.H. SCREW M5X35, 9045N $1.19
22 212004-2 N.BEARING 810,4200N $5.92
23 226420-2 HELICAL GEAR 41, 4200H $12.74
24 961052-5 RETAINING RING S-12, 9218PBL $0.86
25 851596-2 NAME PLATE, 4101RH $1.48
26 911148-2 P.H. SCREW M4X25, 5057KB $0.86
27 911263-2 P.H. SCREW M5X40, 4131 $1.74
28 151771-3 MOTOR HOUSING CPL.,4101RH $30.49
29 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
30 522841-9 FIELD ASS'Y 115V, 4101RH $40.18
31 213262-3 O RING 18, 5005BA $1.96
32 253192-6 F. WASHER 14, HR2400 $1.63
33 211033-2 B. BEARING 608LB, 5091D $8.78
34 681613-2 INS. WASHER, JN3200 $1.63
35 518624-3 ARMATURE ASS'Y 115V, 4101RH $73.50
36 240007-6 FAN 68, 4101RH $3.06
37 253741-9 F. WASHER 9, 4200N $2.18
38 210042-8 BALL BEARING 629LLB, 5277NB $6.03
38 211056-0 B. BEARING 629LLB, 4101RH $10.98
39 226419-7 HELICAL GEAR 19, 4200H $9.66
40 961004-6 RETAINING RING S-8, DA391D $0.53
41 254002-0 WOODRUFF KEY 3, 9005B $0.97
42 252623-2 WING NUT M6, 4101RH $3.61
43 942151-2 SPRING WASHER 6, 5007NB $0.90
44 941151-9 F. WASHER 6, 5007NB $0.75
45 168216-4 BASE, 4101RH $23.96
46 263002-9 RUBBER PIN 4, 5007NK $0.86
47 911290-9 P.H. SCREW M5X65, GA7911 $1.96
48 911133-5 P.H. SCREW M4X18, N9501B $0.86
49 687063-9 STRAIN RELIEF, 4323K $1.26
50 152597-6 HANDLE COVER CPL.,4101RH $9.33
51 682502-4 CORD GUARD 8-85, HP2010N $2.51
51 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
52 699008-5 POWER SUPPLY CORD UNIT $143.95
53 421329-5 DUST COVER, 4101RH $3.06
55 194996-6 CARBON BRUSH CB-303 SET, 9227C $8.12
56 643755-0 BRUSH HOLDER CAP, JR3020 $3.06
58 251886-7 WING BOLT M6X10, 4101RH $2.40
59 942151-2 SPRING WASHER 6, 5007NB $0.90
60 251919-8 C.S.N. BOLT M6X20, 5402NA $1.34
61 951219-3 SPRING PIN 6-32, 4200H $1.96
62 941151-9 F. WASHER 6, 5007NB $0.75
63 654532-5 TERMINAL BLOCK, BO4556 $3.06
64 632829-2 LEAD UNIT, 4101RH $3.06
65 652014-1 P.H. SCREW M4X8, 2708 $0.75
1001 410047-0 WRENCH HOLDER, GV5000 $1.63
1003 165263-6 WATER SUPPLY PLUG, 4101RH $4.49
1004 A-90934 DIAMOND WHEEL 5,4101RH,WET $41.20
1005 781011-1 SPANNER, 2708 $13.20
1006 783203-8 HEX WRENCH 5, 2708 $3.24
1007 165264-4 PRESSURE REGULATOR, 4101RH $12.63
