Makita 4100NH Electric Saw Parts

Makita 4100NH Parts

4-3/8 Inch Dry Cut Masonry Saw

Download Schematic

Time to buy a new tool?

Makita 4100NH

4-3/8 Inch Dry Cut M...

$134.99

Free Shipping

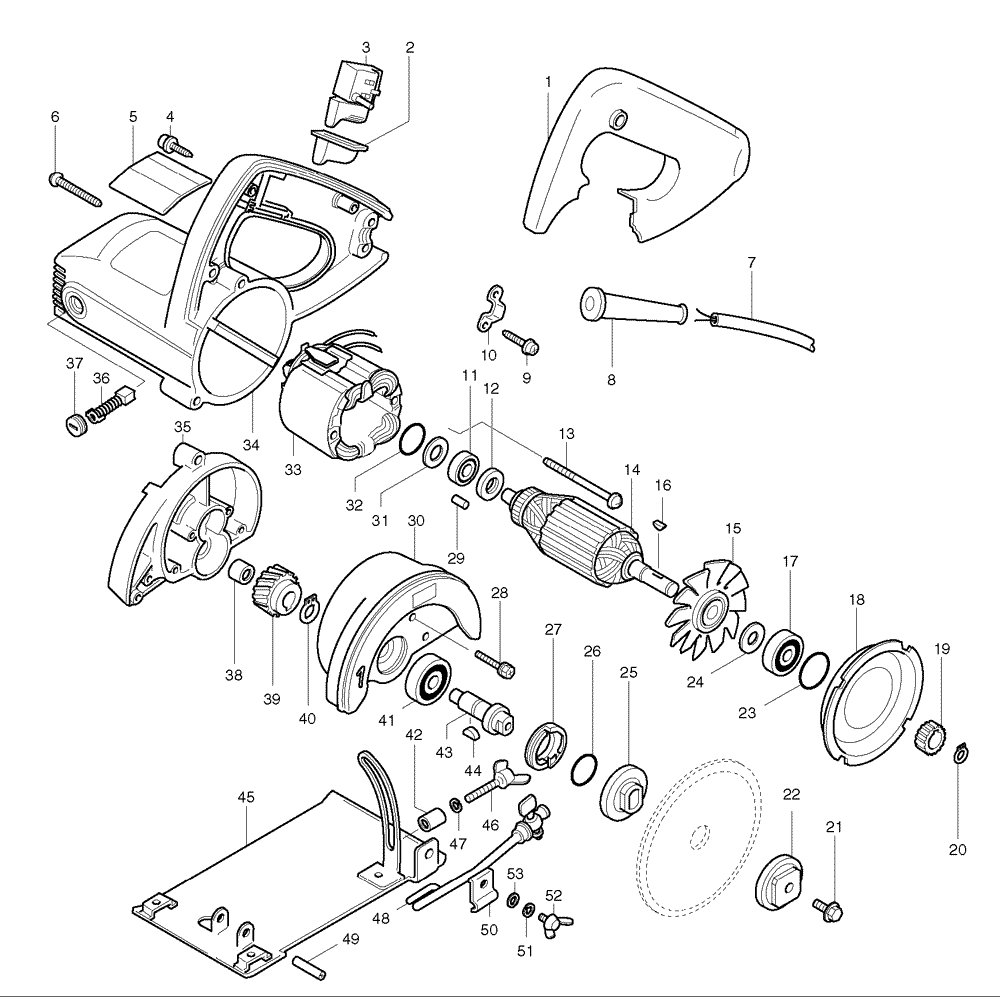

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	415600-7	HANDLE COVER, 4100NH	$4.27
2	421329-5	DUST COVER, 4101RH	$3.06
4	266045-0	TAPPING SCREW 4X20, 9046	$1.19
5	859871-0	NAME PLATE, 4100NH	$2.86
6	911263-2	P.H. SCREW M5X40, 4131	$1.74
7	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
7	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
8	682502-4	CORD GUARD 8-85, HP2010N	$2.51
8	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
9	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
10	687063-9	STRAIN RELIEF, 4323K	$1.26
11	211033-2	B. BEARING 608LB, 5091D	$8.78
12	681625-5	INS. WASHER, 5007NK	$1.63
13	266029-8	T. SCREW FLANGE PT 5X65,JR3020	$1.96
14	516216-2	ARMATURE, 4100NH	$30.60
15	240007-6	FAN 68, 4101RH	$3.06
16	254002-0	WOODRUFF KEY 3, 9005B	$0.97
17	210042-8	BALL BEARING 629LLB, 5277NB	$6.03
18	343289-0	BAFFLE PLATE, 4200H	$3.06
19	226440-6	HELICAL GEAR 19 4200NH	$6.14
19	226683-0	HELICAL GEAR 17, 4200NH	$4.49
20	961004-6	RETAINING RING S-8, DA391D	$0.53
21	265226-3	H.F.H. BOLT M6X17, 5005BA	$1.96
22	224081-2	OUTER FLANGE, 4200H	$7.46
23	213407-3	O RING 26, 4200H	$1.19
24	253741-9	F. WASHER 9, 4200N	$2.18
25	224080-4	INNER FLANGE, 4200H	$8.78
26	213255-0	O RING 18, 4200H	$0.86
27	285815-8	BEARING RETAINER, 4100NH	$4.49
28	925146-0	HEX BOLT M4X25, 4101RH	$1.08
29	263002-9	RUBBER PIN 4, 5007NK	$0.86
30	150647-1	BLADE CASE CPL.,4100NH	$8.45
31	253192-6	F. WASHER 14, HR2400	$1.63
32	213262-3	O RING 18, 5005BA	$1.96
33	594341-9	FIELD ASS'Y 115V, 4100NH	$17.36
34	158268-3	MOTOR HOUSING CPL.,4100NH	$16.59
35	159911-7	GEAR HOUSING, 4100NH	$11.09
36	194996-6	CARBON BRUSH CB-303 SET, 9227C	$8.12
37	643750-0	BRUSH HOLDER CAP, HM1100C	$1.63
38	212004-2	N.BEARING 810,4200N	$5.92
39	226441-4	HELICAL GEAR 42,4200NH	$8.78
39	226684-8	HELICAL GEAR 41, 4200NH	$4.49
40	961052-5	RETAINING RING S-12, 9218PBL	$0.86
41	211129-9	BALL BEARING 6201DDW, GA4030	$13.07
42	257507-9	SLEEVE 7, 4100NH	$1.63
43	321197-5	SPINDLE, 4200H	$16.04
44	254001-2	WOODRUFF KEY 4, HM1810	$1.26
45	164195-4	BASE, 4100NH	$7.02
46	924341-9	WING BOLT M6X28,4100NH	$1.96
47	942151-2	SPRING WASHER 6, 5007NB	$0.90
49	951219-3	SPRING PIN 6-32, 4200H	$1.96
1003	781011-1	SPANNER, 2708	$13.20
1004	782209-3	SOCKET WRENCH, 4200H	$6.40
1005	A-94546	4 DIAMOND BLADE TURBO GEN/PURP, 4100NH	$35.20
