Makita 4013D Cordless Vacuum Parts

Makita 4013D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

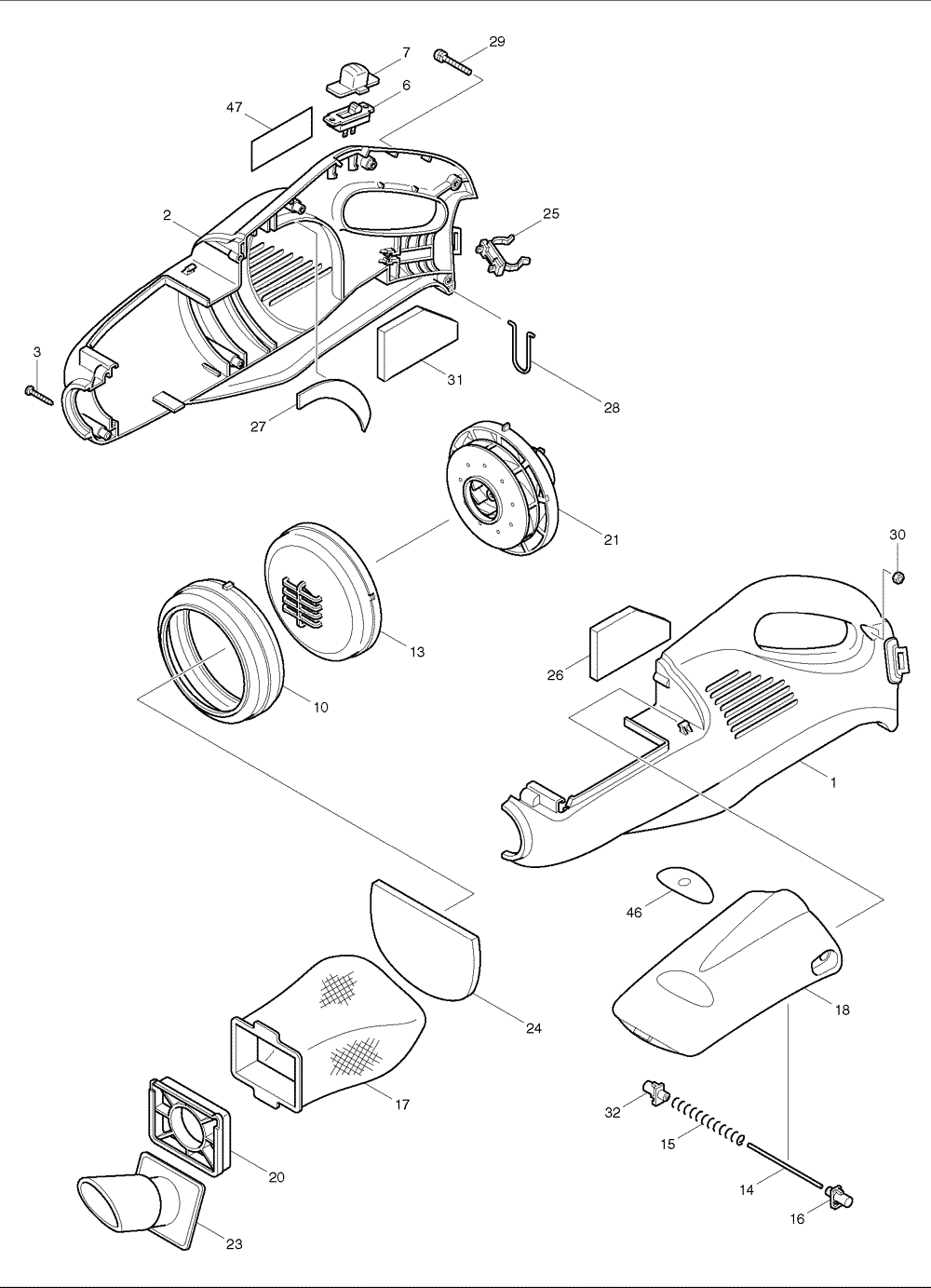

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	KW00000500	HOUSING SET, 4013D	$12.63
2	KW00000500	HOUSING SET, 4013D	$12.63
3	266127-8	TAPPING SCREW PT 3X20, 4073D	$0.53
6	KW00000501	SWITCH, 4013D	$3.61
7	KW00000502	SWITCH COVER CPL., 4013D	$0.75
10	421554-8	RUBBER RING, 4073D	$4.49
13	KW00000504	FAN COVER, 4013D	$1.26
14	256839-1	ROD 2.5, 4073D	$1.26
15	233161-3	COMPRESSION SPRING 6, 4073D	$1.63
16	416032-1	HOOK, 4073D	$1.52
17	166043-3	DUST BAG, 4073D	$4.40
18	150624-3	FRONT COVER COMPLETE (IVORY),4073D	$5.92
20	421553-0	PACKING, 4073D	$4.16
21	KW00000505	12.OV DC MOTOR, 4013D	$21.76
23	KW00000021	INLET, 4013D	$4.16
24	423287-1	SPONGE SHEET 70-106, 4073D	$4.16
25	643909-9	BATTERY HOLDER, DA392D	$4.49
26	KW00000506	SPONGE SHEET 65X65, 4013D	$2.84
27	KW00000507	SPONGE SHEET, 4013D	$0.75
28	322867-9	HANGER, 4073D	$0.97
29	911158-9	P.H. SCREW M4X30, 9045B	$0.86
31	KW00000506	SPONGE SHEET 65X65, 4013D	$2.84
32	416032-1	HOOK, 4073D	$1.52
47	KW00000508	NAME PLATE, 4013D	$1.21
1002	416042-8	PIPE (IVORY), 4073D	$10.20
1003	416041-0	SASH NOZZLE (IVORY), CL100	$4.40
1004	194566-1	PAPER FILTER (5/PK),4013D	$7.40
