Makita 3706 Electric Saw Parts

Makita 3706 Electric Saw Parts Image

Makita 3706 Parts
Drywall Cutout Tool

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 3706
Drywall Cutout Tool
$96.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image
Makita 3706 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 853169-7 NAME PLATE, 3706 $1.36
2 265995-6 TAPPING SCREW 4X18, BO4556K $0.86

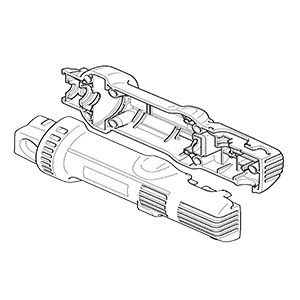

3 183337-1 HOUSING SET, 3706 $16.04
5 265750-6 THUMB SCREW M5X10, 3706 $3.28
6 942101-7 SPRING WASHER 5, 9005B $0.90
7 941101-4 F. WASHER 5, 5007NK $0.75
8 344964-1 SHOE PLATE, 3706 $4.16
9 911111-5 P.H. SCREW M4X10, LS1011 $0.53
10 344965-9 SHOE SUPPORT, 3706 $4.16
12 763606-2 COLLET NUT, 3707FC $6.47
13 763608-8 1/4 COLLET, 3700B $10.60
14 211236-8 BALL BEARING 6002DDW, 5007NK $13.07
15 961055-9 RETAINING RING S-15, 5007F $1.19
16 652008-6 P.H. SCREW M3.5X7, PV7001C $0.49
17 651423-1 SWITCH, RD1100/1101 $13.84
18 232166-0 LEAF SPRING, 3706 $2.07
19 417500-7 SWITCH LEVER, 3706 $1.52
20 240044-0 FAN 56, 3706 $4.16
21 517546-4 ARMATURE ASS'Y 115V, 3706 $53.80
22 595041-4 FIELD ASS'Y 115V, 3706 $19.01
23 210017-7 BALL BEARING 607DDW, 420S,T2 $10.98
24 421479-6 RUBBER RING 19, JN1601 $4.49
25 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
26 687063-9 STRAIN RELIEF, 4323K $1.26
27 682559-5 CORD GUARD 8, 6824 $2.51
27 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
28 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
28 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
29 263002-9 RUBBER PIN 4, 5007NK $0.86
30 643552-4 BRUSH HOLDER, BO5012K $1.63
32 183337-1 HOUSING SET, 3706 $16.04
33 819063-3 MAKITA LABEL, DA3010F $0.96
34 256465-6 PIN 4-6.5, 3706 $4.93
35 233072-2 COMPRESSION SPRING 8, 9523NB $0.86
36 417236-8 PIN CAP, 9566CV $1.52
39 961055-9 RETAINING RING S-15, 5007F $1.19
1001 423319-4 WRENCH HOLDER, 3706 $2.84
1002 781008-0 WRENCH 17, 9217SPC $4.40
1003 193452-3 1/8 DRYWALL GUIDE TIP BIT,10/PK, 3706 $18.80
1004 193454-9 CIRCULAR GUIDE,3706 $40.20
1005 193455-7 DUST COLLECTOR,3706 $18.80
1006 193500-8 1/8 GENERAL PURPOSE BIT 5/PK, 3706 $12.60
1008 763660-6 COLLET CONE 3.18, 3706 $29.00
5001 810134-9 CAUTION LABEL, 3709 $0.93
