Makita 3703 Trimmer Parts

Makita 3703 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

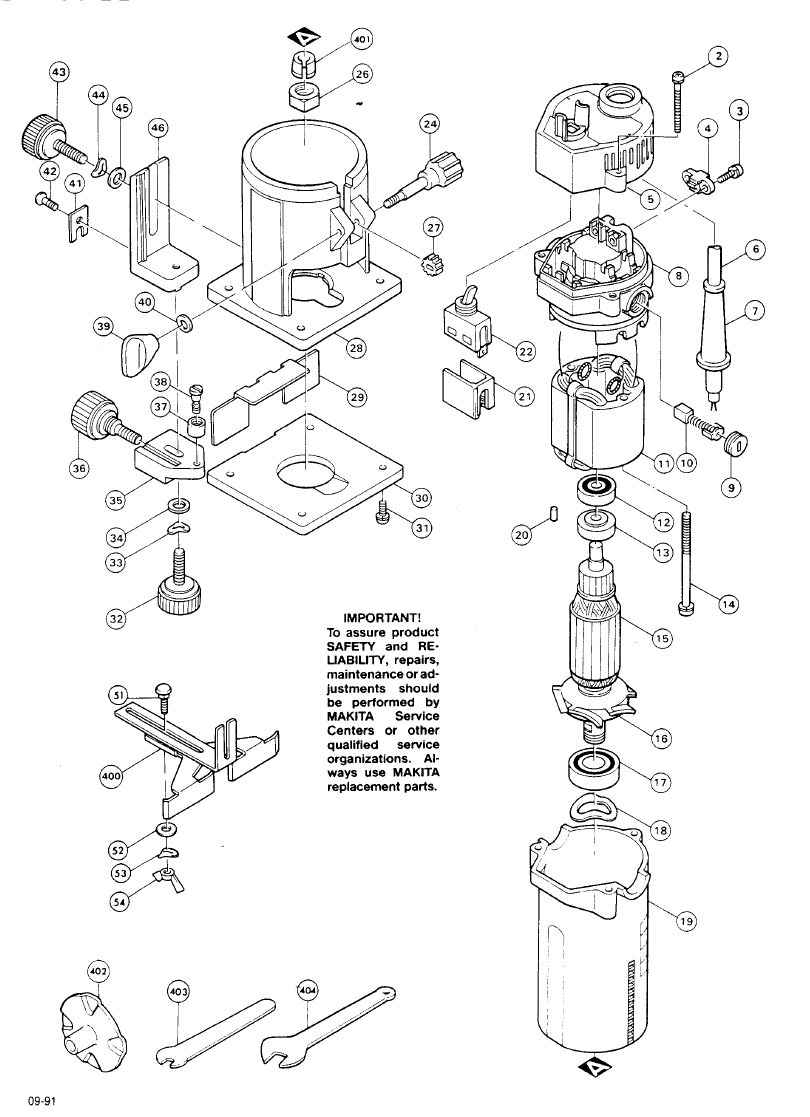

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	911168-6	P.H. SCREW M4X40, 6905B	$0.86
3	265941-9	TAPPING SCREW M4X18, N1900B	$0.86
4	687052-4	STRAIN RELIEF, HM1500B	$1.26
5	410062-4	REAR COVER, 3705	$5.92
6	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
6	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
7	682502-4	CORD GUARD 8-85, HP2010N	$2.51
7	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
8	159301-4	MOTOR REAR HOUSING, 3703	$20.55
9	643550-8	BRUSH CAP , 9031	$1.63
1 1	593146-4	FIELD,3703	$17.25
12	211028-5	B. BEARING 627LB, 6510LVR	$8.78
13	681614-0	INS. WASHER, 9031	$1.63

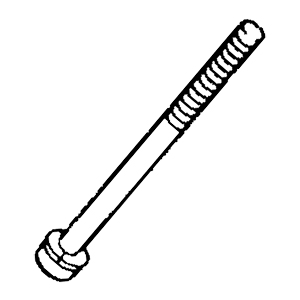

14	251371-0	P. H. SCREW M4X70, N9501B	$1.96
15	511916-9	ARMATURE, 3703	$77.50
16	241615-6	FAN 52, 3700B	$8.78
17	211223-7	BALL BEARING 6002LLUX, 3709	$17.80
18	253905-5	W. WASHER 23, 3700B	$1.63
19	414567-6	MOTOR HOUSING, 3703	$15.71
20	263014-2	RUBBER PIN 4, 9217SPC	$1.19
21	410069-0	SWITCH HOLDER, 3705	$2.51
22	651467-1	SWITCH,3705	$27.04
24	251890-6	SCREW, 3703	$8.78
26	763606-2	COLLET NUT, 3707FC	$6.47
27	226217-9	SPUR GEAR 16, 3703	$2.95
28	411930-4	BASE, 3703	$20.33
30	410585-2	BASE PROTECTOR, 3709	$4.49
31	251308-7	PAN HEAD SCREW M4X10, 2702	$0.86
32	251815-0	SCREW M6X25, 9900B	$1.96
33	253903-9	W. WASHER 6, 2414NB	$1.01
34	941151-9	F. WASHER 6, 5007NB	$0.75
39	252632-1	WING NUT M5, 3703	$7.57
40	941101-4	F. WASHER 5, 5007NK	$0.75
41	341136-9	HOOK, 3709	$1.52
42	912116-8	C.S.H. SCREW M4X12, 5201NA	$0.86
43	251815-0	SCREW M6X25, 9900B	$1.96
44	253903-9	W. WASHER 6, 2414NB	$1.01
45	941151-9	F. WASHER 6, 5007NB	$0.75
51	251919-8	C.S.N. BOLT M6X20, 5402NA	$1.34
52	941151-9	F. WASHER 6, 5007NB	$0.75
53	253903-9	W. WASHER 6, 2414NB	$1.01
54	934301-3	WING NUT M6, N1900B	$1.96
401	763608-8	1/4 COLLET, 3700B	$10.60
402	343577-5	TEMPLET GUIDE 10, 3702B	$6.20
403	781003-0	SPANNER, 3700B	$4.40
404	781008-0	WRENCH 17, 9217SPC	$4.40
