Makita 3612BRA Router Parts

Makita 3612BRA  Router Parts Image

Makita 3612BRA Parts
Time to buy a new tool?

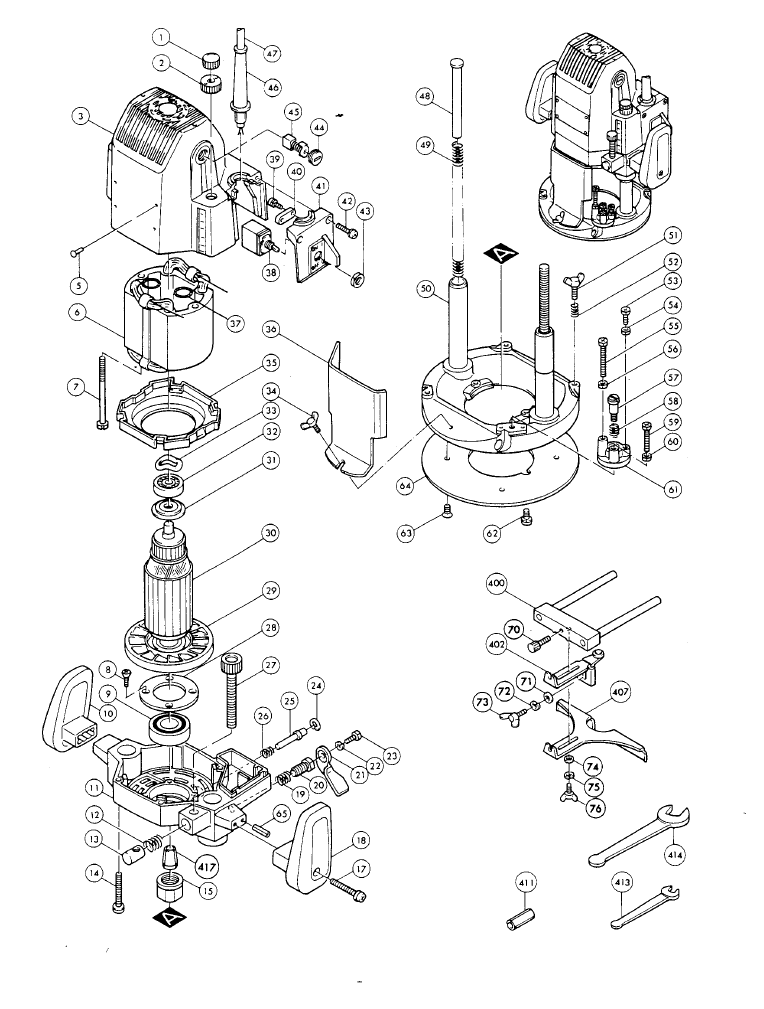

Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
1 252625-8 NUT M10, 3612BR $5.92
2 410129-8 NYLON NUT M10, 3612C $1.96
3 157109-0 MOTOR HOUSING, 3612BR $57.80
5 624706-2 FIELD, 3612BR $46.41
6 953106-2 RIVET 0-5, HM1500 $0.49
7 911938-3 P.H. SCREW M5X85, 4110C $3.61
7 925901-0 FIELD SCREW M5X85, 9609B,T1 $1.48Disc
8 912121-5 C.S.H. SCREW M4X14, 4200H $0.86
9 211326-7 B. BEARING 2012DDW, 3612BRA $19.56
9 211321-7 BALL BEARING 2012LLB, 3612BR,T1 $9.22Disc
10 410127-2 KNOB (L), 3612BR $7.46
11 * GEAR 47-57 $0.00Disc
12 231142-1 COMP. SPRING, 3612B, 3612BR $0.86
13 323559-3 HALF NUT, 3612BRA $7.57
14 911261-6 P.H. SCREW M5X40, 9900B $1.19
15 763629-0 COLLET NUT, 3612BR $16.04
17 911363-8 P.H. SCREW M6X40, LS1211 $1.48
18 410126-4 KNOB (R), 3612BR $7.46
19 231574-2 TOR. SPRING 15, 3612BR $2.07
20 265813-8 SET BOLT M10, 3612BR $8.78
21 341933-3 LOCK LEVER, 3612BR $3.06
22 942101-7 SPRING WASHER 5, 9005B $0.90
23 265269-5 HEX BOLT M5X12, 3612BR $1.08
24 962062-5 RETAINING RING R-12, 3612 $1.19
25 256606-4 PIN 6, 3612BR, 9300 $1.96
26 231037-8 COMP. SPRING 7, GA7001L $0.79
27 251861-3 SCREW M10X77, 3612BR $5.37
28 285657-0 BEARING RETAINER 50, 3612BR $3.06
29 241823-9 FAN 92, 3612BR $8.78
30 614740-0 ARMATURE, 3612BR,3612BRA $160.06
31 681624-7 INS. WASHER, HM1800,T1 $1.34Disc
31 681635-2 INSULATION WASHER, HM1211B $1.63
32 211068-3 B. BEARING 6200LB, 6820V $10.98
33 253913-6 W. WASHER 20, 3612BR $1.34
34 924206-5 THUMB SCREW M5X10, 5077B $1.48
35 410258-7 BAFFLE PLATE, 3612BR $3.06
36 410128-0 CHIP DEFLECTOR, 3612BR $4.49
37 654020-2 GARTER SPRING, 5007NK $1.34
38 651481-7 SWITCH STE215K, HM1202C $27.54
38 651471-0 SUBS TO 651481-7 SWITCH, 3612BR-T1 $25.83Disc
39 911121-2 P.H. SCREW M4X14, 9217SPC $0.53
40 687001-1 STRAIN RELIEF, 6013BR $0.97
41 410297-7 SWITCH COVER, 3612BR $2.51
42 911138-5 P.H. SCREW M4X20, 9218SB $0.86
43 652102-4 HEX NUT M12, 3612BR $1.34
44 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
45 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
45 643153-8 CARBON BRUSH 153, 5012B $4.71Disc
45 K21 This item will be shipped Free Carbon Brush Set of 2 Piece Replaces Makita (CB-... $8.50
46 682504-0 CORD GUARD 10-85, 4200H $2.51
47 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
47 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
48 314062-5 POLE, 3612C $3.06
49 231329-5 COMP. SPRING 11, 3612BR $4.16
50 151158-9 BASE, 3612BR $73.50
51 924216-2 THUMB SCREW M5X15, 9030 $1.48
52 231240-1 COMP. SPRING 7, 2414B $0.79
53 265333-2 HEX BOLT M5X16, 3620 $1.08
54 931202-6 HEX NUT M5, HR2410 $0.79
55 265336-6 HEX BOLT M5X40, 3612C $1.34
56 931202-6 HEX NUT M5, HR2410 $0.79
57 251423-7 SCREW M6, 3612BR $3.61
58 231231-2 COMP. SPRING 12, 3612BR $1.63
59 265335-8 HEX BOLT M5X28, 3620 $1.34
60 931202-6 HEX NUT M5, HR2410 $0.79
61 134205-1 STOPPER,3612BR $16.04
62 911206-4 P.H. SCREW M5X10, 1806B $0.53
63 912107-9 C.S.H. SCREW M4X8, 5037NB $0.53
64 413024-1 BASE PLATE, 3612C $11.75
65 951160-0 SPRING PIN 5-18, 3612BR $1.48
70 251830-4 SCREW M10X34, 3612C $5.37
71 941101-4 F. WASHER 5, 5007NK $0.75
72 942101-7 SPRING WASHER 5, 9005B $0.90
73 924206-5 THUMB SCREW M5X10, 5077B $1.48
74 941151-9 F. WASHER 6, 5007NB $0.75
75 942151-2 SPRING WASHER 6, 5007NB $0.90
76 924311-8 THUMB SCREW M6X12, 3612BR $1.96
400 132306-9 GUIDE BASE ASSEMBLY $0.00Disc
402 123022-4 TRIMMER GUIDE ASSEMBLY $0.00Disc
407 342428-9 STRAIGHT GUIDE $0.00Disc
411 763803-0 1/4 COLLET SLEEVE, 3612BR $10.00
413 781213-9 WRENCH, 3612BR, 3620 $4.40
414 781210-5 WRENCH 24 $0.00Disc
417 763622-4 1/2 COLLET CONE, 3612BR $39.40
