Makita 3606 Router Parts

Makita 3606 Router Parts Image

Makita 3606 Parts
1 H.P. Router, 30,000 RPM

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 3606
1 H.P. Router, 30,00...
$129.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

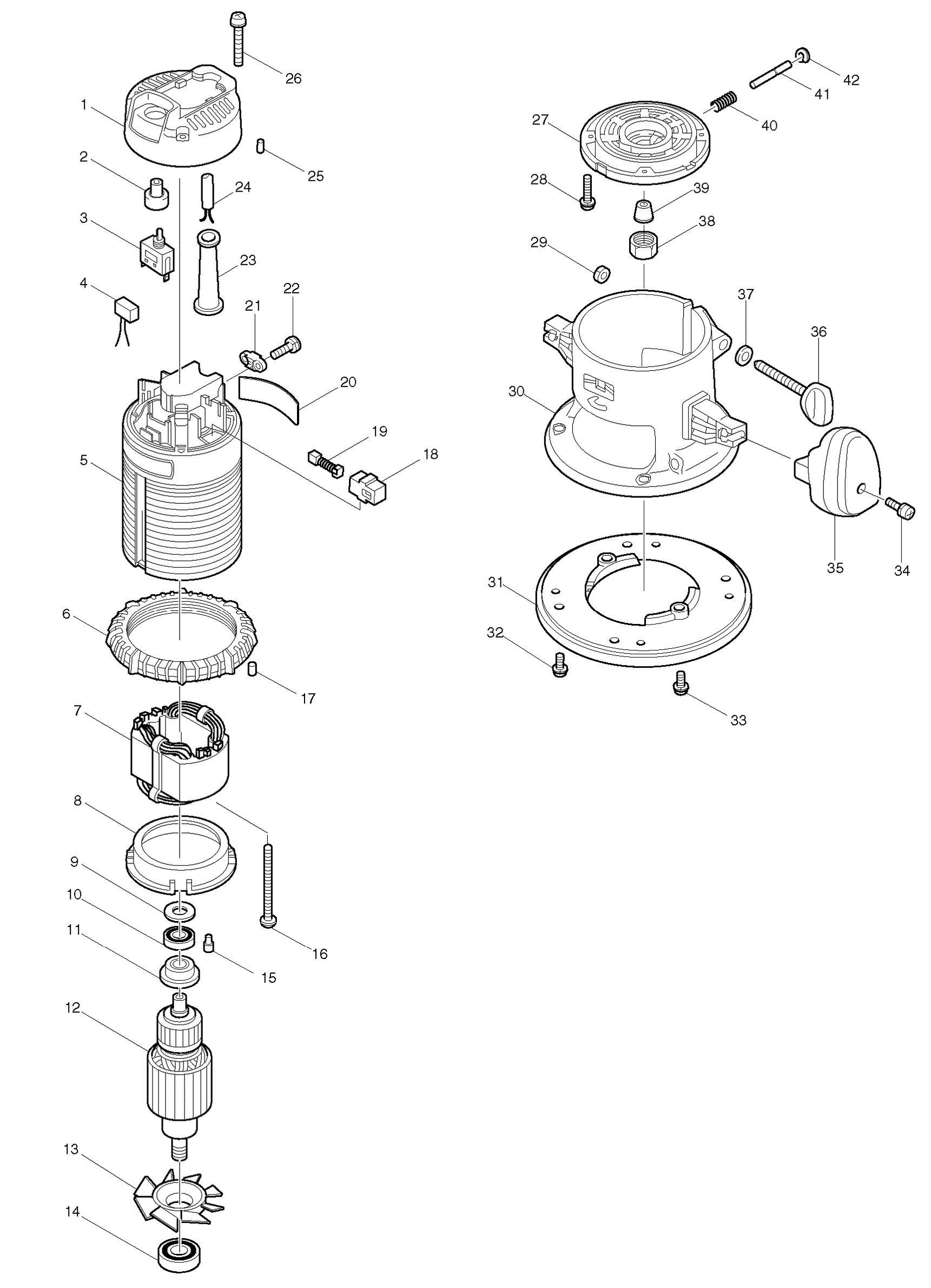

Makita 3606 Router Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 154380-7 REAR COVER, 3606 $10.32
7 594061-5 FIELD ASSEMBLY, 3606 $28.86
2 652154-5 CAP, 3606 $1.26
12 518643-9 ARMATURE ASS'Y, 3606 $81.60
2 652154-5 CAP, 3606 $1.26
3 651433-8 SWITCH, 9523NB $11.31
5 159037-5 MOTOR HOUSING, 3606-T1 $29.58
5 159816-1 MOTOR HOUSING, 3606 $21.76

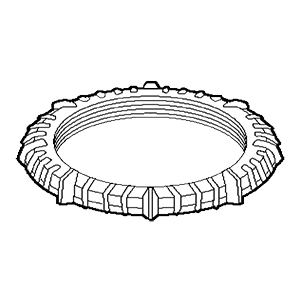

6 154382-3 RING, 3606 $13.73
7 594061-5 FIELD ASSEMBLY, 3606 $28.86
8 414315-3 BAFFLE PLATE, 3606 $3.06
9 253192-6 F. WASHER 14, HR2400 $1.63
10 211033-2 B. BEARING 608LB, 5091D $8.78
11 681625-5 INS. WASHER, 5007NK $1.63
12 518643-9 ARMATURE ASS'Y, 3606 $81.60
13 241627-9 FAN, 3608B $7.46
14 211236-8 BALL BEARING 6002DDW, 5007NK $13.07
15 263014-2 RUBBER PIN 4, 9217SPC $1.19
16 251353-2 P.H. SCREW M5X60, 3606 $1.96
17 263002-9 RUBBER PIN 4, 5007NK $0.86
18 643605-9 BRUSH HOLDER, HP2010N $1.63
19 194977-0 CARBON BRUSH 107, HP2010N $8.12
20 856399-9 NAME PLATE, 3606 $1.30
21 687063-9 STRAIN RELIEF, 4323K $1.26
22 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
22 911133-5 P.H. SCREW M4X18, N9501B $0.86
23 682502-4 CORD GUARD 8-85, HP2010N $2.51
23 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
24 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
24 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
25 263002-9 RUBBER PIN 4, 5007NK $0.86
26 266053-1 P.T. SCREW 4X35, 4304 $1.48
26 911163-6 P.H. SCREW M4X35, 4014NV $0.86
27 316107-5 MOTOR BRACKET, 3606 $17.47
28 911136-9 P.H. SCREW M4X20, N9501B $0.53
29 931302-2 HEX NUT M6, HR2400 $0.79
30 414317-9 BASE, 3606 $24.62
31 411473-6 BASE PLATE, 3608B $21.76
32 911207-2 P.H. SCREW M5X10, 5402A $0.53
33 911206-4 P.H. SCREW M5X10, 1806B $0.53
34 911323-0 P.H. SCREW M6X16, LS1211 $1.19
35 414319-5 KNOB, 3606 $4.49
36 251870-2 KNOB M6X50, 3608B $4.49
37 941151-9 F. WASHER 6, 5007NB $0.75
38 763606-2 COLLET NUT, 3707FC $6.47
39 763608-8 1/4 COLLET, 3700B $10.60
40 231464-9 COMP. SPRING 5, 3606 $0.79
41 256190-9 PIN 5, 3606 $3.61
42 961017-7 STOP RING E-3, 4304, SH01 $0.53
43 819063-3 MAKITA LABEL, DA3010F $0.96
400 781008-0 WRENCH 17, 9217SPC $4.40
900 810146-2 CAUTION LABEL, 6906 $1.17
