Makita 3000VT Electric Saw Parts

Makita 3000VT Electric Saw Parts Image

Makita 3000VT Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

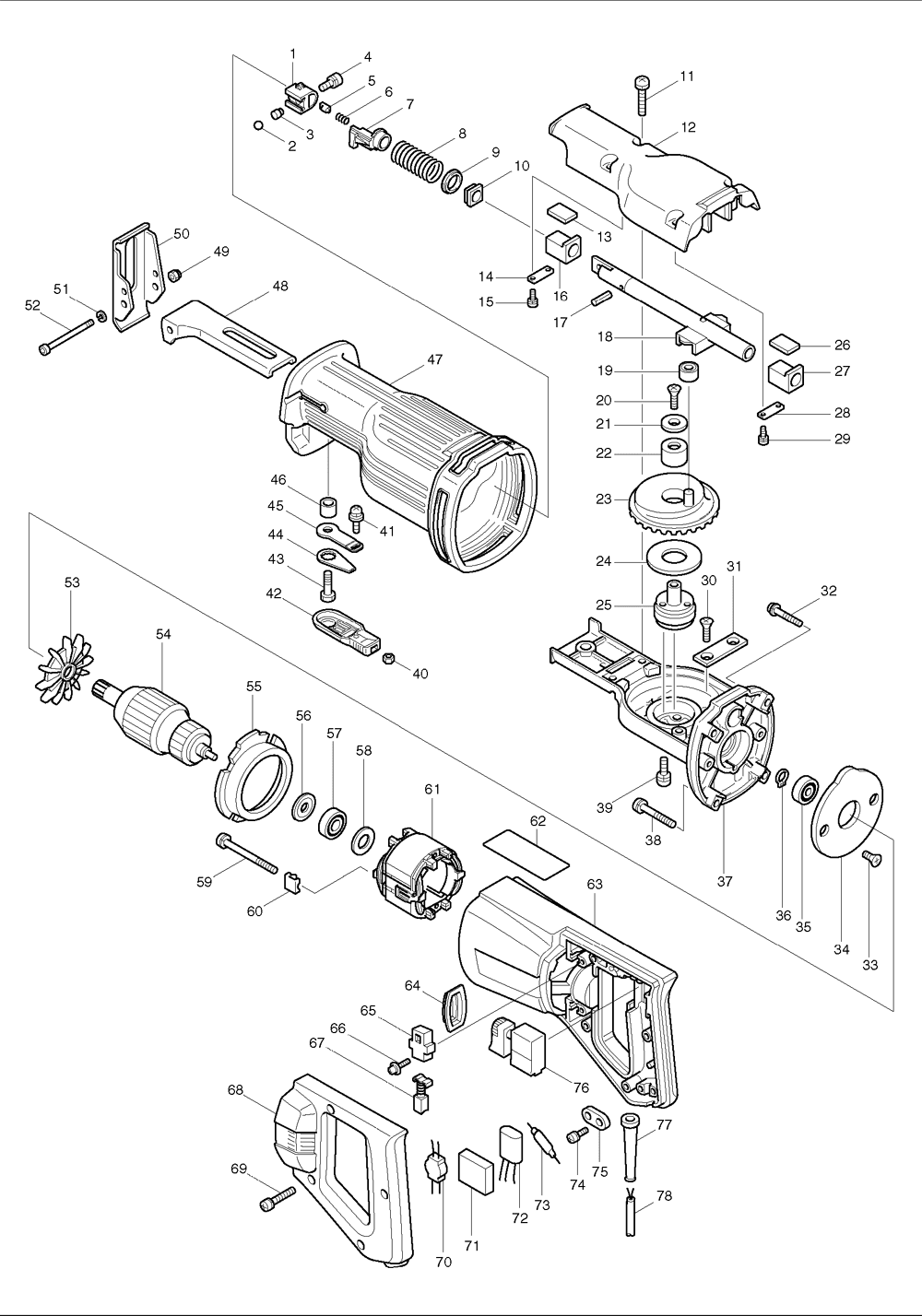

Makita 3000VT Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 310138-6 CLAMP, JR3000VT-T2 $15.27
2 216002-8 STEEL BALL 4.8, NHP1310 $0.53
3 256454-1 PIN 5.5-6,JR3030T-T1 $3.61
4 266272-9 TORX S.H.S BOLT M5X10 JR3000VT-T2 (Replacement o... $1.74
5 323916-5 PUSH PIN, JR3030T-T1 $4.49
6 233018-8 COMPRESSION SPRING 3, JR3030T-T1 $1.48
7 162215-8 PUSH BUTTON, JR3030T-T1 $16.04
8 233247-3 COMPRESSION SPRING 16, JR3030T-T1 $1.48
9 257226-7 RING 13, JR3030T-T1 $3.06
10 155896-5 SEAL,JR3000V $3.06

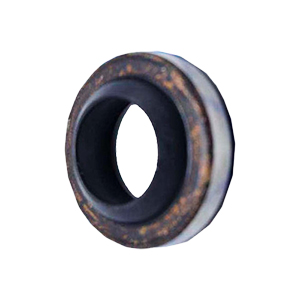

10 213177-4 DUST SEAL 14,BJR240SH $5.48
11 911241-2 P.H. SCREW M5X25, 9005B $0.86
11 922241-7 H.S.H. BOLT M5X25, AN451-T2 $1.41
12 317331-3 GEAR HOUSING COVER, JR3000VT-T1 $17.25
12 317691-3 GEAR HOUSING COVER, JR3000VT $8.45
13 443070-0 FELT PAD, JR3000V $1.26
14 341462-6 PLATE, JR3000V $0.97
15 911225-0 PAN HEAD SCREW M5X16, JR3050T $1.19
16 214167-0 PLANE BEARING 12.7, JR3000V,T2 $3.06
16 214169-6 PLANE BEARING 14, JR3030 $2.84
17 951063-8 SPRING PIN 3-16, LC1230 $0.86
18 168339-8 SLIDER, JR3000VT-T1 $32.94
18 168368-1 SLIDER, JR3030T $51.20
19 212001-8 N. BEARING 708, JR3000V $14.61
20 251372-8 C.SCREW M5X12, 9035, 9035SB $1.48
20 251969-3 C.H. BOLT M5X12, JR3020 $1.08
21 253816-4 F. WASHER 6, JR3000V $4.16
22 212115-3 N. BEARING 1216, JR3000V $8.78
23 133244-8 GEAR JR3000 (TYPE 1) $43.35
24 253805-9 F. WASHER 18, JR3000V $5.92
25 321263-8 GEAR SHAFT, JR3000V $22.75
26 443070-0 FELT PAD, JR3000V $1.26
27 214167-0 PLANE BEARING 12.7, JR3000V,T2 $3.06
27 214169-6 PLANE BEARING 14, JR3030 $2.84
28 341462-6 PLATE, JR3000V $0.97
29 911225-0 PAN HEAD SCREW M5X16, JR3050T $1.19
30 251969-3 C.H. BOLT M5X12, JR3020 $1.08
31 343981-8 PLATE (C), JR3030 $3.06
32 266012-5 TAPPING SCREW 5X35, HR160DH $1.48
33 251295-0 F.H. SCREW M4X14, 3612BRA $1.19
33 912122-3 C.S.H SCREW M4X14,5005BA $0.53
34 285650-4 BEARING RETAINER 54, JR3000V $3.06
35 211087-9 B. BEARING 6200DDW, JR3000V $13.07
36 961006-2 RETAINING RING S-10, N9501B $0.86
37 153375-7 GEAR HOUSING COMPLETE, JR3000VT-T3 $13.84
37 153672-1 GEAR HOUSING COMPLETE, JR3000VT $12.52
38 266012-5 TAPPING SCREW 5X35, HR160DH $1.48
39 911215-3 PAN HEAD SCREW M4X10, JR3000VT $0.86
40 931102-0 HEX NUT M4, 2711 $0.79
41 911114-9 P.H. SCREW M4X10, LS1013FL $0.86
42 152904-3 LEVER 60 COMPLETE, JR3000V $1.52
42 272240-2 LEVER 60, BJR240 $3.06
43 921442-4 HEX BOLT M8X25,JR3030T $1.34
44 344733-0 LOCK PLATE, JR3030 $1.63
45 344732-2 INNER PLATE, JR3030 $1.63
46 257558-2 SLEEVE 9, BJR240 $1.63
47 421723-1 INSULATION COVER, JR3000VT $14.94
47 421792-2 INSULATION COVER, JR3000VT $8.01
48 344925-1 SHOE SUPPORTER, JR3000VT-T1 $9.33
49 252103-8 HEX. LOCK NUT M5-8, 5007FK $2.29
50 344801-9 SHOE PLATE, JR3030T-T1 $4.49
51 942101-7 SPRING WASHER 5, 9005B $0.90
52 266241-0 HEX. S.H.BOLT M5X50, JR3000VT-T1 $1.34
53 241631-8 FAN, JR3000V $5.92
53 241832-8 FAN 62, HR2000 $7.46
54 516456-2 ARMATURE ASSEMBLY, JR3000V $61.00
55 411612-8 BAFFLE PLATE, JR3000V $3.94
55 417613-4 BAFFLE PLATE, JR3000VT $1.26
56 681613-2 INS. WASHER, JN3200 $1.63
56 681653-0 INSULATION WASHER, 4200NH $1.34
57 211033-2 B. BEARING 608LB, 5091D $8.78
58 253192-6 F. WASHER 14, HR2400 $1.63
59 266044-2 T. SCREW FLANGE 5X60, 5037NB $1.96
59 266095-5 TAPPING SCREW 5X55, KP0810 $3.61
60 343657-7 RETAINER, JR3000V $1.26
61 594416-4 FIELD ASSEMBLY , JR300VT $20.88
62 852239-9 NAME PLATE, JR3000VT $1.48
63 151986-2 MOTOR HOUSING CPL., JR3000VT $10.43
63 183351-7 MOTOR HOUSING CPL,JR3000V $17.25
65 643551-6 BRUSH HOLDER, JR3000V $1.63
66 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
67 191956-9 CARBON BRUSH 75, JR3000V $5.92
67 K28 This item will be shipped Free Carbon Brush Set $8.19
68 415240-1 HANDLE COVER, JR3000V,T2 $7.68
68 417611-8 HANDLE COVER, JR3000VT $5.48
69 265999-8 TAPPING SCREW M4X25, HM1800 $1.19
74 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
75 687063-9 STRAIN RELIEF, 4323K $1.26
76 650206-6 SWITCH, JR3000V $23.96
77 682502-4 CORD GUARD 8-85, HP2010N $2.51
77 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
78 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
78 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
79 267758-6 SPRING WASHER 5, JR3000VT (Replacement of 266247... $0.90
81 256492-3 SHOULDER PIN 5, JR3050T $1.48
82 233345-3 COMPRESSION SPRING 6, JR3050T $1.63
83 961078-7 RETAINING RING S-18,BHR200SH $1.19
84 162228-9 DRIVING SLEEVE. BJR240SH $28.15
85 268094-3 PIN 3, JR3050T $3.28
86 331639-1 GUIDE SLEEVE, JR180D $6.80
87 417791-0 DRIVING SLEEVE GUIDE, JR3050T $2.84
88 256158-5 PIN 3, BJR181 $1.19
89 418311-3 SLEEVE, JR3050T $1.52
90 345214-7 PUSH PLATE, BJR240SH $1.52
91 233025-1 COMPRESSION SPRING 2, JR3050T $2.07
92 231687-9 TORSION SPRING 17, JR3050T $0.86
93 163442-0 SHOE, JR3000VT $4.71
5003 941101-4 F. WASHER 5, 5007NK $0.75
