Makita 2711 Electric Saw Parts

Makita 2711 Electric Saw Parts Image

Makita 2711 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

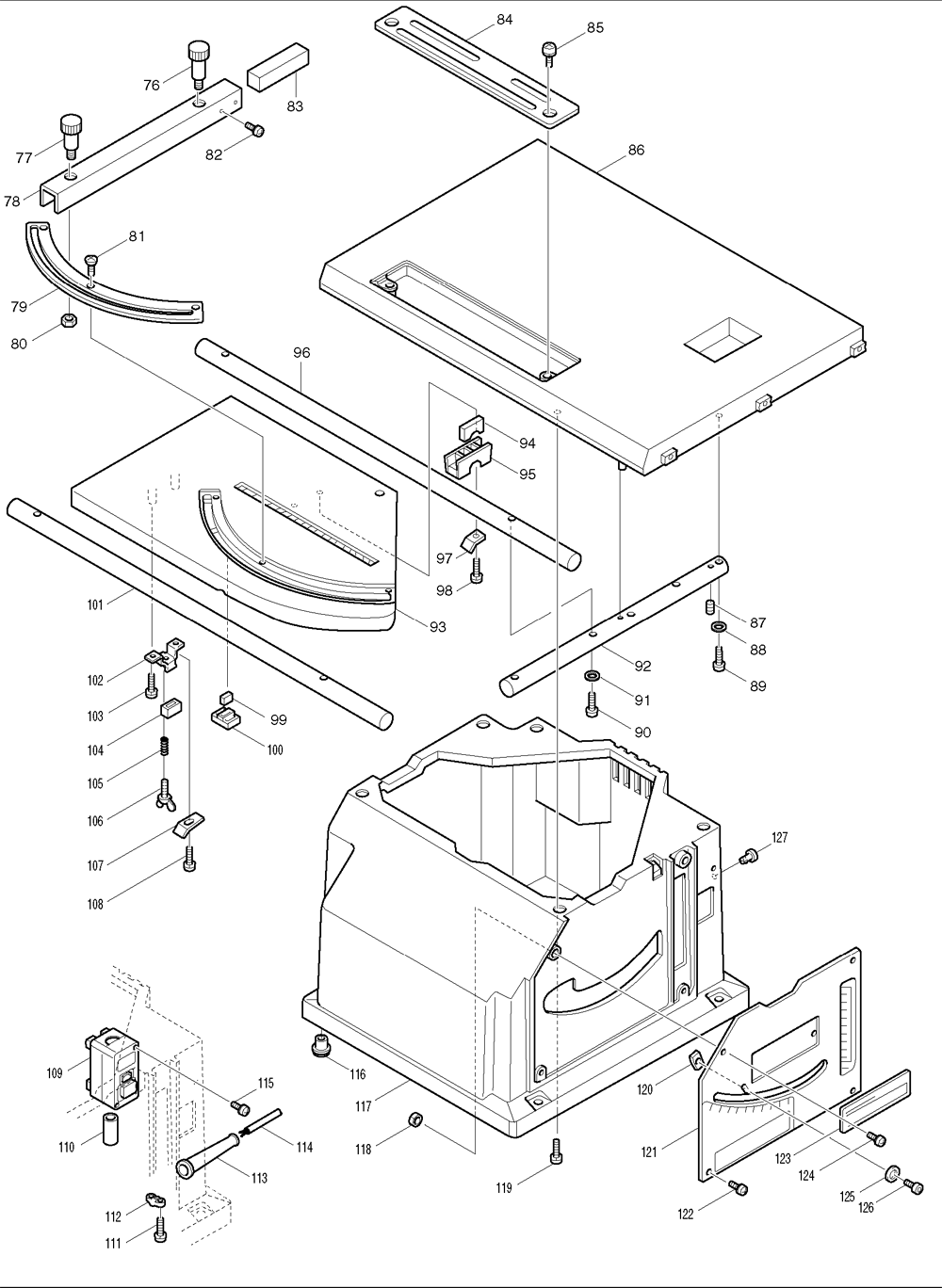

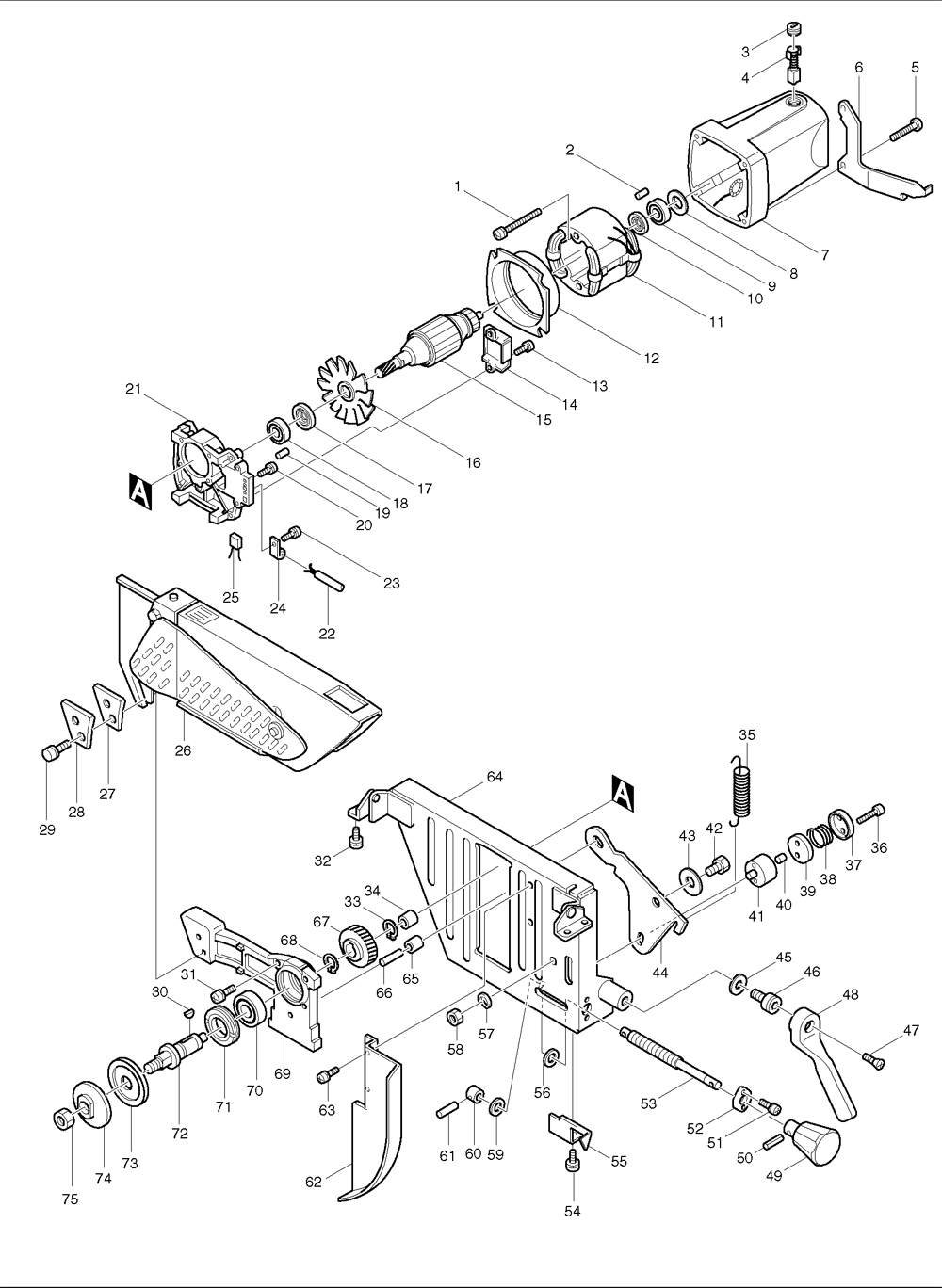

Makita 2711 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 911290-9 P.H. SCREW M5X65, GA7911 $1.96
15 514851-0 ARMATURE, 2711 $127.56
2 263002-9 RUBBER PIN 4, 5007NK $0.86
11 524806-7 FIELD, 2711 $79.00
3 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
22 664390-1 SWITCH CORD, 2711 $5.37
4 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
5 911263-2 P.H. SCREW M5X40, 4131 $1.74
6 343341-4 POINTER, 2711 $5.92
7 156138-0 MOTOR HOUSING, 2711 $41.61
8 253794-8 F. WASHER 18, 6905B $1.63
9 211068-3 B. BEARING 6200LB, 6820V $10.98
10 213051-6 DUST SEAL 10, 2711 $1.63
11 524806-7 FIELD, 2711 $79.00
12 343334-1 BAFFLE PLATE, 2711 $5.92
13 911111-5 P.H. SCREW M4X10, LS1011 $0.53
14 343335-9 TERMINAL BOX, 2711 $4.49
15 514851-0 ARMATURE, 2711 $127.56
16 241092-2 FAN 97 $3.61
17 213202-1 DUST SEAL 15, 5402A $3.06
18 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
19 263005-3 RUBBER PIN 6, BHP452 $0.86
20 652014-1 P.H. SCREW M4X8, 2708 $0.75
21 157665-0 GEAR HOUSING, 2711 $53.60
22 664390-1 SWITCH CORD, 2711 $5.37
23 911124-6 P.H. SCREW M4X14, 6402 $0.86
24 687042-7 STRAIN RELIEF, 2711 $1.26
26 168164-7 BLADE GUARD, 2711 $97.00
27 341518-5 ADJUST WASHER, 2711 $2.18
28 343333-3 PRESSURE PLATE, 2711 $3.06
29 921441-6 HEX BOLT M8X25, LS1020 $1.96
30 254001-2 WOODRUFF KEY 4, HM1810 $1.26
31 911251-9 P.H. SCREW M5X30, 2040 $0.86
32 265391-8 HEX BOLT M6X16, 2708, T2 $1.34
33 961057-5 RETAINING RING S-17, LS1016L $0.86
34 212116-1 N. BEARING 1215, 2711 $14.61
35 231772-8 TEN. SPRING 14, 2711 $5.37
36 911252-7 P.H. SCREW M5X30, 2711 $0.86
37 342797-8 RETAINER, 2708 $1.63
38 231378-2 COMP. SPRING 24, 2708 $2.07
39 342797-8 RETAINER, 2708 $1.63
40 263015-0 NYLON PIN 10, 2711 $1.19
41 321741-8 FEED NUT, 2711 $21.76
42 265279-2 HEX BOLT M10, 2708 $5.37
43 253813-0 F. WASHER 12, 2708 $1.63
44 343337-5 LINK, 2711 $11.75
45 253024-7 F. WASHER 10, LS0714 $1.34
45 257008-7 RING 10, 2708 $1.52
46 265920-7 SET BOLT M10X18, 2708 T2 $5.37
46 266372-5 SET BOLT M10X8, 2708 $3.28
47 912312-8 C.S.H. SCREW M6X12, 2708 T2 $0.75
47 922243-3 H. S. H. BOLT M5X25,2702 $1.96
48 154686-3 LEVER 90 CPL., 2708 $6.80
48 272224-0 LEVER 95, 2708 T2 $7.46
49 271254-8 KNOB 45, 2708 $14.61
50 951157-9 SPRING PIN 5-16, 2708 $1.96
51 911111-5 P.H. SCREW M4X10, LS1011 $0.53
52 343338-3 SCREW GUIDE, 2711 $1.63
53 321967-2 SCREW BAR M12, 2711 $16.04
54 911204-8 P.H. SCREW M5X8, 2711 $1.19
55 343340-6 POINTER, 2711 $4.49
56 267015-2 F. WASHER 9, 2711 $2.18
57 942251-8 SPRING WASHER 10, 2711 $1.34
58 931502-4 HEX NUT M10, 2711 $1.34
59 253733-8 F. WASHER 9, HR2432 $1.34
60 257588-3 SLEEVE 9, 2708 $4.49
61 951157-9 SPRING PIN 5-16, 2708 $1.96
62 343339-1 CHIP GUIDE, 2711 $11.75
63 911201-4 P.H. SCREW M5X8, 2711 $1.19
64 168160-5 FRAME, 2711 $80.00
66 256165-8 PIN 8, HM0810B $1.96
67 221715-8 H. GEAR 49, 2711 $25.83
68 961060-6 RETAINING RING S-20, 2708 $1.19
69 311792-9 GEAR HOUSING COVER, 2711 $94.60
70 211306-3 B. BEARING 6204LLB, 2711 $15.27
71 285824-7 BEARING RETAINER 31-48, 2711 $4.49
72 322083-3 "5/8"" SPINDLE, 2711" $27.59
73 224090-1 FLANGE, 2711 $8.78
74 224258-9 OUTER FLANGE 30, 2711 $10.32
75 252055-3 HEX NUT M12-19, 2711 $4.16
76 251874-4 SCREW M10, 2711 $8.78
77 251875-2 SCREW M10, 2711 $8.78
78 164820-7 MITER GAUGE GUIDE, 2711 $18.90
79 343343-0 MITER GAUGE PLATE, 2711 $11.75
81 912222-9 C.S.H. SCREW M5X16, BO3710 $0.86
82 911212-9 P.H. SCREW M5X12, 2711 $0.53
83 441049-5 WOODEN GAUGE, 2711 $4.49
84 343342-2 CENTER COVER, 2711 $14.61
85 911322-2 P.H. SCREW M6X16, 2711 $0.86
86 315929-0 FIXED TABLE, 2711 $254.05
87 265851-0 H.S.H. BOLT M6X16, 2711 $1.96
88 941201-0 F. WASHER 8, 5007NK $0.75
89 922462-1 H.S.H. BOLT M8X40, 2711 $1.74
90 922357-8 H.S.H. BOLT M6X35, 2711 $1.34
91 941151-9 F. WASHER 6, 5007NB $0.75
92 321968-0 HOLDER BAR, 2711 $50.89
93 155899-9 SLIDING TABLE, 2711 $157.63
94 443068-7 FELT, 2711 $1.63
95 410824-0 SLIDE GUIDE (R), 2711 $4.49
96 321969-8 SLIDE BAR, 2711 $50.89
97 343345-6 SET PLATE, 2711 $1.63
98 911244-6 P.H. SCREW M5X25, 2711 $1.19
99 443069-5 FELT, 2711 $0.97
100 410825-8 SLIDE GUIDE (L), 2711 $3.06
101 321969-8 SLIDE BAR, 2711 $50.89
102 343344-8 SLIDE STOPPER, 2711 $5.92
103 911321-4 P.H. SCREW M6X16, 5402A $0.86
104 421312-2 CUSHION, 2711 $1.63
105 231012-4 COMP. SPRING 7, 2711 $1.63
106 924236-6 WING BOLT M5X25, 2711 $1.74
107 343345-6 SET PLATE, 2711 $1.63
108 911224-2 P.H. SCREW M5X16, 2711 $0.86
109 651874-8 SWITCH,2711 $54.80
110 682523-6 SWITCH CORD GUARD, 2708 $2.51
111 911148-2 P.H. SCREW M4X25, 5057KB $0.86
112 687001-1 STRAIN RELIEF, 6013BR $0.97
113 682505-8 CORD GUARD, 2711 $2.51
113 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
114 664723-0 CORD (3X16X8 SJ), 2012 $22.86
114 EC163 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $15.19
115 911063-0 P.H. SCREW M3X35, 2711 $0.86
116 286202-4 CAP 20, 2708 $0.97
117 155901-8 BASE COMPLETE, 2711 $97.00
118 931302-2 HEX NUT M6, HR2400 $0.79
119 911344-2 P.H. SCREW M6X25, 2711 $1.19
120 342789-7 STOPPER PLATE, 2711 $1.63
121 155925-4 FRONT PLATE COMPLETE, 2711 $32.23
122 911321-4 P.H. SCREW M6X16, 5402A $0.86
123 855714-4 NAME PLATE, 2711 $1.36
124 911336-1 P.H. SCREW M6X22, 3705 $0.86
125 941151-9 F. WASHER 6, 5007NB $0.75
126 922307-3 H.S.H. BOLT M6X10, 2711 $1.96
127 411447-7 LOCK-OFF BUTTON, 2708 $1.63
401 783203-8 HEX WRENCH 5, 2708 $3.24
403 782021-1 WRENCH 13-22, 2702 $6.40
404 781010-3 WRENCH 19, 2708, 2711 $5.60
408 411447-7 LOCK-OFF BUTTON, 2708 $1.63
409 922337-4 BOLT FOR 2516N $1.08
904 687043-5 STRAIN RELIEF, 2711 $2.84
905 687600-9 STRAIN RELIEF, 2711 $0.97
