Makita 2708 Electric Saw Parts

Makita 2708  Electric Saw Parts Image

Makita 2708 Parts
Time to buy a new tool?

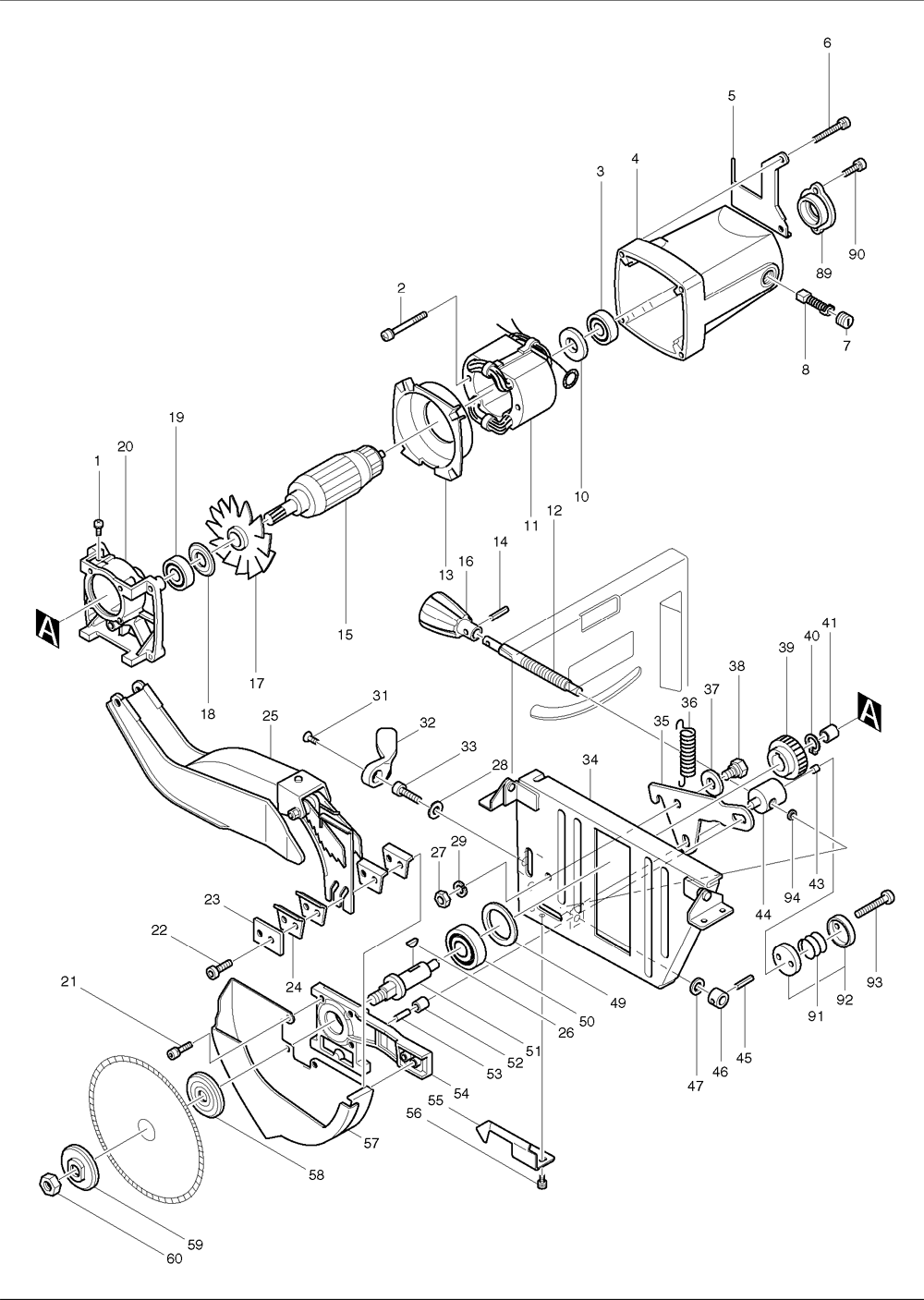

http://www.toolpartspro.com/image/2708/Makita-2708-PB Breakdown Diagram
Page-1

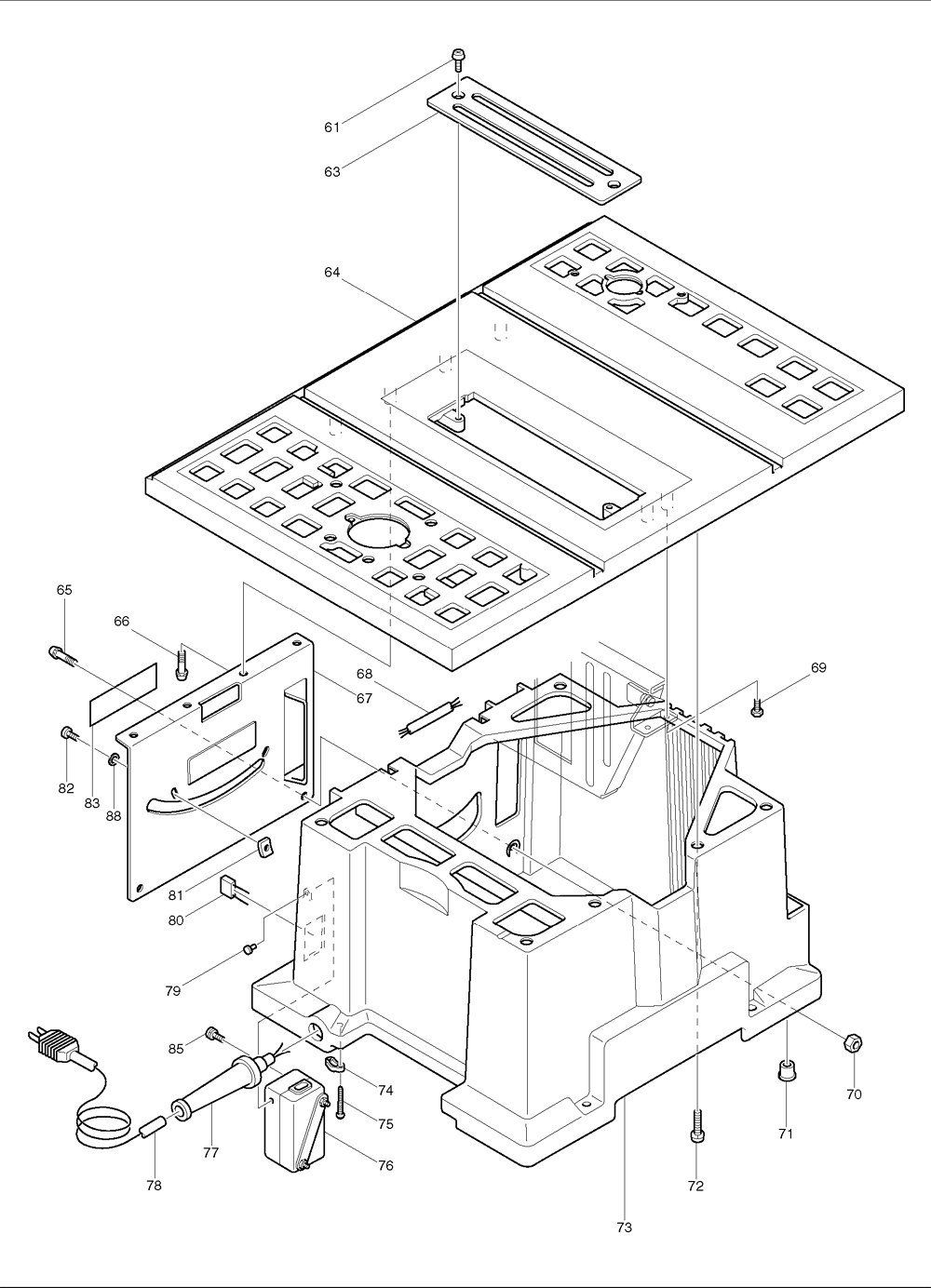

Makita-2708-62-PB Breakdown Diagram
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
1 652012-5 P.H. SCREW M4X8, 2020 $0.66
00 816633-9 SCALE LABEL (R), 2708 $7.20
2 911290-9 P.H. SCREW M5X65, GA7911 $1.96
00 816634-7 SCALE LABEL (L), 2708 $7.20
3 211068-3 B. BEARING 6200LB, 6820V $10.98
11 524696-8 FIELD, 2708 $67.70
4 157243-6 MOTOR HOUSING, 2708 $29.58
76 651876-4 SWITCH, 2708 (TYPE 2) $54.80
5 341887-4 POINTER (B), 2708 $4.49
76 651876-4 SWITCH, 2708 (TYPE 2) $54.80
6 911263-2 P.H. SCREW M5X40, 4131 $1.74
68 682523-6 SWITCH CORD GUARD, 2708 $2.51
7 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
15 514550-4 ARMATURE, 2708 $118.54
8 194986-9 CARBON BRUSH SET CB-154, UC3530A $7.68Disc
8 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
63 342788-9 CENTER COVER, 2708 $16.04
8 K21 This item will be shipped Free Carbon Brush Set of 2 Piece Replaces Makita (CB-... $8.50
00 343626-8 SUPPORT ARM FOR SUB-TABLE, 2708 $8.78
10 681623-9 INS. WASHER, 2012NB $1.63
00 122219-2 ANGLE RULE, 2708 $0.00Disc
11 524696-8 FIELD, 2708 $67.70
00 155506-4 TABLE, 2708 $123.29
12 321478-7 No Longer Available - SCREW BAR M12, 2708 $16.04
73 155633-7 BASE, 2708-T1 $66.80
13 411448-5 BAFFLE PLATE, 2708 $5.92
00 168110-0 SAFETY GUIDE, 2708 $78.70
14 951157-9 SPRING PIN 5-16, 2708 $1.96
14 231558-0 TOR. SPRING 15, 2708 $5.37
82 922307-3 H.S.H. BOLT M6X10, 2711 $1.96
15 514550-4 ARMATURE, 2708 $118.54
69 265391-8 HEX BOLT M6X16, 2708, T2 $1.34
16 271254-8 KNOB 45, 2708 $14.61
69 265391-8 HEX BOLT M6X16, 2708, T2 $1.34
17 241515-0 FAN 92, 2414NB $2.84
18 213202-1 DUST SEAL 15, 5402A $3.06
19 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
19 SE 6202-2RS This item will be shipped Free Superior Electric SE 6202-2RS Replacement Ball B... $7.99
19 SE 6202ZZ This item will be shipped Free Superior Electric SE 6202ZZ Replacement Ball Bea... $7.99
20 315431-3 GEAR HOUSING, 2708 $28.15
21 911241-2 P.H. SCREW M5X25, 9005B $0.86
22 922316-2 HEX BOLT M6X14, HR3851 $1.34
23 341927-8 PRESSURE PLATE, 2708 $4.49
24 341928-6 ADJUST WASHER, 2708 $2.18
25 168192-2 N/A $0.99Disc
26 254013-5 WOODRUFF KEY 5, 2708 $1.26
27 931502-4 HEX NUT M10, 2711 $1.34
28 253024-7 F. WASHER 10, LS0714 $1.34
28 257008-7 RING 10, 2708 $1.52
29 942251-8 SPRING WASHER 10, 2711 $1.34
31 912312-8 C.S.H. SCREW M6X12, 2708 T2 $0.75
31 922243-3 H. S. H. BOLT M5X25,2702 $1.96
32 154686-3 LEVER 90 CPL., 2708 $6.80
32 272224-0 LEVER 95, 2708 T2 $7.46
33 265920-7 SET BOLT M10X18, 2708 T2 $5.37
33 266372-5 SET BOLT M10X8, 2708 $3.28
34 168098-4 FRAME, 2708 $83.90
35 341870-1 LINK, 2708 $8.78
36 231758-2 TEN. SPRING 13, 2708 $4.16
37 253813-0 F. WASHER 12, 2708 $1.63
38 265279-2 HEX BOLT M10, 2708 $5.37
39 221731-0 H. GEAR, 2708 $24.29
40 961060-6 RETAINING RING S-20, 2708 $1.19
41 212066-0 N. BEARING, 2708 $13.18
43 263015-0 NYLON PIN 10, 2711 $1.19
44 321741-8 FEED NUT, 2711 $21.76
45 951157-9 SPRING PIN 5-16, 2708 $1.96
46 257588-3 SLEEVE 9, 2708 $4.49
47 253733-8 F. WASHER 9, HR2432 $1.34
49 253847-3 F. WASHER 40, 2708 $4.16
50 211306-3 B. BEARING 6204LLB, 2711 $15.27
51 321568-6 SPINDLE, 2708 $26.92
52 257626-1 N/A $0.99Disc
53 256165-8 PIN 8, HM0810B $1.96
54 311574-9 GEAR HOUSING COVER, 2708 $54.90
55 341886-6 POINTER (A), 2708 $4.49
56 911204-8 P.H. SCREW M5X8, 2711 $1.19
57 164622-1 LOWER BLADE COVER, 2708 $20.33
58 224119-3 INNER FLANGE, 2708 $10.32
59 224201-8 OUTER FLANGE 55, 2708 $10.32
60 931602-0 HEX NUT M12, 2708 $1.34
61 911312-5 P.H. SCREW M6X12, LS1440 $0.86
63 342788-9 CENTER COVER, 2708 $16.04
64 155864-8 N/A $0.99Disc
65 911316-7 P.H. SCREW M6X14, 2708 $1.19
66 911316-7 P.H. SCREW M6X14, 2708 $1.19
67 155622-2 FRONT PLATE, 2708 $28.25
68 664973-7 SWITCH CORD, 2708 $9.66
69 265391-8 HEX BOLT M6X16, 2708, T2 $1.34
70 931302-2 HEX NUT M6, HR2400 $0.79
71 286202-4 CAP 20, 2708 $0.97
72 911344-2 P.H. SCREW M6X25, 2711 $1.19
73 134737-8 No Longer Available - BASE ASS'Y, 2708-T2 $73.50
74 687002-9 STRAIN RELIEF, 9217SPC $0.97
74 687052-4 STRAIN RELIEF, HM1500B $1.26
75 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
75 911148-2 P.H. SCREW M4X25, 5057KB $0.86
76 651876-4 SWITCH, 2708 (TYPE 2) $54.80
77 682505-8 CORD GUARD, 2711 $2.51
77 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
78 664723-0 CORD (3X16X8 SJ), 2012 $22.86
78 EC163 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $15.19
79 411447-7 LOCK-OFF BUTTON, 2708 $1.63
81 342789-7 STOPPER PLATE, 2711 $1.63
82 922307-3 H.S.H. BOLT M6X10, 2711 $1.96
83 854783-2 NAME PLATE, 2708 $1.36
85 911063-0 P.H. SCREW M3X35, 2711 $0.86
88 941151-9 F. WASHER 6, 5007NB $0.75
89 312749-3 HOUSING W/O BEARING, 2708 $10.32
90 911221-8 P.H. SCREW M5X16, JR3000V $0.86
91 231378-2 COMP. SPRING 24, 2708 $2.07
92 342797-8 RETAINER, 2708 $1.63
93 911252-7 P.H. SCREW M5X30, 2711 $0.86
94 267015-2 F. WASHER 9, 2711 $2.18
400 271401-1 KNOB 32, 2708 $3.06
401 253047-5 F. WASHER 6, 2708 $1.01
402 315130-7 N/A $0.99Disc
407 265809-9 C.S.N. BOLT M8X500, 2708 $13.95
408 316665-1 RULE HOLDER, 2708 $23.96
410 341888-2 RULE UNDER PLATE, 2708 $5.92
411 265391-8 HEX BOLT M6X16, 2708, T2 $1.34
412 164620-5 DISCONTINUED - RULER (RIP FENCE ASSY), 2708 $45.59
413 265391-8 HEX BOLT M6X16, 2708, T2 $1.34
414 911214-5 P.H. SCREW M5X12, 2708 $0.86
415 816099-3 INDICATION PLATE, 2708 $3.06
416 273465-1 GRIP 28, 2708 $5.92
424 783203-8 HEX WRENCH 5, 2708 $3.24
425 411447-7 LOCK-OFF BUTTON, 2708 $1.63
426 342690-6 SPACER, 2708 $1.63
907 911133-5 P.H. SCREW M4X18, N9501B $0.86
909 911131-9 P.H. SCREW M4X18, HR3851 $0.53
911 687043-5 STRAIN RELIEF, 2711 $2.84
912 687600-9 STRAIN RELIEF, 2711 $0.97
