Makita 2702 Electric Saw Parts

Makita 2702 Electric Saw Parts Image

Makita 2702 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Tool Diagram    (Click image to Zoom in) View larger Image

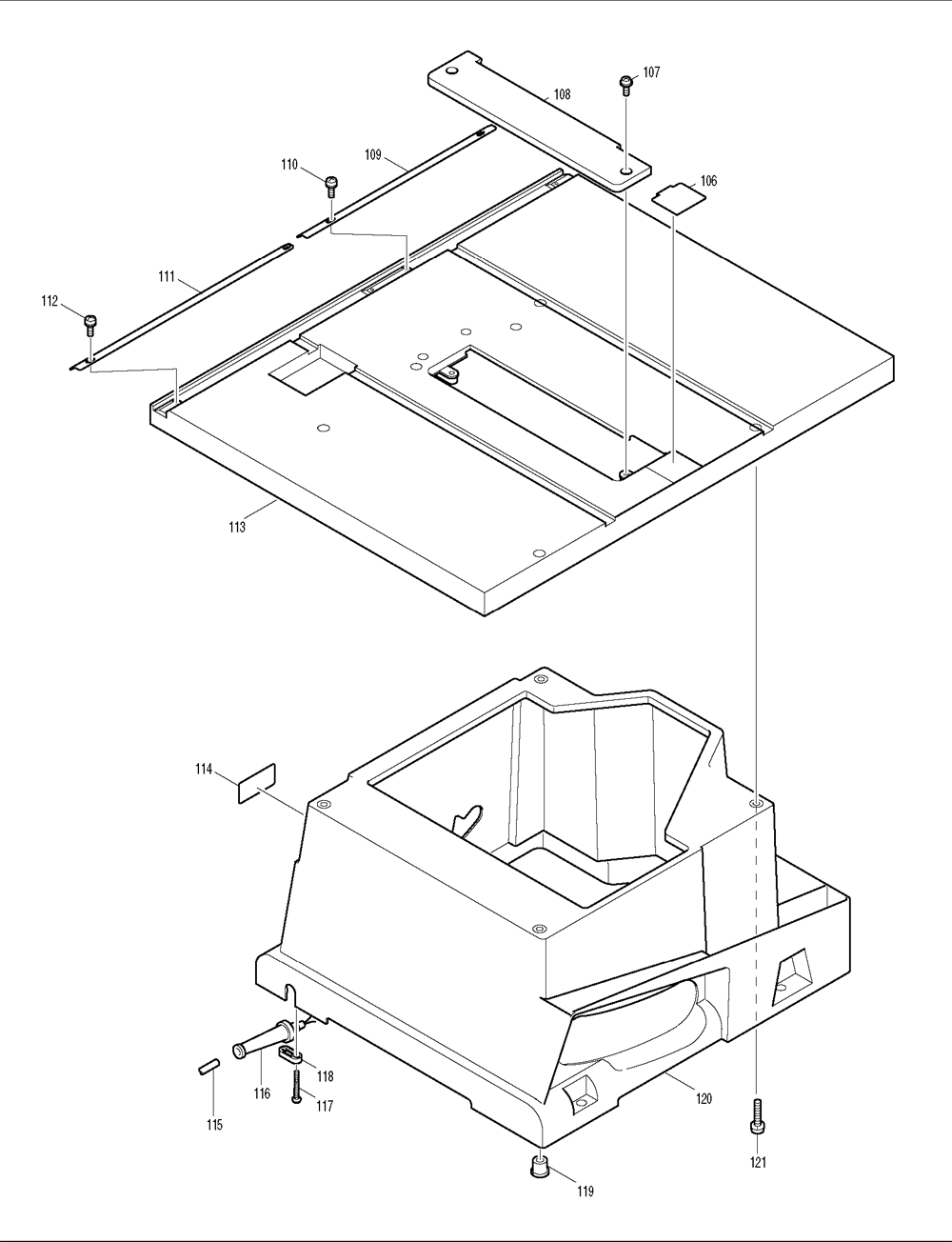

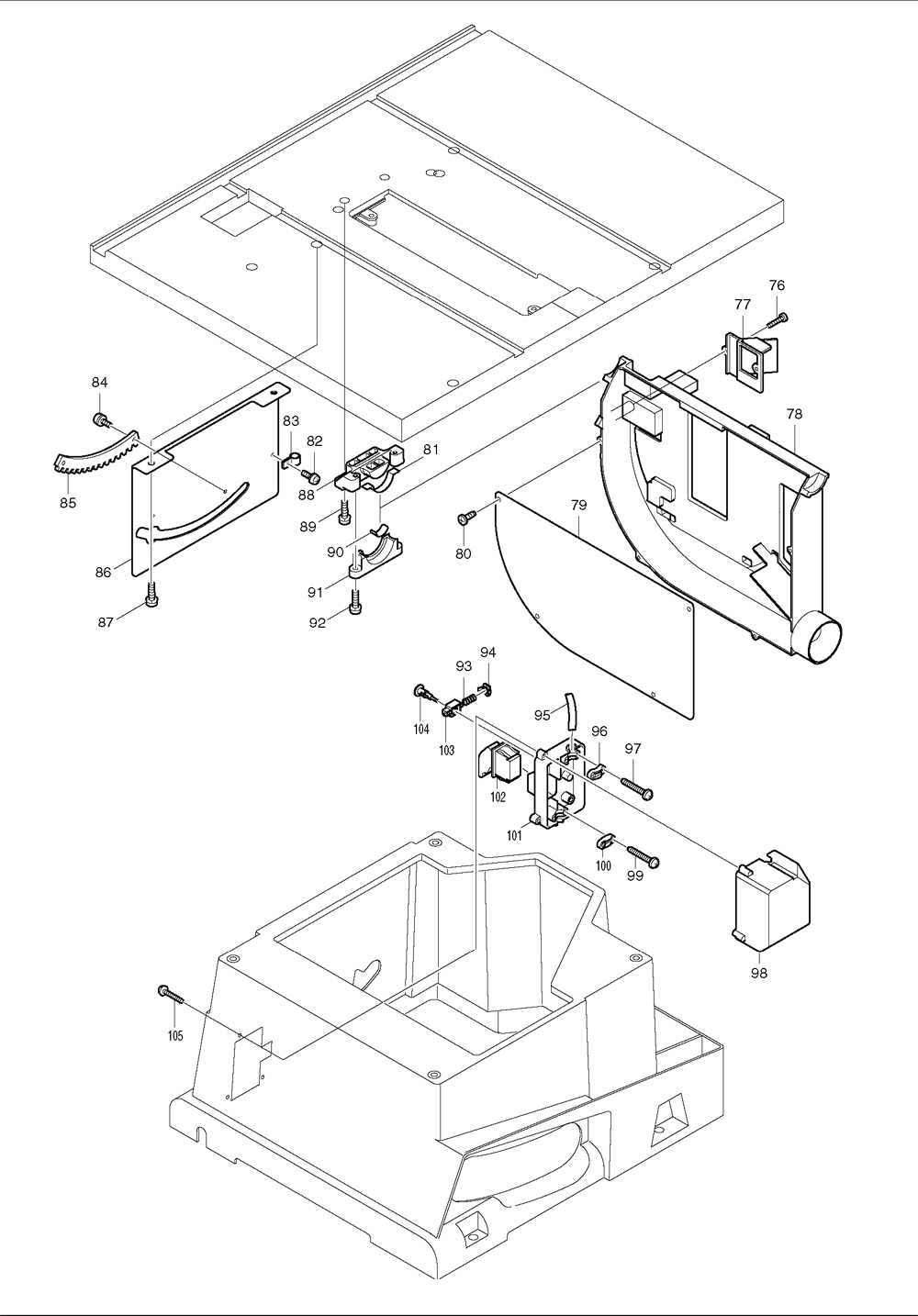

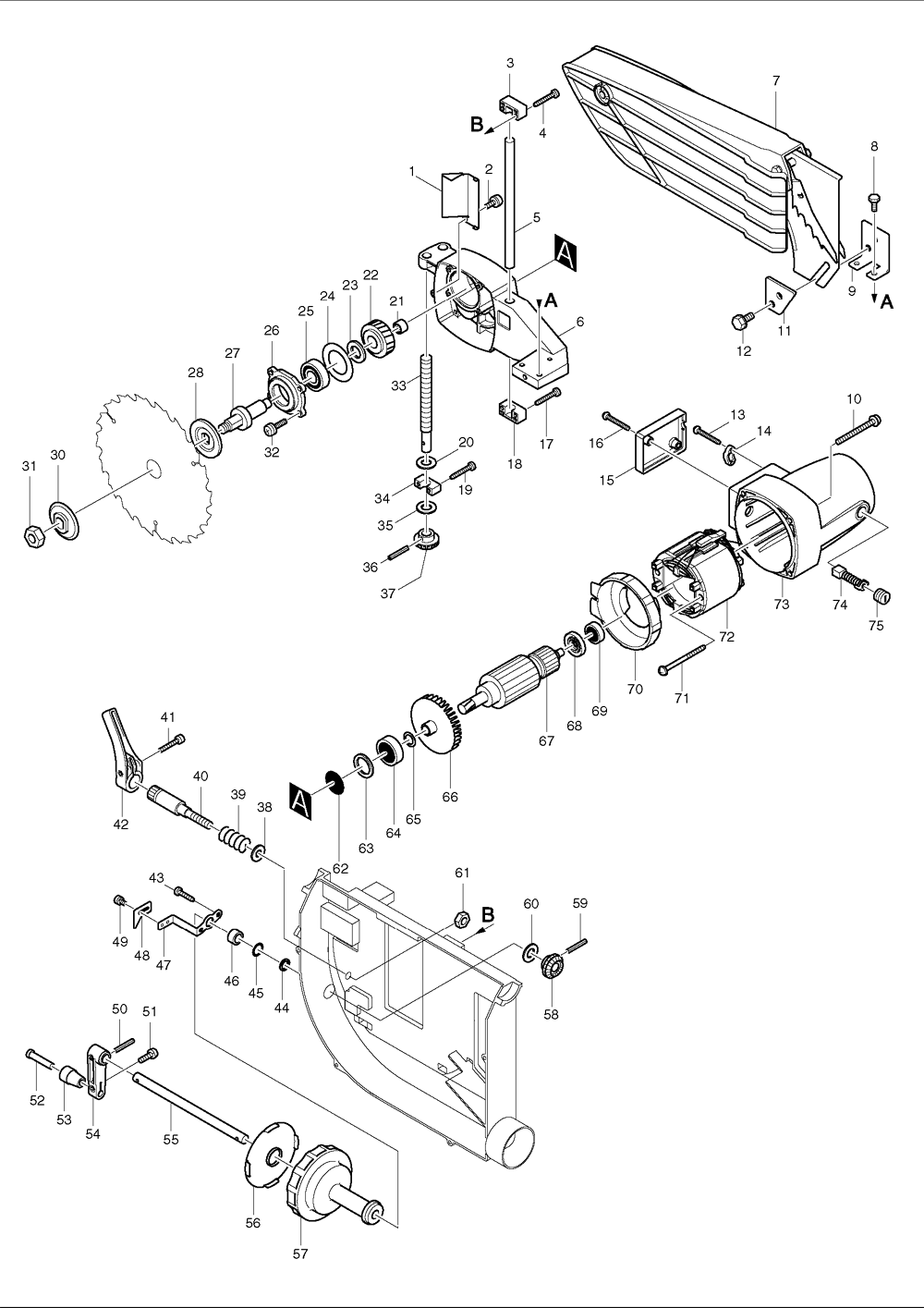

Makita 2702 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 344536-2 GEAR HOUSING PLATE, 2702 $3.17

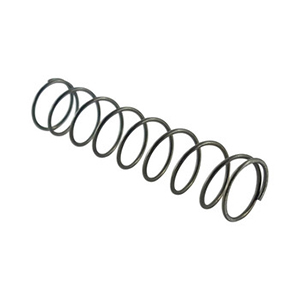

00 233228-7 COMPRESSION SPRING 10, 2702 $1.48
2 911213-7 P.H. SCREW M5X12, LS1040 $0.86
27 323738-3 SPINDLE, 2702 $13.18
3 416340-0 GUIDE BAR RETAINER, 2702 $1.26
4 266040-0 TAPPING SCREW, 2012NB $0.86
5 323736-7 GUIDE BAR, 2702 $10.32
6 159999-7 GEAR HOUSING COMPLETE, 2702 $44.88
7 168313-6 SAFETY GUIDE, 2702 $61.70
8 265391-8 HEX BOLT M6X16, 2708, T2 $1.34
9 165206-8 STAY, 2702 $4.49
10 911383-2 P.H. SCREW M6X60, LS1030 $1.96
11 344545-1 PRESSURE PLATE, 2702 $1.63
12 921431-9 HEX BOLT M8X20, 2702 $1.96
13 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
14 687054-0 STRAIN RELIEF, HM1800 $0.97
15 416341-8 COVER, 2702 $3.06
16 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
17 266040-0 TAPPING SCREW, 2012NB $0.86
18 416340-0 GUIDE BAR RETAINER, 2702 $1.26
19 266040-0 TAPPING SCREW, 2012NB $0.86
20 961016-9 STOP RING E-10, BJR182 $0.86
21 212121-8 NEEDLE BEARING 1210, 2702 $3.06
22 226499-3 HELICAL GEAR 42, 2702 $19.01
23 267176-8 FLAT WASHER 17, 2702 $2.18
24 267170-0 FLAT WASHER 34, 2702 $2.18
25 211256-2 B. BEARING 6203LLB, GA7001L $10.98
26 316933-2 HOUSING W/O BEARING, 2702 $5.48
27 153264-6 SPINDLE COMPLETE, 2702 $42.94
28 224333-1 FLANGE 53, LS1040 $4.49
30 224347-0 OUTER FLANGE 53, 2702 $5.92
31 252155-9 HEX NUT M12-19, 2702 $1.96
32 911233-1 P.H. SCREW M5X20, TW1000 $0.86
33 322968-3 SCREW BAR, 2702 $7.46
34 416339-5 SCREW BAR RETAINER, 2702 $0.97
35 941302-4 F. WASHER 12, 2702 $1.01
36 951116-3 SPRING PIN 4-20, 9031 $1.48
37 226747-0 STRAIGHT BEVEL GEAR, 2702 $3.17
38 253024-7 F. WASHER 10, LS0714 $1.34
39 231315-6 COMP. SPRING 14, 2702 $2.07
40 322967-5 LOCK LEVER SHAFT, 2702 $10.32
41 922243-3 H. S. H. BOLT M5X25,2702 $1.96
42 272237-1 LEVER 90, 2702 $3.06
43 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
44 253143-9 F. WASHER 12, 2702 $1.63
45 213107-5 O RING 12, JR3000V $0.86
46 214114-1 PLANE BEARING 12, 6410 $1.63
47 344544-3 STAY, 2702 $1.63
48 344543-5 POINTER, 2702 $1.63
49 922103-9 H. S. H. BOLT M4X6,2702 $1.34
50 951116-3 SPRING PIN 4-20, 9031 $1.48
51 911218-7 P.H. SCREW M5X14, DA6300 $0.86
52 268031-7 PIN 8, 2702 $1.48
53 271408-7 KNOB 20, 2012 $1.63
54 271071-6 HANDLE 120, 2702 $1.63
55 323735-9 HANDLE SHAFT, 2702 $10.32
56 344581-7 CAP 92, 2702 $2.84
57 271070-8 HANDLE 100, 2702 $5.92
58 226747-0 STRAIGHT BEVEL GEAR, 2702 $3.17
59 951116-3 SPRING PIN 4-20, 9031 $1.48
60 941302-4 F. WASHER 12, 2702 $1.01
61 931502-4 HEX NUT M10, 2711 $1.34
62 213423-5 O RING 30, AN451 $1.08
63 253792-2 F. WASHER 26, 4304 $1.63
64 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
65 253147-1 F. WASHER 15, 5037NB $1.63
66 240003-4 FAN 80, 5007NK $4.16
67 516761-7 ARMATURE ASS'Y 115V, 2702 $120.29
68 681640-9 INSULATION WASHER, LS1040 $2.18
69 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
70 416331-1 BAFFLE PLATE, 2702 $3.06
71 266029-8 T. SCREW FLANGE PT 5X65,JR3020 $1.96
72 596181-1 FIELD ASS'Y 115V, 2702 $65.90
73 159998-9 MOTOR HOUSING COMPLETE, 2703 $27.59
74 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
75 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
76 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
77 416439-1 DUST GUIDE, 2702 $3.06
78 318253-0 FRAME,2705 $19.45
78 316931-6 FRAME, 2702-T1 $31.72
79 344519-2 FRAME COVER, 2702 $5.92
80 266035-3 TAPPING SCREW BIND CT5X12, 9031 $0.86
81 344529-9 SLIDE SEAT, 2702 $1.26
82 251308-7 PAN HEAD SCREW M4X10, 2702 $0.86
83 687049-3 STRAIN RELIEF, 2703 $0.75
84 911213-7 P.H. SCREW M5X12, LS1040 $0.86
85 416333-7 RACK PLATE, 2702 $3.06
86 345628-0 PLATE, 2703 $5.92
87 911323-0 P.H. SCREW M6X16, LS1211 $1.19
88 318020-3 ADJUST BLOCK, 2704 $4.16
89 265460-5 HEX BOLT M6X20, 2702 $1.34
90 232174-1 LEAF SPRING, 2702 $1.96
91 416332-9 FRAME RETAINER, 2702 $3.06
92 911333-7 SCREW M6X20, 2414B $1.19
93 231240-1 COMP. SPRING 7, 2414B $0.79
94 416375-1 CAP, 2702 $1.26
95 664080-6 POWER SUPPLY CORD, 2702 $7.02
96 687054-0 STRAIN RELIEF, HM1800 $0.97
97 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
99 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
100 687052-4 STRAIN RELIEF, HM1500B $1.26
102 651567-7 SWITCH, 2702 $20.55
103 416377-7 SLIDE PIN, 2702 $1.26
104 416376-9 SWITCH BUTTON, 2702 $1.26
106 344547-7 PLATE, 2702 $1.63
107 911323-0 P.H. SCREW M6X16, LS1211 $1.19
108 316934-0 CENTER COVER, 2702 $17.47
109 816332-3 SCALE PLATE L, 2702 $4.49
110 251308-7 PAN HEAD SCREW M4X10, 2702 $0.86
111 816331-5 SCALE PLATE R, 2702 $4.49
112 251308-7 PAN HEAD SCREW M4X10, 2702 $0.86
113 316930-8 TABLE, 2702 $112.33
114 859344-3 NAME PLATE, 2702 $1.46
115 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
115 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
116 682504-0 CORD GUARD 10-85, 4200H $2.51
117 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
118 687052-4 STRAIN RELIEF, HM1500B $1.26
119 286202-4 CAP 20, 2708 $0.97
120 150825-3 BASE COMPLETE, 2702 $53.90
121 911344-2 P.H. SCREW M6X25, 2711 $1.19
122 253052-2 F. WASHER 12, 9031 $1.34
1001 122556-4 RIP FENCE, 2702 $62.00
1002 781027-6 WRENCH 19, 2702 $4.80
1003 782021-1 WRENCH 13-22, 2702 $6.40
1004 783009-4 HOLDER CAP OPENER, 2702 $2.20
1006 163024-8 GUIDE PLATE, 2708 $10.32
1007 271401-1 KNOB 32, 2708 $3.06
1008 253047-5 F. WASHER 6, 2708 $1.01
1009 122555-6 ANGLE RULE ASS'Y, 2702 $20.80
1011 416376-9 SWITCH BUTTON, 2702 $1.26
