Makita 2414NB Electric Saw Parts

Makita 2414NB Electric Saw Parts Image

Makita 2414NB Parts
14 Inch Cut-Off Saw

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 2414NB
14 Inch Cut-Off Saw
$184.99
Tool Diagram    (Click image to Zoom in) View larger Image

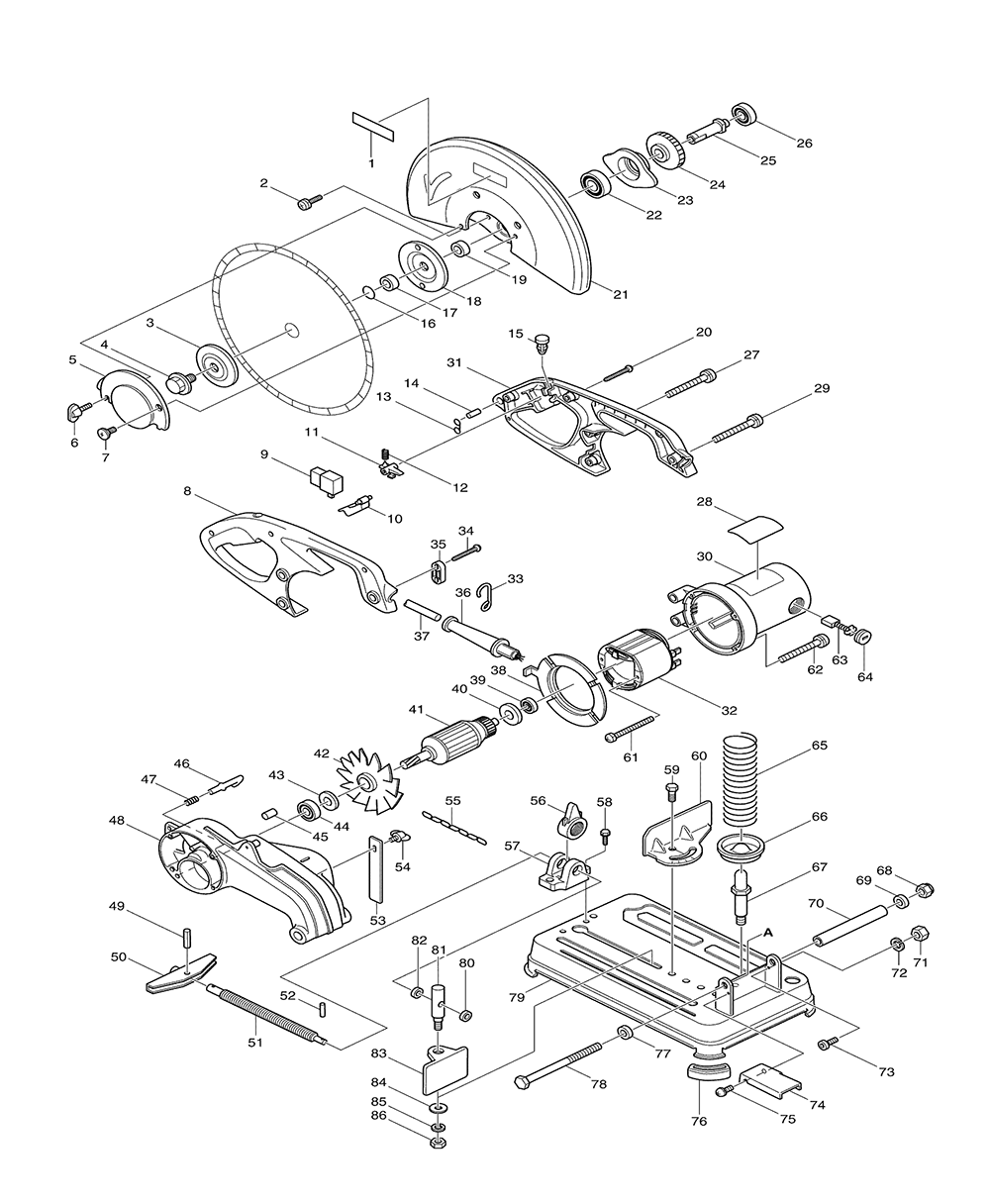

Makita 2414NB Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 819064-1 MAKITA MARK, 5402NA $1.26
00 643707-1 BRUSH HOLDER, 2414NB $5.92
2 911333-7 SCREW M6X20, 2414B $1.19
4 251680-7 H. BOLT M10X25, 2414B $5.37
5 150515-8 SAFETY GUIDE COMPLETE, 2414B $21.76
7 265121-7 FLAT HEAD SCREW M6, 2414NB $1.19
8 182628-7 HANDLE SET, 2414NB $18.90
9 651922-3 SWITCH, HM1303B $19.45
10 152463-7 SWITCH LEVER COMPLETE, 2414B $4.49
11 415366-9 SWITCH LOCK, 2414B $1.63
12 231397-8 COMPRESSION SPRING 4, 2414B $0.86
13 281207-9 HANGER, 2414B $1.63
14 256012-3 PIN 6, 2414NB $1.48
15 411478-6 SWITCH BUTTON, LS1011 $1.63
15 417113-4 SWITCH BUTTON, 2414NB $1.52
16 213162-7 O RING 14, 2414B $0.86
17 257185-5 RING 17, 2414B $3.06
19 257185-5 RING 17, 2414B $3.06
20 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
21 165126-6 SAFETY COVER COMPLETE, 2414B $51.20
22 211256-2 B. BEARING 6203LLB, GA7001L $10.98
23 316527-3 HOUSING W/O BEARING, 2414B $13.18
24 226415-5 HELICAL GEAR 41, 2414B $23.74
25 322633-4 SPINDLE, 2414B $17.47
26 211064-1 B. BEARING 6000, 2414B $10.98
27 911273-9 P.H. SCREW M5X50, HR2400 $1.19
28 859572-0 NAME PLATE 2414NB $5.28
29 911258-5 P.H. SCREW M5X35, 9045N $1.19
30 159750-5 MOTOR HOUSING COMPLETE, 2414B $51.20
31 182628-7 HANDLE SET, 2414NB $18.90
32 636006-8 FIELD ASS'Y 115V, 2414NB $31.51
32 636076-7 FIELD, 2414B $49.98
33 322049-3 HOOK, 2414B $1.26
34 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
35 687052-4 STRAIN RELIEF, HM1500B $1.26
36 682505-8 CORD GUARD, 2711 $2.51
36 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
37 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
37 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
38 415369-3 FAN GUIDE, 2414B $3.06
39 210042-8 BALL BEARING 629LLB, 5277NB $6.03
39 211056-0 B. BEARING 629LLB, 4101RH $10.98
40 681633-6 INSULATION WASHER, LS1211 $3.72
41 516561-5 ARMATURE ASS'Y 115V,2414NB $72.30
41 516611-6 ARMATURE ASSEMBLY,2414B $92.90
42 241515-0 FAN 92, 2414NB $2.84
43 267714-6 WASHER 15, 2414B $3.72
44 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
44 211228-7 BALL BEARING 6202DDW, HM1303B $15.27
45 263005-3 RUBBER PIN 6, BHP452 $0.86
46 322665-1 STOPPER, 2414B $3.06
47 231240-1 COMP. SPRING 7, 2414B $0.79
48 150916-0 GEAR HOUSING CPL., 2414DB $60.40
48 159742-4 GEAR HOUSING COMPLETE, 2414B- T1 $57.90
49 951163-4 SPRING PIN 5-20, 2414B $1.48
50 272021-4 HANDLE, 2414NB $4.49
51 322239-8 VICE SCREW, 2414B $17.47
52 951066-2 SPRING PIN 3-18, 2414B $0.86
53 344089-1 STOPPER PLATE, 2414NB $3.06
54 251887-5 SCREW M6X10, LS1030 $3.61
55 282016-9 CHAIN, 2414NB $1.26
56 322209-7 VISE NUT, 2414B P/VISE ASSY $12.63
57 311949-2 SCREW GUIDE, 2414NB $10.32
58 911451-1 P.H. SCREW M8X30, 2414NB $1.48
59 265201-9 HEX BOLT M10X25, 2414B $2.40
60 344087-5 ANGLE RULE 60, 2414B $13.18
61 266059-9 T. SCREW, FLANGE 5X75,2414B $4.93
62 911273-9 P.H. SCREW M5X50, HR2400 $1.19
63 194991-6 CARBON BRUSH SET CB-203, LS1211 $10.43
64 643700-5 BRUSH HOLDER CAP, GA7021 $1.63
65 233085-3 COMPRESSION SPRING 45, 2414B $10.54
66 165066-8 SPRING HOLDER, 2414B $7.46
67 265407-9 HEX BOLT M10, 2414B $10.54
68 252130-5 HEX LOCK NUT M10 LS1211 $4.16
69 267713-8 CUP WASHER 10, 2414B $2.18
70 331428-4 PIPE, 2414NB $7.46
71 931302-2 HEX NUT M6, HR2400 $0.79
72 942151-2 SPRING WASHER 6, 5007NB $0.90
73 922312-0 H.S.H. BOLT M6X12, 2414NB $1.08
74 344712-8 SPARK GUARD, 2414DB $3.06
75 911308-6 SCREW M6X10, 2414NB $1.19
76 421487-7 CUSHION, 2414B $1.63
77 267713-8 CUP WASHER 10, 2414B $2.18
78 265406-1 H.BOLT M10X130, LS1211 $7.13
79 165109-6 BASE,2414B-T1 $66.10
79 165230-1 BASE, 2414DB $58.90
79 165354-3 BASE,2414NB $26.27
80 253731-2 F. WASHER 8, 2414B $1.63
81 321680-2 SCREW M8, 2414B $8.78
82 253731-2 F. WASHER 8, 2414B $1.63
83 342679-4 VISE PLATE, 2414NB $5.92
84 253752-4 F. WASHER 8, 2414B . $1.63
85 942201-3 SPRING WASHER 8, 2414NB $0.90
86 931402-8 HEX NUT M8, 5037NB $1.34
87 253903-9 W. WASHER 6, 2414NB $1.01
88 922323-5 H.S.H. BOLT M6X16,2012NB $1.96
1001 782210-8 SOCKET WRENCH 17,2414B $6.40
1003 A-93859-5 14 CUT-OFF WHEEL (5/PK), 2414NB $29.00
5002 416771-3 PLUG, 2414DB $1.26
5008 411478-6 SWITCH BUTTON, LS1011 $1.63
5009 344700-5 ARM, 2414NB $8.89
5010 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
