Makita 2107F Electric Saw Parts

Makita 2107F Parts

Portable Band Saw, 6.5 AMP, L.E.D. Light, 2-speed

Download Schematic

Time to buy a new tool?

Makita 2107F

Portable Band Saw, 6...

$320.99

Free Shipping

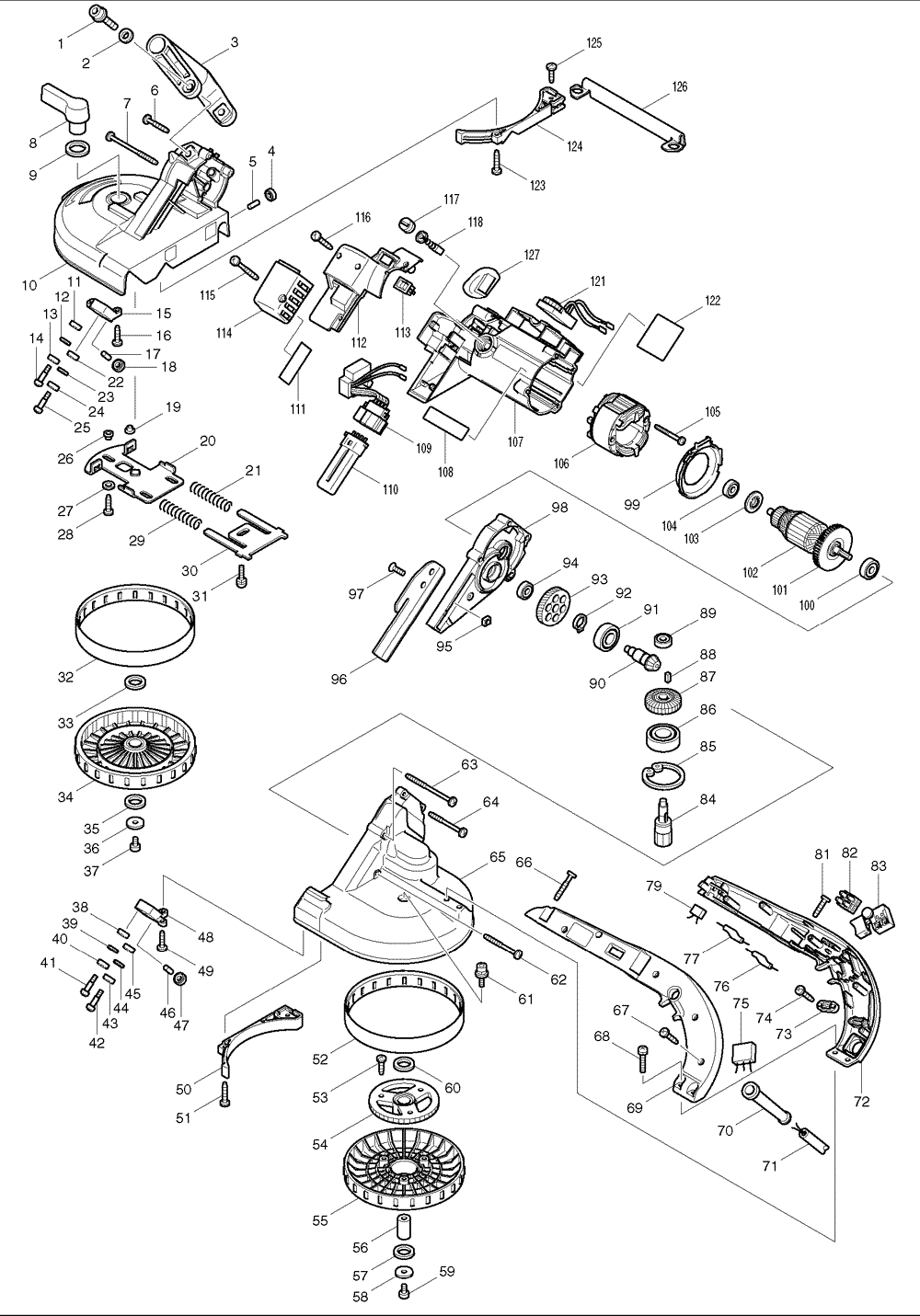

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
00	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
1	922456-6	H.S.H. BOLT M8X35, 2107F	$1.48
2	941202-8	F. WASHER 8, 5037NB	$0.75
3	273614-0	TOP HANDLE,DA4511	$10.32
10	158703-1	FRONT WHEEL COVER CPL., 2107F	$51.10
11	210033-9	BALL BEARING 696ZZ, GA4030	$4.16
12	941152-7	F. WASHER 6, HM1500	$0.75
13	210033-9	BALL BEARING 696ZZ, GA4030	$4.16
14	251337-0	P.H. SCREW M5, 2106	$1.96
15	317824-0	UPPER HOLDER, 2107F	$6.80
16	266034-5	TAPPING SCREW 4X16, 9524NB	$0.53
17	256033-5	PIN 6, 6905B	$1.48
18	210033-9	BALL BEARING 696ZZ, GA4030	$4.16
19	343494-9	SLEEVE 5, 2107F	$1.52
20	163276-1	SLIDE PLATE, 2106	$17.47
21	231449-5	COMP. SPRING 11, 2106	$4.16
22	210033-9	BALL BEARING 696ZZ, GA4030	$4.16
23	941152-7	F. WASHER 6, HM1500	$0.75
24	210033-9	BALL BEARING 696ZZ, GA4030	$4.16
25	251337-0	P.H. SCREW M5, 2106	$1.96
26	343494-9	SLEEVE 5, 2107F	$1.52
27	941051-3	F. WASHER 4, 2107F	$0.75
28	266034-5	TAPPING SCREW 4X16, 9524NB	$0.53
29	231449-5	COMP. SPRING 11, 2106	$4.16
30	343489-2	TENSION PLATE, 2106	$4.16
31	911221-8	P.H. SCREW M5X16, JR3000V	$0.86
32	421333-4	RUBBER TIRE, 2107	$10.32
54	140140-3	GEAR CPL., 2107F	$14.94
55	419506-1	WHEEL, 2107F	$11.97
69	183870-3	HANDLE SET, 2107F	$17.25
70	682572-3	CORD GUARD, 6304LR	$2.51
70	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
84	227139-6	SPUR GEAR 8, 2107F	$19.45
93	226593-1	HELICAL GEAR 64, 2107F	$10.21
99	418785-8	BAFFLE PLATE, 2107F	$2.84
100	211092-6	B. BEARING 629DDW, BO4556	$10.98
101	241850-6	FAN 60, BTW450	$4.16
102	513581-0	ARMATURE ASS'Y, 2107F	$45.49
103	681644-1	INSULATED WASHER, 9227C	$1.63
104	211031-6	BALL BEARING 608LLB, 9227C	$10.98
105	266056-5	T. SCREW FLANGE PT5X45,9046	$3.28
106	594516-0	FIELD ASS'Y, 2107F	$20.55
107	154472-2	MOTOR HOUSING CPL., 2107F	$26.38
108	819064-1	MAKITA MARK, 5402NA	$1.26
109	631640-9	LIGHT CIRCUIT, 2107F	$41.20
110	193595-1	FLUORESCENT LIGHT,LS1214F	$4.16
111	418850-3	LENZ, 2107F	$1.52
112	418782-4	LAMP COVER, 2107F	$5.48
113	651514-8	SWITCH, 5007FK	$7.02
114	418783-2	LAMP BOX, 2107F	$4.16
115	266048-4	T. SCREW 4X40, BO4556	$1.19
116	265935-4	TAPPING SCREW 3X20, 2107F	$0.53
117	643750-0	BRUSH HOLDER CAP, HM1100C	$1.63
118	194996-6	CARBON BRUSH CB-303 SET, 9227C	$8.12
121	631638-6	COTROLLER, 2107F	$29.37
122	860922-4	NAME PLATE, 2107F	$1.21
123	266042-6	TAPPING SCREW BIND CT 4X20, 9046	$0.86
124	418784-0	SAW GUARD HOLDER, 2107F	$4.16
125	266034-5	TAPPING SCREW 4X16, 9524NB	$0.53
126	345468-6	SSAW GUARD, 2107F	$2.84
127	421885-5	CAP, 2107F	$4.16
1001	410048-8	WRENCH HOLDER, JR3000V	$1.26
1003	783202-0	HEX WRENCH 4, JR3000V	$3.24
