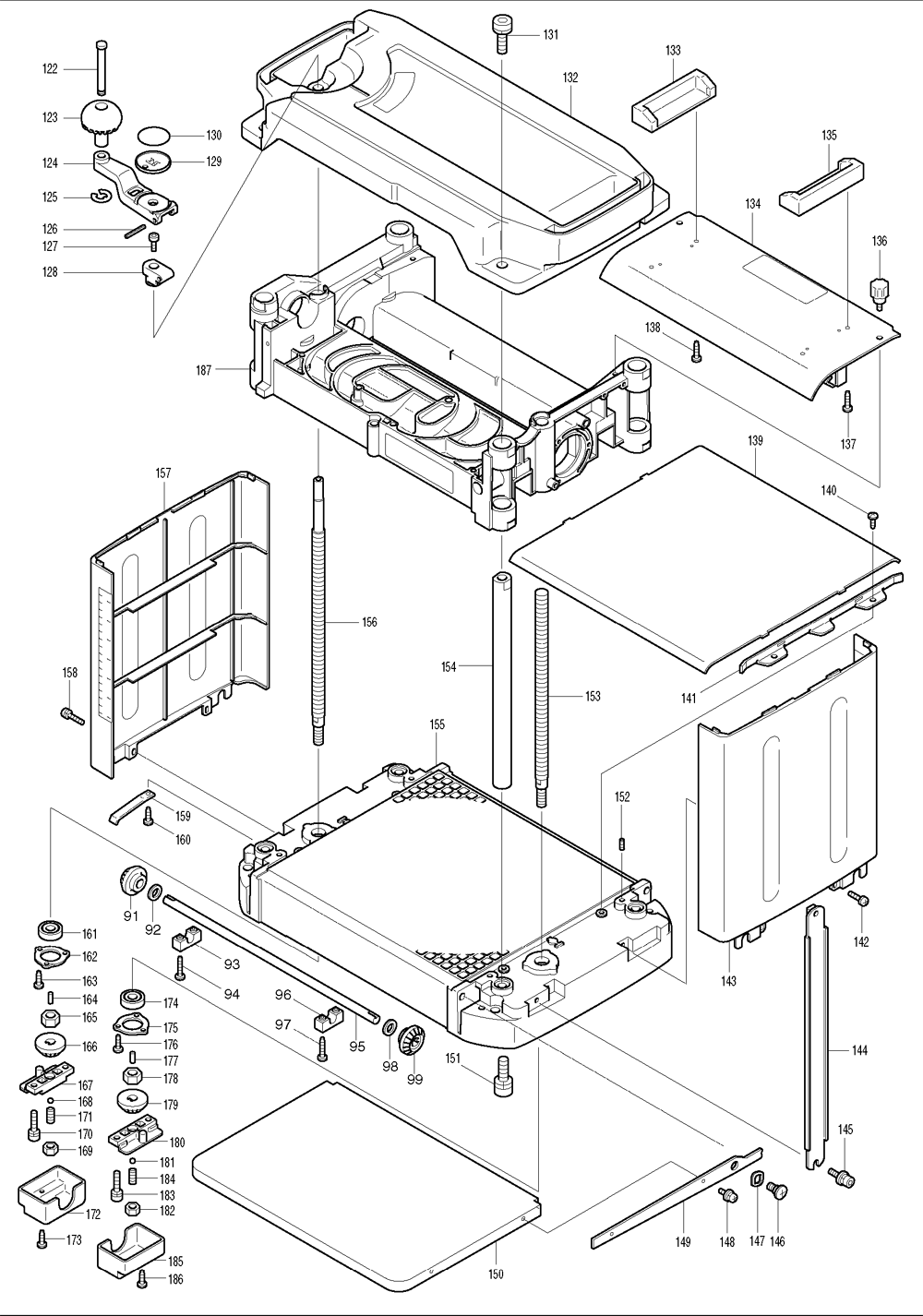

Tool Diagram    (Click image to Zoom in) View larger Image

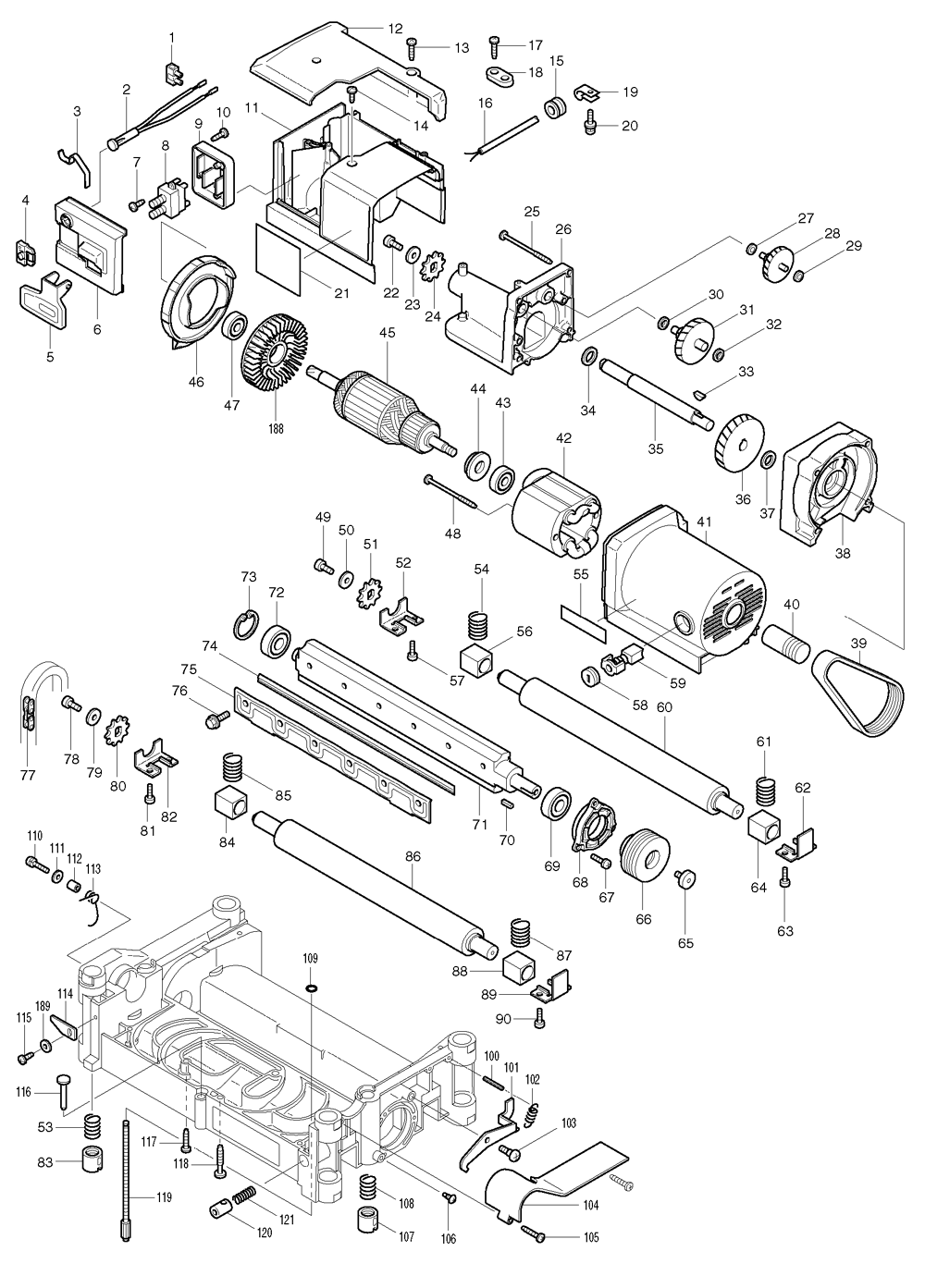

Makita 2012NB Electric planer parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 654561-8 TERMINAL BLOCK, 2012NB $4.16
00 214109-4 PLANE BEARING 12, 2012NB $2.84
2 631370-2 PILOT LAMP CPL, 2012NB $8.01
00 415448-7 HOOD, 2012NB $16.59
3 232194-5 LEAF SPRING, 2012NB $1.96
00 344834-4 HOOD HOLDER, 2012NB $12.52
4 415715-0 KEY, 2030S $3.06
5 417031-6 SWITCH LEVER, 2012NB $2.84
6 417037-4 SWITCH COVER, 2012NB $4.16
7 265954-0 TAPPING SCREW BIND PT3X8, GA4030 $0.53
8 651529-5 SWITCH, 2012NB $26.62
9 417044-7 SWITCH BASE, 2012NB $4.16
10 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
11 417041-3 SWITCH BOX, 2012NB $13.29
12 417038-2 SWITCH BOX COVER, 2012NB $5.48
13 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
14 266026-4 TAPPING SCREW 4X12,5477NB $0.86
15 682539-1 GROMMET, 2012 $1.63
16 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
16 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
17 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
18 687052-4 STRAIN RELIEF, HM1500B $1.26
19 687042-7 STRAIN RELIEF, 2711 $1.26
20 911118-1 P.H. SCREW M4X12, 6221D $0.86
20 911128-8 P.H. SCREW M4X16, 1902 $1.48
21 851968-1 NAME PLATE, 2012NB $1.36
22 922312-0 H.S.H. BOLT M6X12, 2414NB $1.08
22 922317-0 H.S.H. BOLT M6X14, 2708 $1.08
23 267080-1 FLAT WASHER 6, 2012NB $1.34
24 221525-3 SPROCKET 10, 2012NB $1.52
25 266059-9 T. SCREW, FLANGE 5X75,2414B $4.93
26 151739-9 GEAR HOUSING COVER CPL.2012NB $23.41
27 253715-0 F. WASHER 6, NHP1310 $1.34
28 226134-3 GEAR CPL.8-50, 2012NB $22.09
29 253715-0 F. WASHER 6, NHP1310 $1.34
30 253215-0 F. WASHER 8, PV7001C $1.34
31 226135-1 GEAR CPL.8-46, 2012NB $26.16
32 253215-0 F. WASHER 8, PV7001C $1.34
33 254001-2 WOODRUFF KEY 4, HM1810 $1.26
34 253760-5 F. WASHER 14, 2030S $1.63
35 323923-8 DRIVE SHAFT, 2012NB $20.55
36 226518-5 HELICAL GEAR 47, 2012NB $17.36
37 253744-3 F. WASHER 12, HR2410 $1.34
38 151738-1 GEAR HOUSING CPL., 2012NB $23.41
39 225083-1 POLY V-BELT 8-341, 2012NB $13.29
40 222155-3 V-PULLEY 8-23.5L, 2012NB $8.01
41 151737-3 MOTOR HOUSING CPL. 2012NB $19.45
42 526101-1 FIELD ASS'Y 115V, 2012NB $50.69
44 681623-9 INS. WASHER, 2012NB $1.63
45 516811-8 ARMATURE ASS'Y 115V, 2012NB $150.07
46 417033-2 BAFFLE PLATE, 2012NB $2.84
48 266059-9 T. SCREW, FLANGE 5X75,2414B $4.93
49 922312-0 H.S.H. BOLT M6X12, 2414NB $1.08
49 922317-0 H.S.H. BOLT M6X14, 2708 $1.08
50 267080-1 FLAT WASHER 6, 2012NB $1.34
51 221525-3 SPROCKET 10, 2012NB $1.52
52 343844-8 METAL COVER B, 2030S $4.49
53 233016-2 COMPRESSION SPRING 15, 2012 $10.54
54 231459-2A COMP. SPRING 13, 2030S $4.16
55 819064-1 MAKITA MARK, 5402NA $1.26
56 214251-1 P. BEARING 17, 2030S $5.92
57 922221-3 HEX BOLT M5X16, 6906 $1.34
58 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
59 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
59 K21 This item will be shipped Free Carbon Brush Set Replaces Makita (CB-154), 18104... $8.50
60 162216-6 ROLLER 34-295, 2012NB $97.80
61 231459-2A COMP. SPRING 13, 2030S $4.16
62 341685-6 METAL COVER A, 2012NB $1.52
63 922221-3 HEX BOLT M5X16, 6906 $1.34
64 214251-1 P. BEARING 17, 2030S $5.92
65 265854-4 H.S.H. BOLT M6X12, 2030S $7.13
66 222154-5 V-PULLEY 8-54, 2012NB $6.80
67 911128-8 P.H. SCREW M4X16, 1902 $1.48
68 317259-5 HOUSING W/O BEARING, 2012NB $5.48
69 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
70 254204-8 KEY 4, 9045B $1.26
71 323928-8 DRUM, 2012NB $130.08
72 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
73 962153-2 RETAINING RING R-35,HP2030 $1.48
74 793346-8 PLANER BLADE 306 (2/PKG), 2012 $62.00
75 343682-8 SET PLATE, 2012NB $28.25
76 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
77 225520-5 CHAIN 35-46, 2012NB $10.65
78 922312-0 H.S.H. BOLT M6X12, 2414NB $1.08
78 922317-0 H.S.H. BOLT M6X14, 2708 $1.08
79 267080-1 FLAT WASHER 6, 2012NB $1.34
80 221525-3 SPROCKET 10, 2012NB $1.52
81 922221-3 HEX BOLT M5X16, 6906 $1.34
82 343844-8 METAL COVER B, 2030S $4.49
83 252426-4 NUT M14, 2012NB $13.18
84 214251-1 P. BEARING 17, 2030S $5.92
85 231459-2A COMP. SPRING 13, 2030S $4.16
86 162216-6 ROLLER 34-295, 2012NB $97.80
87 231459-2A COMP. SPRING 13, 2030S $4.16
88 214251-1 P. BEARING 17, 2030S $5.92
89 341685-6 METAL COVER A, 2012NB $1.52
90 922221-3 HEX BOLT M5X16, 6906 $1.34
91 226786-0 STRAIGHT BEVEL GEAR 15, 2012NB $4.27
92 253828-7 FLAT WASHER 10, 2012NB $1.63
93 417034-0 SHAFT RETAINER, 2012NB $1.52
94 266040-0 TAPPING SCREW, 2012NB $0.86
95 323926-2 SHAFT 10, 2012NB $8.01
96 417034-0 SHAFT RETAINER, 2012NB $1.52
97 266040-0 TAPPING SCREW, 2012NB $0.86
98 253828-7 FLAT WASHER 10, 2012NB $1.63
99 226786-0 STRAIGHT BEVEL GEAR 15, 2012NB $4.27
100 951122-8 SPRING PIN 4-28, UC4030A $1.48
101 344815-8 LOCK PLATE, 2012NB $1.52
102 231793-0 TENSION SPRING 5, AN451 $3.50
103 251283-7 P.H. SCREW M5, 2012 $3.61
104 417035-8 BELT COVER, 2012NB $2.84
105 266040-0 TAPPING SCREW, 2012NB $0.86
106 251322-3 P.H. SCREW M5X12, 6093D $1.19
107 252427-2 NUT M14L, 2012NB $13.18
108 233016-2 COMPRESSION SPRING 15, 2012 $10.54
109 213009-5 O RING 4, AF501 $0.53
110 911233-1 P.H. SCREW M5X20, TW1000 $0.86
111 253194-2 F. WASHER 5, HM1303B $1.63
112 257600-9 SLEEVE 6, 2012 $3.06
113 231588-1 TOR. SPRING 9, 2012 $2.07
114 344068-9 POINTER, 2030S $3.06
115 266026-4 TAPPING SCREW 4X12,5477NB $0.86
116 322229-1 GAUGE, 2030S $3.06
117 266040-0 TAPPING SCREW, 2012NB $0.86
118 266173-1 T. SCREW FLANGE PT5X3, GA7011c $1.19
119 265736-0 SCREW M6X135, 2012NB $6.47
120 323927-0 HALF NUT, 2012NB $5.92
121 231226-5 COMP. SPRING 11, 2040 $1.63
122 256688-6 PIN 8, 2030S $7.13
123 271296-2 KNOB 45, 2030S $4.49
124 272028-0 HANDLE, 2012NB $4.16
125 961012-7 STOP RING E-6, 2030S $0.53
126 951122-8 SPRING PIN 4-28, UC4030A $1.48
127 266086-6 H.S.H.BOLT M5X16,DA4031 $1.48
128 317760-0 JOINT, 2012NB $2.84
129 417032-4 GAUGE, 2012NB $2.84
130 816789-8 SCALE LABEL, 2012NB $0.71
131 266240-2 H.S.H. BOLT M10X25 2012NB $3.28
132 153781-6 TOP COVER CPL.,2012NB $37.84
133 417036-6 TOOL BOX HOLDER, 2012NB $4.16
134 165379-7 CHIP COVER, 2012NB $15.93
135 417036-6 TOOL BOX HOLDER, 2012NB $4.16
136 265716-6 SCREW M5X10, 3901 $5.37
137 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
138 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
139 344816-6 TABLE PLATE, 2012NB $17.25
140 266026-4 TAPPING SCREW 4X12,5477NB $0.86
141 344819-0 GUIDE PLATE, 2012NB $2.84
142 911128-8 P.H. SCREW M4X16, 1902 $1.48
143 417040-5 SIDE COVER, 2012NB $12.63
144 344820-5 SIDE BEAM, 2012NB $4.16
145 922323-5 H.S.H. BOLT M6X16,2012NB $1.96
146 251217-0 SCREW M8, 2012 $1.96
147 253932-2 W. WASHER 10, 2012 $1.01
148 911108-4 P.H. SCREW M4X8, LS1013 $0.86
149 344818-2 ARM, 2012NB $2.84
150 344817-4 SUB TABLE PLATE, 2012NB $9.33
151 266240-2 H.S.H. BOLT M10X25 2012NB $3.28
153 323925-4 SCREW L, 2012NB $16.04
154 331562-0 COLUMN 20, 2012NB $15.93
155 317763-4 TABLE,2012NB $56.90
156 323924-6 SCREW R, 2012NB $22.42
157 151886-6 SIDE COVER CPL.2012NB $9.33
158 911128-8 P.H. SCREW M4X16, 1902 $1.48
159 232195-3 LEAF SPRING, 2012NB $1.63
160 266026-4 TAPPING SCREW 4X12,5477NB $0.86
161 211088-7 BALL BEARING 6000DDW, 9005B $13.07
162 285698-6 BEARING RETAINER 33, 2012NB $1.26
163 266026-4 TAPPING SCREW 4X12,5477NB $0.86
164 256226-4 PIN 4, 6922NB $1.19
165 252164-8 HEX.NUT M10-17, 2012NB $1.96
166 226791-7 STRAIGHT BEVEL GEAR 15, 2012NB $4.27
167 317260-0 SUPPORTER, 2012NB $5.48
168 216011-7 STEEL BALL 5.6, 6222DWE $0.86
169 931403-6 HEX NUT M8, 406 $1.34
170 922231-0 H.S.H. BOLT M5X20, HR2010 $1.48
171 265846-3 H.S.H. BOLT M8X16,2012NB $1.34
172 417030-8 GEAR COVER, 2012NB $2.95
173 266026-4 TAPPING SCREW 4X12,5477NB $0.86
174 211088-7 BALL BEARING 6000DDW, 9005B $13.07
175 285698-6 BEARING RETAINER 33, 2012NB $1.26
176 266026-4 TAPPING SCREW 4X12,5477NB $0.86
177 256226-4 PIN 4, 6922NB $1.19
178 252164-8 HEX.NUT M10-17, 2012NB $1.96
179 226791-7 STRAIGHT BEVEL GEAR 15, 2012NB $4.27
180 317260-0 SUPPORTER, 2012NB $5.48
181 216011-7 STEEL BALL 5.6, 6222DWE $0.86
182 931403-6 HEX NUT M8, 406 $1.34
183 922231-0 H.S.H. BOLT M5X20, HR2010 $1.48
184 265846-3 H.S.H. BOLT M8X16,2012NB $1.34
185 417030-8 GEAR COVER, 2012NB $2.95
186 266026-4 TAPPING SCREW 4X12,5477NB $0.86
187 153784-0 MAIN FRAME CPL.,2012NB $64.40
188 240003-4 FAN 80, 5007NK $4.16
189 941051-3 F. WASHER 4, 2107F $0.75
1001 762014-4 MAGNETIC HOLDER, 2012 $10.60
1003 783208-8 HEX WRENCH 2.5, LS1016L $3.40
1004 415715-0 KEY, 2030S $3.06
