Makita 1912B Electric planer parts

Makita 1912B Electric planer parts Image

Makita 1912B Parts
4-3/8 Inch Planer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 1912B
4-3/8 Inch Planer
$265.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

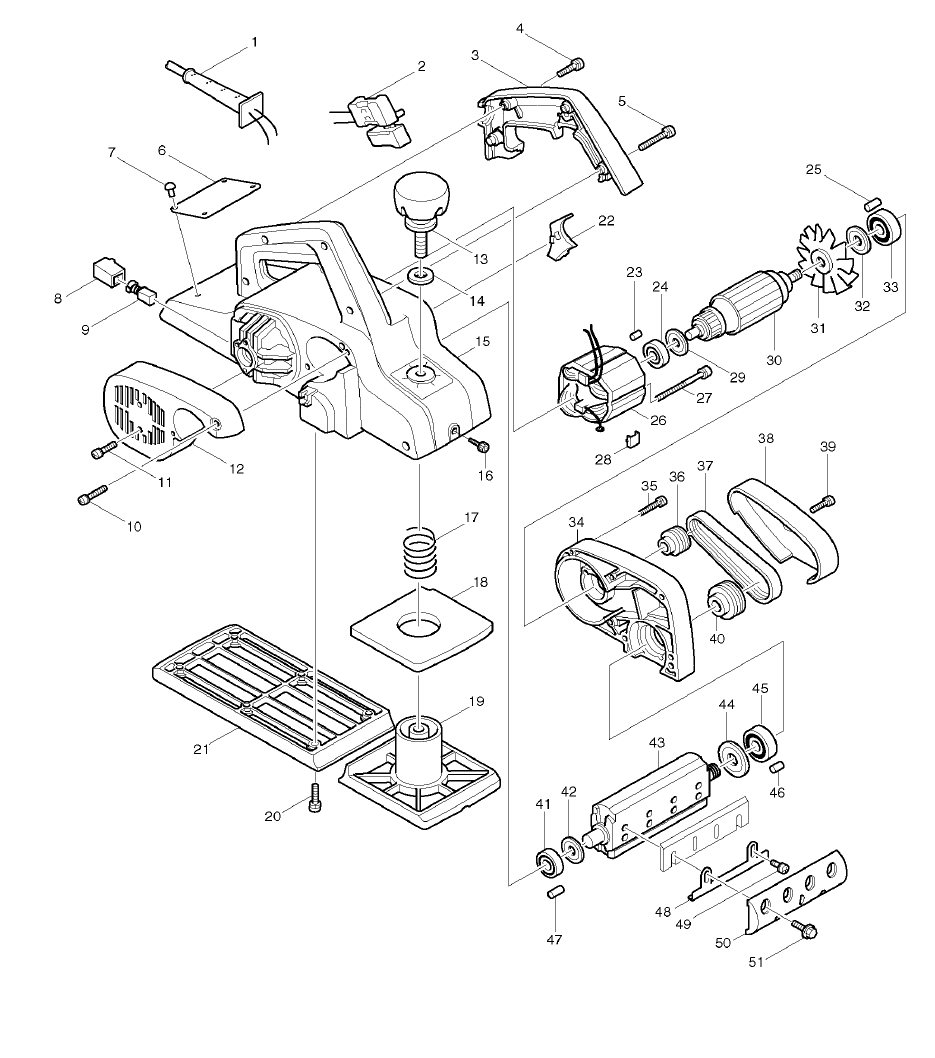

Makita 1912B Electric planer parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
1 664424-0 CORD (2X18X8 SJT), 3621 $16.04
30 516081-9 ARMATURE, 1912B $94.00
1 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
2 651225-5 SWITCH,JN3200 $21.76
1 664424-0 CORD (2X18X8 SJT), 3621 $16.04
26 594486-3 FIELD ASSEMBLY, 1912B $33.25
2 651225-5 SWITCH,JN3200 $21.76
3 414538-3 HANDLE COVER, 1912B $8.01
8 643601-7A BRUSH HOLDER, 1912B $3.06
4 911153-9 P.H. SCREW M4X28, JR3000V $0.86
3 414538-3 HANDLE COVER, 1912B $8.01
00 816382-8 SCALE LABEL, 1912B $2.74
5 911168-6 P.H. SCREW M4X40, 6905B $0.86
4 911153-9 P.H. SCREW M4X28, JR3000V $0.86
5 911168-6 P.H. SCREW M4X40, 6905B $0.86
6 851926-7 NAME PLATE, 1912B $2.51
6 853294-4 NAME PLATE 1912B $1.21
7 953106-2 RIVET 0-5, HM1500 $0.49
6 851926-7 NAME PLATE, 1912B $2.51
6 853294-4 NAME PLATE 1912B $1.21
8 643601-7 BRUSH HOLDER, 3608B (TYPE 1) $2.73
7 953106-2 RIVET 0-5, HM1500 $0.49
9 194977-0 CARBON BRUSH 107, HP2010N $8.12
10 911168-6 P.H. SCREW M4X40, 6905B $0.86
8 643601-7 BRUSH HOLDER, 3608B (TYPE 1) $2.73
11 911123-8 P.H. SCREW M4X14, N9501B $0.86
9 194977-0 CARBON BRUSH 107, HP2010N $8.12
12 150307-5 REAR COVER COMPLETE, 1912B $6.80
10 911168-6 P.H. SCREW M4X40, 6905B $0.86
13 271226-3 KNOB 50, 1912B $7.46
14 941251-5 F. WASHER 10, LS1030 $1.01
11 911123-8 P.H. SCREW M4X14, N9501B $0.86
12 150307-5 REAR COVER COMPLETE, 1912B $6.80
15 159689-2 MAIN FRAME, 1912B $63.00
13 271226-3 KNOB 50, 1912B $7.46
16 251812-6 SCREW M5X10, 1912B $1.96
14 941251-5 F. WASHER 10, LS1030 $1.01
17 231004-3 COMP. SPRING 18, 1912B $4.16
15 159689-2 MAIN FRAME, 1912B $63.00
18 421147-1 RUBBER PACKING, 1912B $2.84
15 159689-2 MAIN FRAME, 1912B $63.00
19 312951-8 FRONT BASE, 1912B $40.29
20 911231-5 P.H. SCREW M5X20, HR4002 $0.86
20 911226-8 P.H. SCREW M5X18, GA7911 $0.86
16 251812-6 SCREW M5X10, 1912B $1.96
17 231004-3 COMP. SPRING 18, 1912B $4.16
21 312952-6 REAR BASE, 1912B $32.23
18 421147-1 RUBBER PACKING, 1912B $2.84
22 411428-1 BAFFLE PLATE, 1912B $1.52
23 263014-2 RUBBER PIN 4, 9217SPC $1.19
19 312951-8 FRONT BASE, 1912B $40.29
24 211031-6 BALL BEARING 608LLB, 9227C $10.98
20 911226-8 P.H. SCREW M5X18, GA7911 $0.86
25 263002-9 RUBBER PIN 4, 5007NK $0.86
20 911231-5 P.H. SCREW M5X20, HR4002 $0.86
21 312952-6 REAR BASE, 1912B $32.23
26 594486-3 FIELD ASSEMBLY, 1912B $33.25
27 911290-9 P.H. SCREW M5X65, GA7911 $1.96
27 911295-9 P.H. SCREW M5X70 5014NB $1.85
22 411428-1 BAFFLE PLATE, 1912B $1.52
23 263014-2 RUBBER PIN 4, 9217SPC $1.19
28 343657-7 RETAINER, JR3000V $1.26
24 211031-6 BALL BEARING 608LLB, 9227C $10.98
29 681613-2 INS. WASHER, JN3200 $1.63
25 263002-9 RUBBER PIN 4, 5007NK $0.86
30 516081-9 ARMATURE, 1912B $94.00
31 241044-3 FAN 68, 9218SB $4.49
32 213051-6 DUST SEAL 10, 2711 $1.63
26 594486-3 FIELD ASSEMBLY, 1912B $33.25
33 211066-7 B. BEARING 6200LLB, BO4552 $10.98
27 911290-9 P.H. SCREW M5X65, GA7911 $1.96
27 911295-9 P.H. SCREW M5X70 5014NB $1.85
34 152362-3 BRACKET, 1912B, (TYPE 2) $11.75
35 911158-9 P.H. SCREW M4X30, 9045B $0.86
28 343657-7 RETAINER, JR3000V $1.26
29 681613-2 INS. WASHER, JN3200 $1.63
36 222050-7 V-PULLEY 4-246, 1912B $5.48
30 516081-9 ARMATURE, 1912B $94.00
37 225069-5 POLY V-BELT, 1912B $23.19
38 411426-5 BELT COVER, 1912B $4.16
32 213051-6 DUST SEAL 10, 2711 $1.63
39 911123-8 P.H. SCREW M4X14, N9501B $0.86
33 211066-7 B. BEARING 6200LLB, BO4552 $10.98
40 222063-8 V-PULLEY 4-38, 1912B $11.75
34 152362-3 BRACKET, 1912B, (TYPE 2) $11.75
41 211062-5 B. BEARING 6000ZZ, LS1016L $10.98
35 911158-9 P.H. SCREW M4X30, 9045B $0.86
42 341389-0 WASHER 10, 1912B $1.63
36 222050-7 V-PULLEY 4-246, 1912B $5.48
43 161119-1 DRUM, 1912B $59.10
37 225069-5 POLY V-BELT, 1912B $23.19
44 341377-7 WASHER 12, 1912B $2.18
38 411426-5 BELT COVER, 1912B $4.16
45 211107-9 BALL BEARING 6201ZZ, 1912B $13.07
46 263005-3 RUBBER PIN 6, BHP452 $0.86
39 911123-8 P.H. SCREW M4X14, N9501B $0.86
47 263002-9 RUBBER PIN 4, 5007NK $0.86
40 222063-8 V-PULLEY 4-38, 1912B $11.75
41 211062-5 B. BEARING 6000ZZ, LS1016L $10.98
48 341601-8 ADJUSTING PLATE, 1912B $3.06
42 341389-0 WASHER 10, 1912B $1.63
49 251246-3 P.H. SCREW M4X5, 1902 $0.86
43 161119-1 DRUM, 1912B $59.10
50 344442-1 DRUM PLATE, 1002BA $4.49
50 345156-5 DRUM PLATE SET, 1912B $8.78
51 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
44 341377-7 WASHER 12, 1912B $2.18
45 211107-9 BALL BEARING 6201ZZ, 1912B $13.07
52 267012-8 FLAT WASHER 5, 1912B $1.63
46 263005-3 RUBBER PIN 6, BHP452 $0.86
47 263002-9 RUBBER PIN 4, 5007NK $0.86
48 341601-8 ADJUSTING PLATE, 1912B $3.06
49 251246-3 P.H. SCREW M4X5, 1902 $0.86
50 344442-1 DRUM PLATE, 1002BA $4.49
50 345156-5 DRUM PLATE SET, 1912B $8.78
51 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
52 267012-8 FLAT WASHER 5, 1912B $1.63
1001 123055-9 SHARPENING HOLDER ASSY, 1912B $12.20
1002 782209-3 SOCKET WRENCH, 4200H $6.40
1003 793008-8 4-3/8HSS PLANER BLADE,1912B $31.20
1004 123062-2 BLADE GAUGE, 1902 $6.40
1005 164371-0 GUIDE RULE, N1900B $16.60
5001 819063-3 MAKITA LABEL, DA3010F $0.96
5002 682502-4 CORD GUARD 8-85, HP2010N $2.51
5002 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
5003 687063-9 STRAIN RELIEF, 4323K $1.26
5004 911133-5 P.H. SCREW M4X18, N9501B $0.86
1001 123055-9 SHARPENING HOLDER ASSY, 1912B $12.20
1002 782209-3 SOCKET WRENCH, 4200H $6.40
1003 793008-8 4-3/8HSS PLANER BLADE,1912B $31.20
1004 123062-2 BLADE GAUGE, 1902 $6.40
1005 164371-0 GUIDE RULE, N1900B $16.60
5001 819063-3 MAKITA LABEL, DA3010F $0.96
5002 682502-4 CORD GUARD 8-85, HP2010N $2.51
5002 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
5003 687063-9 STRAIN RELIEF, 4323K $1.26
5004 911133-5 P.H. SCREW M4X18, N9501B $0.86
