Makita 1902 Electric planer parts

Makita 1902 Electric planer parts Image

Makita 1902 Parts
3-1/4 Inch Planer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 1902
3-1/4 Inch Planer
$148.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

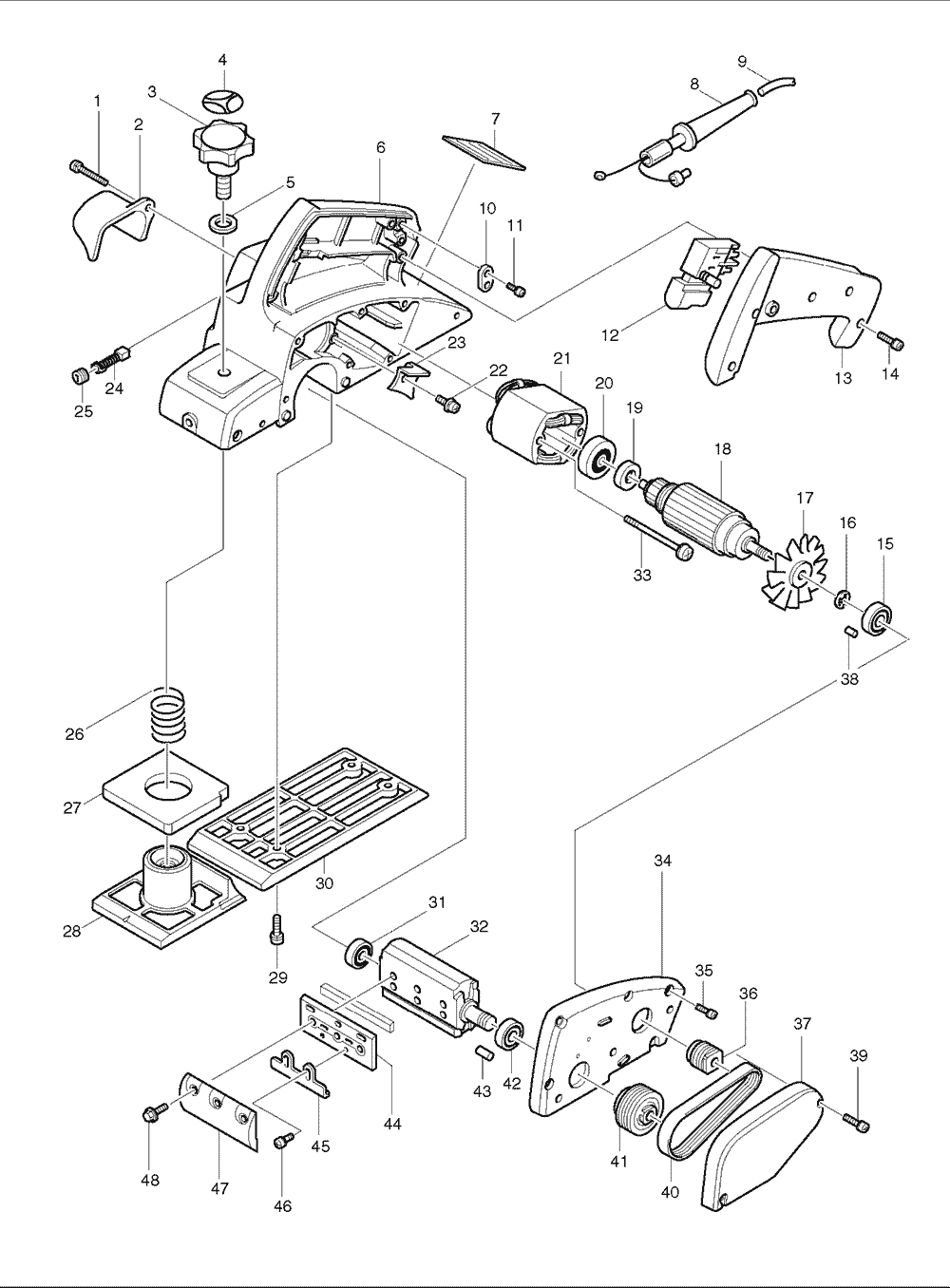

Makita 1902 Electric planer parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 911128-8 P.H. SCREW M4X16, 1902 $1.48
2 416523-2 CHIP COVER, HM0860C $2.84
3 271231-0 KNOB 46, N1900B $5.92
4 812137-9 SCALE PLATE, 1902 $0.97
5 941251-5 F. WASHER 10, LS1030 $1.01
6 150847-3 MAIN FRAME CPL., HM0860C $36.61
7 859017-8 NAME PLATE, HM0860C $1.21
8 682502-4 CORD GUARD 8-85, HP2010N $2.51
8 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
10 687063-9 STRAIN RELIEF, 4323K $1.26
11 911133-5 P.H. SCREW M4X18, N9501B $0.86
12 651232-8 SWITCH, 9218SB $10.43
13 411170-4 HANDLE COVER, N1900B,T1 $5.48
14 911148-2 P.H. SCREW M4X25, 5057KB $0.86
15 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
16 961015-1 STOP RING E-9, BO5021 $0.86
17 241510-0 FAN, N1900B $3.06
18 511936-3 ARMATURE ASS'Y 115V, N1900B $80.90
20 211028-5 B. BEARING 627LB, 6510LVR $8.78
21 593116-3 FIELD ASS'Y, 1902 $30.80
22 911128-8 P.H. SCREW M4X16, 1902 $1.48
23 411153-4 BAFFLE PLATE, N1900B $1.63
24 194972-0 CARBON BRUSH 76, 6905B $8.12
25 643550-8 BRUSH CAP , 9031 $1.63
26 231004-3 COMP. SPRING 18, 1912B $4.16
27 421007-7 RUBBER PACKING, N1900B $3.06
28 316963-3 FRONT BASE, HM0860C $15.93
29 911226-8 P.H. SCREW M5X18, GA7911 $0.86
30 316964-1 BASE, HM0860C $13.29
31 211032-4 B. BEARING 608ZZ, N1900B $8.78
32 161061-6 DRUM, N1900B $27.59
33 911586-8 PAN HEAD SCREW M4X60, HM0860C $1.48
34 152565-9 BRACKET COMPLETE, HM0860C $8.01
35 911148-2 P.H. SCREW M4X25, 5057KB $0.86
36 222145-6 V-PULLEY 4-18L, HM0860C $4.16
37 411019-8 BELT COVER, 1902 $4.49
38 263002-9 RUBBER PIN 4, 5007NK $0.86
39 911148-2 P.H. SCREW M4X25, 5057KB $0.86
40 225071-8 POLY V BELT, 1902 $11.53
41 222146-4 V-PULLEY 4-38, HM0860C $5.48
42 211062-5 B. BEARING 6000ZZ, LS1016L $10.98
43 263002-9 RUBBER PIN 4, 5007NK $0.86
44 343433-9 SET PLATE (MINI BLADE), N1900B $4.49
45 342430-2 ADJUST PLATE, 1902 $1.63
46 251246-3 P.H. SCREW M4X5, 1902 $0.86
47 345007-2 DRUM PLATE SET, KP0800 $7.46
48 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
1001 123062-2 BLADE GAUGE, 1902 $6.40
1002 782209-3 SOCKET WRENCH, 4200H $6.40
1003 D-46246 3-1/4 Inch Double Edge Planer Blades Set $13.19
5005 652008-6 P.H. SCREW M3.5X7, PV7001C $0.49
