Makita 1805B Electric planer parts

Makita 1805B Electric planer parts Image

Makita 1805B Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

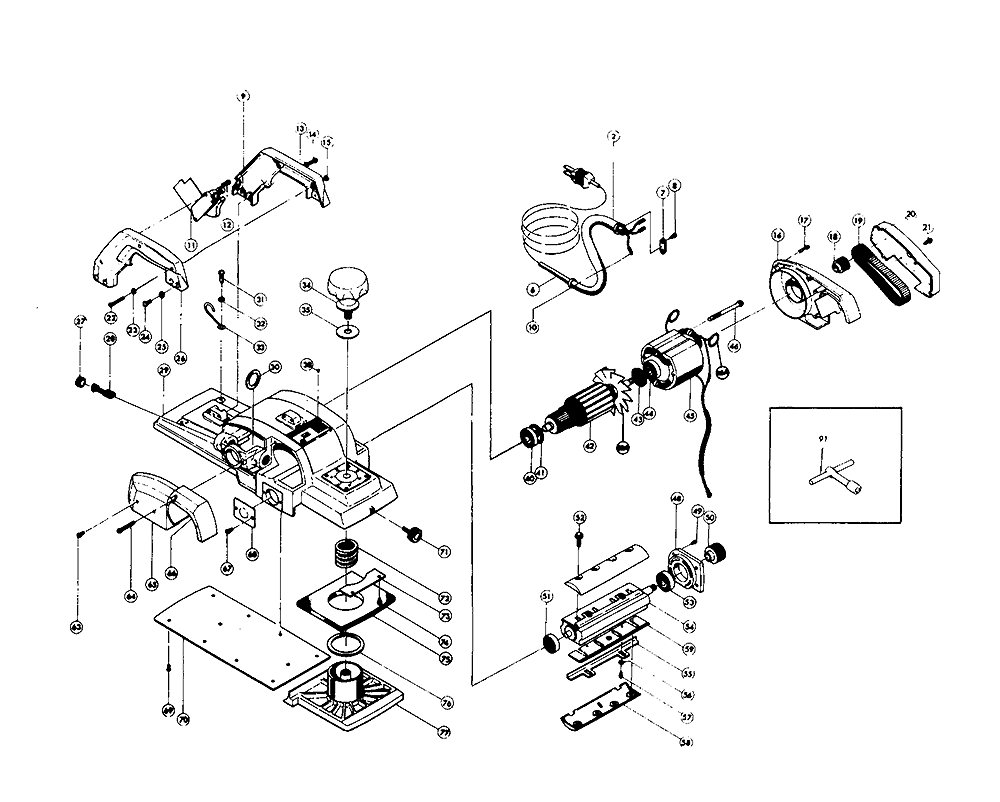

Makita 1805B Electric planer parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
2 682507-4 CORD GUARD, 1805B $4.16
6 664322-8 CORD (3X16X8 SJT), 6910 $20.88
6 EC163T This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $20.19
7 687000-3 STRAIN RELIEF, GA7001L $0.75
8 911131-9 P.H. SCREW M4X18, HR3851 $0.53
9 411162-3 HANDLE (L), 1805N $12.63
12 911101-8 P.H. SCREW M4X6, LS1020 $0.53
13 941102-2 F. WASHER 5, HM1100C $0.75
14 911211-1 P.H. SCREW M5X12, HM1500B $0.86
15 931102-0 HEX NUT M4, 2711 $0.79
17 911241-2 P.H. SCREW M5X25, 9005B $0.86
18 222007-8 V-PULLEY 6-23L, 1806B $8.78
20 343072-5 BELT COVER, 1805 $5.15
21 911206-4 P.H. SCREW M5X10, 1806B $0.53
22 911156-3 .P.H. SCREW M4X30, 2412N $0.86
23 941052-1 F. WASHER 4, 9218SB $0.75
24 911211-1 P.H. SCREW M5X12, HM1500B $0.86
25 941102-2 F. WASHER 5, HM1100C $0.75
26 411161-5 HANDLE (R), 1805N $11.53
27 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
30 681002-1 INS. WASHER, 2012 $1.01
31 911321-4 P.H. SCREW M6X16, 5402A $0.86
32 941151-9 F. WASHER 6, 5007NB $0.75
35 253004-3 F. WASHER 13, 1806B $1.63
38 953106-2 RIVET 0-5, HM1500 $0.49
40 211066-7 B. BEARING 6200LLB, BO4552 $10.98
41 213051-6 DUST SEAL 10, 2711 $1.63
42A 241013-4 FAN 80, 1806B $4.49
43 213102-5 DUST SEAL 12, 5057KB $1.63
44 211106-1 B. BEARING 6201LLB, 9227C $13.07
45A 654020-2 GARTER SPRING, 5007NK $1.34
46 911291-7 P.H. SCREW M5X70, 2012 $3.28
49 911116-5 P.H. SCREW M4X12, 4301BV $0.53
50 222006-0 V-PULLEY 6-30, 1806B $8.78
51 211067-5 BALL BEARING 6200ZZ, 1806B $13.07
52 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
53 211107-9 BALL BEARING 6201ZZ, 1912B $13.07
55 342165-5 ADJUST PLATE, 1805B $4.49
56 941051-3 F. WASHER 4, 2107F $0.75
57 251246-3 P.H. SCREW M4X5, 1902 $0.86
58 345005-6 DRUM PLATE SET, 1804 $10.43
58 345027-6 DRUM PLATE SET, 2030S $14.61
63 911206-4 P.H. SCREW M5X10, 1806B $0.53
64 911166-0 P.H. SCREW M4X40, 9218PBL $1.48
67 911206-4 P.H. SCREW M5X10, 1806B $0.53
69 912112-6 .C.S.H. SCREW M4X10, 3700B $0.53
70 341224-2 BASE, 1805N $18.35
70 341223-4 BASE, 1805 $24.40
71 251814-2 SCREW M6X18, 9820-2 $1.96
74 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
75 421056-4 RUBBER PACKING, 1805 $3.94
76 253704-5 F. WASHER 25, 1805 $0.66
91 782209-3 SOCKET WRENCH, 4200H $6.40
