Makita 1002BA Electric planer parts

Makita 1002BA Electric planer parts Image

Makita 1002BA Parts
4-3/8 Inch Curved Base Planer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 1002BA
4-3/8 Inch Curved Ba...
$418.99

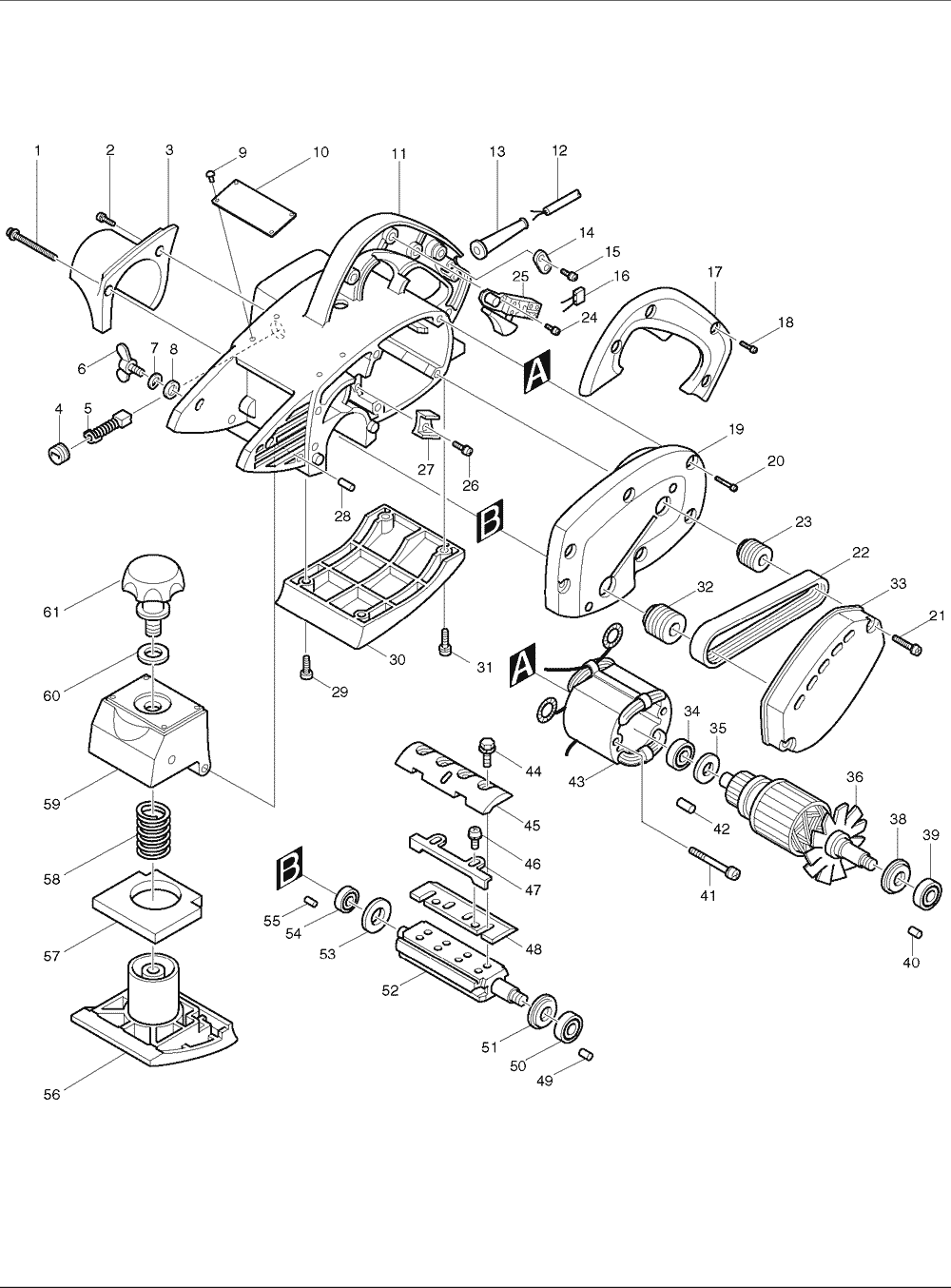

Tool Diagram    (Click image to Zoom in) View larger Image
Makita 1002BA Electric planer parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 911198-7 P.H. SCREW M4X70, BO4510 $1.48
1 911178-3 P.H. SCREW M4X50, 6302 $1.19
2 911138-5 P.H. SCREW M4X20, 9218SB $0.86
3 317099-1 CHIP COVER, 1002BA $36.61
3 411732-8 CHIP COVER, 1002BA-T1 $3.94
4 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
5 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
5 K21 This item will be shipped Free Carbon Brush Set Replaces Makita (CB-154), 18104... $8.50
6 924336-2 THUMB SCREW M6X25, 5402A $1.96
7 942151-2 SPRING WASHER 6, 5007NB $0.90
8 941151-9 F. WASHER 6, 5007NB $0.75
9 953106-2 RIVET 0-5, HM1500 $0.49
10 858320-4 NAME PLATE, 1002BA $2.51
11 156659-2 MAIN FRAME COMPLETE, 1002BA $53.70
13 682503-2 CORD GUARD 8-90, 9005B $2.51
13 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
14 687002-9 STRAIN RELIEF, 9217SPC $0.97
15 911133-5 P.H. SCREW M4X18, N9501B $0.86
17 411731-0 HANDLE COVER, 1002BA $5.92
18 911158-9 P.H. SCREW M4X30, 9045B $0.86
19 152363-1 BRACKET, 1002BA $10.65
20 911248-8 P.H. SCREW M5X28, HM1500 $1.19
21 911156-3 .P.H. SCREW M4X30, 2412N $0.86
22 225070-0 POLY V-BELT, 1002BA $26.38
23 222007-8 V-PULLEY 6-23L, 1806B $8.78
24 911101-8 P.H. SCREW M4X6, LS1020 $0.53
25 651152-6 SWITCH W/DOUBLE LOCK, 1002BA $34.88
26 911116-5 P.H. SCREW M4X12, 4301BV $0.53
27 341600-0 FAN GUIDE, 1002BA $1.63
28 256719-1 PIN 6, 1002BA $1.19
29 911246-2 P.H. SCREW M5X28, 6013BR $0.86
30 315235-3 BASE, 1002BA $14.61
31 911226-8 P.H. SCREW M5X18, GA7911 $0.86
32 222006-0 V-PULLEY 6-30, 1806B $8.78
33 341599-9 BELT COVER, 1002BA $8.01
34 211068-3 B. BEARING 6200LB, 6820V $10.98
35 681623-9 INS. WASHER, 2012NB $1.63
36 513356-7 ARMATURE ASS'Y 100V, 1002BA $101.18
38 253071-8 F. WASHER 12, 8411DW $1.34
39 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
40 263005-3 RUBBER PIN 6, BHP452 $0.86
41 911290-9 P.H. SCREW M5X65, GA7911 $1.96
42 263002-9 RUBBER PIN 4, 5007NK $0.86
43 523386-0 FIELD ASS'Y 115V, 1002BA $61.60
44 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
45 344442-1 DRUM PLATE, 1002BA $4.49
45 345156-5 DRUM PLATE SET, 1912B $8.78
46 251246-3 P.H. SCREW M4X5, 1902 $0.86
47 341601-8 ADJUSTING PLATE, 1912B $3.06
48 793008-8 4-3/8HSS PLANER BLADE,1912B $31.20
49 263005-3 RUBBER PIN 6, BHP452 $0.86
50 211107-9 BALL BEARING 6201ZZ, 1912B $13.07
51 341602-6 WASHER 12, 1002BA $1.63
52 161076-3 DRUM, 1002BA $41.41
53 341389-0 WASHER 10, 1912B $1.63
54 211067-5 BALL BEARING 6200ZZ, 1806B $13.07
55 263002-9 RUBBER PIN 4, 5007NK $0.86
56 315234-5 FRONT BASE, 1002BA $34.17
57 423033-2 RUBBER PACKING, 1002BA $4.16
58 231291-4 COMP. SPRING 21, 1002BA $5.37
59 154268-1 FRONT BOX, 1002BA $43.86
60 253004-3 F. WASHER 13, 1806B $1.63
61 271249-1 KNOB 64, 1806B $11.75
1001 123055-9 SHARPENING HOLDER ASSY, 1912B $12.20
1004 911228-4 P.H. SCREW M5X18, 5377MG $0.86
1005 411086-3 GAUGE PLATE, HM0860C $1.52
1006 123062-2 BLADE GAUGE, 1902 $6.40
1008 782209-3 SOCKET WRENCH, 4200H $6.40
5001 810134-9 CAUTION LABEL, 3709 $0.93
