Jet GH-1340W-3 with ACU-RITE 200S DRO, Taper Attachment and Collet Closer Installed Lathes Machines Parts

Brand: Jet

Model: 321546

Jet 321546 Parts Schematic

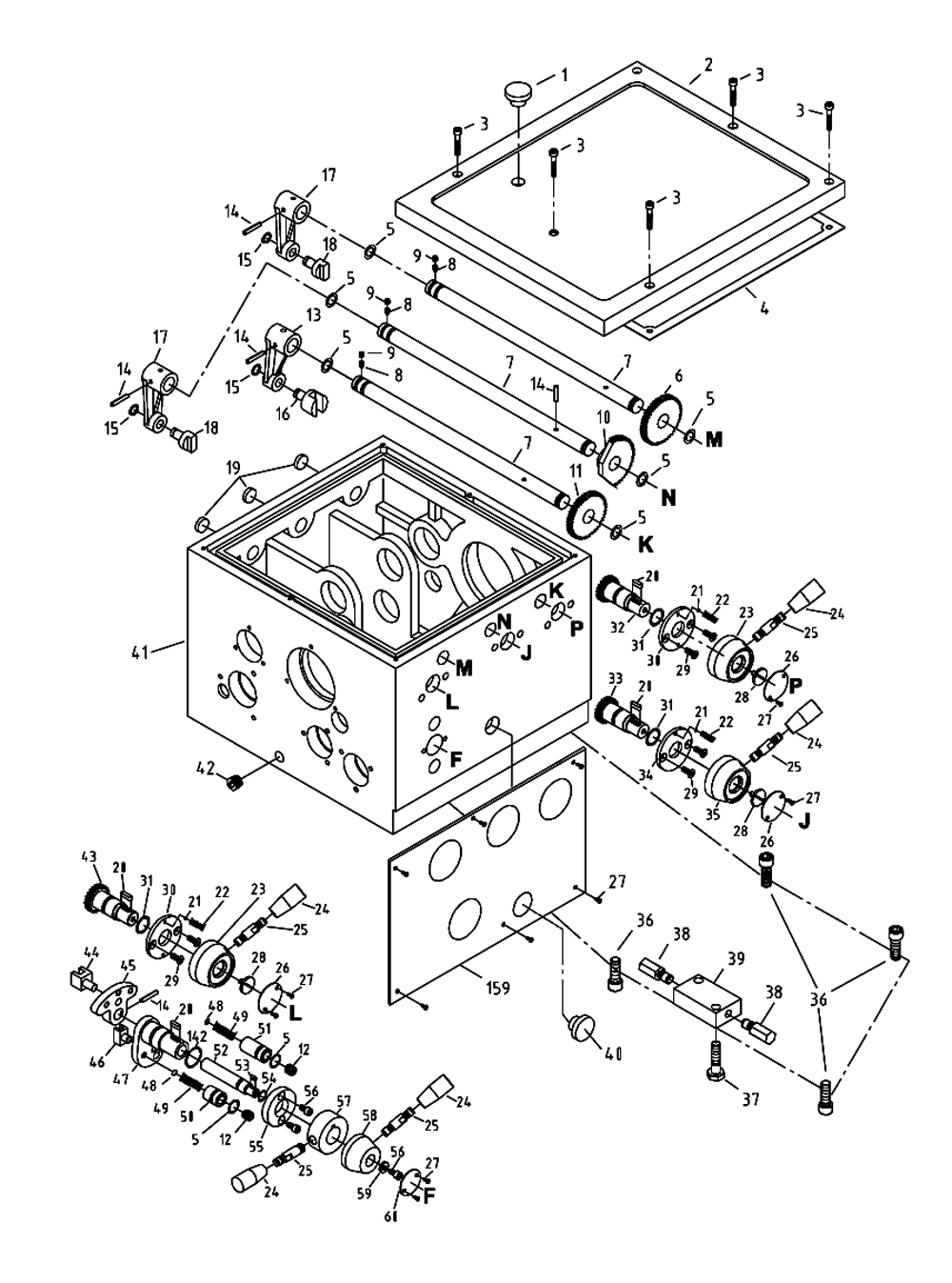

  • Fig-0

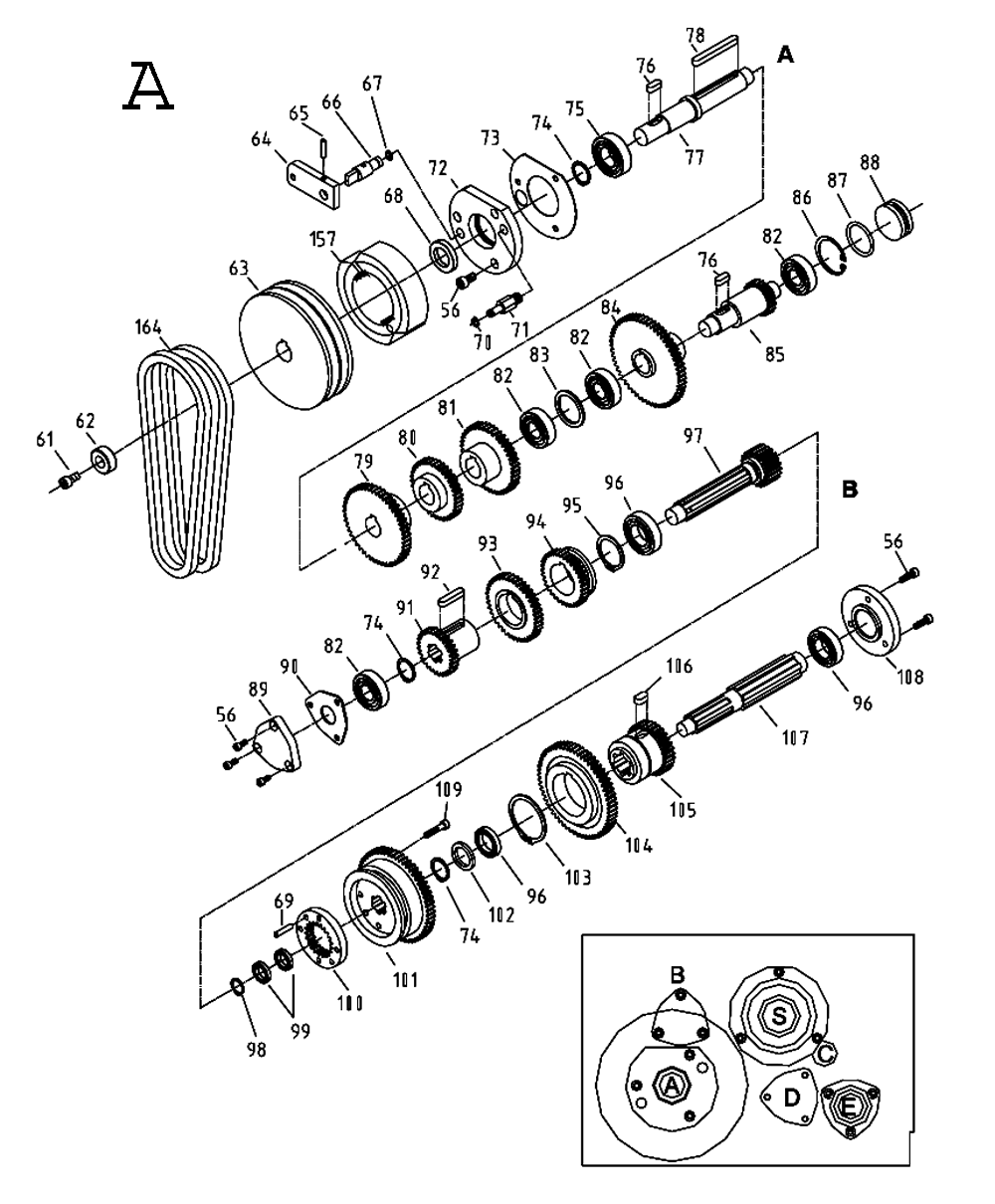

  • Fig-1

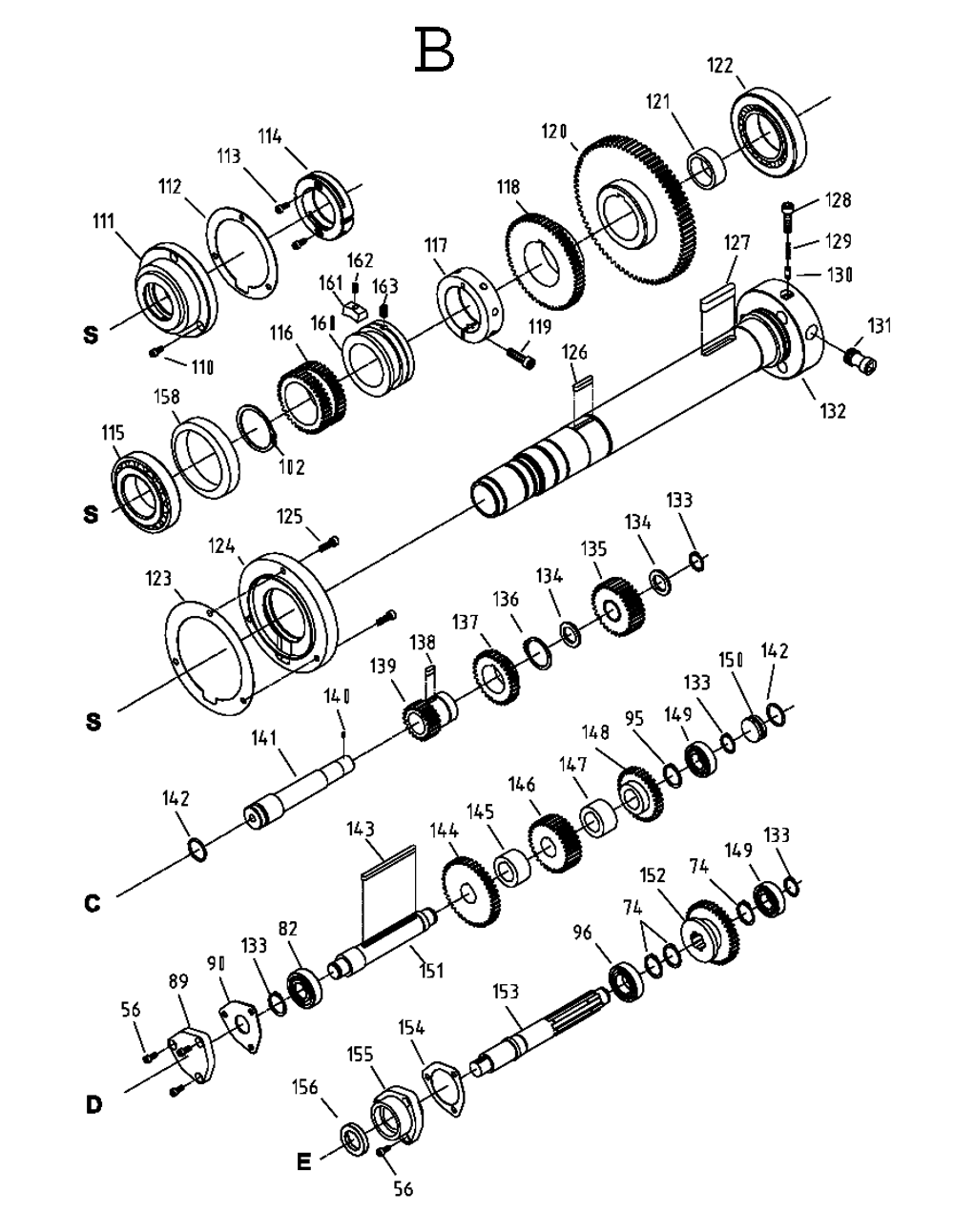

  • Fig-2

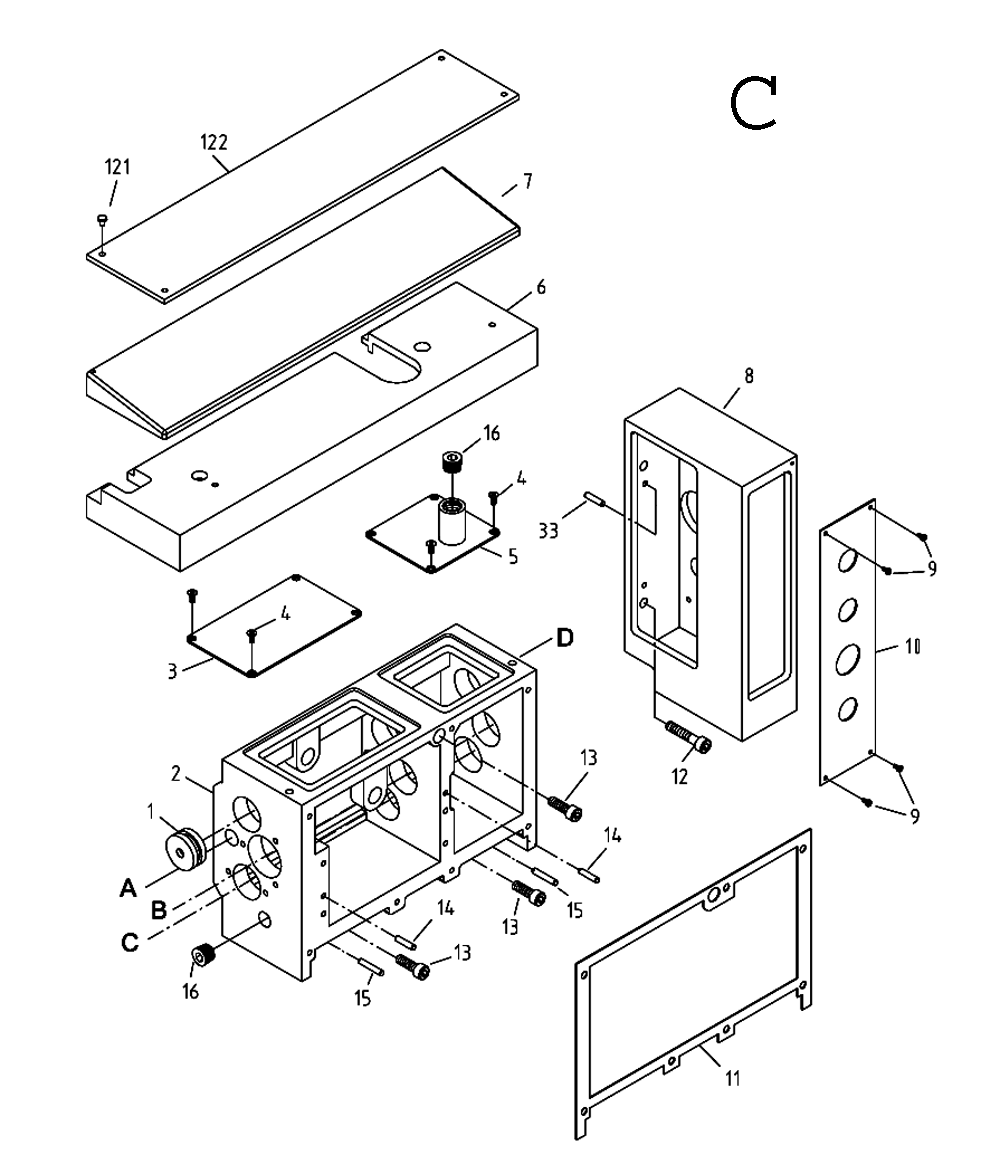

  • Fig-3

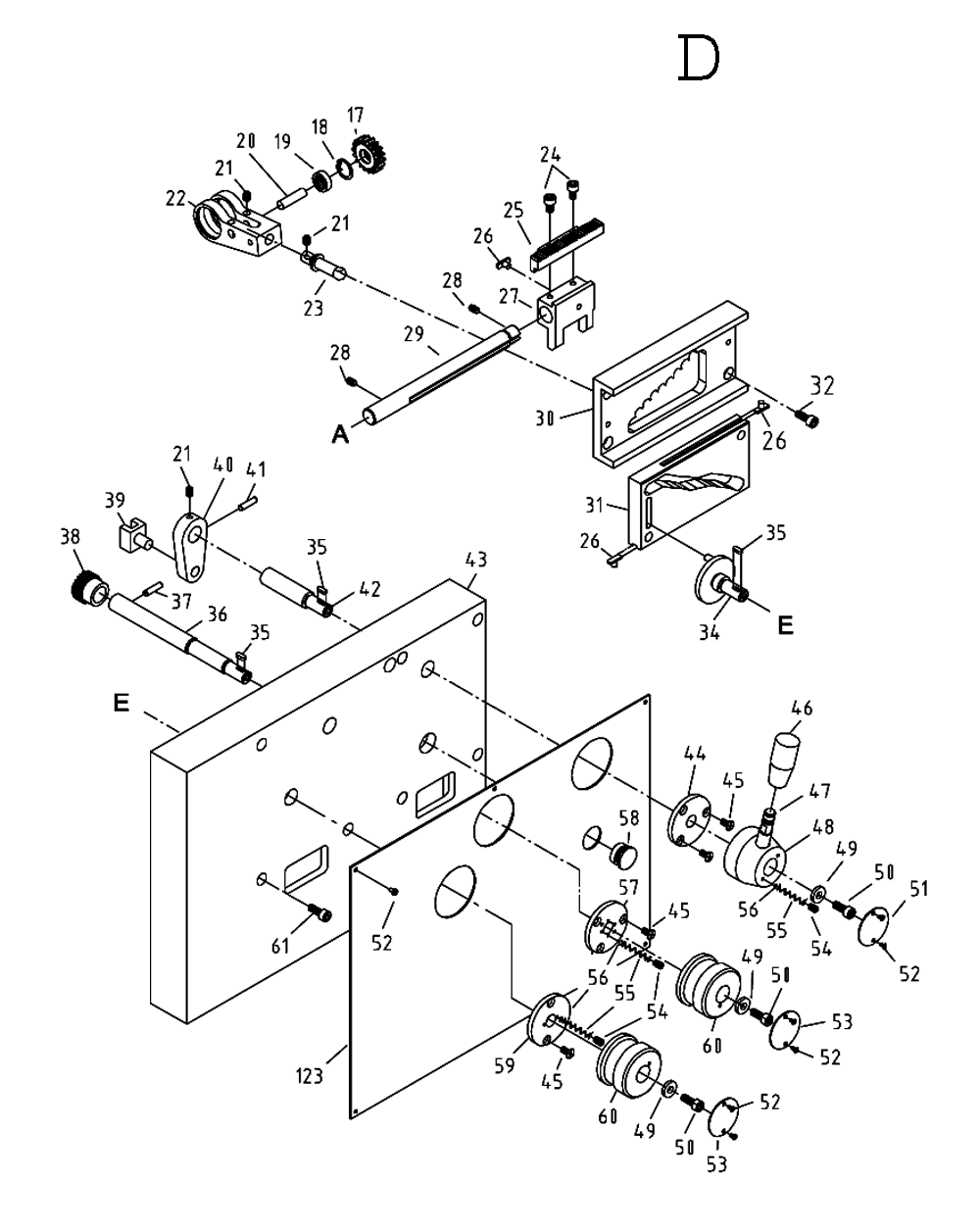

  • Fig-4
  • Fig-5

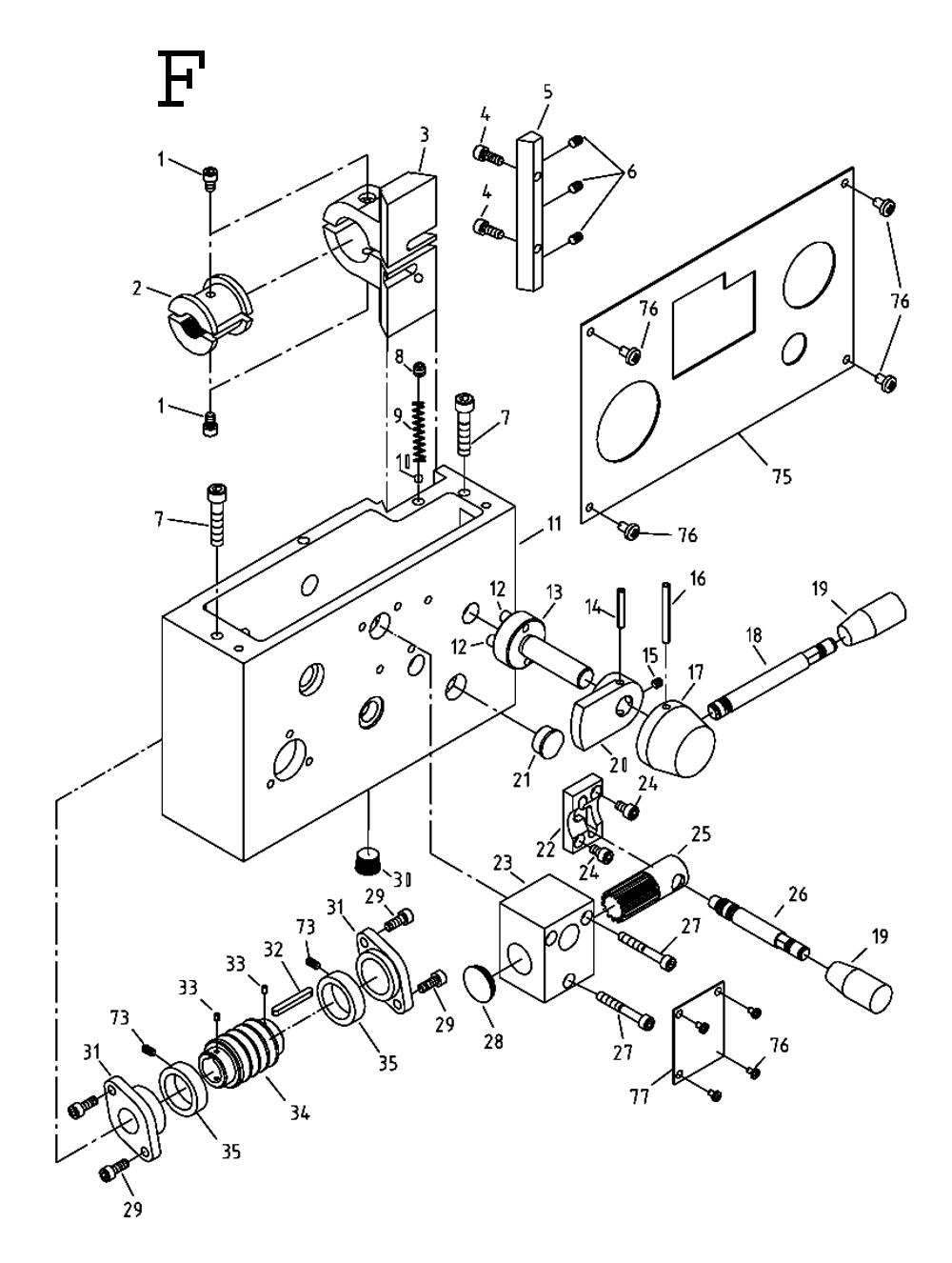

  • Fig-6

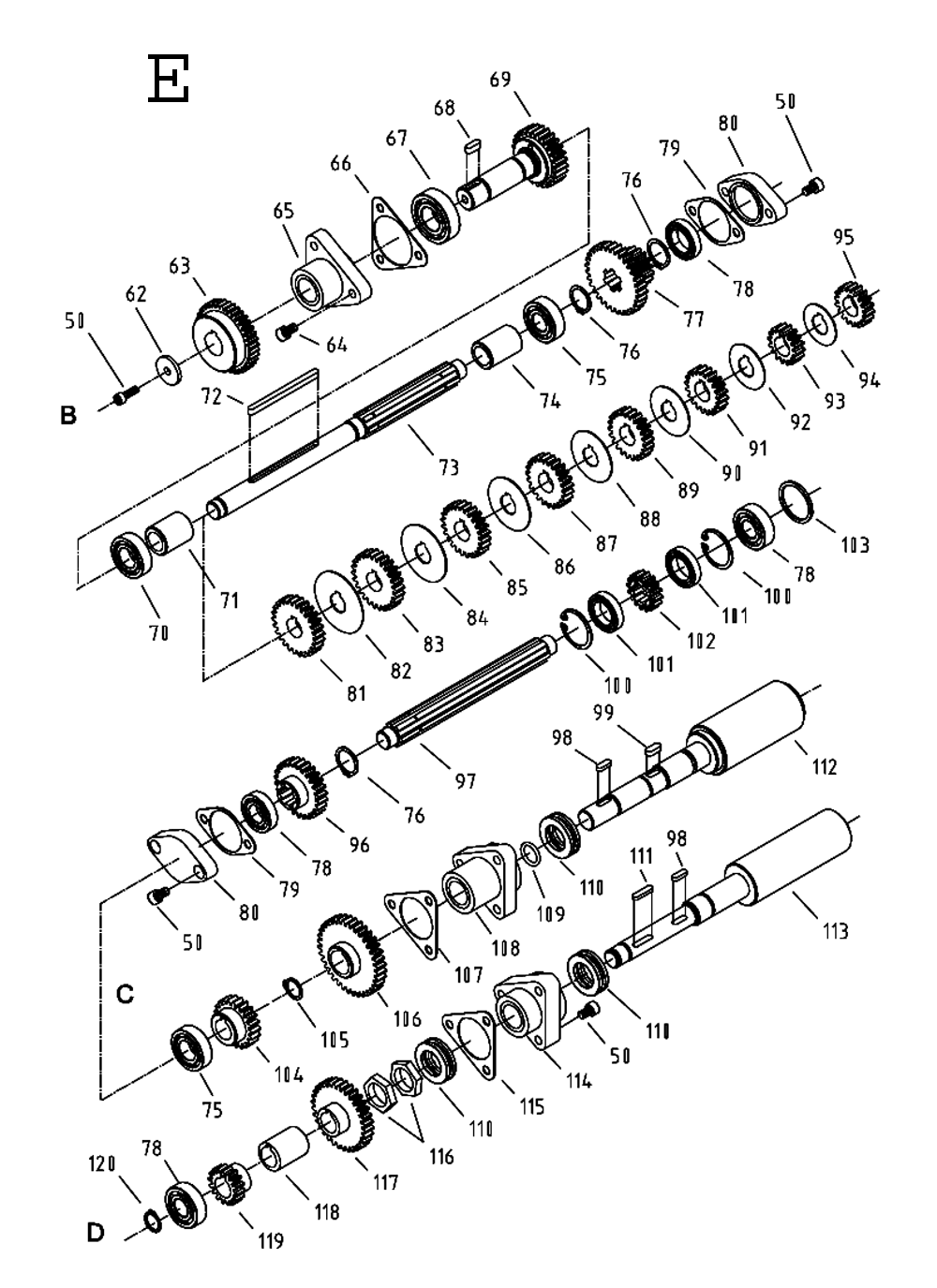

  • Fig-7
  • Fig-8

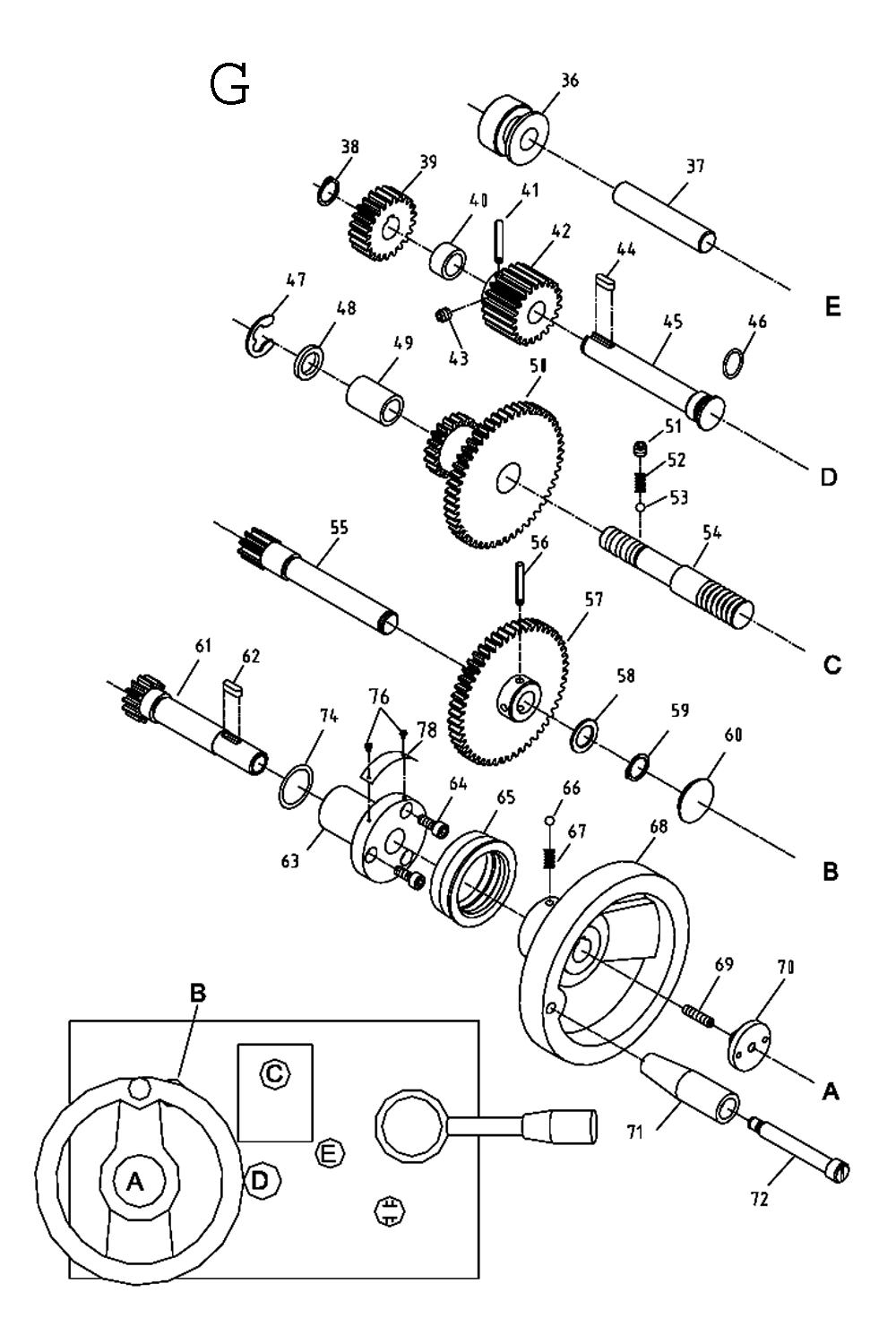

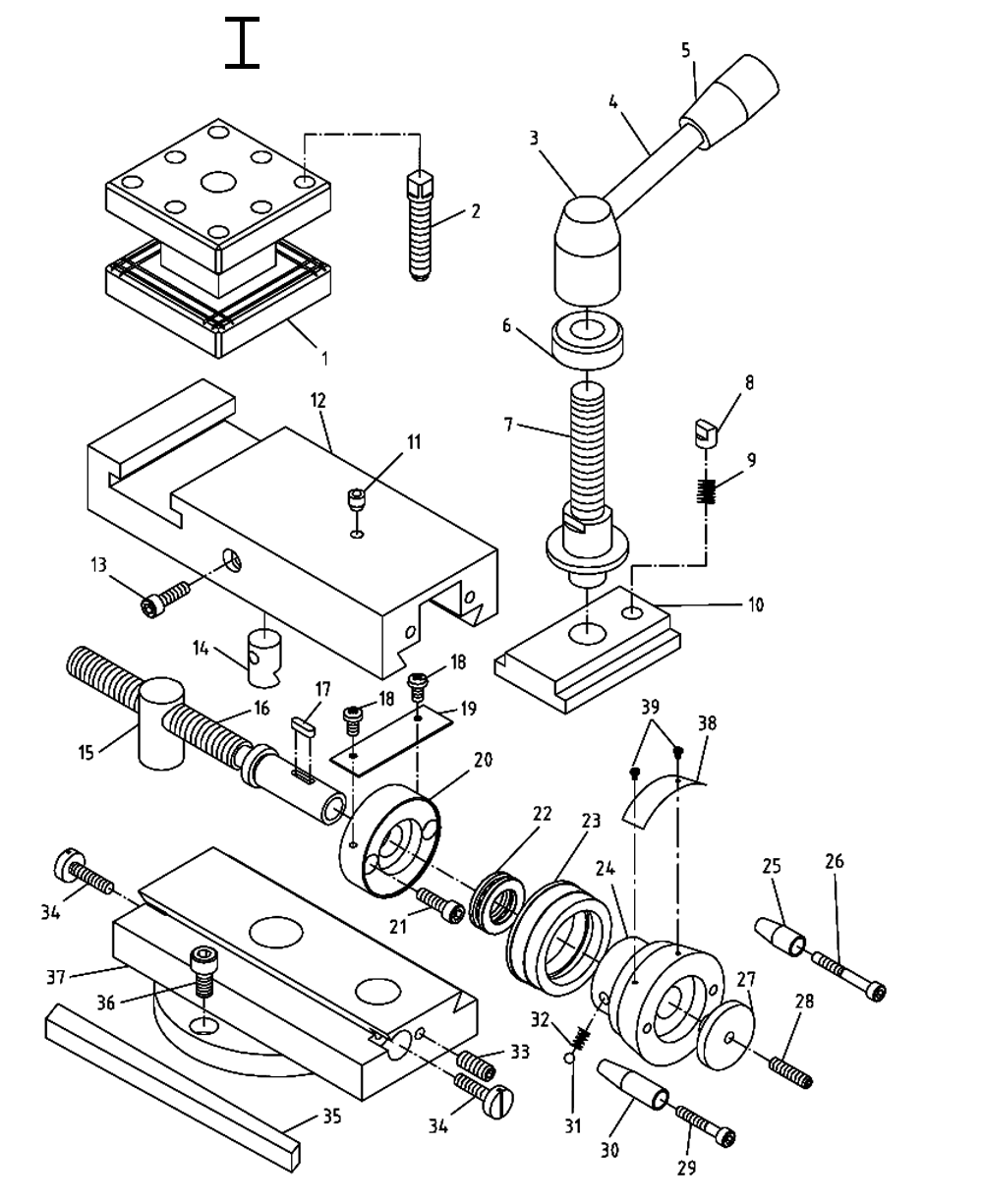

  • Fig-9

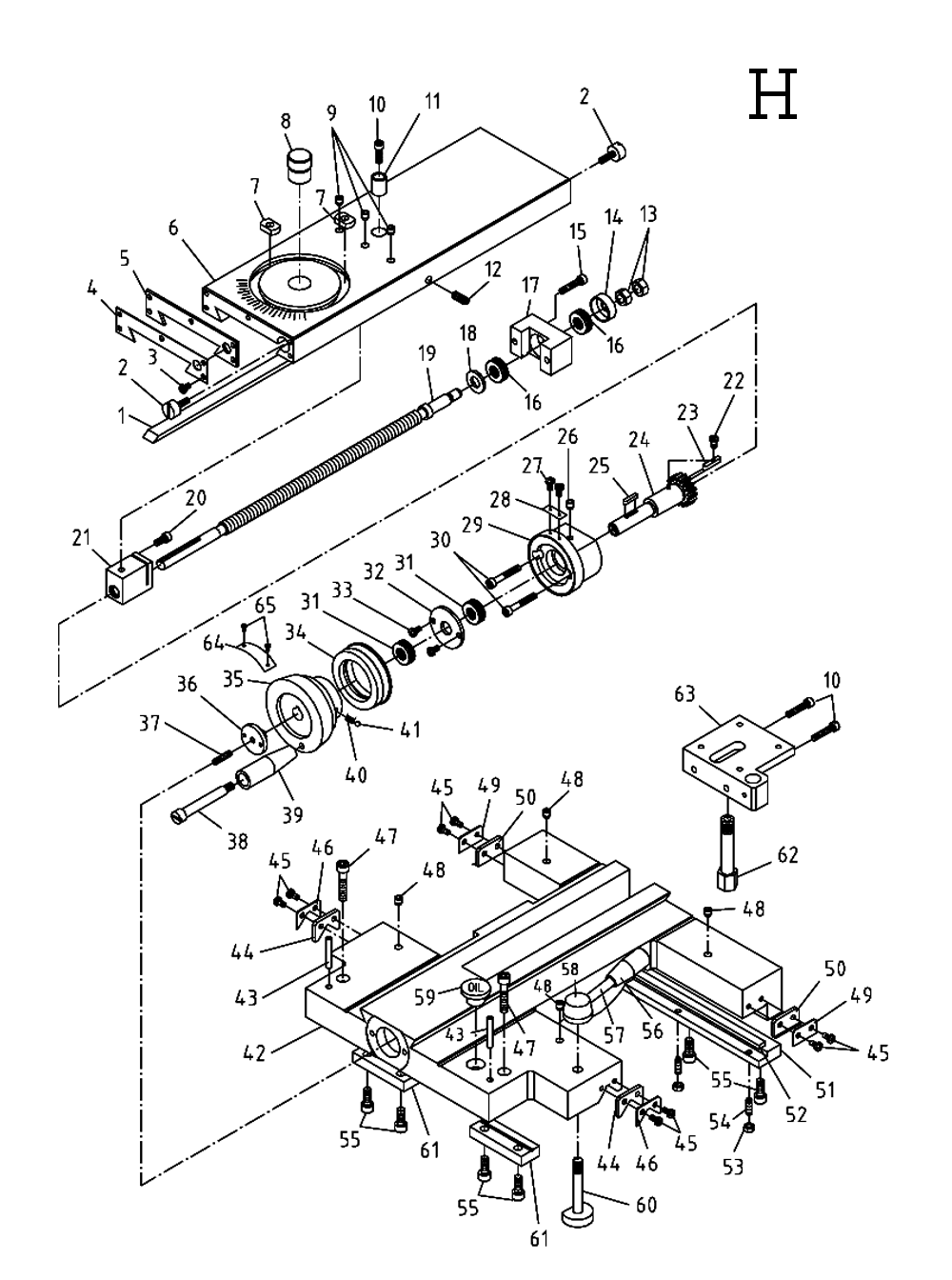

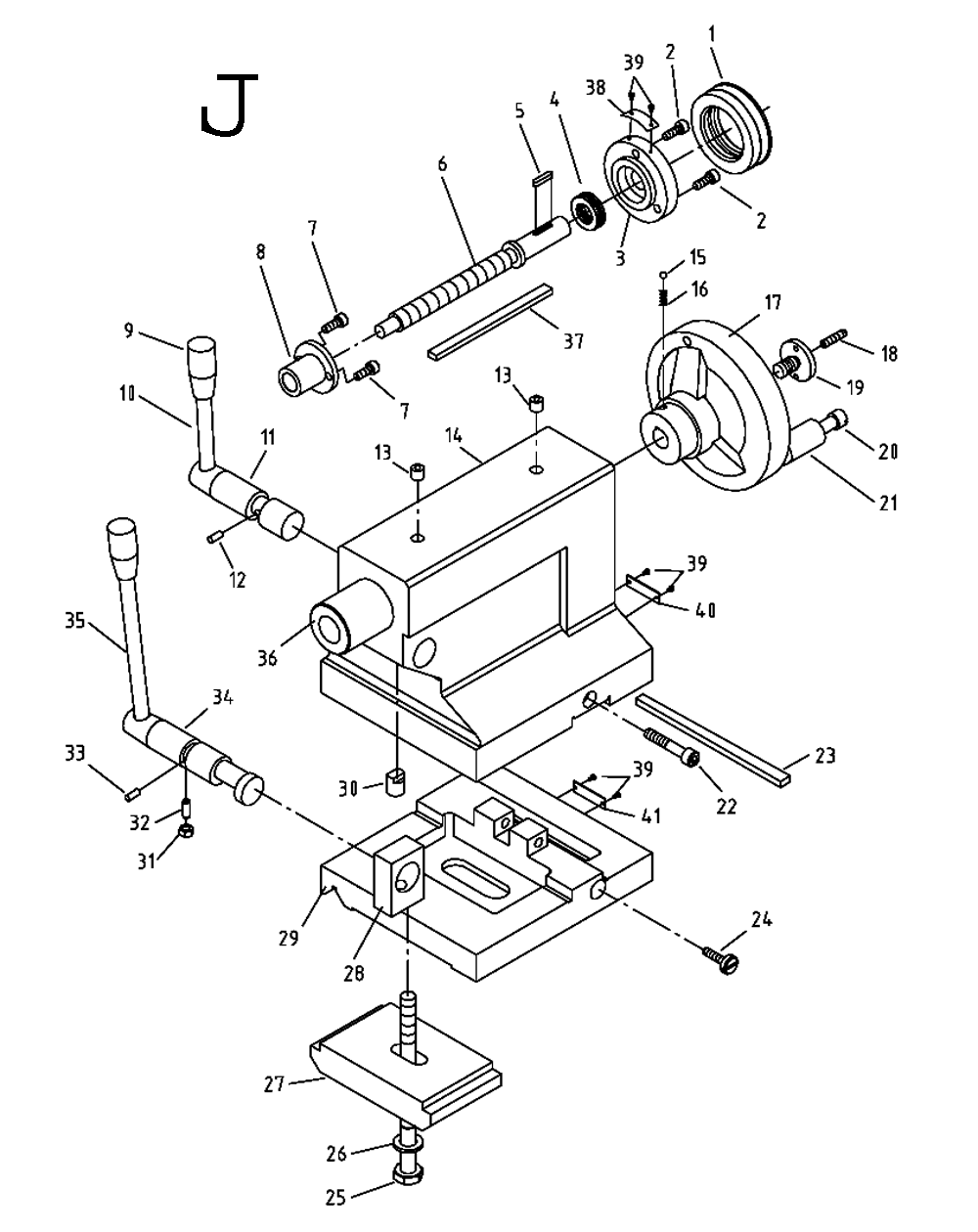

  • Fig-10

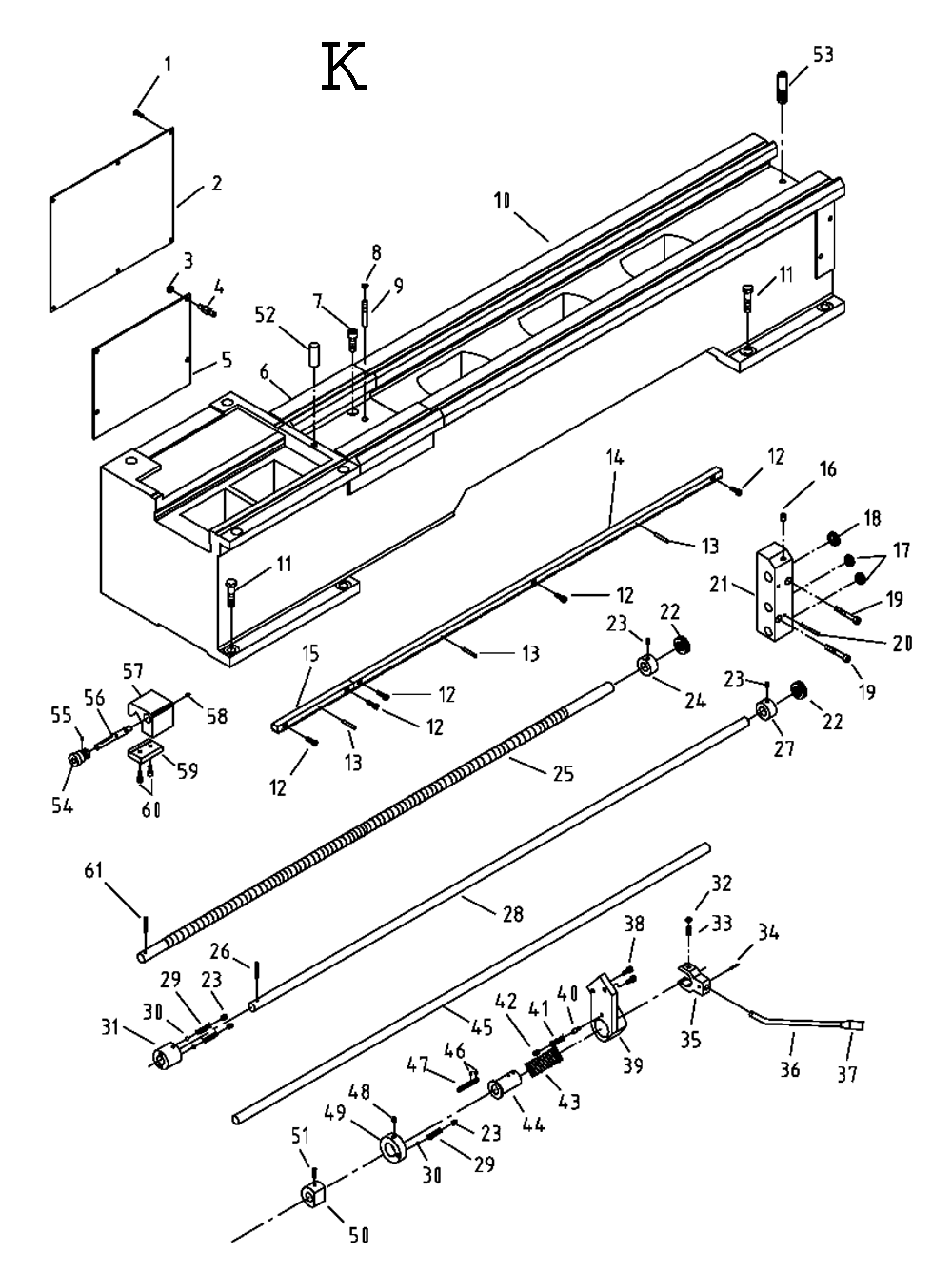

  • Fig-11

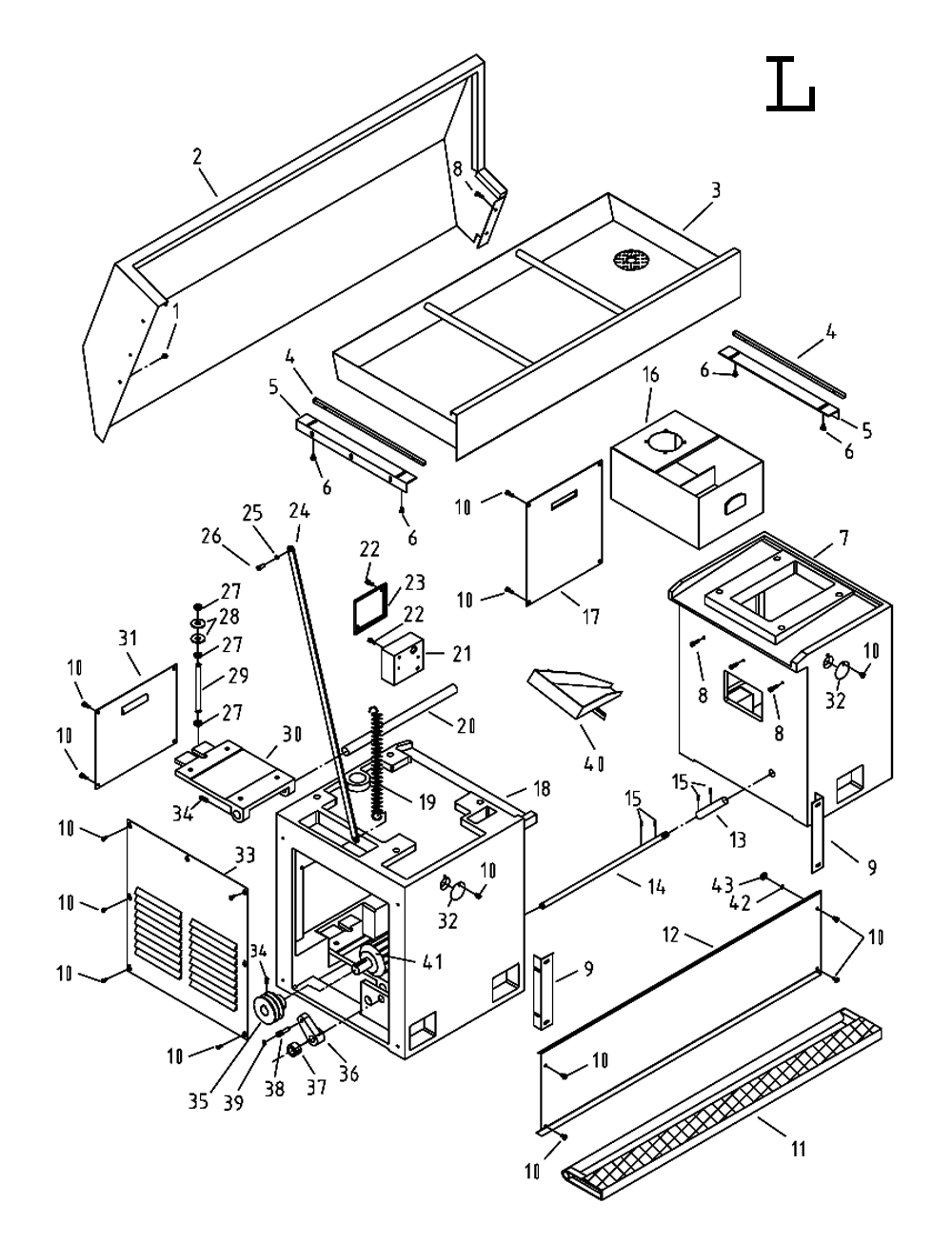

  • Fig-12

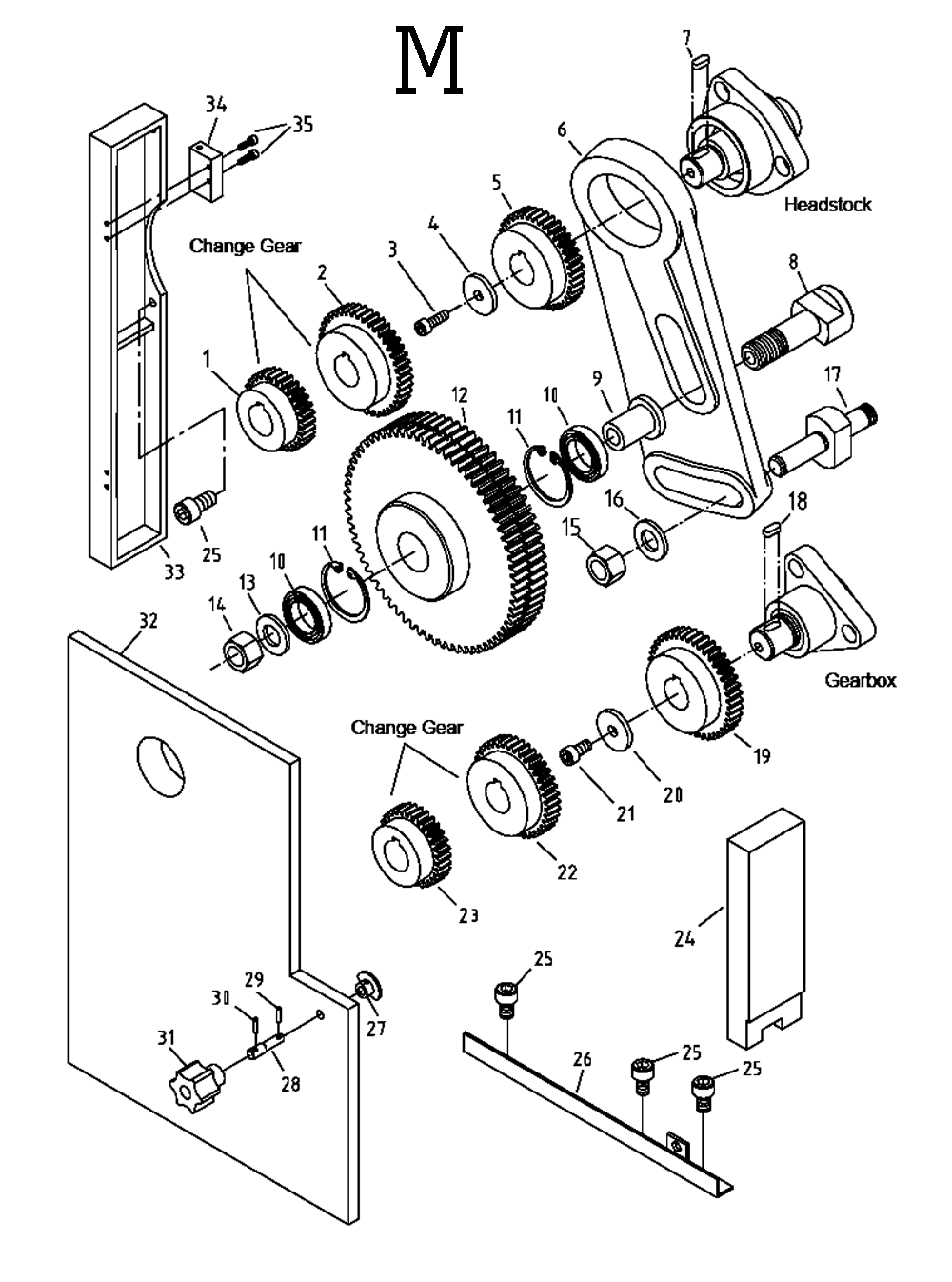

  • Fig-13

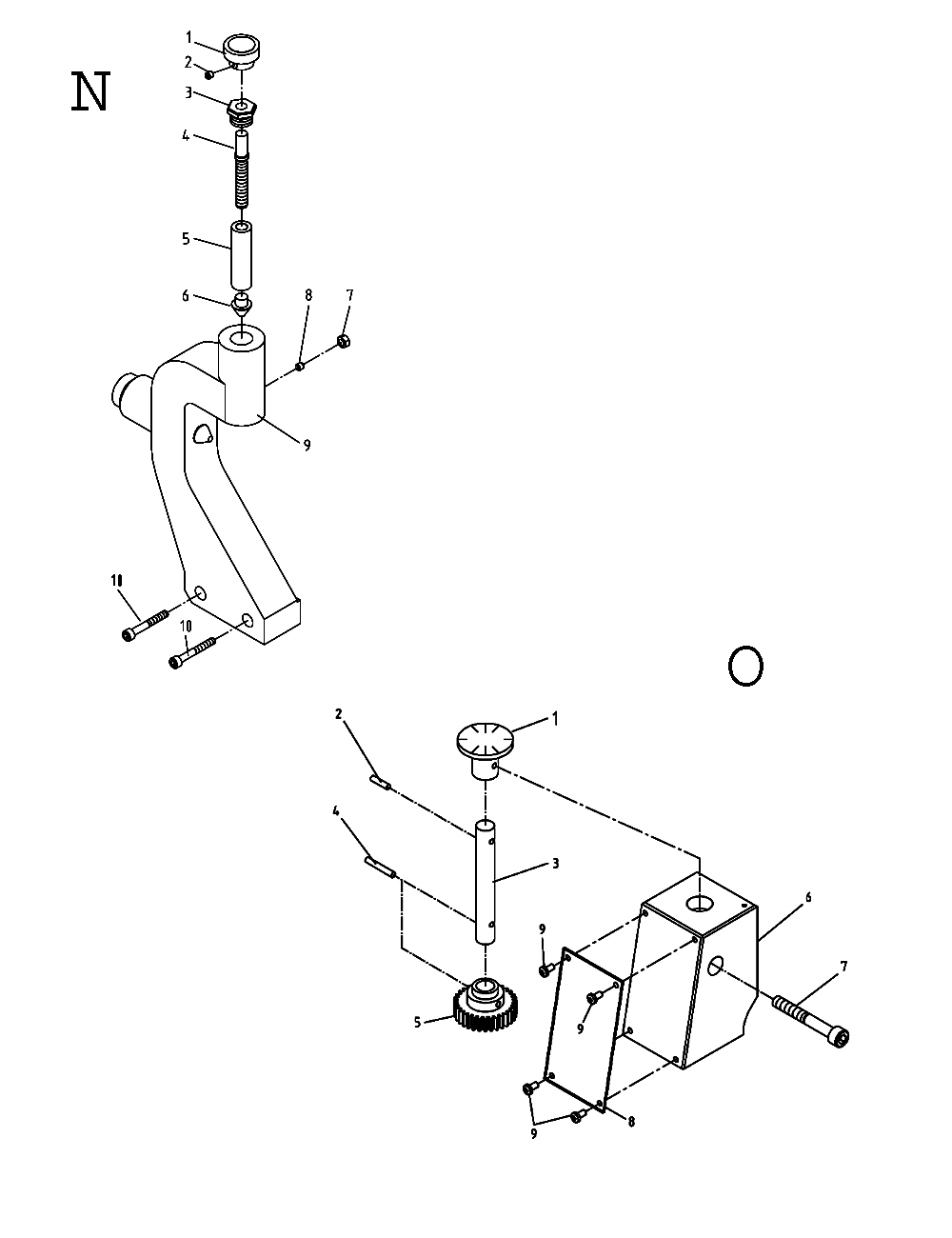

  • Fig-14

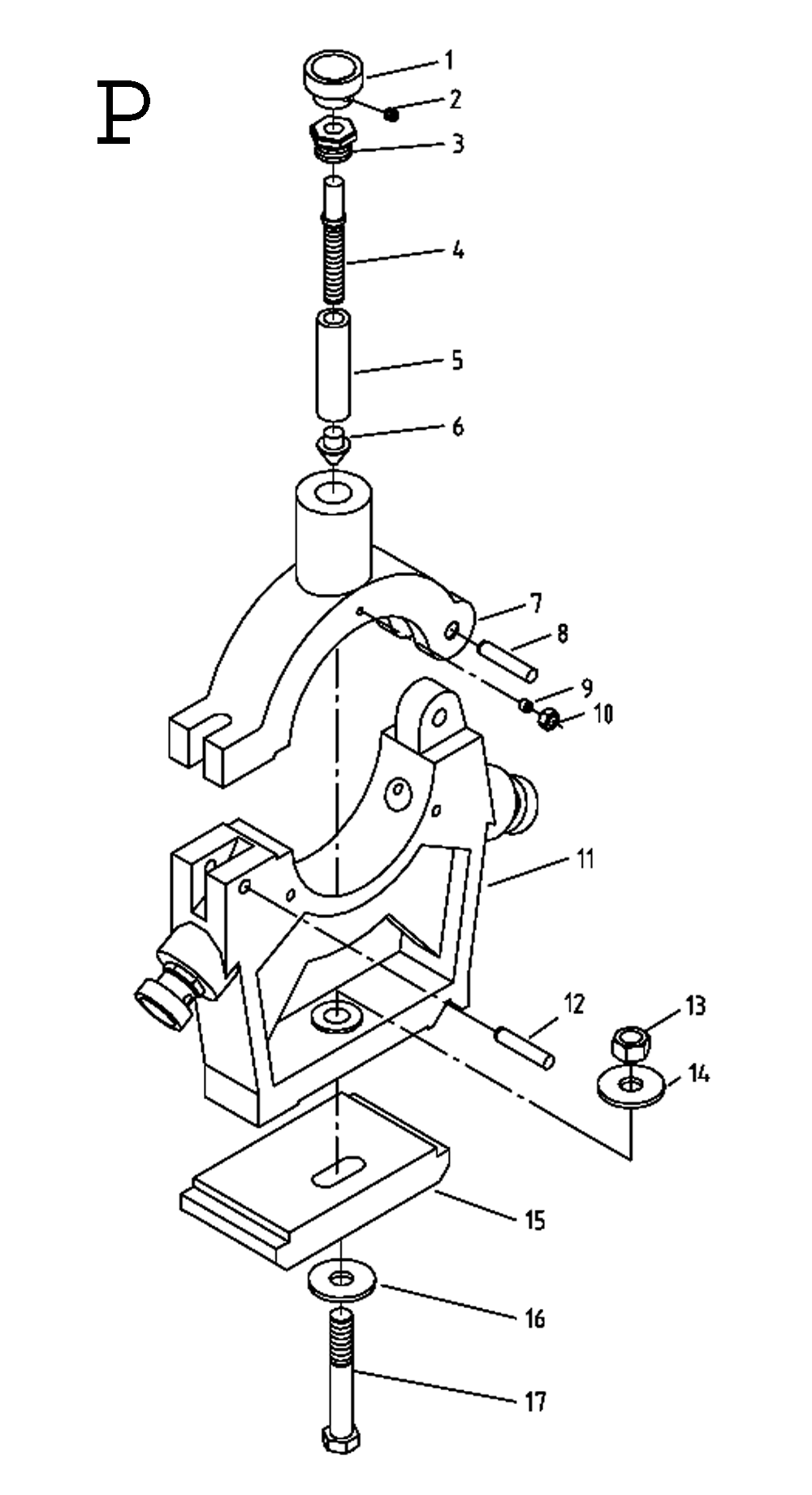

  • Fig-15

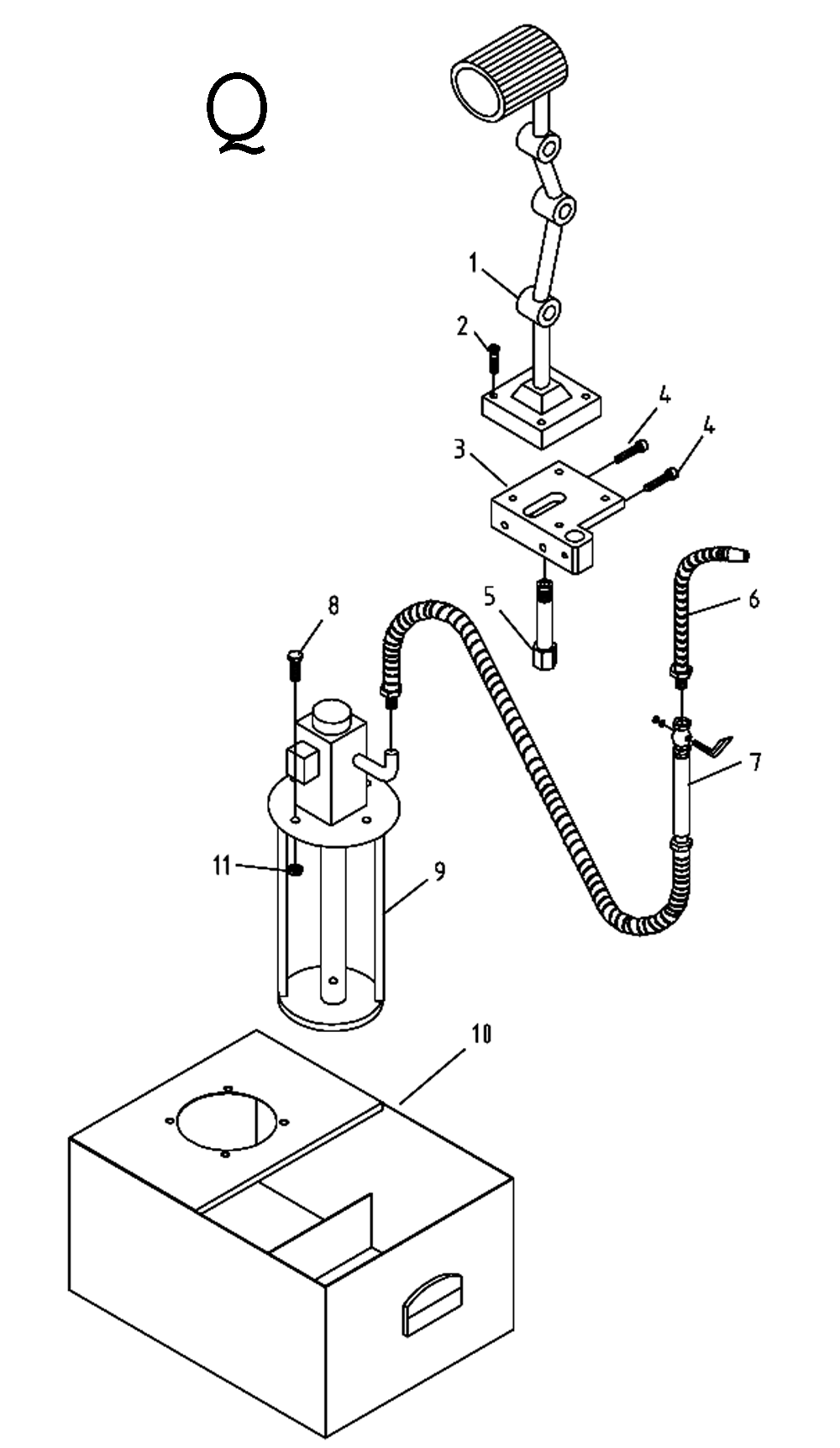

  • Fig-16

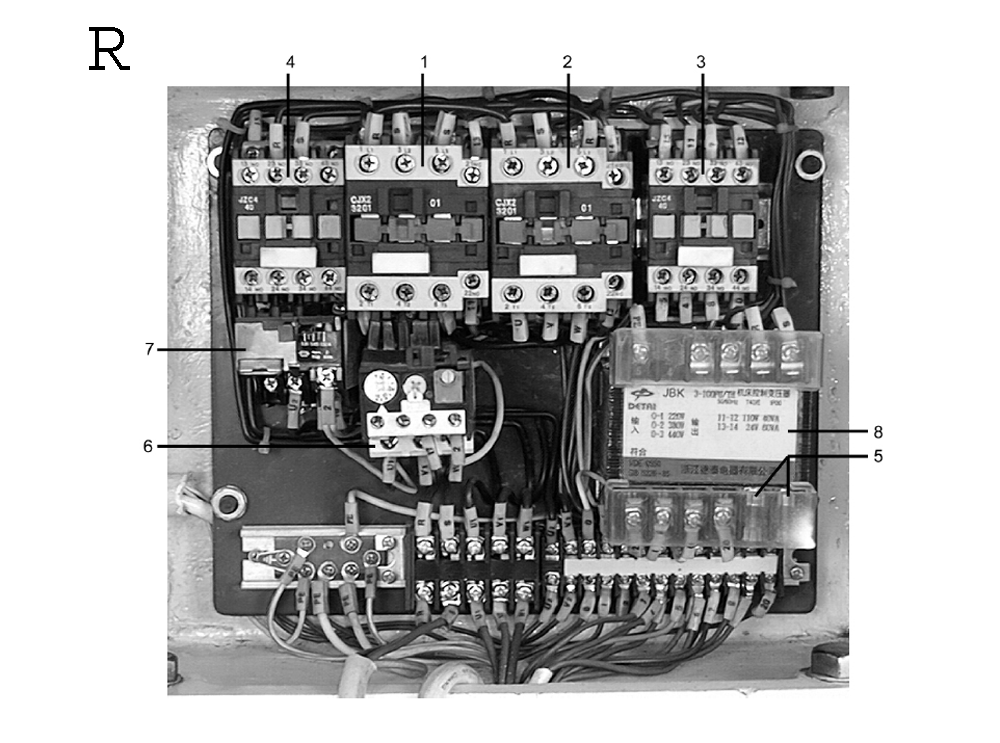

  • Fig-17

Download Jet 321546 Parts Diagram!

Jet 321546 Replacement Parts List  Other tools in Jet Lathes Machines Parts category

Fig# Image Part No Part Name Price Add To Cart
00. GH1440W-04-02 Name Plate $61.88
00. GH-1340W-3J.B.S 3-Jaw Chuck (not shown) $0.00

Discontinued

00. GH-1340W-4J.B.S 4-Jaw Chuck (not shown) $0.00

Discontinued

00. VB-A74 V-Belt (GH-1440W-3) $24.72
00. GH1340W-05-26 " Oil Cover (13"")" $9.73
00. GH1340W-05-07/1 " Cover (13"")" $106.20
00. GHW1160-16A Oil Sight Glass (serial no 1007W2720W and higher)… $6.15
00. GH1440W-05-10-3 Name Plate (3 Phase) $90.32
00. GH1340W-05-10-1 Name Plate (1 Phase) $95.57
00. GH1340W-05-10-3 Name Plate (3 Phase) $61.70
00. GHW-AP-CA Apron Assembly Complete $1,012.62
00. GHW-CFLA Cross Feed Lead Screw & Nut Assy (includes #19-21) $339.34
00. GHW1440W-CFDA Cross Feed Dial Assy (includes 22-26, 29-41) $191.66
00. GH1340W-07-15 " Swivel Slide (13"") " $130.65
00. GHW-THA Tool Post Assy (includes #1 & 2) … $191.66
00. GH1440W-CPA " Compound Assy (includes # 11-39 for 14"") " $580.18
00. GH1340W-CPA " Compound Assy (includes # 11-39 for 13"") " $580.18
00. GH1340W-08-02 " Tailstock Base (for 13"") " $206.06
00. GH1440W-TA-CA "Tailstock Complete Assembly (for 14"") " $575.72
00. GH1340W-TA-CA "Tailstock Complete Assembly (for 13"") " $560.40
00. GH1340W-01-15 " Connector Bar (for 13"")" $21.63
00. GHW-SB-30-3 Motor Mounting Bracket (for 3 phase motor) $138.77
00. GHW-M1-1 Main Motor (1 Phase) … $624.75
00. GHW-M1-3 Main Motor (3 Phase) Drop ship item. Fees will apply. $461.31
00. GH1340W-01-17 " Front Plate (for 13"" model)" $59.83
00. GH1340W-01-16 " Change Gear Cover (for 13"") " $107.65
00. GH1340W-01-18 " Rear Plate (for 13"")" $142.01
00. GH1340W-09-01 " Body Casting (for 13"" model)" $162.37
00. GH1440W-FR-CA " Follow Rest Complete Assembly (for 14"") " $263.69
00. GHW-TD-CA Threading Dial Assembly $131.34
00. GH1340W-10-01 " Lower Body Casting (for 13"") " $273.71
00. GH1440W-SR-CA " Steady Rest Complete Assembly (for 14"") " $561.68
00. GH1340W-SR-CA " Steady Rest Complete Assembly (for 13"") " $408.18
00. GHW-M2-1 Coolant Pump (1 Phase) … $398.40
00. GHW-M2-3 Coolant Pump (3 Phase) $396.97
00. GHW-WL-CA Work Light Complete Assembly (includes#1-5) $385.09
00. GH1340A-KM2 Magnetic Starter (3 Phase, reverse) $187.04
00. GH1340A-FR1 Motor Overload Relay (3 Phase) $161.74
00. GH1340A-FR2 Control Relay (3 Phase) $160.80
00. GH1440W-TC-3 Transformer (3 Phase) $236.37
00. GH1340W-04-01 " Headstock Casting (13"") " $1,823.91
00. TS-1492071 Hex Cap Bolt $4.78
00. GHW1160-20A Oil Sight Glass (serial no 1002W2659W and higher) $26.13
1. GH1340A-04-06 Plug $6.15
2. GH1440W-04-60 Headstock Cover $239.15
3. TS-1503081 Socket Head Cap Screw $3.61
4. GH1440W-04-61 Gasket $19.42
5. GB3452.1-14X2.65 0-Ring $0.00

Discontinued

6. GH1440W-04-38 Gear $46.56
7. GH1440W-04-41 Shaft $81.16
8. GB75-M6x10 Set Screw $3.61
9. GB77-M6x6 Set Screw $3.61
10. GH1440W-04-37 Gear $58.64
11. GH1440W-04-36 Gear $52.14
12. GB77-M12x12 Set Screw $3.72
13. GH1440W-04-43 Shift Arm $26.63
14. GB879-5X30 Spring Pin $3.61
15. GB894.2-12 RETAINER RING GH-1340W $3.61
16. GH1440W-04-45 Shift Fork $38.69
17. GH1440W-04-35 Shift Arm $37.29
18. GH1440W-04-44 Gear Shifter $21.63
19. GH1440W-04-10 Plug $204.93
20. GB1096-5X16 Key $3.61
21. GB308-SB8 Steel Ball $3.61
22. C6240-20018 Spring $4.97
23. GH1440W-04-49 Handle Body $58.64
24. GB4141.14-BM10X50 HANDLE CAP (KNOB) GH-1340A/GH-1340W $9.42
25. GH1440W-04-34 Handle Lever $24.14
26. C6240-20001 Lever Name Plate $9.07
27. TS-1531012 Phillips Pan Head Machine Screw $3.61
28. GH1440W-04-59 Screw $16.81
29. TS-1503031 Socket Head Cap Screw $3.61
30. GH1440W-04-50 Position Plate $22.37
31. GB3452.9-19X2.65 O-RING GH-1340W $3.61
32. GH1440W-04-40 Gear Shaft $58.64
33. GH1440W-04-42 Gear Shaft $58.64
34. GH1440W-04-51 Position Plate $22.37
35. GH1440W-04-48 Handle Body $58.64
36. TS-1506041 Socket Head Cap Screw $4.67
37. GB5782-M10x40 Alignment Bolt $10.91
38. GH1440W-04-62 Alignment Bolt $12.11
39. GH1440W-04-63 Alignment Block $33.31
40. GB1160.1-89 OIL SIGHT GLASS GH-1340W 20 $20.38
41. GH1440W-04-01 " Headstock Casting (14"") " $1,720.80
42. 05-75 Drain Plug $3.61
43. GH1440W-04-39 Gear Shaft $65.13
44. GH1440W-04-47 Shaft Fork $38.69
45. GH1440W-04-72 Shifting Crank $44.25
46. GH1440W-04-71 Shaft Fork $26.69
47. GH1440W-04-56 Shifting Crank $31.92
48. GB308-SB9 Steel Ball $3.61
49. GH1440W-49 Spring $4.01
50. GH1440W-04-52 Shaft $9.73
51. GH1440W-04-54 Shaft $12.62
52. GH1440W-04-53 Shaft $20.49
53. GB1096-4X10 Key $3.61
54. GB3452.9-10.6X2.65 O-RING GH-1340W 10.6X2.65 $3.61
55. GH1440W-04-55 Collar $21.63
56. TS-1503031 Socket Head Cap Screw $3.61
57. GH1440W-04-57 Collar $39.94
58. GH1440W-04-58 Handle Body $39.94
59. 04-62 Washer $5.53
60. 04-90 Indicator Disk $5.20
142. GB3452.9-25X2.65 O-RING GH-1340W 25X2.65 $3.61
159. GH1340W-04-02 Name Plate $101.94
00-N. GH1340W-FR-CA " Follow Rest Complete Assembly (for 13"") " $0.00

Discontinued

1 -C. 05-73 Plug $6.15
1 -F. TS-1503021 Socket Head Cap Screw $3.61
1 -H. GH1440W-07-04 Gib $58.01
1 -I. 01-32 Tools Post $25.85
1 -J. 08-09 Index Ring $194.66
1 -K. GB818-M8X10 Pan Head Screw $3.61
1 -L. GB818-M6X10 Pan Head Machine Screw $3.61
1 -M. 15-02 Gear $54.31
1 -N. GH1440W-09-02 Knob $22.37
1 -O. 06-22 Dial $21.63
1 -P. GH1440W-09-02 Knob $22.37
1 -Q. JC38 Work Light $187.04
1 -R. GH1440W-KM1 Magnetic Starter (1 Phase, forward) $184.42
1-R. GH1340A-KM1 Magnetic Starter (3 Phase, forward) $0.00

Discontinued

10 -C. GH1440W-05-11 Electrical Plate $28.26
10 -F. GB308-SB6 Steel Ball $3.61
10 -H. TS-1503051 Socket Head Cap Screw $3.61
10 -I. 07-37 Clamp Nut $52.14
10 -J. GH1440W-06-04 Handle Shaft $30.67
10 -K. GH1440W-01-01 Bed $2,094.26
10 -L. GB818-M6X10 Pan Head Machine Screw $3.61
10 -M. BB-6103 Bearing $39.99
10 -N. TS-1504121 Socket Head Cap Screw $3.61
10 -O. GHW-TD10 Rivet $3.61
10 -P. TS-1540041 Hex Nut $0.00

Discontinued

10 -P. TS-2311061 Hex Nut $3.61
10 -Q. 14-01 Coolant Tank $26.69
10 -R. GH1440W-SA1 Power On /Off Switch (not shown) $119.57
100 -A. GH1440W-04-15 Gear $86.77
100-E. GB893.1-32 RETAINING RING GH-1340A/GH-1340W $3.61
101 -A. GH1440W-04-14 Gear $252.12
101 -E. GB/T276-61804 Bearing $165.07
102 -E. 05-49 Gear $58.64
102-A. GH1440W-04-16 Washer $8.83
102-B. GH1440W-04-16 Washer $8.83
103-A. GB894.2-55 RETAINER RING GH-1340W $4.07
103-E. GH1340A-05-66 Washer $5.05
104 -A. GH1440W-04-19 Gear $141.90
104 -E. 05-25 Gear $65.13
105 -A. GH1440W-04-18 Gear $222.73
105-E. GB896-15 Retainer Ring $3.61
106-A. GB1096-10X18 Key $3.61
106-E. 05-19 Gear $82.80
107-A. GH1440W-04-13 Spline Shaft $262.74
107-E. 05-53 Gasket $6.15
108-A. GH1440W-04-24 Cover $29.35
108-E. 05-17 Flange $58.64
109-A. TS-1503081 Socket Head Cap Screw $3.61
109-E. GB3452.1-15X2.65 O-RING GH-1340W $4.07
11 -C. 05-61 Gearbox Gasket $15.68
11 -F. 06-01 Casting $377.94
11 -H. 07-05 Sleeve $6.38
11 -J. GH1440W-08-06 Eccentric Shaft $45.49
11 -K. GB5782-M16X50 Hex Cap Bolt $8.54
11 -L. GH1440W-01-12 Brake Pedal $236.21
11 -M. GB8931-35 Retaining Ring $3.61
11 -P. GH1440W-10-01 " Lower Body Casting (for 14"") " $190.51
11 -Q. TS-1540031 Hex Nut $3.61
11 -R. GH1440W-SQ1 Brake Switch (not shown) $55.37
11-I. GB1155-89 Oiler $0.00

Discontinued

110-B. TS-1503041 Socket Head Cap Screw $3.61
110-E. GB301-8104 Ball Bearing $0.00

Discontinued

111 -B. GH1440W-04-29 Cover $54.69
111 -E. GB1096-5X20 Key $3.61
112-B. 04-60 Gasket $3.61
112-E. GH1440W-05-04 Shaft $107.04
113-B. TS-1502031 Socket Head Cap Screw $3.61
113-E. GH1440W-05-05 Shaft $97.63
114 -B. GH1440W-04-31 Nut $52.60
114-E. 05-18 Flange $3.61
115-B. GB/T297-32011 Tapered Roller Bearing $441.06
115-E. 05-53 Gasket $6.15
116-B. GH1440W-04-30 Gear $193.86
116-E. 05-20 Nut $6.15
117 -E. 05-22 Gear $77.03
117-B. GH1440W-04-27 Lock Collar $81.35
118-B. GH1440W-04-21 Gear $193.38
118-E. 05-24 Collar $3.61
119-B. TS-1504061 Socket Head Cap Screw $3.61
119-E. 05-26 Gear $45.46
12 -C. TS-1504081 Socket Head Cap Screw $3.61
12 -F. 06-42-1 Pin $3.61
12 -H. TS-1524011 Set Screw $3.61
12 -K. TS-1503061 Socket Head Cap Screw $3.61
12 -L. GH1440W-01-09 Front Plate $78.95
12 -M. 05-65 Gear $278.03
12 -P. 10A-02 Lock Pin $10.91
12 -R. GH1440W-SB1 Off Switch (not shown) $82.73
12-I. 07-49 Compound Slide $0.00

Discontinued

12-J. GB879-5X12 Pin $0.00

Discontinued

120-B. GH1440W-04-23 Gear $191.66
120-E. GB894.1-15 RETAINER RING GH-1340A/GH-1340W $3.61
121 -B. GH1440W-04-25 Collar $16.46
121 -C. GB867-2X4 Rivet $3.61
122-B. GB/T297-30212 Tapered Roller Bearing $536.58
122-C. GH-1440W-05-12/1 Speed Chart $45.19
123 -B. GH1440W-04-32 Gasket $9.42
123-D. GH1440W-05-10-1 Name Plate (1 Phase) $81.37
124 -B. GH1440W-04-28 Cover $58.64
125-B. TS-1503051 Socket Head Cap Screw $3.61
126-B. GB1096-6X30 Key $3.61
127 -B. GB1096-10X55 Key $4.37
128-B. TS-1504031 Socket Head Cap Screw $3.61
129-B. 04-31/1 Spring $3.61
13 -C. TS-1504051 Socket Head Cap Screw $4.37
13 -F. 06-42 Half Nut Cam $47.67
13 -H. GB6172-M10 Hex Nut $4.81
13 -I. TS-1503051 Socket Head Cap Screw $3.61
13 -J. GB1155-10 Oiler $8.38
13 -K. GB879-5X35 Pin $3.61
13 -L. 11-01 Shaft $21.37
13 -M. 05-44 Washer $3.77
13 -P. TS-1540081 Hex Nut $3.61
13 -R. GH1440W-SB2 Jog Switch (not shown) $55.84
130-B. 04-86 Camlock Set Pin $15.68
131 -B. 04-85 Camlock $46.56
132-B. GH1440W-04-22 Spindle $944.56
133-B. GB894.2-20 RETAINER RING GH-1340A/GH-1340W $3.61
134-B. 04-36 Spacer $31.48
135 -B. 04-35 Gear $241.22
136-B. GB894.2-37 RETAINER RING GH-1340AGH-1340W $3.61
137 -B. 04-54 Gear $153.96
138-B. GB1096-5X16 Key $3.61
139-B. 04-55 Gear $269.44
14 -C. GH1440W-14 Pin $3.61
14 -F. GB879-5X35 Pin $3.61
14 -H. 07-02 Bearing Cap $7.80
14 -I. 07-09 Position Pin $7.95
14 -J. GH1440W-08-01 Tailstock Body $313.85
14 -K. 01-07 Rack (long) $252.12
14 -L. GH1440W-01-13 Shaft $49.88
14 -M. TS-1540071 Hex Nut $3.61
14 -P. TS-1550081 Washer $3.61
14 -R. GH1440W-HL Power Indicator Light (not shown) $63.51
140-B. TS-1523041 Socket Set Screw $3.61
141 -B. 04-37 Shaft $75.77
142-B. GB3452.9-25X2.65 O-RING GH-1340W 25X2.65 $3.61
143 -B. 04-47/1 Key $5.91
144-B. 04-46 Gear $56.33
145-B. 04-45 Collar $0.00

Discontinued

146-B. 04-44 Gear $145.89
147-B. 04-39 Collar $0.00

Discontinued

148-B. 04-41 Gear $58.58
149-B. GB/T276-6004 Ball Bearing $65.13
15 -C. GH1440W-15 Pin $3.61
15 -F. TS-1523011 Socket Set Screw $3.61
15 -H. TS-1503071 Socket Head Cap Screw $3.61
15 -J. GB308-SB6 Steel Ball $3.61
15 -K. 01-06 Rack (short) $155.76
15 -L. GB879-5X15 Pin $3.61
15 -M. TS-1540081 Hex Nut $3.61
15 -P. GH1440W-10-02 Clamp Plate $48.31
15 -R. GH1440W-SA2 Coolant Pump Switch (not shown) $54.69
15-I. 07-39 Nut $0.00

Discontinued

150-B. GH1440W-04-33 Plug $6.15
151 -B. 04-47 Shaft (D) $37.95
152 -B. 04-43 Gear $65.75
153-B. 04-42 Spline Shaft (E) $182.68
154-B. 04-48 Housing Gasket $4.97
155-B. 04-49 Housing $52.14
156-B. GB9877.1-SD25X40X7 SPACER SD25X40X7 GH-1340W $12.11
157-A. 11-15 Brake Shoe Assembly $88.23
158-B. GH1440W-04-65 Collar $26.25
16 -C. 05-75 Drain Plug $3.61
16 -F. GB879-5X50 Pin $3.61
16 -I. 07-40 Compound Screw $51.75
16 -K. GB1155-10 Oiler $8.38
16 -L. 14-01 Coolant Tank $26.69
16 -P. TS-1550081 Washer $3.61
16 -R. GH1440W-SQ3 Forward Switch (not shown) $55.84
16-H. GB301-8101 Thrust Bearing $0.00

Discontinued

16-J. GB2089-0.7X5X12 SPRNG 0.7X5X12 GH-1340W $4.07
16-M. GB97.2-85 WASHER GH-1340W $4.97
160-B. GH1440W-04-66 Balance Space $46.56
161 -B. GH1440W-04-67 Balance Block $7.80
162-B. TS-1523041 Socket Set Screw $3.61
163-B. TS-1524031 Socket Set Screw $4.37
164-A. VB-A73 V-Belt (GH-1340W-1/3 & GH-1440W-1) $112.29
17 -D. 05-49 Gear $58.64
17 -F. GH1440W-06-09 Hub $39.94
17 -H. 07-03 Block $46.56
17 -I. GB1096-4X14 Key $3.61
17 -J. GH1440W-08-09 Wheel $86.37
17 -K. 01-41 Plug $13.50
17 -L. GH1440W-01-10 Cover $26.69
17 -M. GH1440W-15-20 Stud $26.69
17 -R. GH1440W-SQ3 Forward Switch (not shown) $55.84
17-P. TS-1492081 Hex Cap Bolt $0.00

Discontinued

17-R. GH1440W-SQ4 Reverse Switch (not shown) $0.00

Discontinued

18 -F. GH1440W-06-04 Handle Shaft $30.67
18 -H. 07-25 Spacer $7.95
18 -I. TS-1531012 Phillips Pan Head Machine Screw $3.61
18 -J. TS-1523071 Socket Set Screw $3.61
18 -K. 01-42 Plug $13.50
18 -L. GH1440W-01-03 Pedestal (left) $964.32
18 -M. GB1096-5X14 Key $3.61
18-D. GH893.1-19 RETAINER RING 19 GH-1340W $3.61
19 -D. GB/T276-6198 Bearing $33.31
19 -H. GH1440W-07-16 Lead sc rew $144.61
19 -I. 07-04-02 Name Plate $11.61
19 -J. 08-12 Wheel Screw $15.68
19 -K. TS-1504111 Hex Socket Cap Screw $3.61
19 -L. 11-04 Spring $21.63
19 -M. 05-41 Gear $39.94
19-F. GB4141.14-BM10X50 HANDLE CAP (KNOB) GH-1340A/GH-1340W $9.42
2 -C. GH1440W-05-06 Gearbox Casting $10.91
2 -F. 06-37 Half Nut $69.46
2 -H. 07-28 Gib Adjusting Screw $7.95
2 -I. GB83-10X50 Tool Lock Screw $10.84
2 -J. TS-1503051 Socket Head Cap Screw $3.61
2 -K. GH1440W-12-01 Electrical Box Cover $44.25
2 -L. GH1440W-01-23 Splash Guard $349.41
2 -M. 15-04 Gear $72.98
2 -N. TS-1523011 Socket Set Screw $3.61
2 -O. GB879-3X12 Pin $3.61
2 -P. TS-1523011 Socket Set Screw $3.61
2 -Q. GHW-CW02 Cross Head Screw $3.75
2-R. GH1440W-KM2 Magnetic Starter (1 Phase, reverse) $0.00

Discontinued

20 -D. 05-51 Shaft $8.06
20 -F. 06-40 Safety Catch $18.73
20 -H. TS-1503031 Socket Head Cap Screw $3.61
20 -I. GH1440W-07-22 Screw Bushing $46.52
20 -J. GH1440W-06-10 Handle Lever $18.68
20 -K. GB118-8X60 Pin $3.61
20 -L. GH1440W-01-14 Shaft $52.14
20 -M. 05-42 Washer $5.54
21 -D. TS-1523021 Socket Head Set Screw $3.61
21 -F. GB1160-12 Oil Sight Glass $16.46
21 -I. TS-1503051 Socket Head Cap Screw $3.61
21 -J. GH1440W-06-11 Handle Sleeve $26.07
21 -L. 12-08 Switch Box $3.61
21 -M. TS-1503041 Socket Head Cap Screw $3.61
21-H. GH1440W-07-10 Crossfeed Nut $0.00

Discontinued

21-K. 01-13 End Bracket $0.00

Discontinued

22 -D. 05-03 Shifter $242.35
22 -F. GH1340W-06-04 Bracket $13.50
22 -H. GB819-M3X5 Pan Head Machine Screw $3.61
22 -I. GB301-8103 Thrust Bearing $54.31
22 -J. GH1440W-T22 Hex Socket Cap Screw $3.61
22 -K. GB301-51104 Bearing $19.42
22 -L. GB818-M6X10 Pan Head Machine Screw $3.61
22 -M. 15-03 Gear $44.35
23 -D. 05-02 Shaft $17.40
23 -F. 06-16 Block $1,357.94
23 -H. 07-21 Key $3.61
23 -I. 07-42 Index Ring $109.53
23 -J. GH1440W-08-03 Gib $15.68
23 -K. TS-1524021 Socket Set Screw $3.61
23 -L. 12-09 Switch Box Cover $3.61
23 -M. 15-04 Gear $72.98
24 -D. TS-1503051 Socket Head Cap Screw $3.61
24 -F. TS-1503031 Socket Head Cap Screw $3.61
24 -H. GH1440W-07-14 Gear Shaft $99.92
24 -I. GH1440W-07-28 Handwheel $52.14
24 -J. 08-18 Gib Adjusting Screw $12.17
24 -K. 01-10 Collar $18.44
24 -L. GH1440W-01-15 " Connector Bar (for 14"")" $22.37
24 -M. GH1440W-01-17 " Front Plate (for 14"" model)" $61.88
25 -D. 05-13 Rack $78.11
25 -F. GH1440W-06-07 Spline Shaft $33.31
25 -H. GB1096-4X20 Key $3.61
25 -I. GH1440W-07-23 Handle $24.21
25 -J. TS-1492091 " Hex Cap Bolt (for 14"") " $7.23
25 -K. 01-11 Lead Screw $445.70
25 -L. GB896-6 Retaining Clip $3.61
25 -M. TS-1504041 Socket Head Cap Screw $3.61
26 -D. 05-01 Shift Key $20.49
26 -F. GH1440W-06-08 Handle Shaft $19.25
26 -H. GB1155-6 Oiler $3.61
26 -I. TS-1513051 Hex Socket Cap Screw $3.61
26 -J. TS-1550081 Washer $3.61
26 -K. GB879-5X35 Pin $3.61
26 -L. 11-12 Pin $3.61
26 -M. GH1440W-01-19 Plate $21.37
27 -D. 05-12 Shift Fork $86.77
27 -F. TS-1503101 Hex Socket Cap Screw $3.61
27 -H. GB818-M3X6 Pan Head Screw $3.61
27 -I. 07-15 Cover Screw $7.95
27 -J. GH1440W-08-04 Tailstock Clamp Plate $46.56
27 -K. 01-10 Collar $18.44
27 -L. GB6172-M12 Hex Nut $3.61
27 -M. C6240-10002 Door Latch $8.54
27-K. 01-16 Collar $0.00

Discontinued

28 -D. TS-1523021 Socket Head Set Screw $3.61
28 -F. 06-02 Plug $4.67
28 -H. 07-04-01 Indicator Label $5.91
28 -I. TS-1523071 Socket Set Screw $3.61
28 -J. 08-16 Block $63.67
28 -K. 01-15 Feed Shaft $196.75
28 -L. GB96-12 Washer $3.61
28 -M. C6240-10001 Shaft $6.15
29 -D. 05-15 Shaft $33.67
29 -F. TS-1503041 Socket Head Cap Screw $3.61
29 -H. GH1440W-07-13 Housing $134.82
29 -I. TS-1502091 Socket Head Cap Screw $3.61
29 -J. GH1440W-08-02 " Tailstock Base (for 14"") " $206.06
29 -K. 01-38 Spring $3.61
29 -M. GB879-4X18 Pin $3.61
29-L. 01-23 Screw $0.00

Discontinued

3 -C. 05-07 Front Cover $3.61
3 -F. 06-36 Bracket $84.94
3 -H. GB818-M5X10 Pan Head Machine Screw $3.61
3 -I. GH1440W-07-20 Handle Hub $30.40
3 -J. GH1440W-08-07 Hub $34.74
3 -K. TS-1540061 Hex Nut $3.61
3 -L. GH1440W-01-05 Chip Tray $452.47
3 -M. TS-1502041 Socket Head Cap Screw $3.61
3 -N. 10B-04 Bushing $16.46
3 -O. 06-23 Shaft $5.91
3 -P. 10A-05 Bushing $16.46
3 -Q. 14-03 Lamp Bracket $26.69
3 -R. GH1440W-KM3 Coolant Pump Contactor $86.77
30 -D. 05-05 Locating Plate $3.61
30 -F. 06-35 Drain Plug $7.95
30 -H. TS-1503091 Hex Socket Cap Screw $3.61
30 -I. GH1440W-07-24 Handle $16.46
30 -J. 08-02 Stop Pin $13.30
30 -K. GB308-SB6 Steel Ball $3.61
30 -L. GHW-SB-30-1 Motor Mounting Bracket (for 1 phase motor) … $98.61
30 -M. GB879-4X24 Pin $3.61
31 -D. 05-04 Control Plate $101.05
31 -F. 06-34 Flange $31.16
31 -H. GB301-8102 Thrust Bearing $26.69
31 -I. GB308-SB6 Steel Ball $3.61
31 -J. TS-2311061 Hex Nut $3.61
31 -J. TS-1540041 Hex Nut $0.00

Discontinued

31 -K. 01-05 Clutch $26.69
31 -L. 01-25 Cover $28.48
31-M. GB4141.29A-85 KNOB GH-1340W $5.97
32 -D. TS-1503031 Socket Head Cap Screw $3.61
32 -F. GB1096-5X56 Key $51.45
32 -H. 07-18 Washer $7.95
32 -J. TS-1523051 Socket Set Screw $3.61
32 -K. TS-2311061 Hex Nut $3.61
32 -K. TS-1540041 Hex Nut $0.00

Discontinued

32 -L. 01-27 Cover $49.09
32 -M. GH1440W-01-16 " Change Gear Cover (for 14"") " $105.17
32-I. GB2089-0.7X5X5 SPRNG 0.7X5X5 GH-1340W $4.19
33 -C. GB118-A8X30 Pin $3.61
33 -D. GB118-A8X30 Pin $3.61
33 -F. GB879-3X5 Pin $3.61
33 -I. TS-1523051 Socket Set Screw $3.61
33 -K. TS-1523061 Socket Set Screw $3.61
33 -L. GH1440W-01-11 Cover $90.77
33 -M. GH1440W-01-18 " Rear Plate (for 14"")" $97.59
33-H. TS-2285102 Pan Head Machine Screw $0.00

Discontinued

33-J. GB879-5X12 Pin $0.00

Discontinued

34 -D. 05-60 Shift Hub $71.19
34 -F. 06-27 Worm $38.29
34 -H. 07-17 Index Ring $144.31
34 -I. 07-28 Gib Adjusting Screw $7.95
34 -J. GH1440W-08-05 Eccentric Shaft $49.88
34 -K. GB879-3X20 Pin $3.61
34 -L. TS-1524011 Set Screw $3.61
34 -M. C6240-10004 Plate $6.38
35 -D. GB1096-4X10 Key $3.61
35 -F. 06-50 Collar $21.87
35 -H. GH1440W-07-18 Compound Handle $99.92
35 -I. 07-10 Gib $46.56
35 -J. GH1440W-08-08 Lever Handle $27.34
35 -K. 01-086/6 Control Fork $37.08
35 -L. GH1440W-01-20 Pulley $52.14
35 -M. TS-1503021 Socket Head Cap Screw $3.61
36 -D. GH1440W-05-02 Shaft $26.69
36 -G. 06-44 Bushing $15.68
36 -H. 07-15 Cover Screw $7.95
36 -I. TS-1515011 Hex Socket Cap Screw $3.61
36 -J. 08-04 Spindle $134.76
36 -K. 01-081/6 Control Handle $31.92
36 -L. GH1440W-01-24 Link $21.37
37 -D. GB879-5X20 Pin $3.61
37 -G. 06-43 Shaft $8.54
37 -H. TS-1523071 Socket Set Screw $3.61
37 -I. GH1440W-07-15 " Swivel Slide (14"") " $130.65
37 -J. 08-24 Key $3.61
37 -L. 11-07 Link Nut $341.61
37-K. GB4141.14-BM10X50 HANDLE CAP (KNOB) GH-1340A/GH-1340W $9.42
38 -D. 05-14 Gear $3.61
38 -H. GH1440W-07-17 Handle Lever $24.21
38 -I. 07-04-02 Name Plate $11.61
38 -J. 08-07 Indicator Label $4.07
38 -K. TS-1503041 Socket Head Cap Screw $3.61
38 -L. 11-05 Shaft Pin $7.34
38-G. GB894.1-16 RETAINER RING GH-1340A/GH-1340W $3.61
39 -D. 05-55 Shift Fork $65.13
39 -G. 06-28 Gear $62.02
39 -H. GH1440W-07-26 Handle Sleeve $44.30
39 -I. GB818-M3X6 Pan Head Screw $3.61
39 -J. GHW-TA39 Pan Head Screw $3.61
39 -K. 01-084/6 Control Bracket $60.99
39 -L. GB896-6 Retaining Clip $3.61
4 -C. TS-1532032 Pan Head Screw $3.61
4 -F. TS-1503041 Socket Head Cap Screw $3.61
4 -H. GH1440W-07-11 Plate Wiper $15.60
4 -I. GH1440W-07-21 Handle Shaft $24.21
4 -J. GB301-8103 Thrust Bearing $54.31
4 -K. C6240-120003 Stud $13.30
4 -L. GH1440W-01-07 Guide $32.27
4 -M. 04-51 Washer $6.15
4 -N. 10B-05 Screw $14.14
4 -O. GB879-3X20 Pin $3.61
4 -P. 10A-06 Screw $14.14
4 -Q. TS-1503051 Socket Head Cap Screw $3.61
4 -R. GH1440W-KA Control Contactor $110.42
4-H. GH1440W-07-12 Plate $0.00

Discontinued

40 -D. 05-56 Shift Lever $21.63
40 -G. 06-26 Collar $5.91
40 -J. 08-22 Indicator Label $4.96
40 -K. 01-082/6 Pin $5.56
40 -L. 01-12 Tray $18.16
40-H. GB2089-0.7X5X9 SPRNG GH-1340A/GH-1340W $4.96
41 -D. GB879-5X20 Pin $3.61
41 -G. GB879-5X35 Pin $3.61
41 -H. GB308-SB6 Steel Ball $3.61
41 -J. 08-23 Indicator Label $4.96
41 -K. 01-38 Spring $3.61
41 -L. GHW-M1-1 Main Motor (1 Phase) … $624.75
42 -D. GH1440W-05-03 Shaft $21.37
42 -G. 06-20 Gear $21.37
42 -H. GH1440W-07-01 Saddle $935.68
42 -K. TS-1524011 Set Screw $3.61
42 -L. TS-1550041 Flat Washer $3.61
43 -D. GH1440W-05-01 Cover $248.77
43 -G. TS-1523011 Socket Set Screw $3.61
43 -H. GB117-6X40 Pin $3.61
43 -K. GB2089-3X35X70 Spring $14.48
43 -L. TS-2311061 Hex Nut $3.61
43 -L. TS-1540041 Hex Nut $0.00

Discontinued

44 -D. 05-58 Locating Disk $23.77
44 -G. GB1096-5X15 Key $4.97
44 -H. GH1440W-07-03 Plate Wiper $5.97
44 -K. 01-085/6 Sleeve $44.25
45 -D. GB819-M5X10 Flat Head Machine Screw $3.61
45 -G. 06-19 Shaft $44.77
45 -K. GH1440W-01-21 Spindle Control Shaft $269.44
45-H. TS-2285102 Pan Head Machine Screw $0.00

Discontinued

46 -H. GH1440W-07-07 Plate $4.91
46 -K. TS-1520021 Set Screw $3.61
46-D. GB4141.14-BM10X50 HANDLE CAP (KNOB) GH-1340A/GH-1340W $9.42
46-G. GB3452.1-17X1.8 O-RING GH-1340A/GH-1340W $3.61
47 -D. GH1440W-05-15 Handle Shaft $16.46
47 -G. GB896-12 Retainer Ring $3.61
47 -H. TS-1515051 Hex Socket Cap Screw $3.61
47 -K. 01-083/6 Key $3.61
48 -D. GH14440W-05-14 Shift Hub $46.56
48 -G. 06-10 Bushing $7.95
48 -H. GB1155-79 Oiler $3.61
48 -K. TS-1523031 Set Screw $3.61
49 -D. 05-08 Washer $7.05
49 -G. 06-15-1 Collar $27.48
49 -H. GH1440W-07-05 Plate $5.13
49 -K. GH1440W-01-26 Collar $9.73
5 -C. GH1440W-05-26 " Oil Cover (14"")" $9.73
5 -F. 06-33 Gib $25.20
5 -H. GH1440W-07-11 Plate Wiper $15.60
5 -J. GB1096-4X20 Key $3.61
5 -K. 12-05 Electrical Plate $24.01
5 -L. GH1440W-01-06 Bracket $24.21
