Jet GH-1440ZX with ACU-RITE 300S DRO Lathes Machines Parts

Brand: Jet

Model: 321301

Jet 321301 Parts Schematic
  • Fig-0

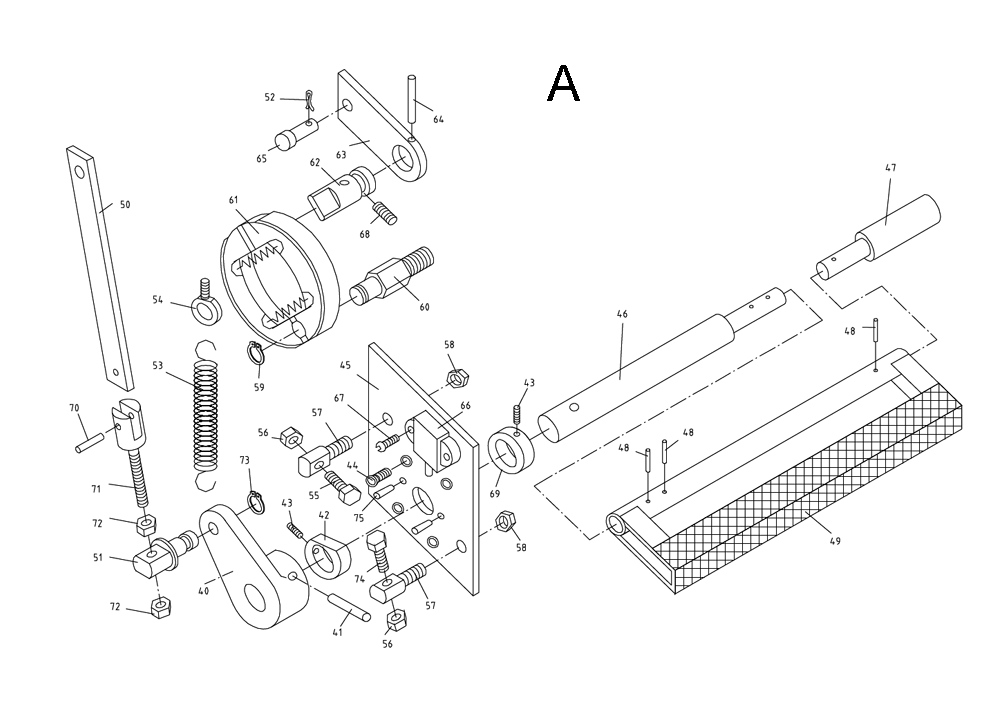

  • Fig-1
  • Fig-2

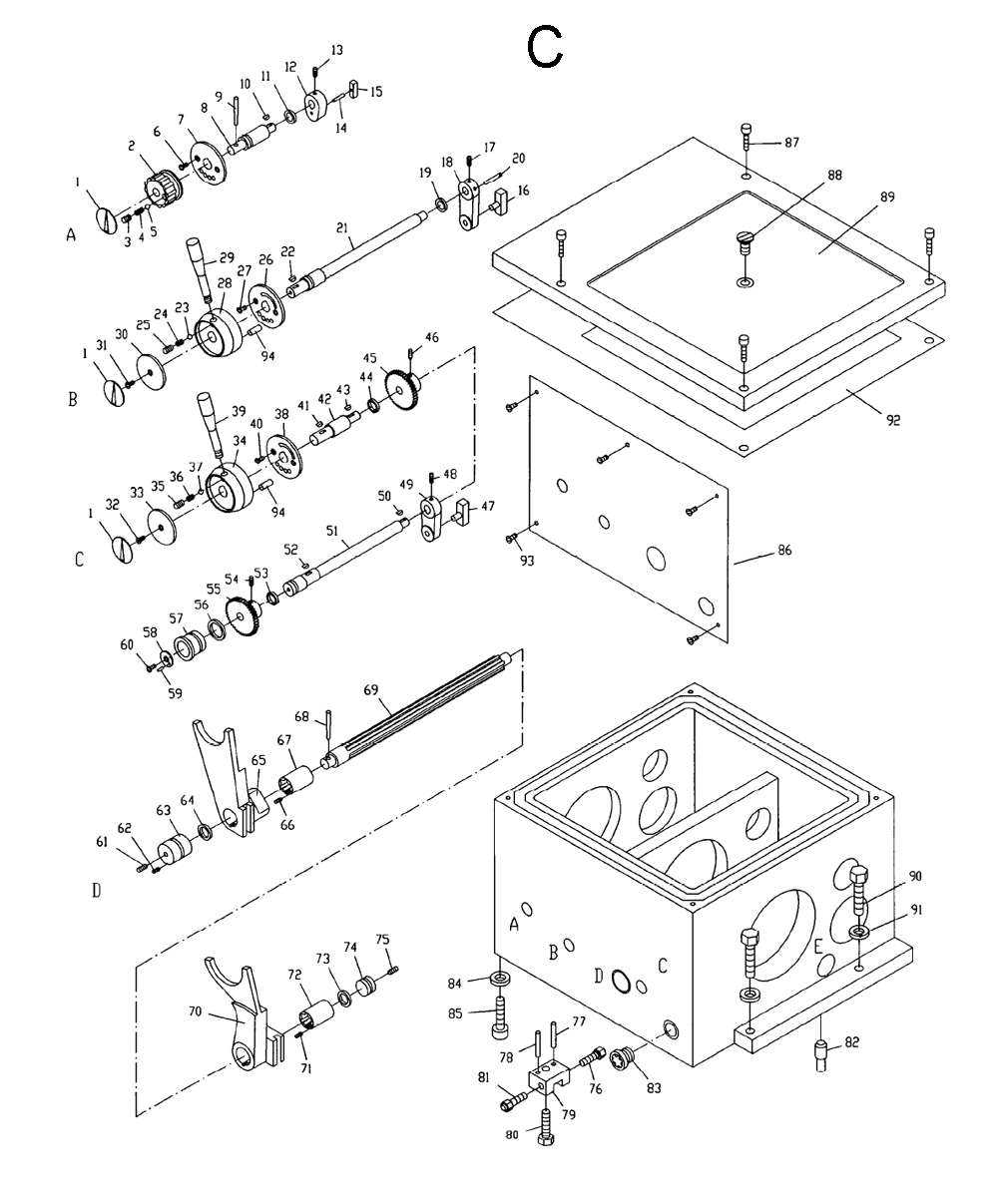

  • Fig-3
  • Fig-4

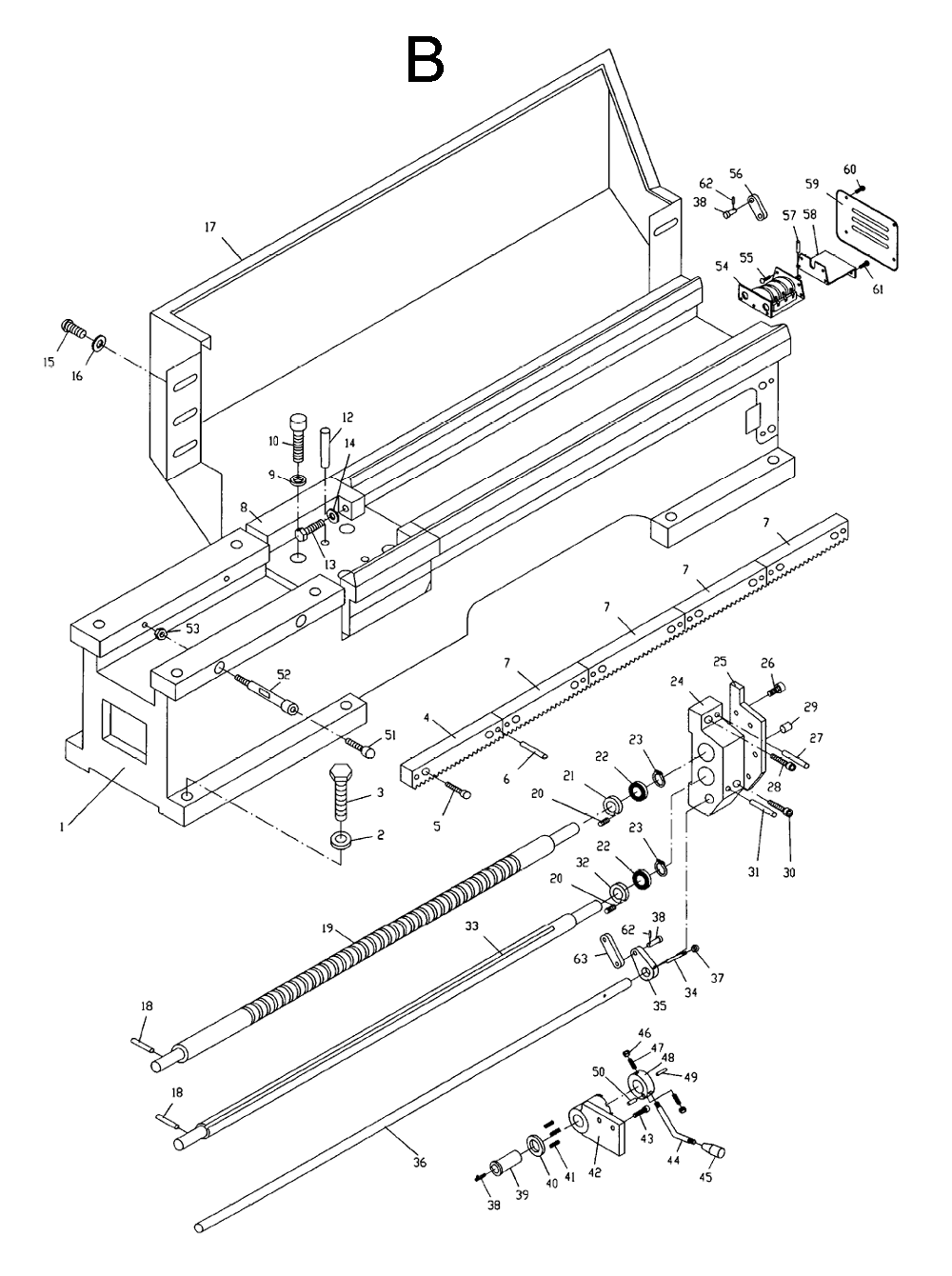

  • Fig-5

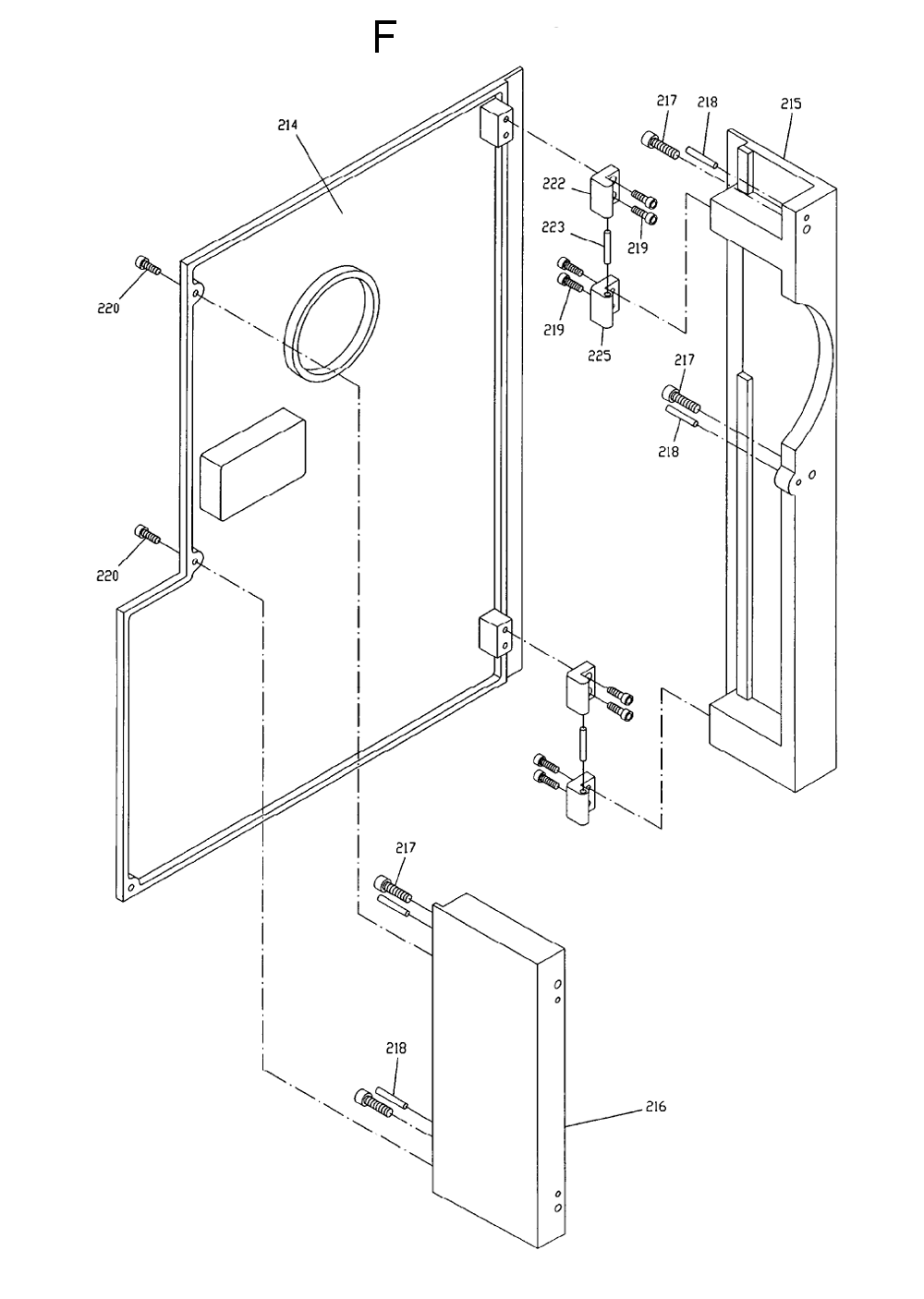

  • Fig-6

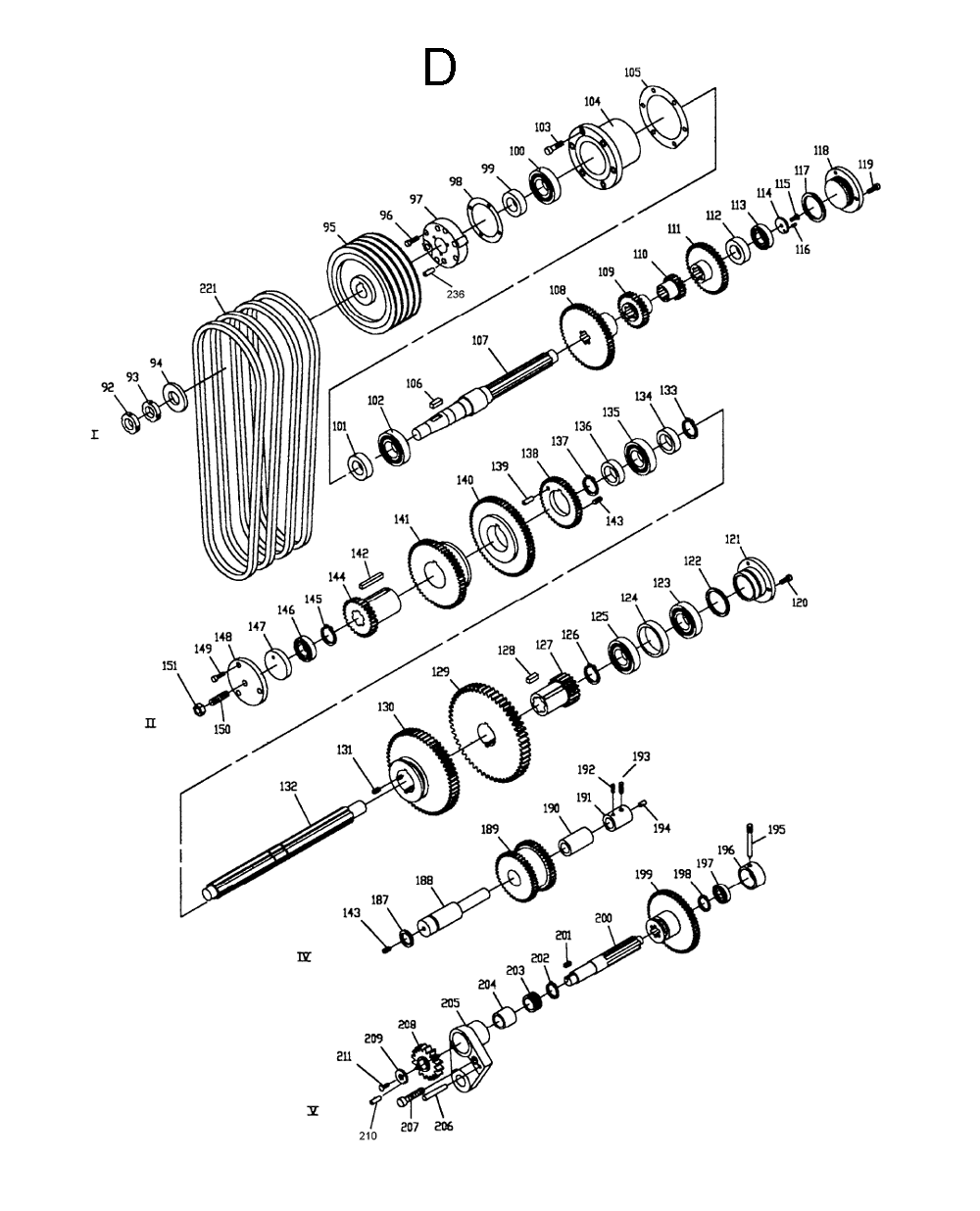

  • Fig-7

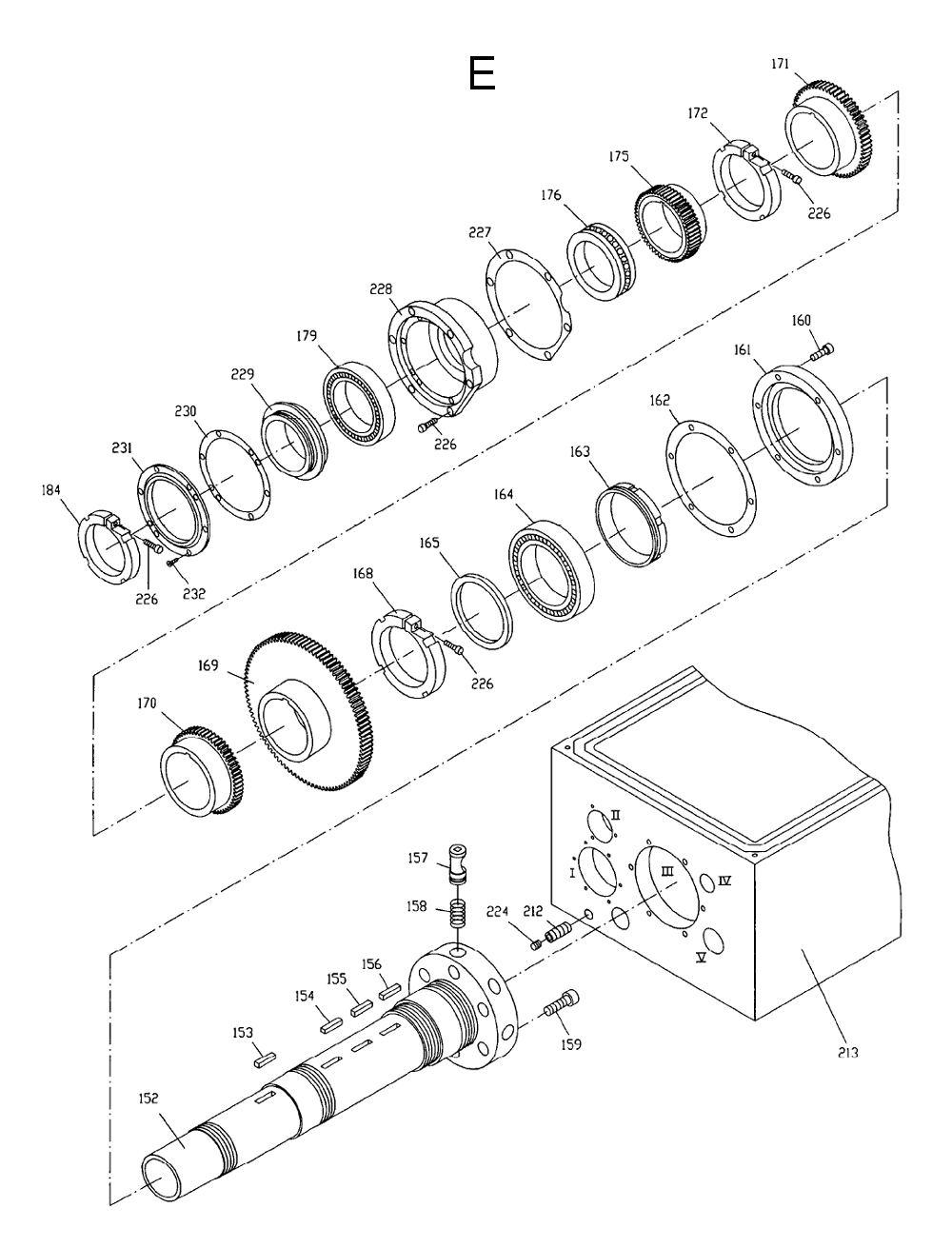

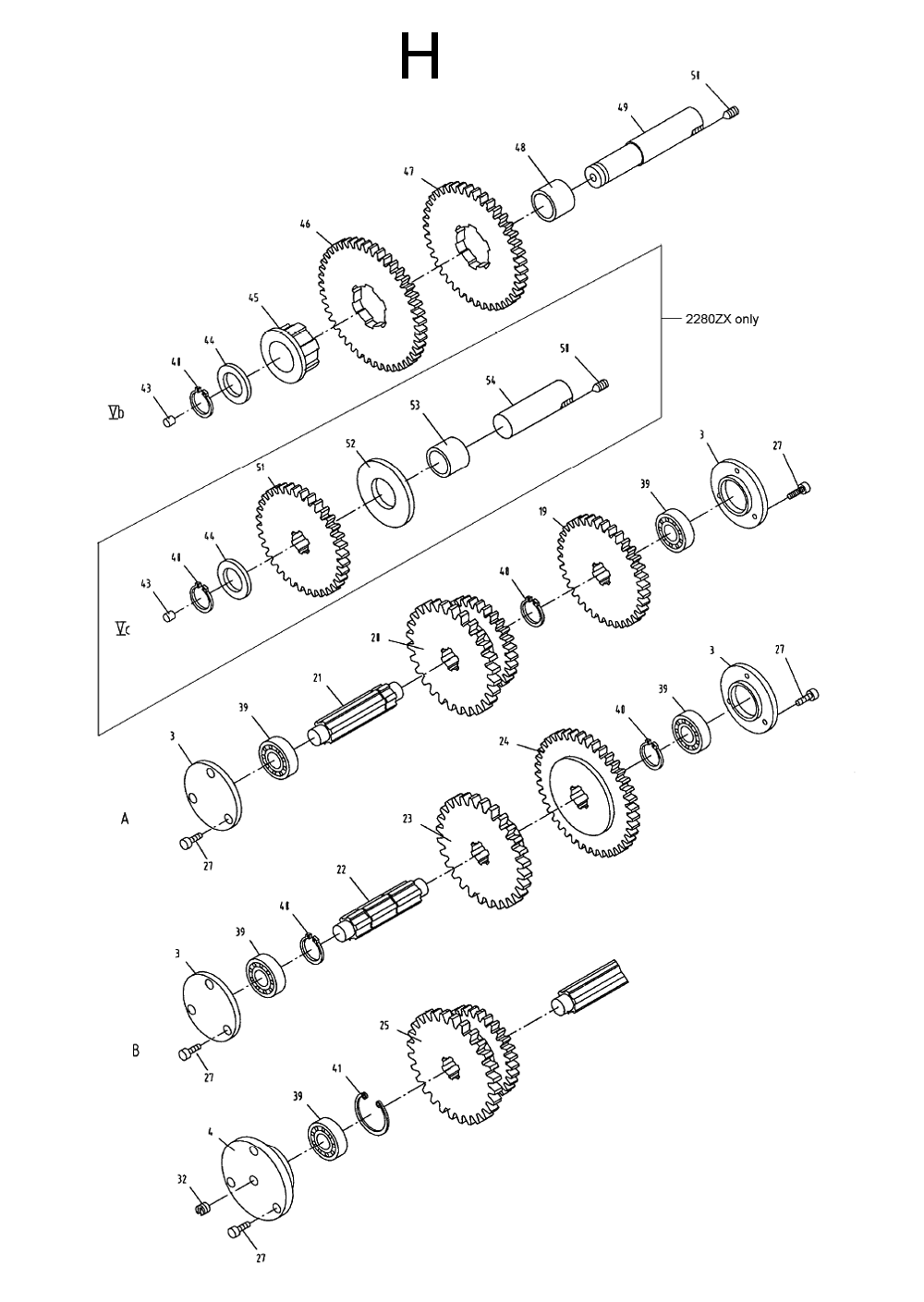

  • Fig-8
  • Fig-9

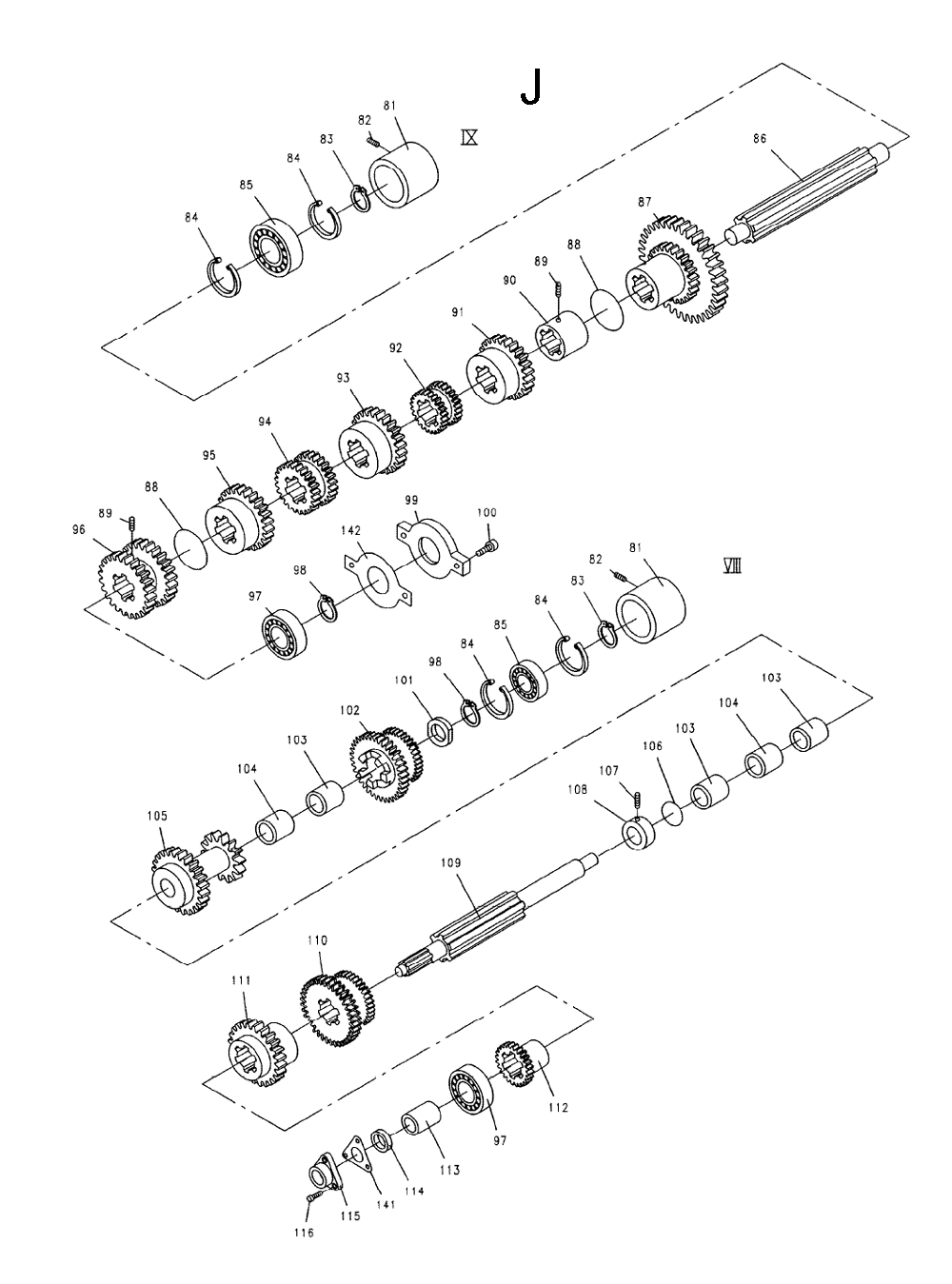

  • Fig-10

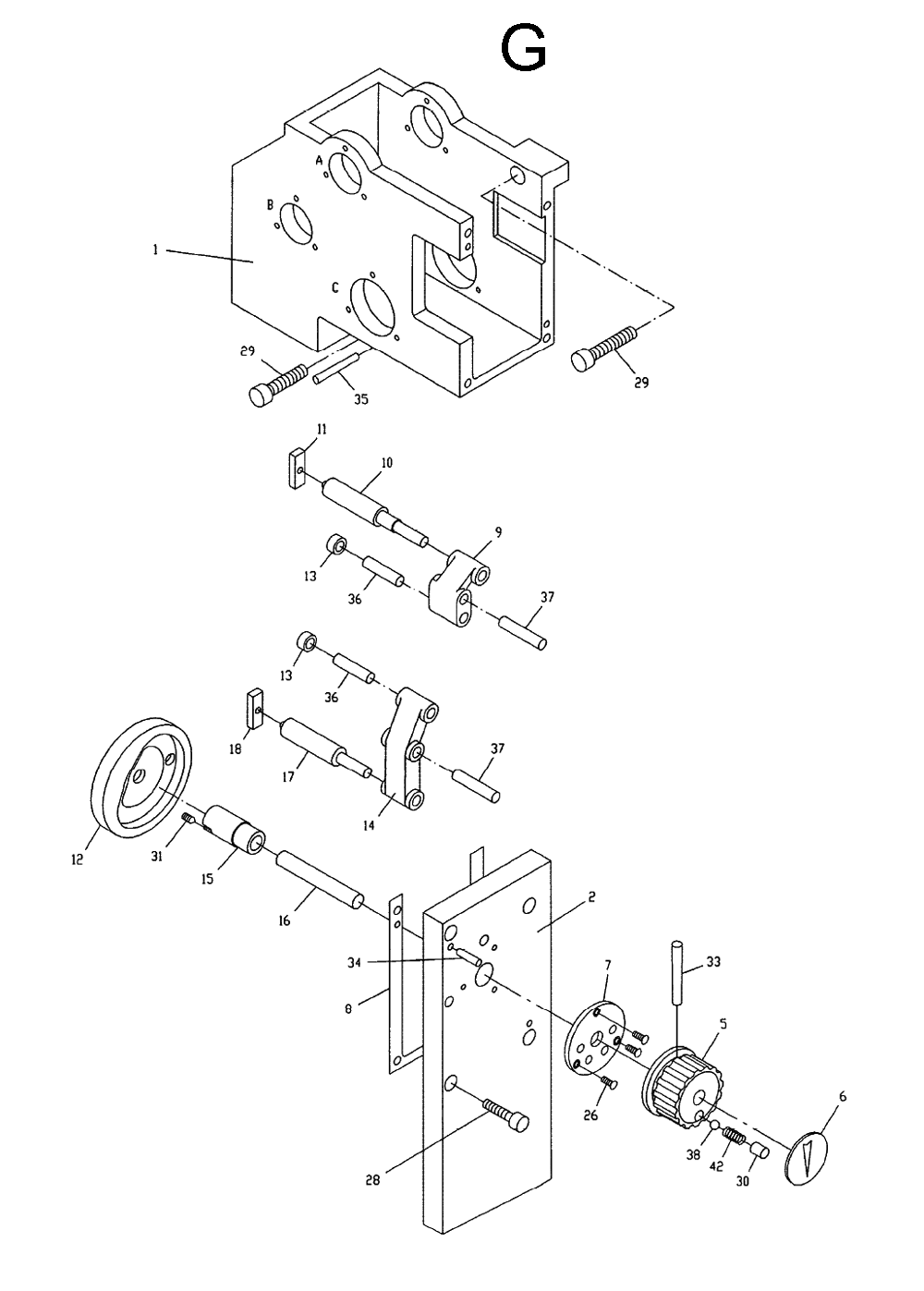

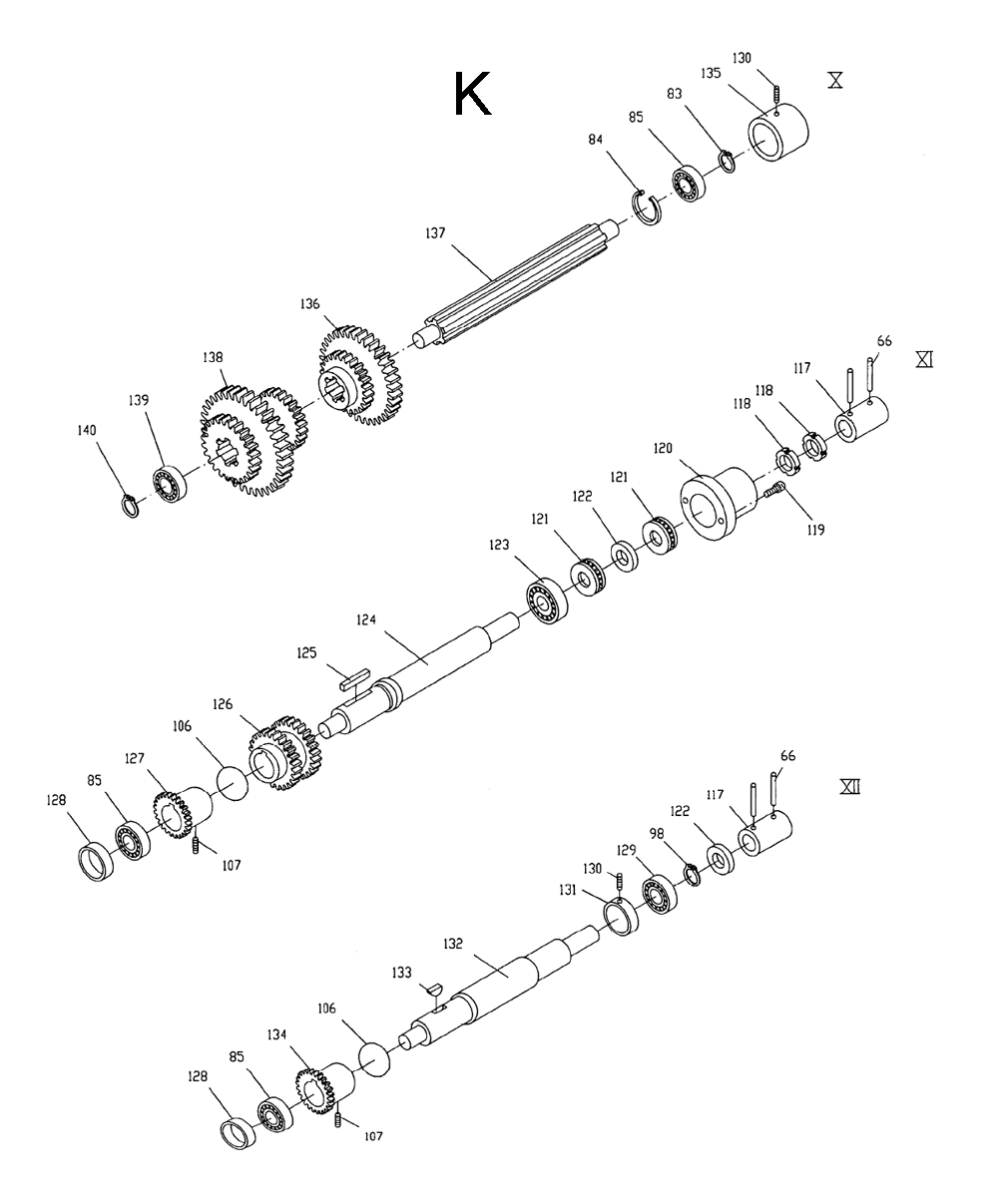

  • Fig-11

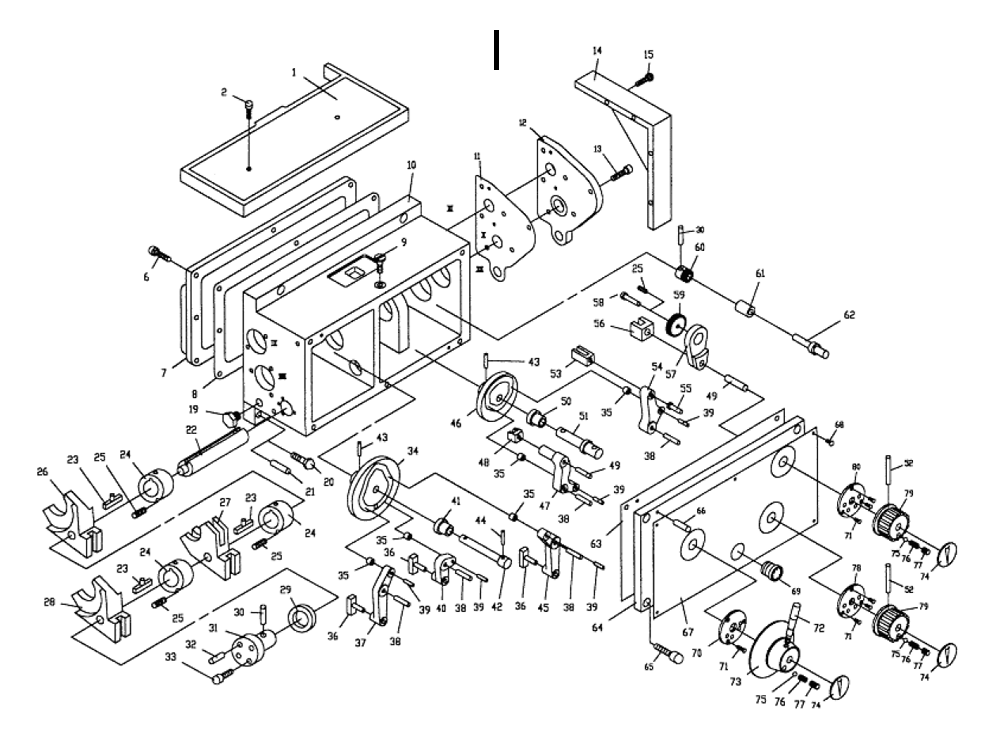

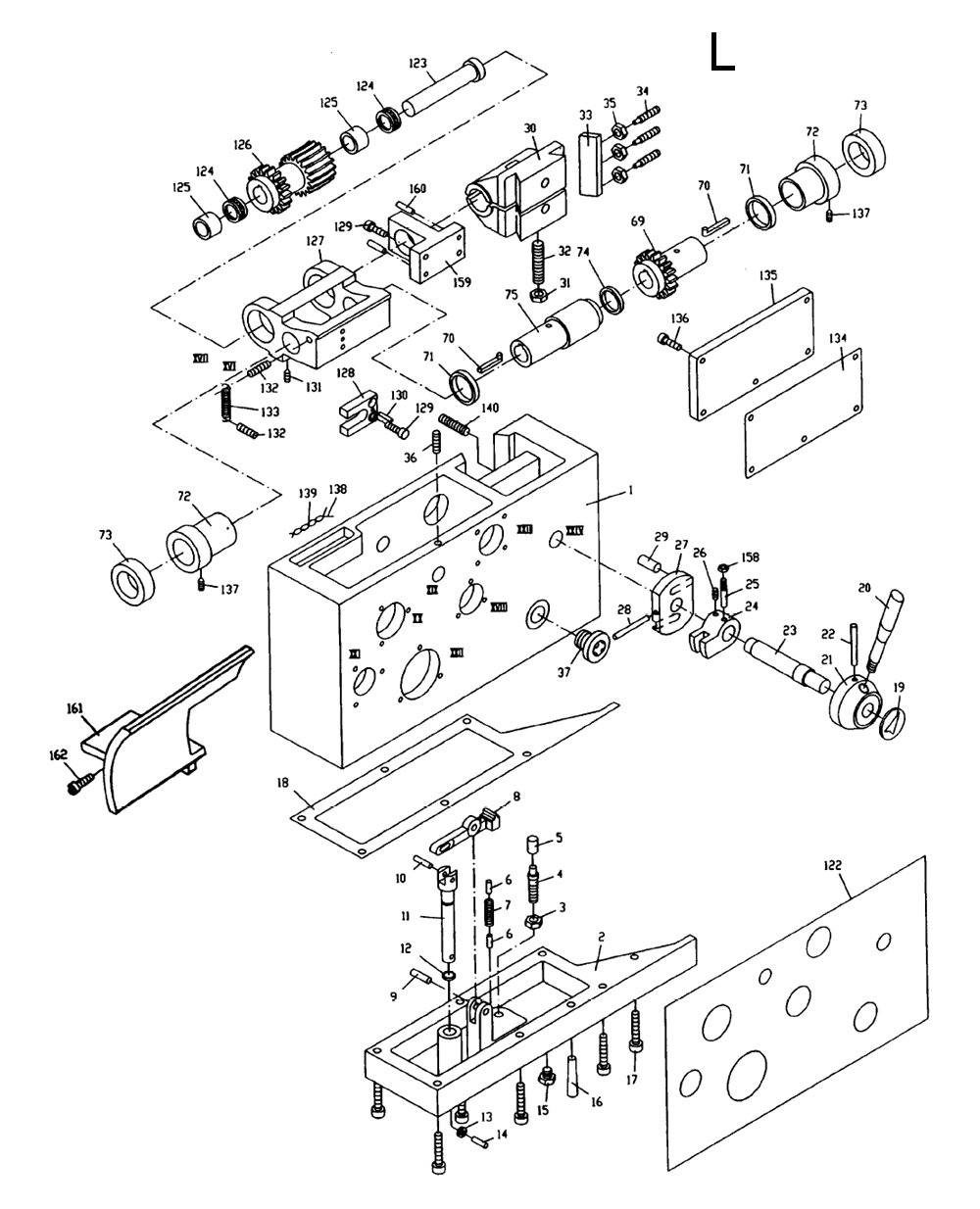

  • Fig-12
  • Fig-13

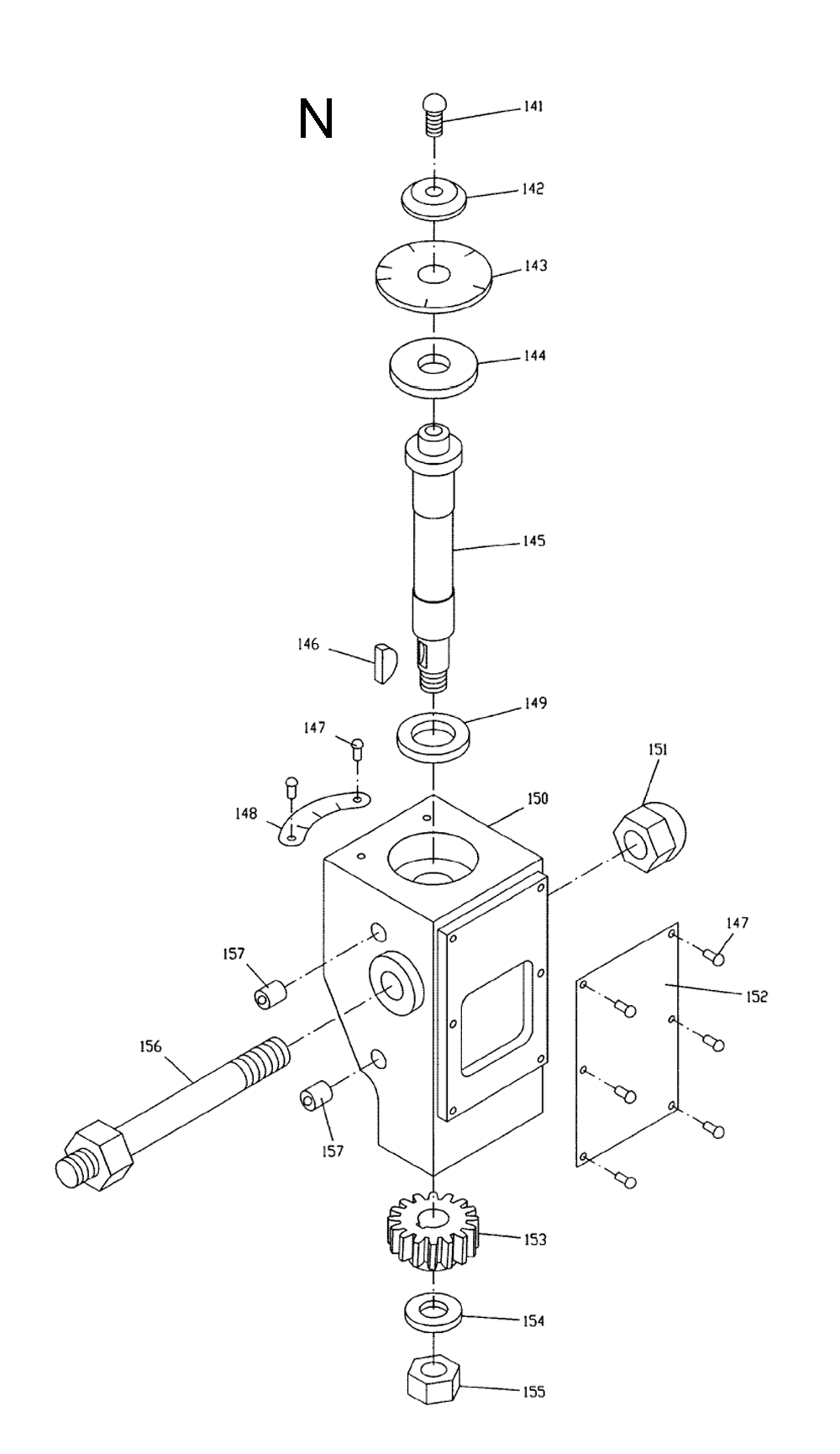

  • Fig-14
  • Fig-15

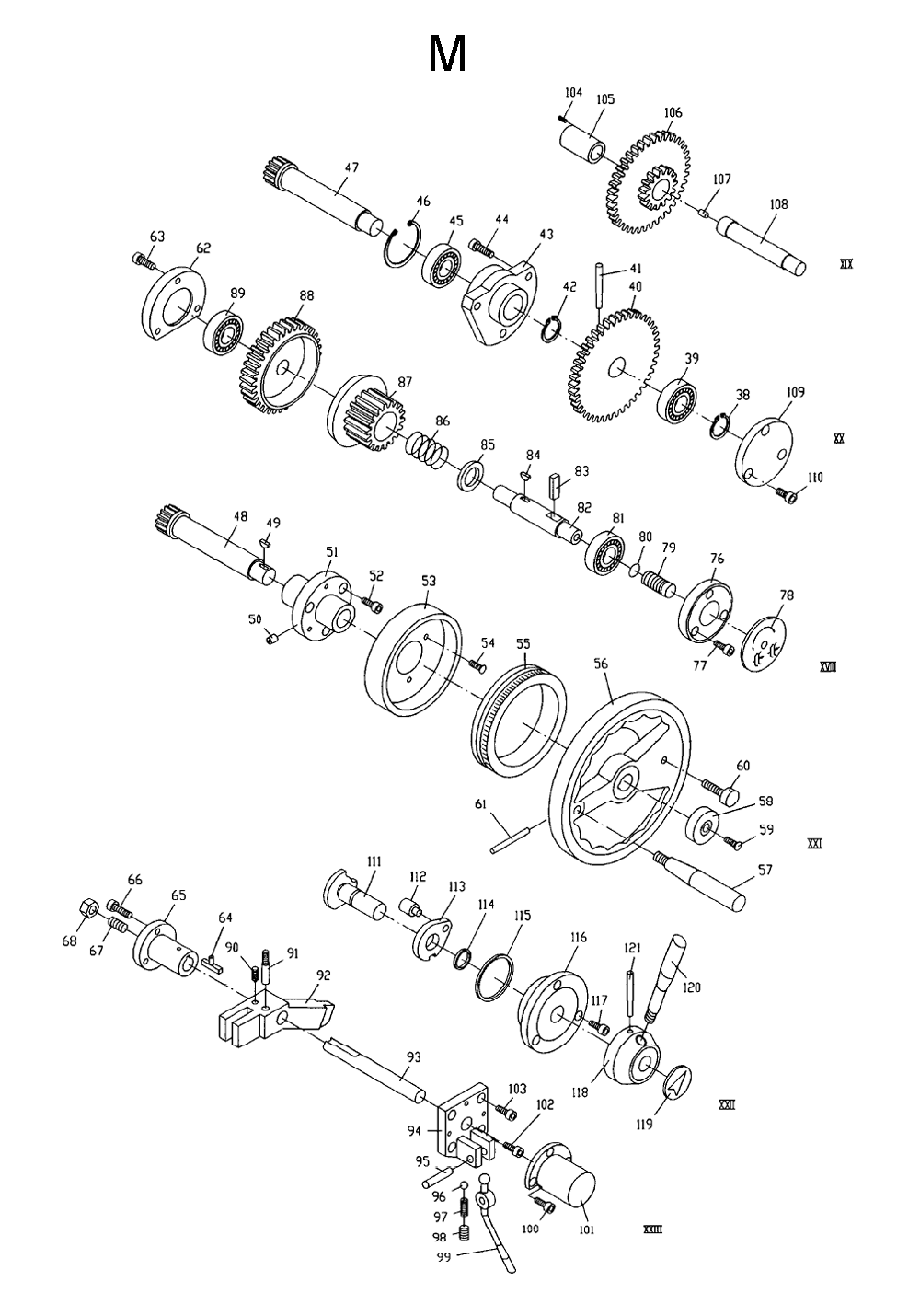

  • Fig-16
  • Fig-17
  • Fig-18

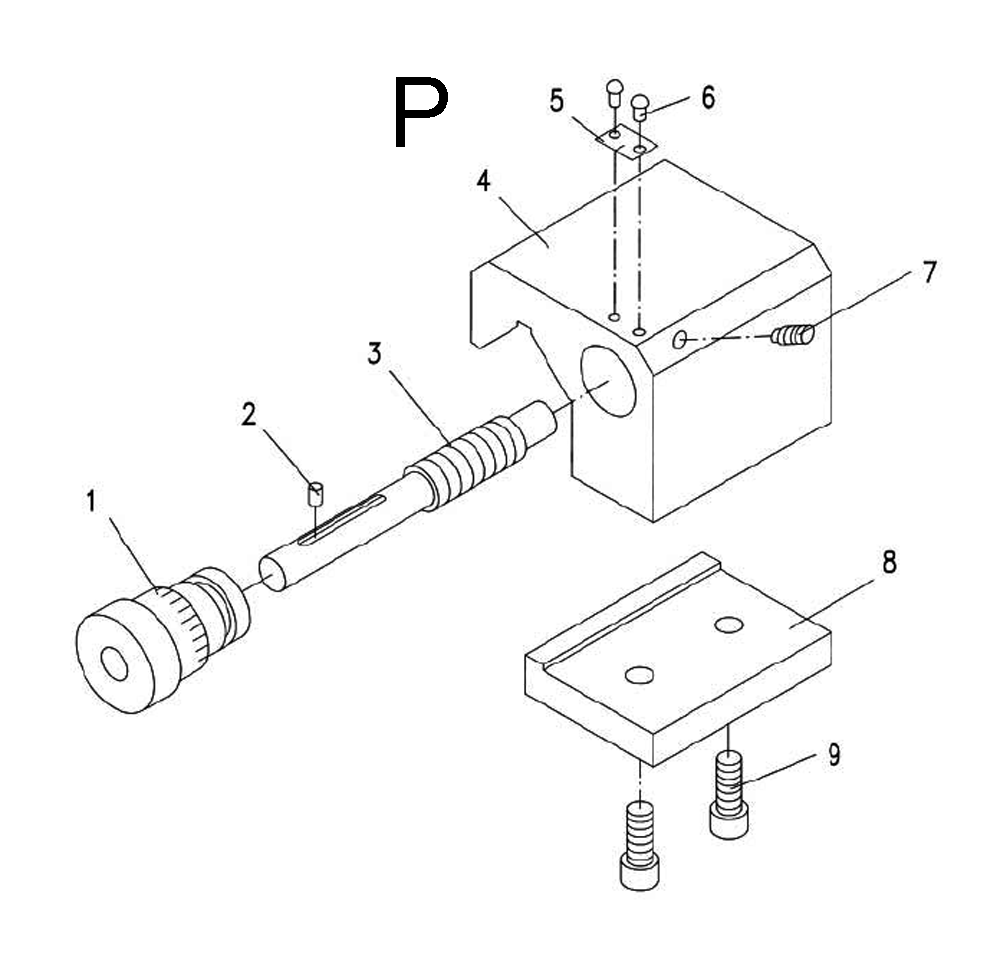

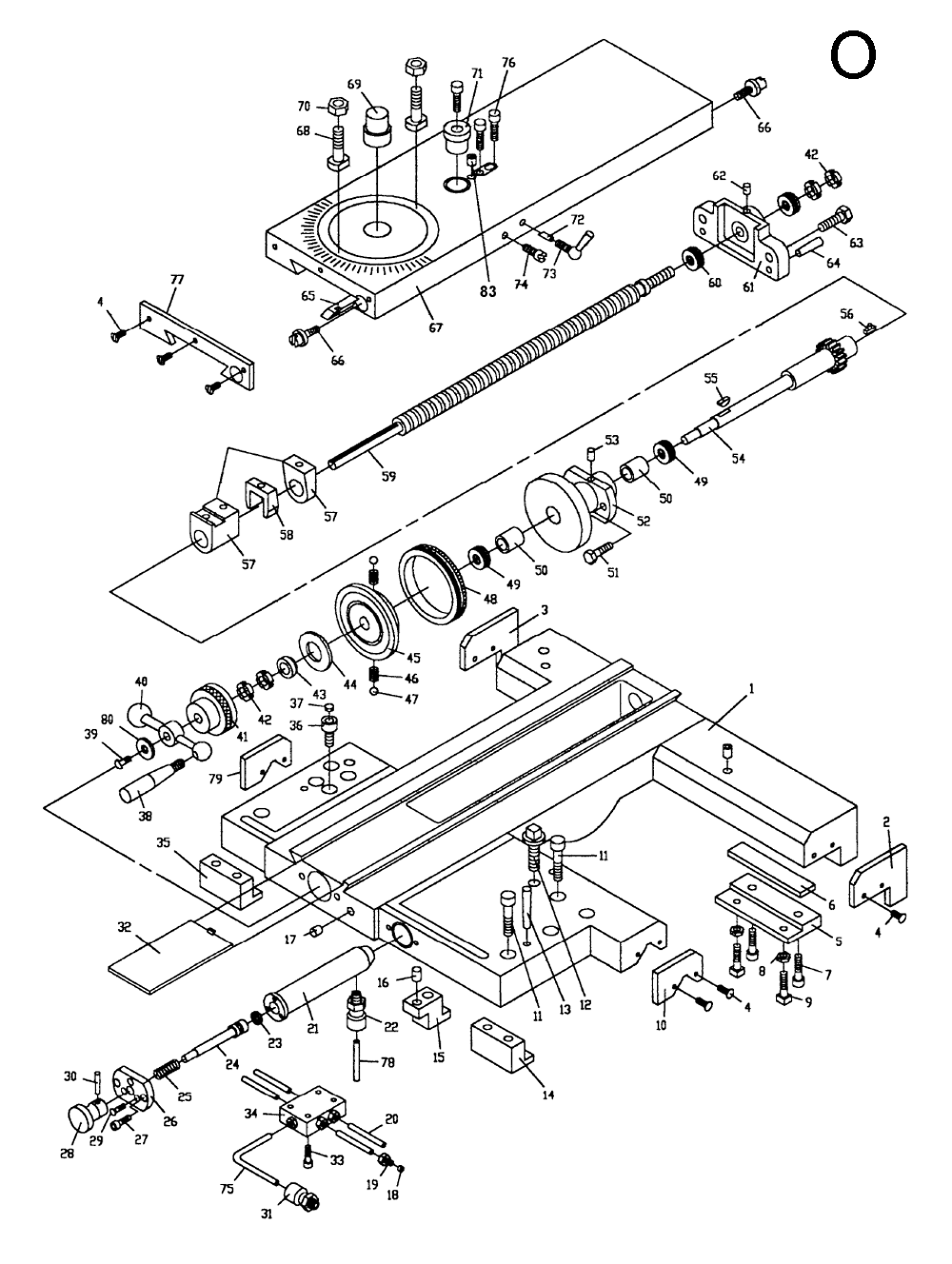

  • Fig-19
  • Fig-20

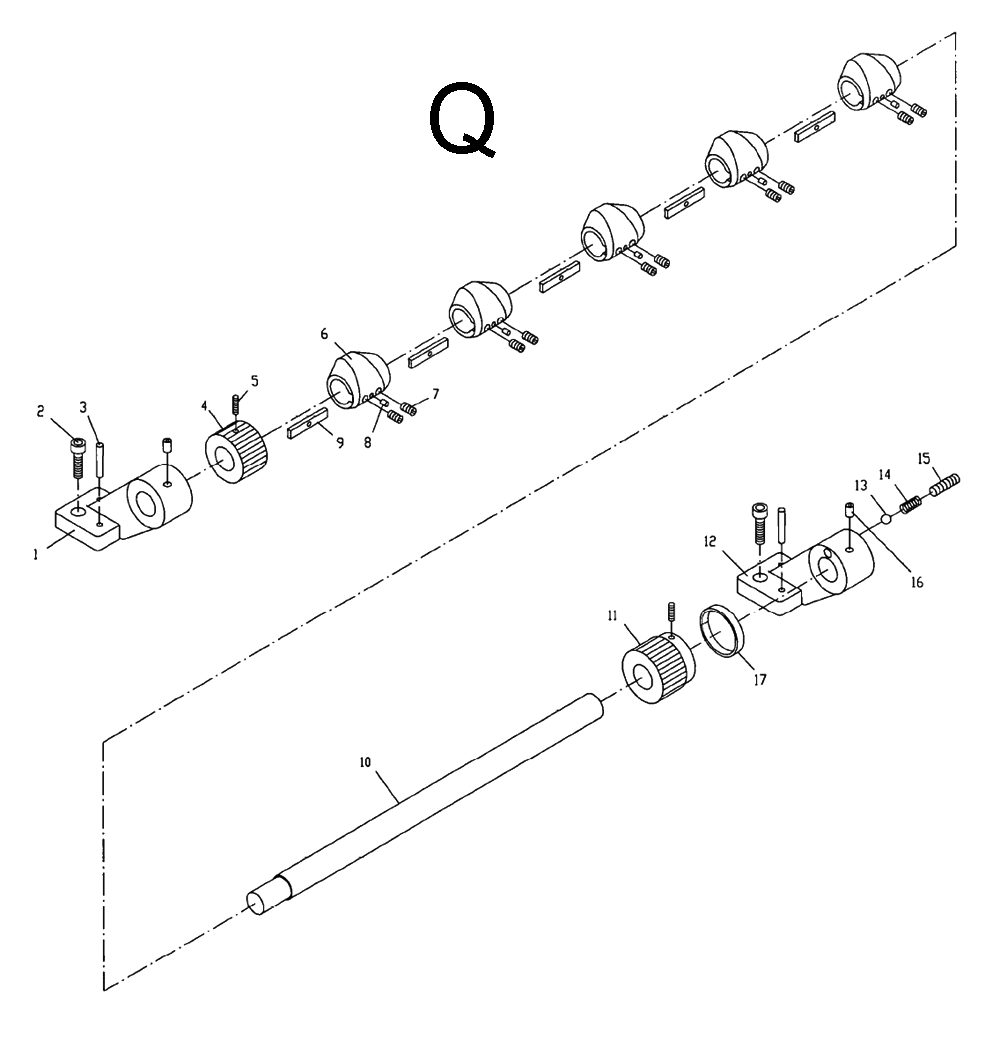

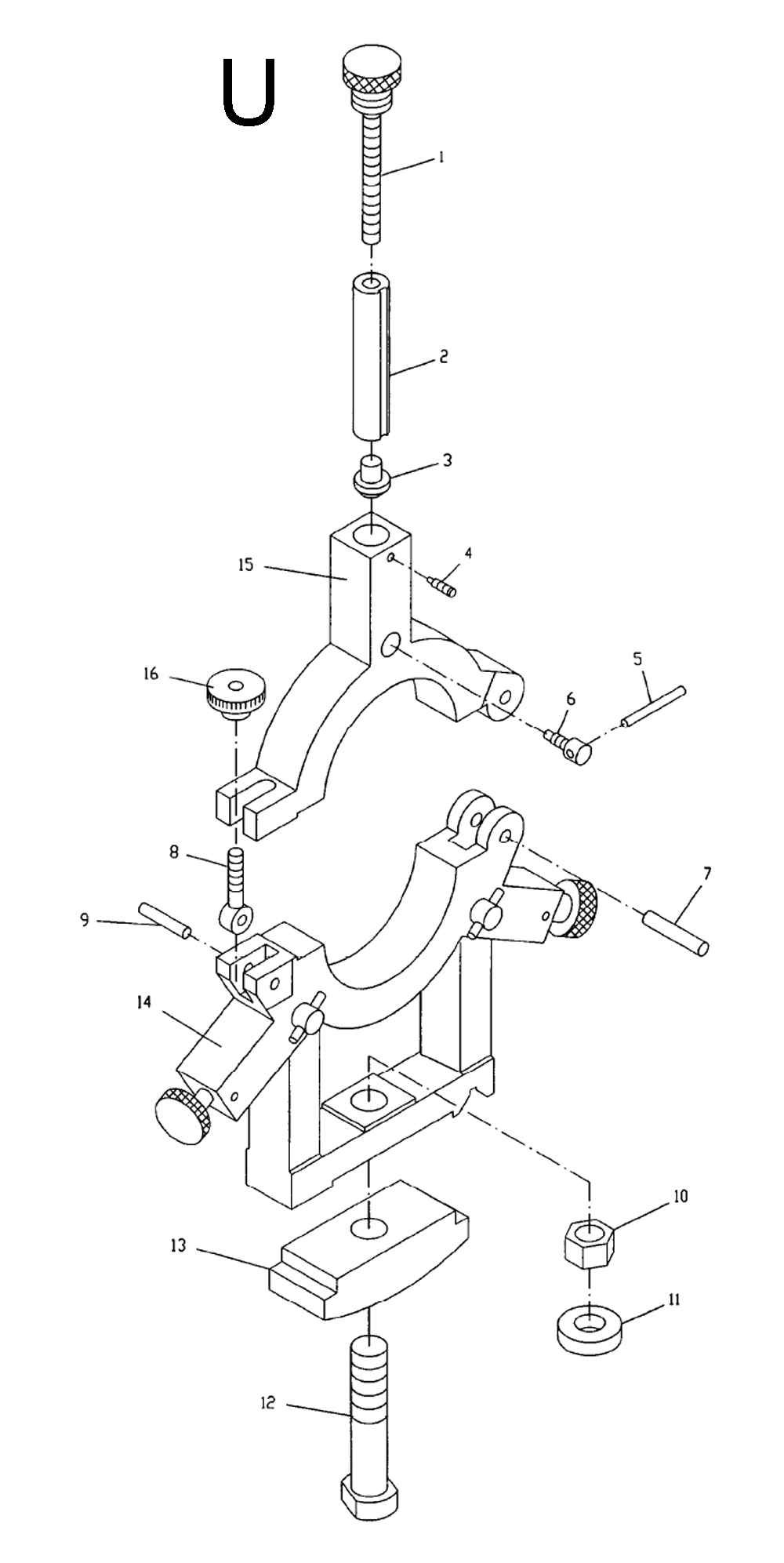

  • Fig-21

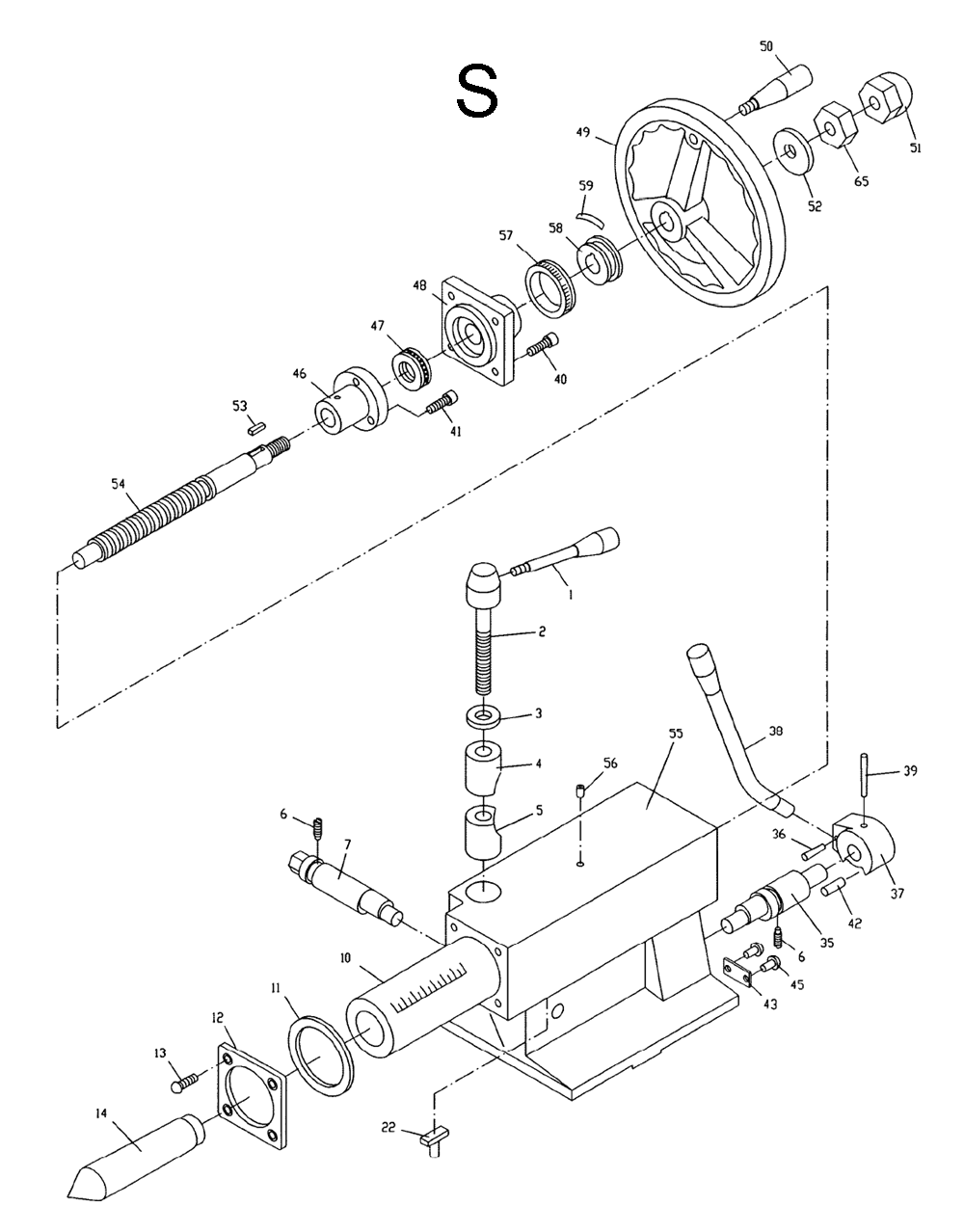

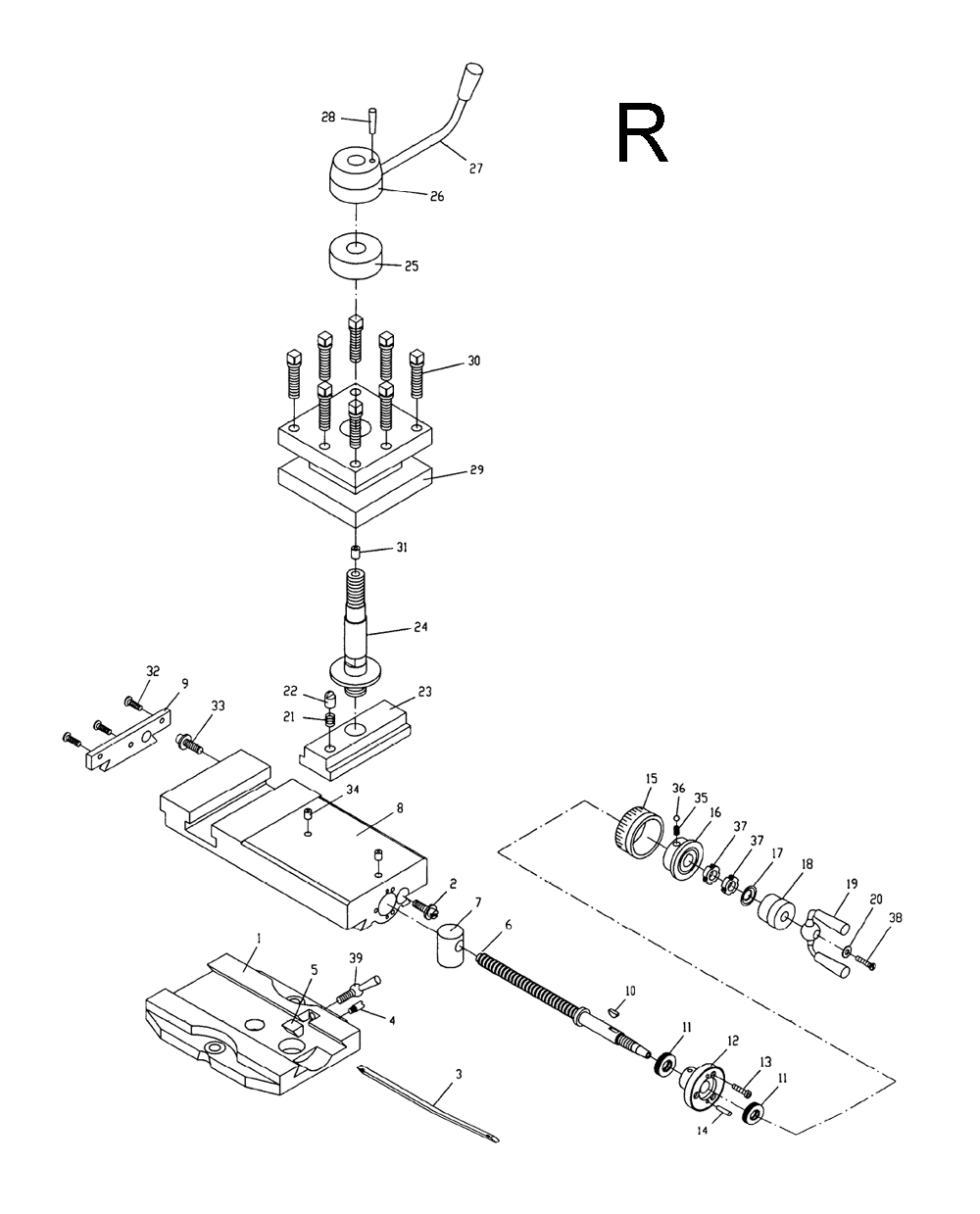

  • Fig-22

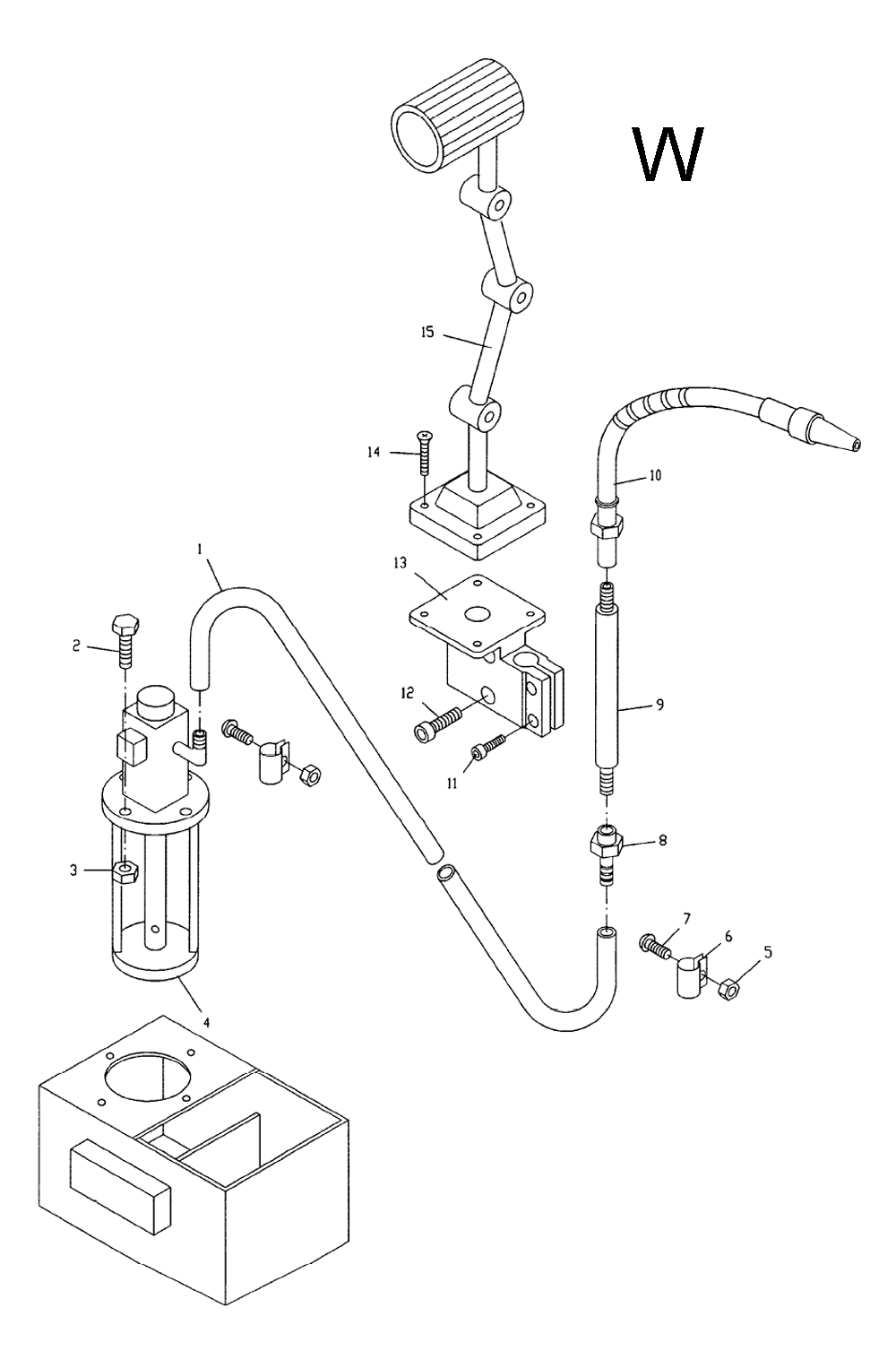

  • Fig-23

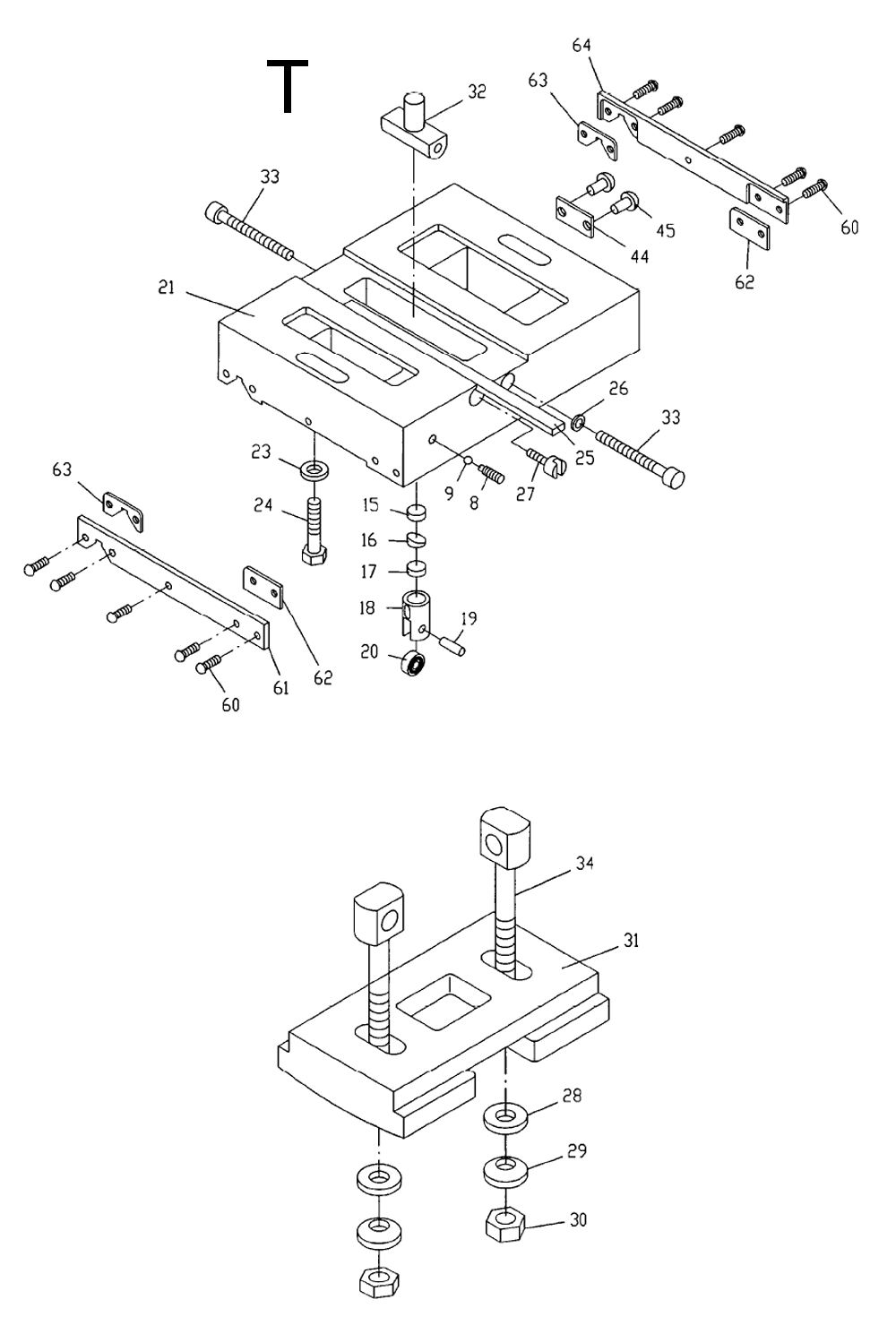

  • Fig-24
  • Fig-25

Download Jet 321301 Parts Diagram!

Jet 321301 Replacement Parts List  Other tools in Jet Lathes Machines Parts category

Fig# Image Part No Part Name Price Add To Cart
00. JX21004 Terminal Board (not shown) $8.37
00. 18301 Junction Box (not shown) $39.16
00. D97-4 Plastic Fitting (not shown) $4.55
00. ZX-22712B Pedal (for 1460/1660/1860ZX) $164.44
00. ZX-22712C Pedal (for 1880/2280ZX) $205.69
00. ZX-22710B Draw Bar (for 16" models) $26.17
00. ZX-22710C Draw Bar (for 18" models) $26.17
00. GH2280ZX-22710 Draw Bar (for 22" model) $31.29
00. ZX-01741B Splash Guard (for 1460ZX) $324.36
00. ZX-01741C Splash Guard (for 1640ZX) $263.21
00. ZX-01741D Splash Guard (for 1660ZX) $433.51
00. ZX-01741E Splash Guard (for 1840ZX) $263.21
00. ZX-01741F Splash Guard (for 1860ZX) $308.44
00. ZX-01741G Splash Guard (for 1880ZX) $728.73
00. GH2280ZX-12701 Splash Guard (for 2280ZX) $411.16
00. ZX-01708AN New Lead Screw (for 40" models, serial # 010618ZX350 and higher) $956.69
00. ZX-01708B Lead Screw (for 60" models, serial # 010611ZX349 and lower) $748.15
00. ZX-01708BN New Lead Screw (for 60" models, serial # 010618ZX350 and higher) $748.15
00. ZX-01708C "Lead Screw (for 80"" models, serial #010611ZX349 and lower) " $917.62
00. ZX-01708CN "New Lead Screw (for 80"" models, serial #010618ZX350 and higher)" $945.41
00. ZX-01109N New Sleeve (serial # 010618ZX350 and higher) $21.82
00. ZX-01110N New Bracket (serial # 010618ZX350 and higher) $125.41
00. ZX-01108N New Sleeve (serial # 010618ZX350 and higher) $21.82
00. ZX-01709AN New Feed Rod (for 40" models, serial # 010618ZX350 and higher) $321.96
00. ZX-01709B Feed Rod (for 60" models, serial # 010611ZX349 and lower) $583.02
00. ZX-01709BN New Feed Rod (for 60" models, serial # 010618ZX350 and higher) $594.33
00. ZX-01709C "Feed Rod (for 80"" models, serial # 010611ZX349 and lower) " $678.56
00. ZX-01709CN "New Feed Rod (for 80"" models, serial # 010618ZX350 and higher)" $709.13
00. ZX-01707B Control Rod (for 1460/1660/1860ZX) $493.31
00. ZX-01707C Control Rod (for 1880/2280ZX) $537.11
00. ZX-02301B Label (for 1460ZX) $108.25
00. ZX-02301C Label (for 1640ZX) $123.17
00. ZX-02301D Label (for 1660ZX) $116.49
00. ZX-02301E Label (for 1840ZX) $124.72
00. ZX-02301F Label (for 1860ZX) $122.66
00. ZX-02301G Label (for 1880ZX) $146.82
00. GH2280ZX-02301 Label (for 2280ZX) $156.36
00. ZX-02754X/6P Gear (for 16"/18"/22" models) $164.44
00. ZX-02753X/6P Gear (for 16"/18"/22" models) $220.44
00. ZX-02751X/6P Gear (for 16"/18"/22" models) $176.17
00. ZX-02756/6P Gear (for 16"/18"/22" models) $148.39
00. ZX-02757/6P Gear (for 16"/18"/22" models) $211.37
00. ZX-02758/6P Gear (for 16"/18"/22" models) $180.80
00. ZX-02755X/6P Gear (for 16"/18"/22" models) $164.44
00. ZX-08106B Bracket (for Shaft V, Vb) (for 18" models) $76.60
00. GH2280ZX-08106 Bracket (for Shaft V, Vb, Vc) (for 22" model) $81.86
00. TNMP08706B(N) Gear (for 18" models) $78.61
00. VB-A76 V-Belt (for 16" models) $34.77
00. VB-A77 V-Belt (for 18" models) $25.87
00. VB-A85 V-Belt (for 22" model) $63.85
00. ZX-H212 Drain Plug (14" models, serial # 001204ZX258 and lower) $4.87
00. ZX-H212A Drain Plug (14" models, serial # 010105ZX263 and higher) $13.24
00. ZX-02101AN Headstock Casting (14" models, serial # 010105ZX263 and higher) $268.27
00. ZX-02101BN Headstock Casting (16" models, serial # 010319ZX294 and higher, except for serial # 010319ZX298 and 299)… $2,933.06
00. ZX-02101C Headstock Casting (18" models, serial # 010416ZX313 and lower) $3,154.31
00. ZX-02101CN Headstock Casting (18" models, serial # 010514ZX323 and higher) $3,154.31
00. GH2280ZX-02101 Headstock Casting (22" model) $2,195.05
00. ZX-08302B Back Cover (for 16" models) $238.56
00. ZX-08302C Back Cover (for 18" models) $254.99
00. GH2280ZX-08301 Back Cover (for 22" model) $267.33
00. ZX-08114B Rear Side Plate (for 16" models) $190.58
00. ZX-08114C Rear Side Plate (for 18" models) $99.92
00. GH2280ZX-08114 Rear Side Plate (for 22" model) $107.52
00. ZX-08113B Front Side Plate (for 16" models) $82.95
00. ZX-08113C Front Side Plate (for 18" models) $152.71
00. GH2280ZX-08113 Front Side Plate (for 22" model) $91.44
00. TNMP08501B Gear (for 18" models) $123.69
00. ZX-06302N New Half Nut (serial # 010618ZX350 and higher) $448.15
00. TL06727N New Gear (serial # 010618ZX350 and higher) $71.85
00. TL06121N New Spacer (serial # 010618ZX350 and higher) $4.87
00. TL06304N New Positioning Sleeve (serial # 010618ZX350 and higher) $39.16
00. TL06729N New Sleeve (serial # 010618ZX350 and higher) $39.16
00. TL06726N New Worm (serial # 010618ZX350 and higher) $116.47
00. TL06122N New Worm Support (serial # 010618ZX350 and higher) $71.85
00. ZX-06127N New Bearing Support (serial # 010618ZX350 and higher) $26.54
00. ZX-10101B Lower Part of Steady Rest (for 16" models) $300.20
00. ZX-10101C Lower Part of Steady Rest (for 18" models) $312.51
00. GH2280ZX-10101 Lower Part of Steady Rest (for 22" model) $328.97
00. ZX-10102BS Upper Part of Steady Rest (for 16"/18" models) $146.82
00. ZX-10102F Upper Part of Steady Rest (for 22" model) $138.82
00. ZX-FRA14 Follow Rest Assembly, 14" (includes #1-7,9) $325.39
00. ZX-FRA16 Follow Rest Assembly, 16" (includes #1-7,9) $529.11
00. ZX-FRA18 Follow Rest Assembly, 18" (includes #1-7,9) $557.54
00. ZX-FRA22 Follow Rest Assembly, 22" (includes #1-7,9) $328.97
00. ZX-10102B Follow Rest Casting (for 16" models) $224.20
00. ZX-10102C Follow Rest Casting (for 18" models) $238.56
00. GH2280ZX-10102 Follow Rest Casting (for 22" model) $255.00
00. RT-001B Rubber Tube (for 1460/1660/1860ZX) $26.12
00. RT-001C Rubber Tube (for 1880/2280ZX) $60.67
00. ZX-CW10-1 Coolant Tap $16.14
00. ZX-CW16 Bulb $17.69
00. ZX-LA Light Assembly (includes # 13-15) $313.04
00. ZX-OP-03N 16" Face Plate (for 18"/22" models) $941.93
00. ZX-OP-07N MT-5 Live Center (for 18"/22" models) $148.15
00. ZX-18TBCP Tool Box Complete (not shown) $628.86
00. ZX-FB Fuse Block $21.82
00. GH-2280ZX-KM3 AC Contactor (for 22" models) $113.50
00. GH2280ZX-04109B Screw Support (for 2280ZX) $63.42
00. ZX-04707-1A Gear Sliding Sleeve(for 2280ZX) $98.58
00. GH2280ZX-04707-2 Lead Screw (for 2280ZX) $176.91
00. GH2280ZX-04102 Cross Slide (for 2280ZX) $283.76
00. ZX-04714C Screw (for 14"/16" models, T-Slot) $8.08
00. GH2280ZX-04701 Sleeve (for 2280ZX) $9.76
00. GH2280ZX-04502 Wipe Plate (for 2280ZX) $13.24
00. ZX-CSNA Crossfeed Screw & Nut Assy (includes # 57- 59 for 14/16/18") $257.07
00. ZX-CSNA-GH2280ZX Crossfeed Screw & Nut Assy (includes #57-59, for 22") $287.88
00. ZX-CDA Crossfeed Dial Assy (includes # 41-50, 51-56 for 14/16/18") $226.23
00. ZX-CDA-GH2280ZX Crossfeed Dial Assy (includes # 41-50, 51-56 for 22") $207.82
00. ZX-26701B Travel Setting Rod (for 1460/1660/1860ZX) $544.18
00. ZX-26701C Travel Setting Rod (for 1880/2280ZX) $585.40
00. ZX-04103B Revolving Plate (for 16" models) $260.21
00. ZX-04103C Revolving Plate (for 18" models) $290.81
00. GH2280ZX-04103 Revolving Plate (for 22" model) $148.15
00. ZX-04107B Top Slide (for 16"/18" models) $376.82
00. GH2280ZX-04107 Top Slide (for 22" model) $185.13
00. ZX-04713B Tool Post (for 16"/18"/22" models) $457.96
00. ZX-F30B Clamping Screw (for 14" models) $3.93
00. ZX-TA14 Toolholder Assembly 14" (includes # 29 & 30) $448.47
00. ZX-CPA14 Compound Assembly 14" (includes # 1-20,32-39) $561.04
00. ZX-CPA16 Compound Assembly 16" (includes # 1-20,32-39) $649.46
00. ZX-CPA18 Compound Assembly 18" (includes # 1-20,32-39) $1,095.65
00. ZX-03701B Center Sleeve (for 14"/16" models) $388.69
00. ZX-T14B Center Morse (for 14"/16" models) $81.86
00. ZX-03710B Lead Screw (for 14"/16" models) $232.46
00. ZX-03101B Tailstock Casting (for 16" models) $583.76
00. ZX-03101C Tailstock Casting (for 14" models) $559.09
00. GH2280ZX-03101 Tailstock Casting (for 22" model) $624.86
00. ZX-03102B Sliding Base (for 16" models) $385.14
00. ZX-03102C Sliding Base (for 14" models) $340.64
00. ZX-03705B Pulling Rod (for 16" models) $26.17
00. ZX-03705C Pulling Rod (for 14" models) $26.17
00. ZX-TSA14 Tailstock Assembly, 14" (includes # 1-13,15-64) $1,435.76
00. ZX-TSA16 Tailstock Assembly, 16" (includes # 1-13,15-64) $1,538.66
00. ZX-TSA18 Tailstock Assembly, 18" (includes # 1-13,15-64) $1,641.57
00. ZX-TSA22 Tailstock Assembly, 22" (includes # 1-13,15-64) $1,847.39
00. ZX-SRA14 Steady Rest Assembly, 14" (includes # 1-16) $615.53
00. ZX-SRA16 Steady Rest Assembly, 16" (includes # 1-16) $639.25
00. ZX-SRA18 Steady Rest Assembly, 18" (includes # 1-16) $674.24
00. ZX-SRA22 Steady Rest Assembly, 22" (includes # 1-16) $739.93
00. ZX-10702B Screw (for 16" models) $15.57
00. ZX-10702C Screw (for 18"/22" models) $15.37
00. ZX-10705D Sliding Sleeve $32.66
00. TL06704N New Shaft (serial # 010618ZX350 and higher $76.60
00. GH2280ZX-14101 Saddle Casting (for 2280ZX) $707.05
00. GH2280ZX-01101 Pulley (for 2280ZX) $79.23
00. ML-2080-01701 Cover (for 2280ZX) $39.16
00. ML-2080-01703 Pedal Rod Support (for 2280ZX) $57.49
00. ZX-01102AN New Bed Stand (for 40" models, serial # 010618ZX350 and higher) $2,144.79
00. ZX-01102B Bed Stand (for 60" models, serial # 010611ZX349 and lower) $4,986.06
00. ZX-01102BN New Bed Stand (for 60" models, serial # 010618ZX350 and higher) $5,444.00
00. GH2280ZX-01102 Bed Stand (for 2280ZX) $3,654.28
00. ZX-01102C Bed Stand (for 1880ZX, serial # 010611ZX349 and lower) $561.56
00. ML-2080-01704 Bolt (for 2280ZX) $9.54
00. ZX-01122B Motor Mounting Plate (for 16"/18" models) $260.08
00. ML-2080-01122 Motor Mounting Plate (for 22" model)) $98.58
00. ZX-017609B Wire Conduit (for 1460/1660/1860ZX) $39.16
00. ZX-017609C Wire Conduit (for 1880/2280ZX) $39.16
00. GH2280ZX-01701 Cover $32.66
00. ZX-S23A Main Motor (for 14" models) $1,552.03
00. ZX-S23B Main Motor (for 16"/18" models) $1,207.02
00. ML-2080-01702 Cover (for 2280ZX) $58.16
00. ZX-01716B Stand Front Cover (for 1460/1660/1860ZX) $96.68
00. ZX-01716C Stand Front Cover (for 1880/2280ZX) $96.68
00. TS-1491081 Hex Cap Screw $0.00

Discontinued

00. TS-1491121 Hex Cap Screw $4.67

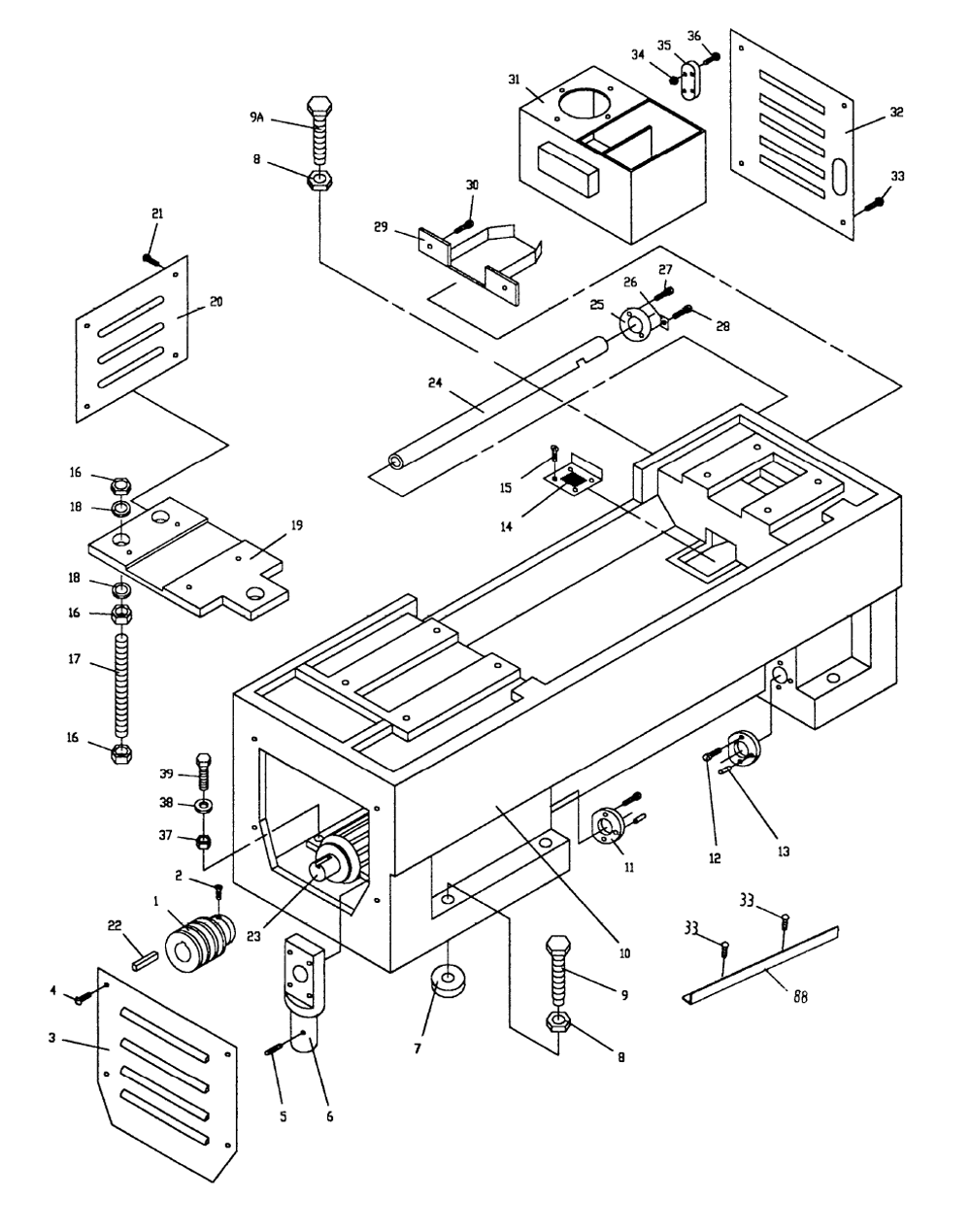

1. ZX-01101A Pulley $118.56
2. ZX-S2 Cylindrical End Set Screw $3.54
3. ZX-01734 Cover $39.16
4. ZX-S4 Cross Head Screw $3.54
5. ZX-S2 Cylindrical End Set Screw $3.54
6. ZX-01701 Pedal Rod Support $57.49
7. ZX-01715 Lining $21.21
8. TS-1540231 Hex Nut $7.49
9. ZX-01712 Hex Cap Bolt $21.21
10. ZX-01102A Bed Stand (for 40" models, serial # 010611ZX349 and lower) $2,053.20
10. ZX-01102CN New Bed Stand (for 1880ZX, serial # 010618ZX350 and higher) $0.00

Discontinued

11. ZX-01703 Fixed Support $8.37
12. TS-150341 Socket Head Cap Screw $0.00

Discontinued

13. ZX-S13 Taper Pin $3.54
14. ZX-01705 Water Leaking Chip Guard $13.04
15. ZX-S15A Cross Head Screw $3.54
16. TS-1540121 Hex Nut $0.00

Discontinued

17. ZX-01702 Bolt $9.54
18. TS-1550111 Flat Washer $3.54
19. ZX-01122A Motor Mounting Plate (for 14" models) $168.38
20. ZX-01726 Cover $32.66
21. ZX-S4 Cross Head Screw $3.54
22. ZX-S22 Key $3.54
23. ZX-S23BC Main Motor (for 22" model) $0.00

Discontinued

24. ZX-017609A Wire Conduit (for 1440/1640/1840ZX) $39.16
25. ZX-01708 Wire Conduit Support $21.21
26. ZX-01706 Locking Plate $6.03
27. ZX-S27 Cross Head Screw $3.54
28. ZX-S15 Cross Head Screw $3.54
29. ZX-01711 Water Reception Plate $14.20
30. ZX-S4 Cross Head Screw $3.54
31. ZX-01510 Coolant Tank $98.58
32. ZX-01714 Cover $63.85
33. ZX-S4 Cross Head Screw $3.54
34. ZX-S34 Nut $3.54
35. ZX-S35 Coolant Indicator $9.76
36. ZX-S36 Cross Head Screw $3.54
37. TS-1540072 "Hex Nut $3.54
38. 5051911 Washer, M10 Flat $3.54
38. TS-1550071 Flat Washer $0.00

Discontinued

39. TS-1491041 Hex Cap Screw $3.54
80. ZX-01716A Stand Front Cover (for 1440/1640/1840ZX) $96.68
81. ZX-01501 Gasket $120.47
82. ZX-S82 Hex Nut $3.54
83. ZX-01740 Left Tray $45.65
84. ZX-01741 Right Tray $45.65
85. ZX-01511 Gasket $13.24
86. ZX-S86 Cross Head Screw $3.54
87. ZX-01512 Gasket $13.24
88. ZX-05753 Extending Plate $21.93
00-R. ZX-TA16/18/22 "Toolholder Assembly 16"/18""/22"" (includes # 29 & 30) " $0.00

Discontinued

00-R. ZX-CPA22 Compound Assembly 22" (includes # 1-20,32-39) $0.00

Discontinued

1-B. ZX-01104A Bed (for 1440/1640/1840ZX) $432.93
1-B. ZX-01104B Bed (for 1460/1660/1860ZX) $0.00

Discontinued

1-B. ZX-01104C Bed (for 1880/2280ZX) $0.00

Discontinued

1-C. ZX-02306 Round Sign Plate $6.03
1-G. ZX-08101 Change Gear Box Casting $224.18
1-I. ZX-05153A Upper Cover $176.40
1-L. TL06101 Apron Casting $1,118.01
1-O. ZX-04101A Saddle Casting $707.05
1-P. ZX-09709 Dial $43.38
1-Q. ZX-26101 Left Support $57.49
1-R. ZX-04103A Revolving Plate (for 14" models) $153.02
1-S. ZX-03711 Handle $21.21
1-U. ZX-10702A Screw (for 14" models) $13.24
1-V. ZX-10710 Screw $13.24
1-W. RT-001A Rubber Tube (for 1440/1640/1840ZX) $21.21

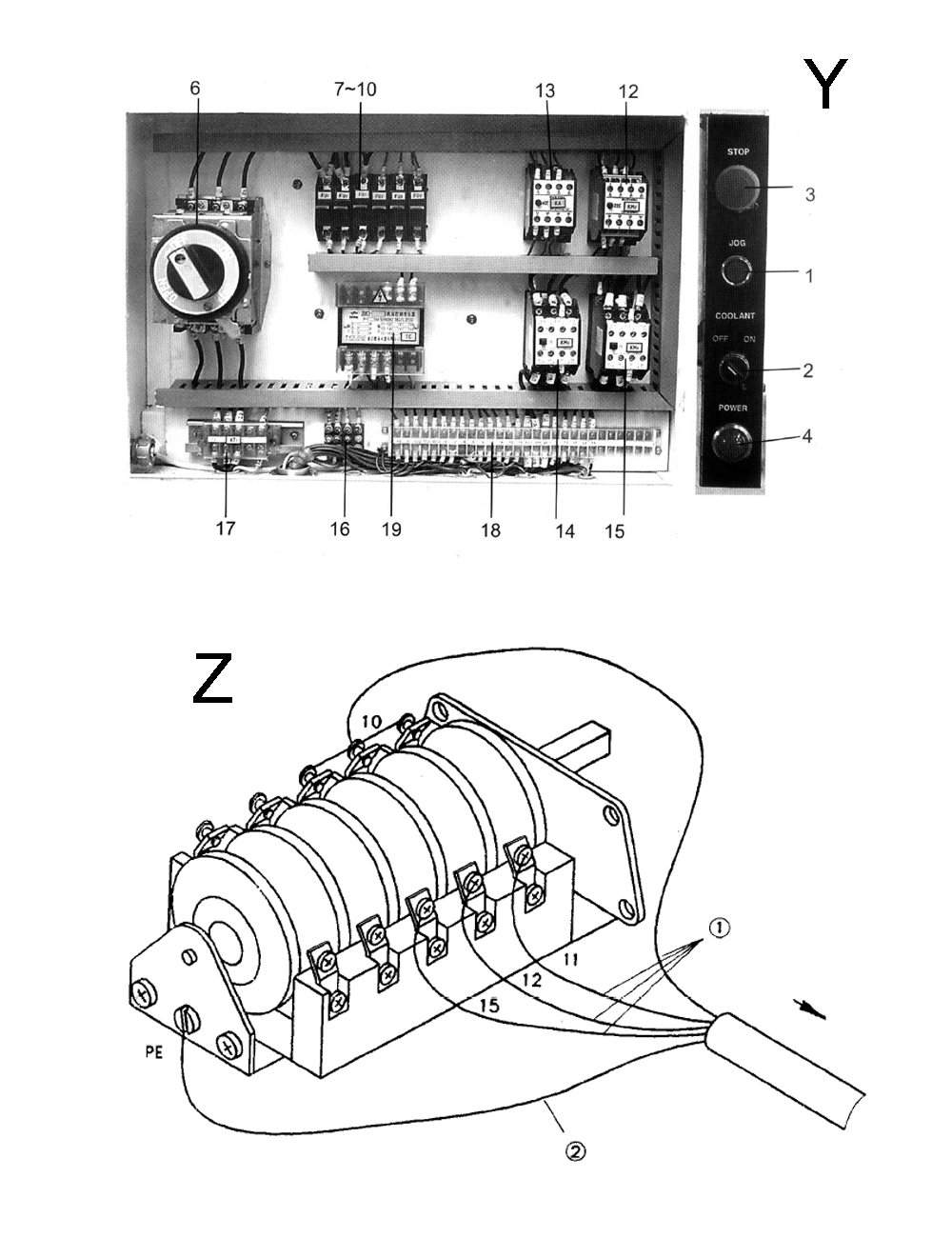

1-Y. ZX-SB1 Jog Button $27.00
1-Z. ZX-XT2 Wiring Board $111.21
10-B. TS-1506091 Socket Head Cap Screw $7.18
10-C. ZX-H10 Woodruff Key $3.54
10-G. ZX-08705 Connecting Rod $13.24
10-I. ZX-05101 Feedbox Casting $896.10
10-L. ZX-A10 Pin $3.54
10-O. ZX-04506 Wipe Plate $17.97
10-Q. ZX-26701A Travel Setting Rod (for 1440/1640/1840ZX) $483.84
10-R. ZX-F10 Half Circle Key $3.54
10-S. ZX-03701A Center Sleeve (for 18"/22" models) $329.50
10-U. ZX-SR10 Hex Nut $3.54
10-W. ZX-CW10 Coolant Device $0.00

Discontinued

10-W. ZX-CW10-1 Coolant Tap $16.14
10-X. ZX-OP-10 Touchup Paint Can $9.54
10-Y. ZX-FU5 Fuse (2A) $13.24
100-D. BB-6207/P5 Ball Bearing $33.45
100-J. TS-1504041 Socket Head Cap Screw $3.54
100-M. ZX-A100 Cross Head Screw $3.54
101-D. ZX-H102 Sleeve $13.24
101-J. ZX-05704 Spacer $111.21
101-M. TL06117 Cover $21.21
102-D. BB-6207/P5 Ball Bearing $33.45
102-J. ZX-05705 Double Gear $152.38
102-M. ZX-A102 Adjusting Screw $3.54
103-D. TS-1504051 Socket Head Cap Screw $4.28
103-J. ZX-05502C Oil Bushing $9.76
103-M. TS-1503051 Socket Head Cap Screw $3.54
104-D. ZX-02105 Bearing Support $33.45
104-J. ZX-05105 Sleeve $9.76
104-M. ZX-A104 Flat Head Set Screw $3.54
105-D. ZX-02502 Gasket $3.54
105-J. ZX-05707 Double Gear $152.38
105-M. TL06301 Sleeve $32.66
106-D. ZX-H106 Flat Key $3.54
106-J. ZX-Q106 Iron Wire $3.54
106-K. ZX-Q106 Iron Wire $3.54
106-M. TL06710 Gear $128.89
107-D. ZX-02709 Shaft $158.57
107-J. TS-1524031 Socket Set Screw $4.28
107-K. TS-1524031 Socket Set Screw $4.28
107-M. ZX-A107 Pin $3.54
108-D. ZX-02754X Gear (for 14" models) $173.08
108-J. ZX-05714C Fixed Bushing $8.37
108-M. TL06711 Shaft $21.21
109-D. ZX-02753X Gear (for 14" models) $134.49
109-J. ZX-05710 Shaft $218.32
109-M. TL06108 End Cover $15.37
11-C. ZX-H11 Ring Seal $4.87
11-G. ZX-08304 Sliding Block $15.37
11-I. ZX-05501 Gasket $3.54
11-L. TL06701-A Pushing Rod $32.66
11-O. TS-1505071 Socket Head Cap Screw $3.54
11-Q. ZX-26705 Control Ring $26.17
11-R. BB-51102 Thrust Bearing $46.31
11-S. ZX-T11 Ring Seal $6.03
11-U. ZX-SR11 Flat Washer $3.54
11-W. TS-1514021 Flat Head Socket Screw $3.54
11-X. ZX-OP-11 Gap Bridge Pin Driver $21.93
11-Y. ZX-Q Temperature Relay $20.48
110-D. ZX-02752X Gear $113.40
110-J. ZX-05709 Double Gear $128.89
110-M. TS-1503031 Socket Head Cap Screw $3.54
111-D. ZX-02751X Gear (for 14" models) $175.30
111-J. ZX-05711 Sliding Gear $104.67
111-M. TL06723 Control Shaft $39.16
112-D. ZX-H112 Sleeve $13.24
112-J. ZX-05712 Sliding Gear $104.67
112-M. TL06725 Pin $7.65
113-D. BB-6305/P5 BEARINGS PRECISION ZX LATHE $48.90
113-J. ZX-05713 Sleeve $9.76
113-M. TL06724 Control Block $43.38
114-D. ZX-H114 Shaft End Lock Ring $6.72
114-J. ZX-G51-1 Spacer $3.68
114-M. ZX-A114 Oil Seal $4.87
115-D. ZX-H115 Countersunk Head Screw $3.54
115-J. ZX-05106 Bearing Support $26.54
115-M. ZX-A115 Oil Seal $4.87
116-D. ZX-H59 Pin $3.54
116-J. TS-1504051 Socket Head Cap Screw $4.28
116-M. TL06119 Lever Flange $26.17
117-D. ZX-H117 Ring Seal $5.16
117-K. ZX-05113C Shaft Coupling $20.48
117-M. TS-1503031 Socket Head Cap Screw $3.54
118-D. ZX-02104 Blocking Flange $21.21
118-K. ZX-Q118 Round Nut $3.54
118-M. TL06118 Lever Support $26.54
119-D. TS-1503041 Socket Head Cap Screw $3.54
119-K. TS-1503021 Socket Head Cap Screw $3.54
119-M. TL06307 Sign Plate $4.87
12-B. ZX-B12 Thread Taper Pin $6.03
12-C. ZX-02116 Crank $21.21
12-G. ZX-05103C Cam $26.17
12-I. ZX-05108 Flange $176.40
12-L. ZX-A12 Oil Seal $4.58
12-O. ZX-CA12 Square Cap Bolt $4.58
12-Q. ZX-26104 Right Support $21.21
12-R. ZX-04115 Sleeve $19.22
12-S. ZX-03703 Front Cover $21.21
12-U. ZX-10708 Tightening Screw $13.24
12-W. TS-1515051 Hex Socket Cap Screw $3.54

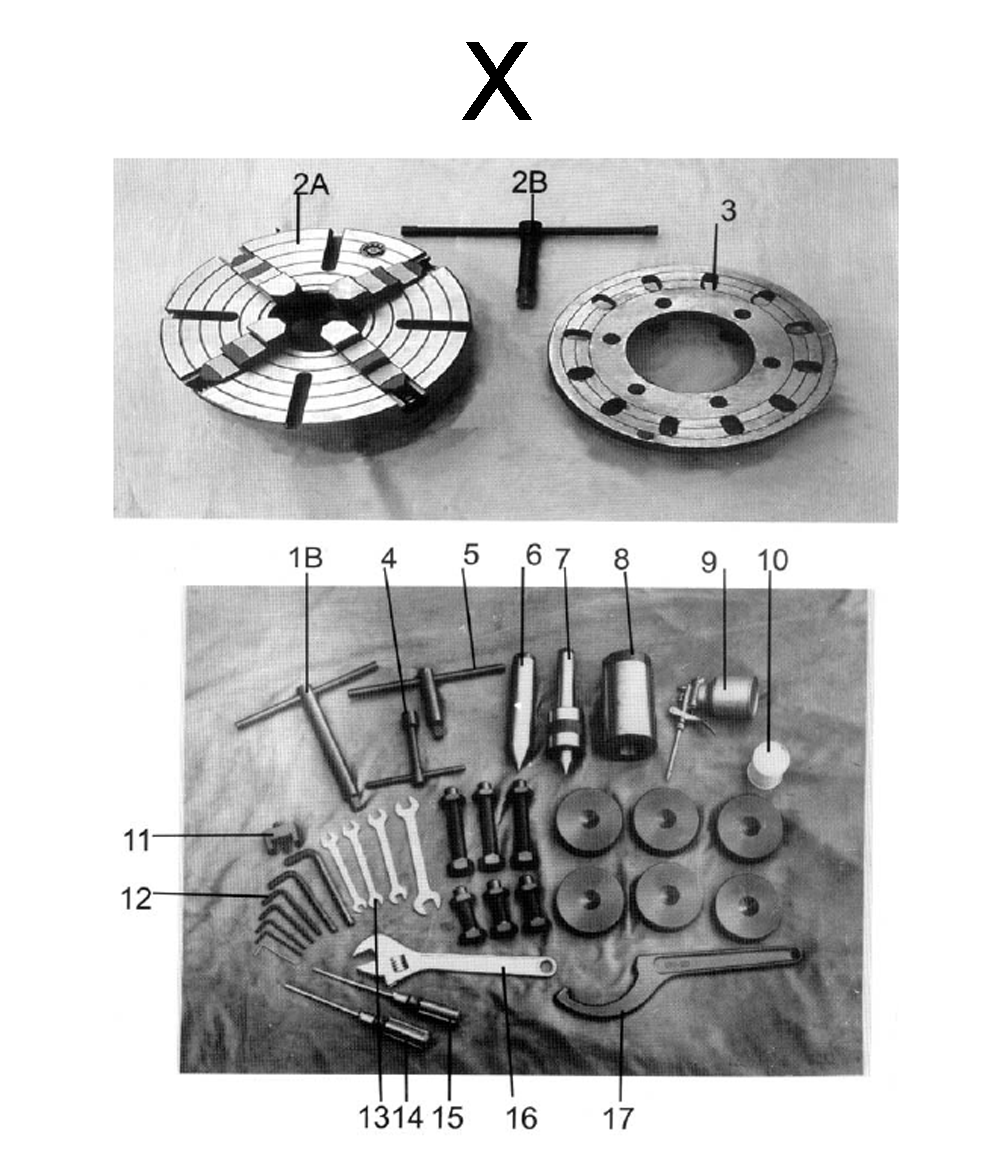

12-X. ZX-OP-12 Hex Wrench $21.93
12-Y. ZX-KM2 AC Contactor $113.40
120-D. TS-1503041 Socket Head Cap Screw $3.54
120-K. ZX-05114C Cover $21.21
120-M. TL06716 Lever $20.48
121-D. ZX-02103 Blocking Flange $21.93
121-K. BB-51105 Thrust Bearing $50.01
121-M. ZX-B27 Taper Pin $3.54
122-D. ZX-H117 Ring Seal $5.16
122-K. ZX-Q122 Spacer $3.68
122-L. TL06302 Sign Plate $3.54
123-D. BB-6305/P5 BEARINGS PRECISION ZX LATHE $48.90
123-K. BB-6305 Ball Bearing $32.66
123-L. TL06730 Shaft $26.54
124-D. ZX-H124 Sleeve $13.24
124-K. ZX-05725 Shaft $57.49
124-L. BB-51104 Thrust Bearing $48.90
125-D. BB-6305/P5 BEARINGS PRECISION ZX LATHE $48.90
125-K. ZX-Q125 Key $3.54
125-L. TL06305 Sleeve $24.11
126-D. ZX-H126 Circle Clip For Shaft $0.00

Discontinued

126-D. ZX-H133 C-Clip $3.54
126-K. ZX-05724 Double Gear $152.71
126-L. TL06726 Worm (serial # 010611ZX349 and lower) $149.40
127-D. ZX-02705 Gear $134.49
127-K. ZX-05723 Gear $152.71
127-L. TL06122 Worm Support (serial # 010611ZX349 and lower) $82.17
128-D. ZX-H128 Flat Key $3.54
128-K. ZX-05107 Sleeve $3.54
128-L. TL06720 Control Plate $14.54
129-D. ZX-02706 Gear $230.71
129-K. BB-6005 Ball Bearing $25.12
129-L. TS-1514031 Hex Socket Cap Screw $3.54
13-B. TS-1491101 Hex Cap Bolt $3.54
13-C. TS-1523051 Socket Set Screw $3.54
13-G. ZX-05702C Roller $6.72
13-I. TS-1504031 Socket Head Cap Screw $3.54
13-L. BB60016 Ball Bearing $28.45
13-O. ZX-CA13 Taper Pin $3.68
13-Q. ZX-H5 Steel Ball $3.54
13-R. ZX-F13 Slotted Cheese Head Screw $3.54
13-S. ZX-T13 Cross Recessed Countersunk Head Screw $3.54
13-U. ZX-10103D Clamping Plate $45.65
13-W. ZX-CW13 Lamp Support $63.85
13-X. ZX-OP-13 Double End $13.24
13-Y. ZX-KA AC Contactor $103.11
130-D. ZX-02707 Gear $236.37
130-K. TS-1525021 Socket Set Screw $3.54
130-L. ZX-A130 Taper Pin $3.54
131-D. ZX-H62 Flat End Set Screw $3.54
131-K. ZX-05103 Bearing Support $13.24
131-L. TS-1524031 Socket Set Screw $4.28
132-D. ZX-02708 Shaft $190.58
132-K. ZX-05701 Shaft $51.12
132-L. ZX-A132 Screw $3.54
133-D. ZX-H133 C-Clip $3.54
133-K. ZX-Q133 Half Circle Key $3.54
133-L. ZX-A133 Cylindrical Tensile Spring $3.54
134-D. ZX-H134 Sleeve $13.24
134-K. ZX-05703 Gear $104.67
134-L. TL06503 Gasket $3.54
135-D. BB-6007/P5 Ball Bearing $45.54
135-K. ZX-05102 Bearing Support $13.24
135-L. TL06114 Back Cover $26.54
136-D. ZX-H134 Sleeve $13.24
136-K. ZX-05702 Double Gear $138.74
136-L. TS-1514011 Socket Head Flat Screw $3.54
137-D. ZX-H133 C-Clip $3.54
137-K. ZX-05708 Shaft $152.71
137-L. ZX-A137 Set Screw $3.54
138-D. ZX-02756 Gear (for 14" models) $158.57
138-K. ZX-05706 Triple Gear $261.19
138-L. ZX-A138 Iron Wire $3.54
139-D. ZX-H139 Pin $3.54
139-K. BB-6203 Ball Bearing $16.63
139-L. ZX-A139 Oil Conducting Cord $3.54
14-B. TS-1550071 Flat Washer $0.00

Discontinued

14-B. 5051911 Washer, M10 Flat $3.54
14-C. ZX-H14 Pin $3.54
14-G. ZX-08109 Crank $21.21
14-I. ZX-05151 Extending Plate $118.56
14-L. ZX-A6 Pin $3.54
14-O. ZX-04729 Clamping Block $26.63
14-Q. ZX-CS14 Compression Spring $15.37
14-R. ZX-F14 Taper Pin $3.54
14-S. ZX-T14A Center Morse (for 18"/22" models) $83.18
14-U. ZX-10101A Lower Part of Steady Rest (for 14" models) $283.77
14-W. ZX-S04 Cross Head Screw $3.54
14-X. ZX-OP-14 Flat Blade Screw Driver $9.54
