Jet BDB-1340A-TAK, with Taper Attachment Installed Lathes Machines Parts

Brand: Jet

Model: 321120

Jet 321120 Parts Schematic

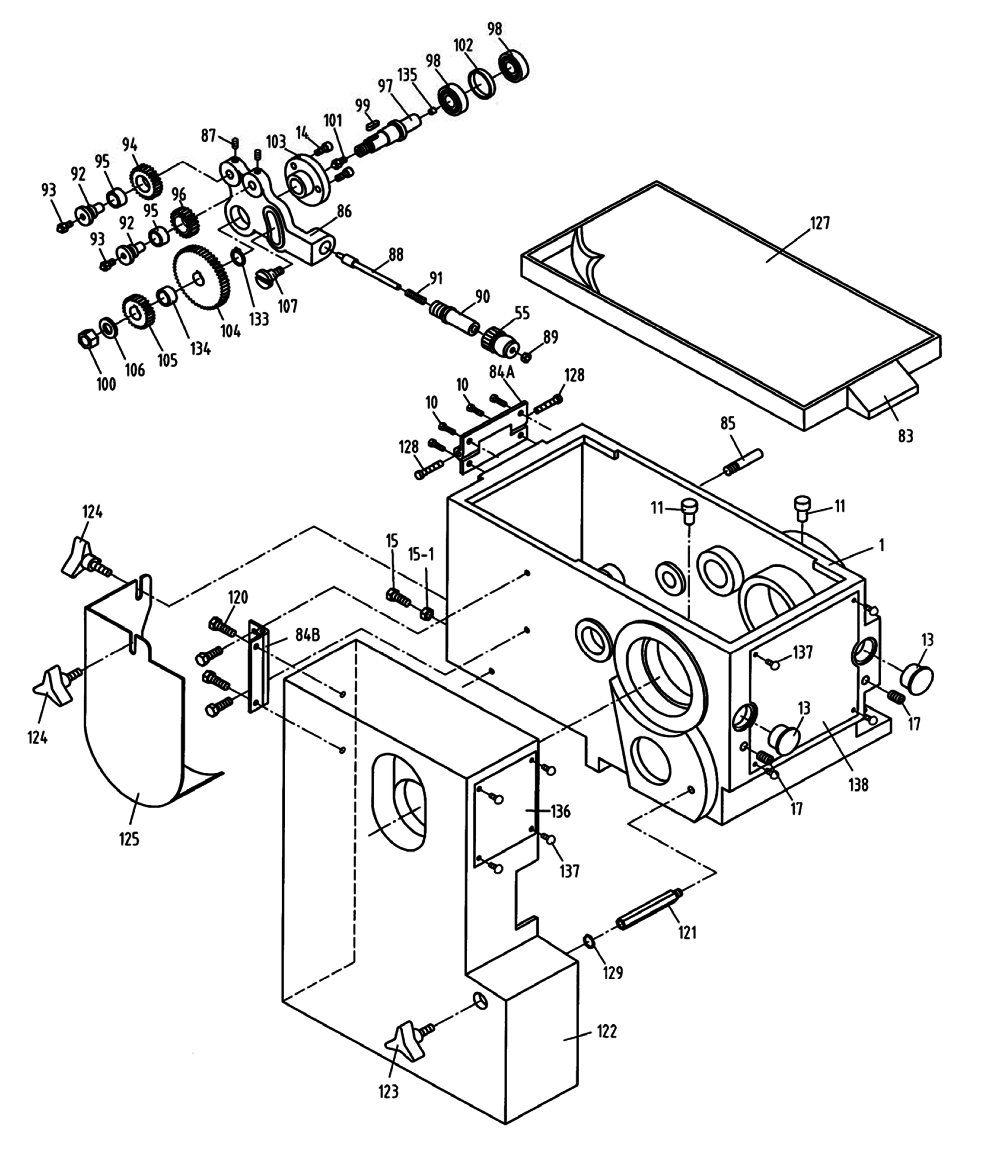

  • Fig-0

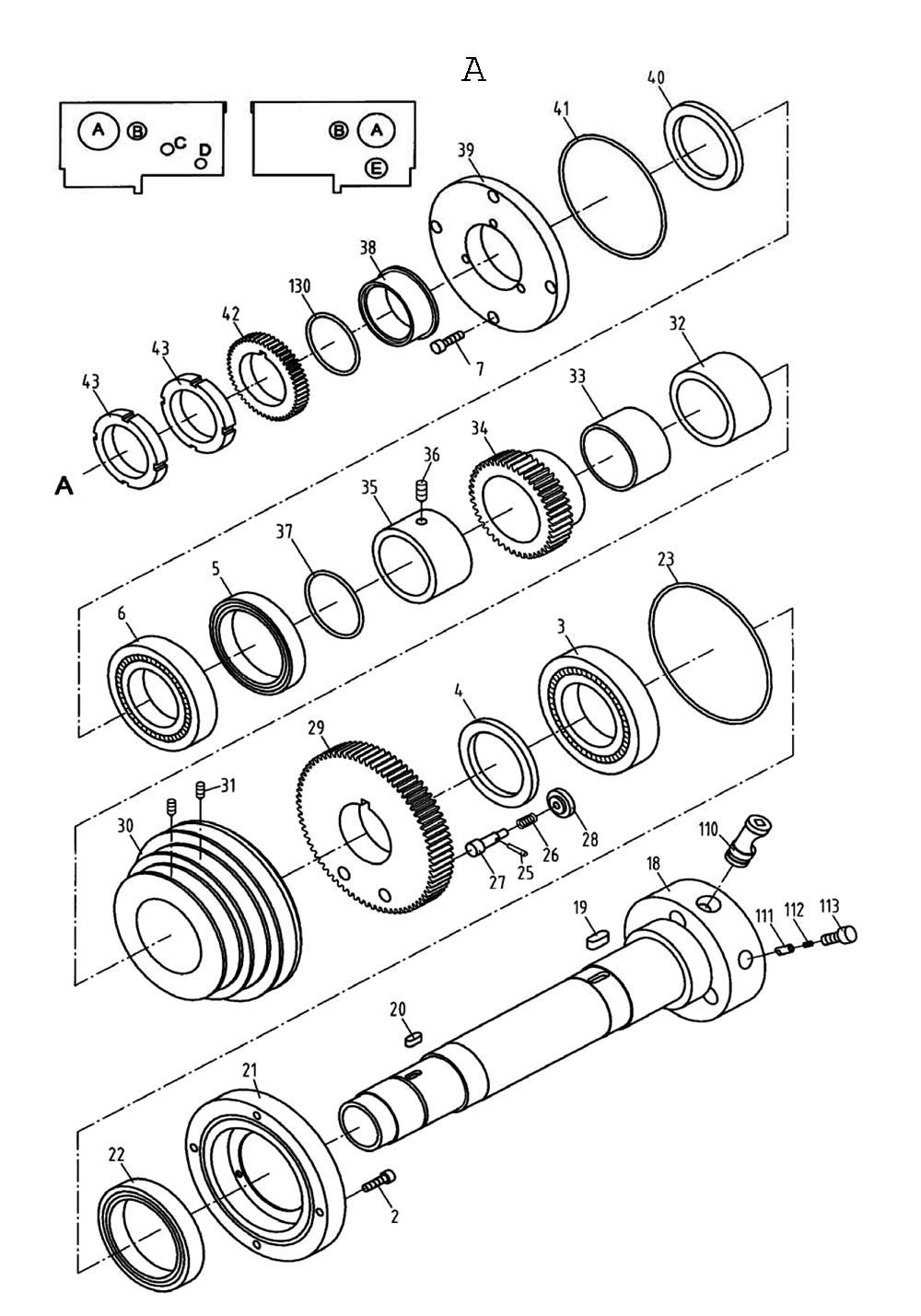

  • Fig-1

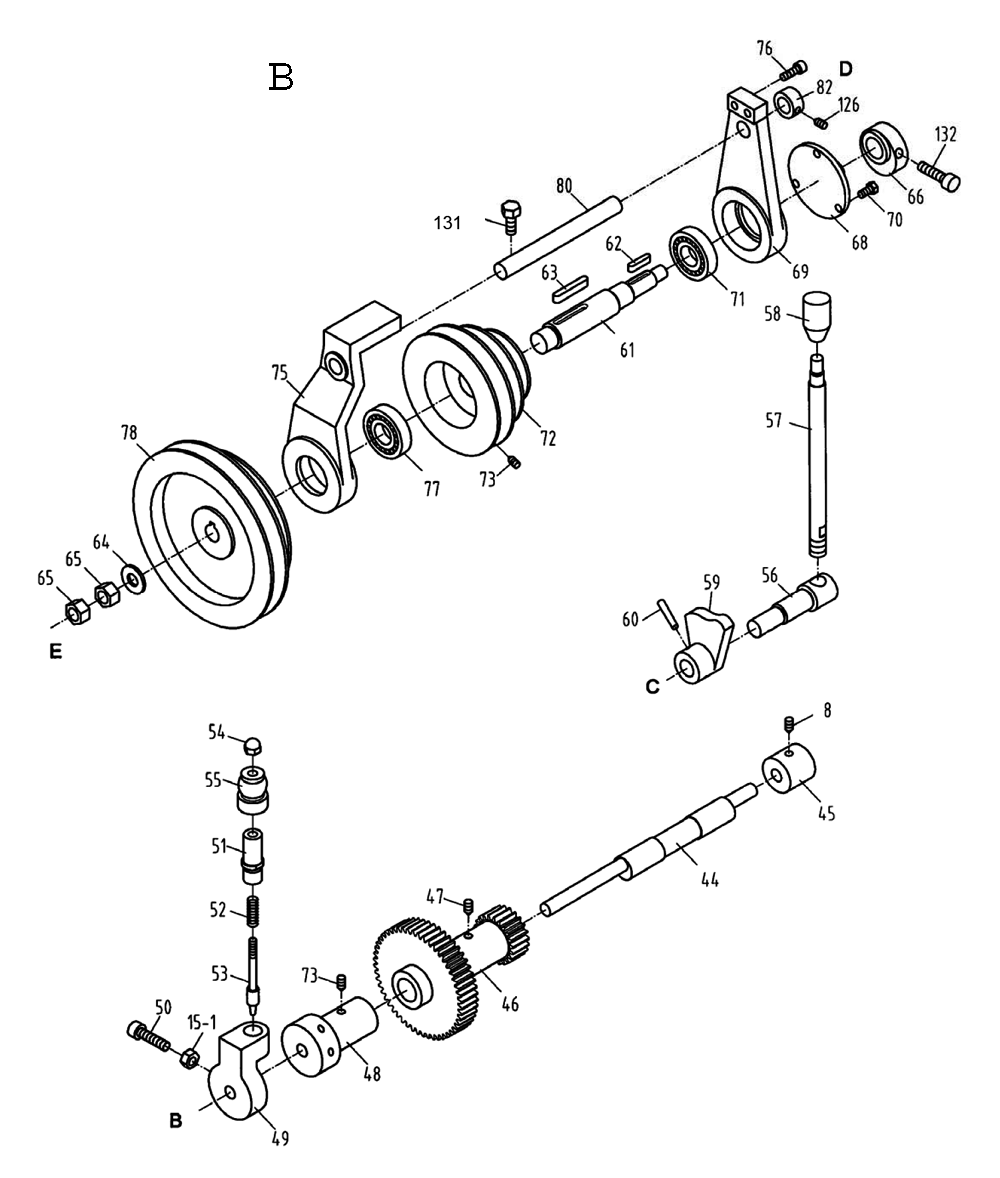

  • Fig-2

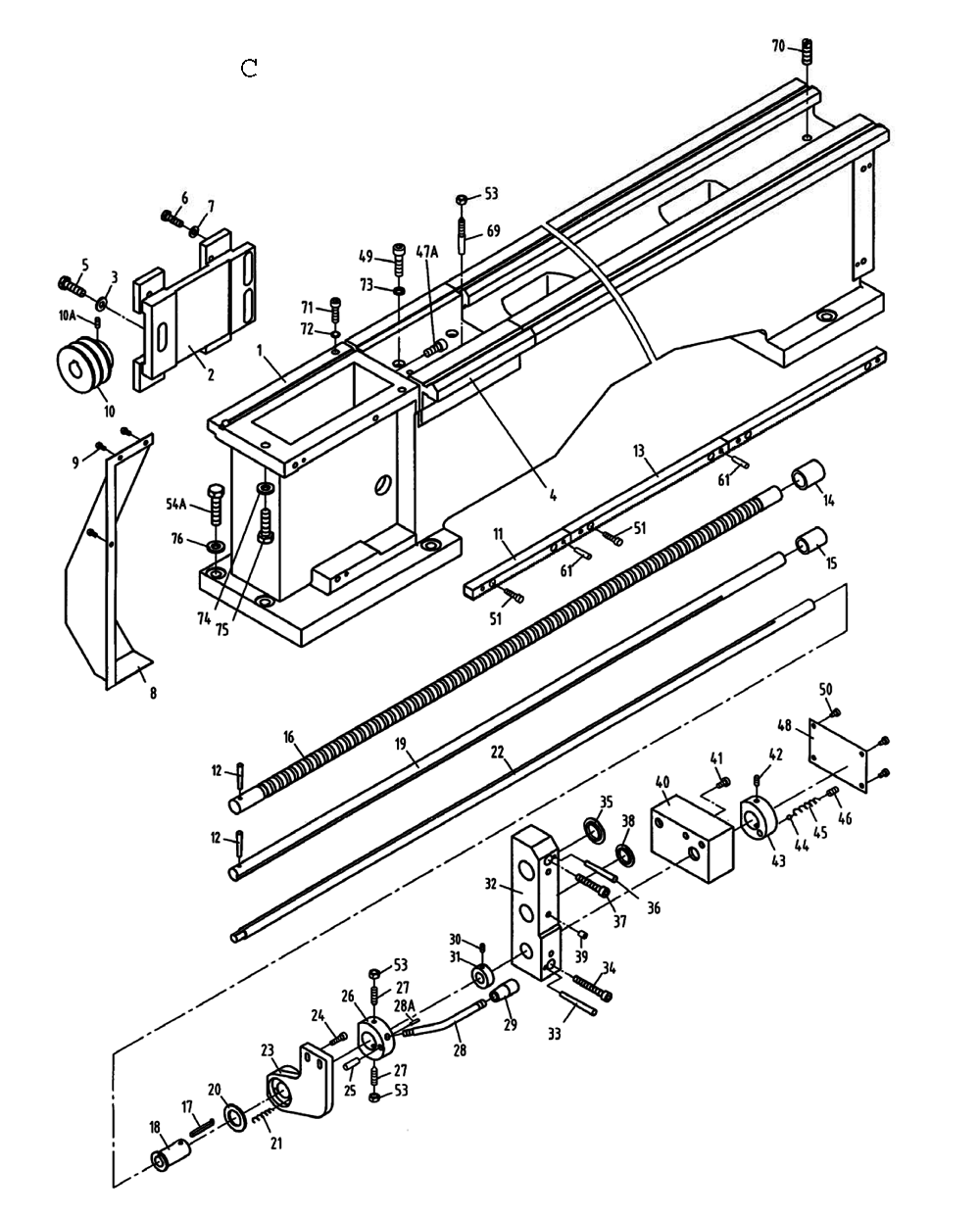

  • Fig-3

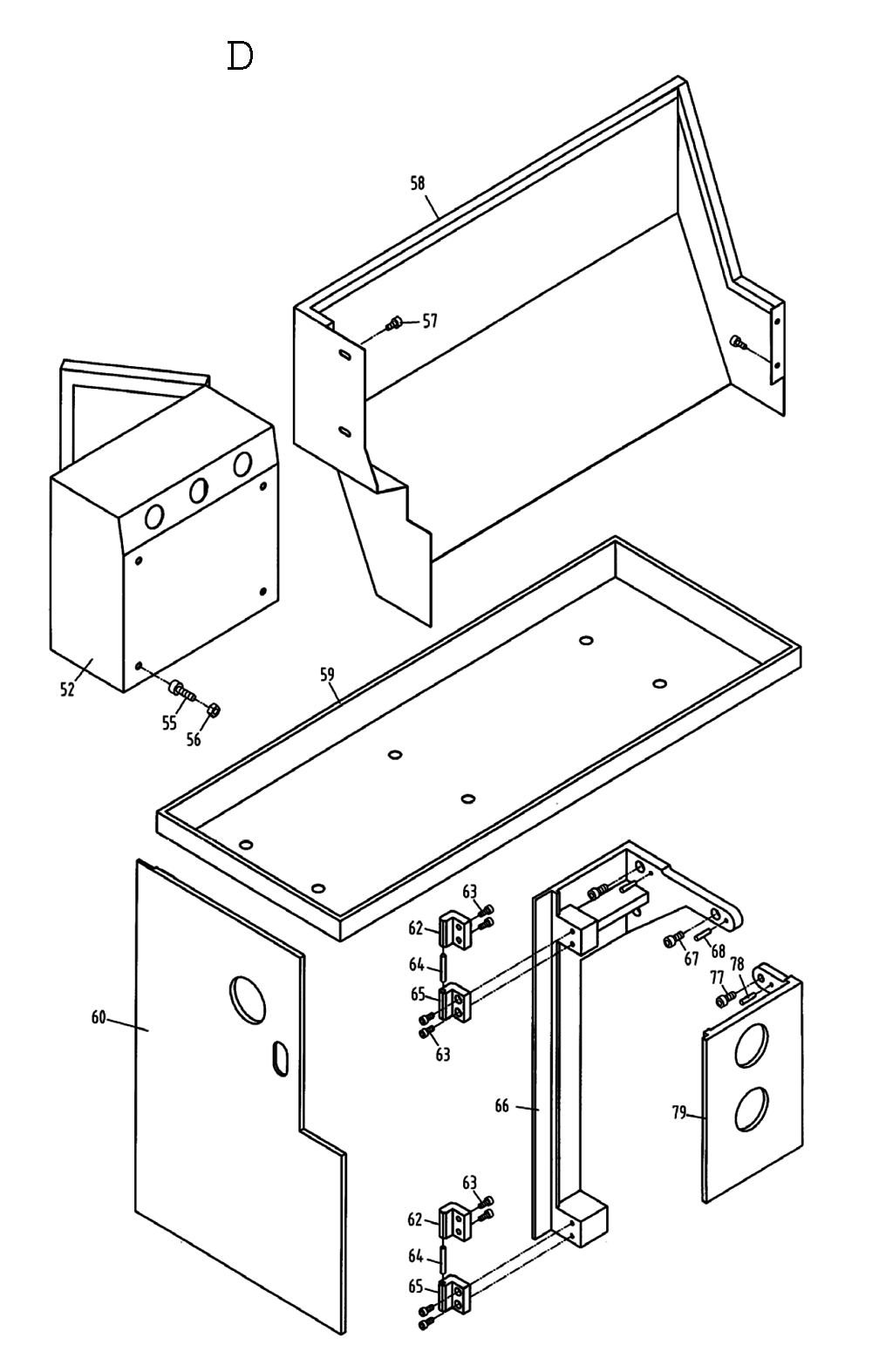

  • Fig-4

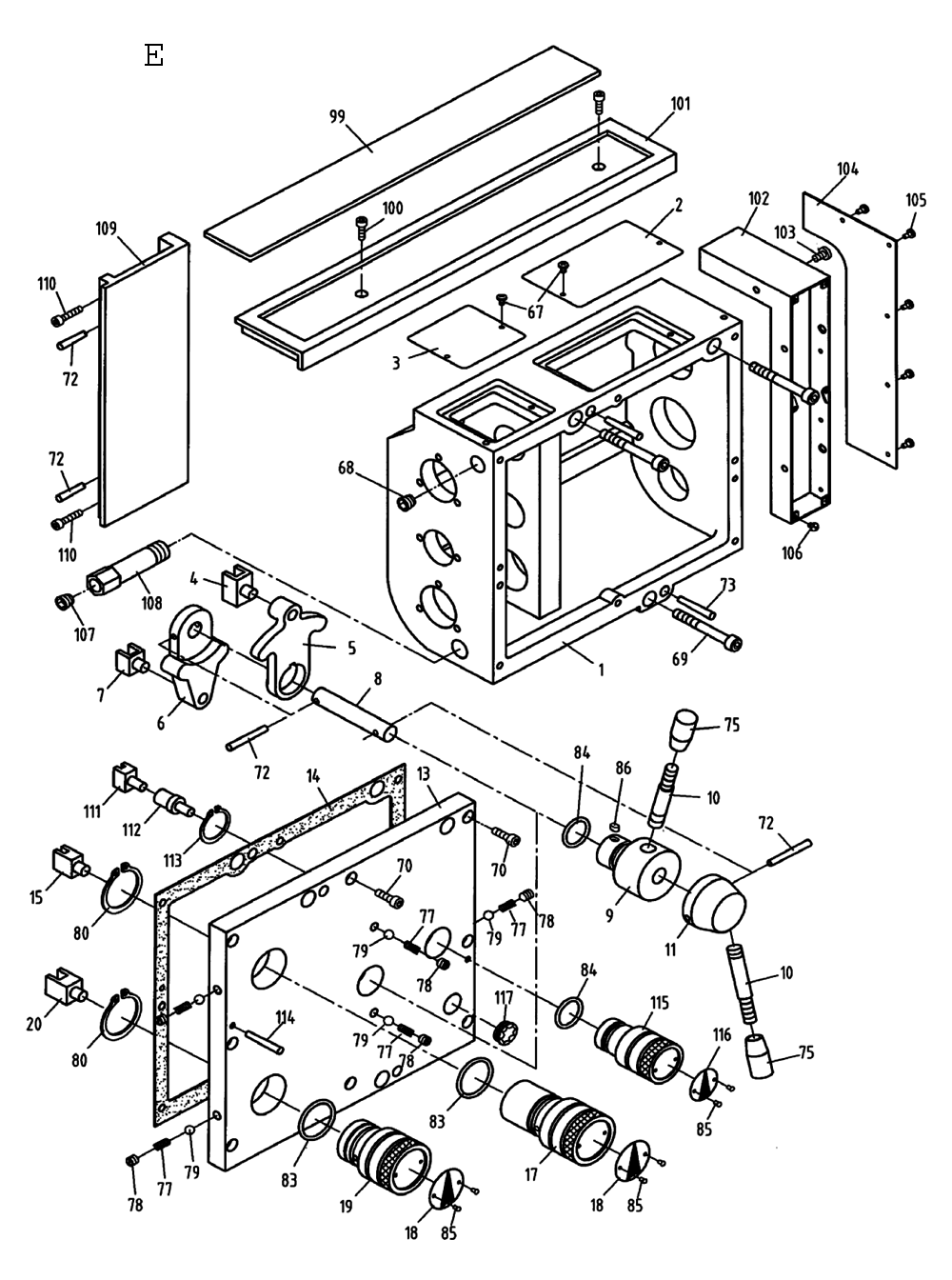

  • Fig-5

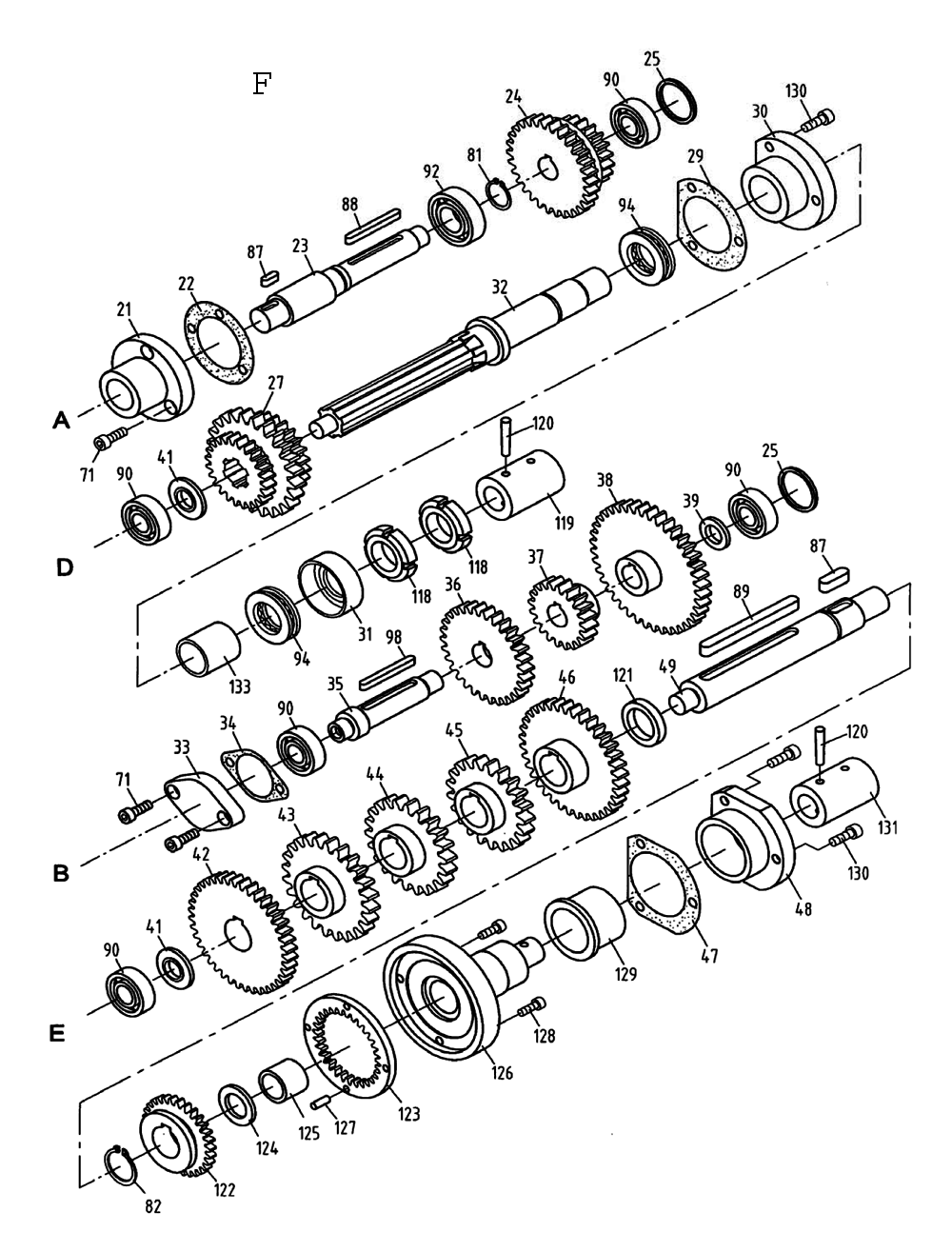

  • Fig-6

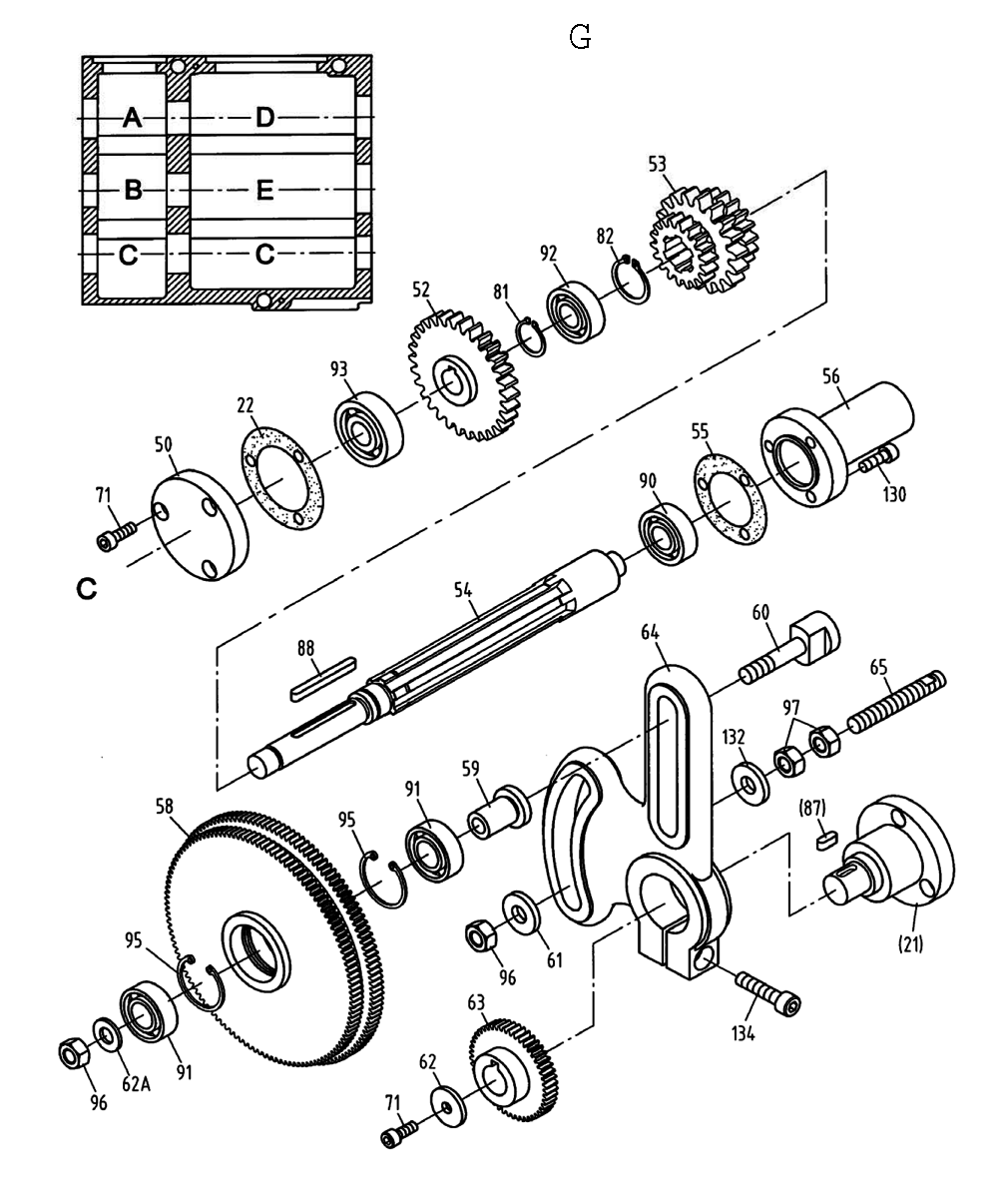

  • Fig-7

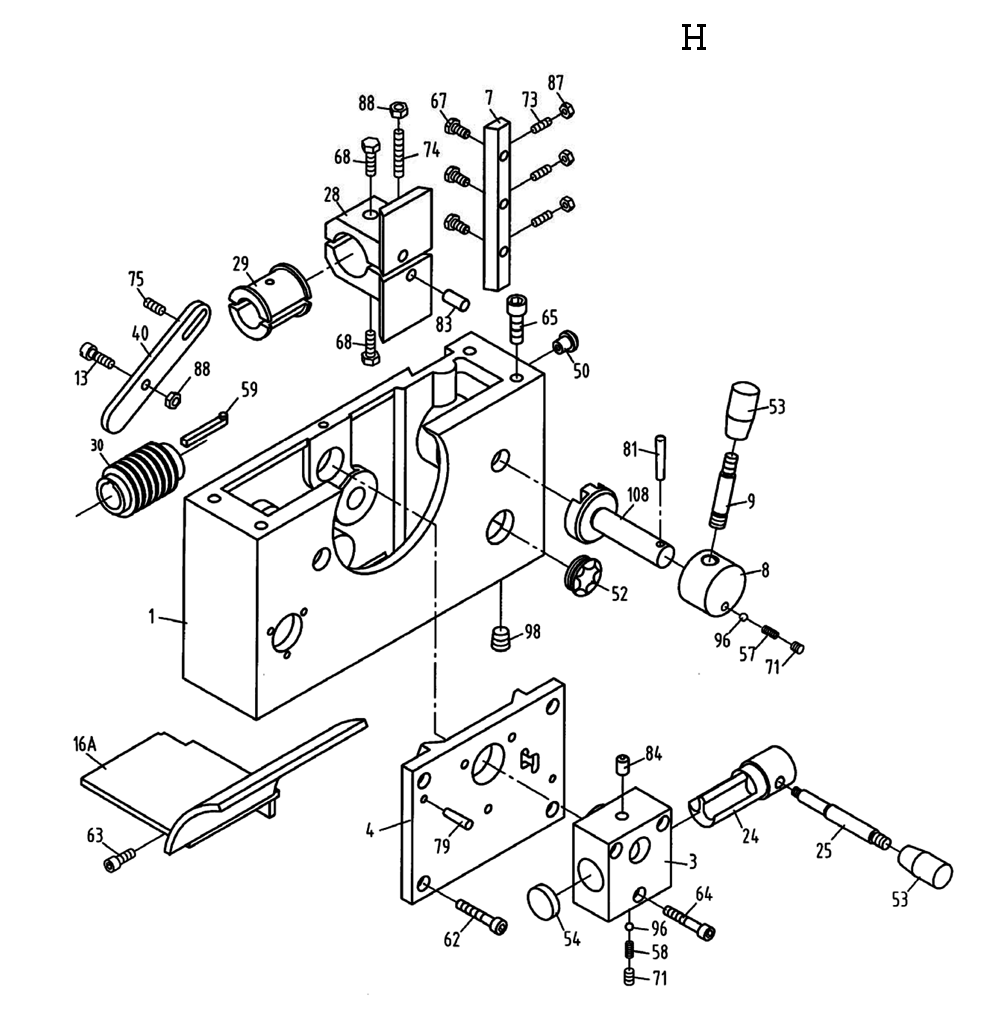

  • Fig-8

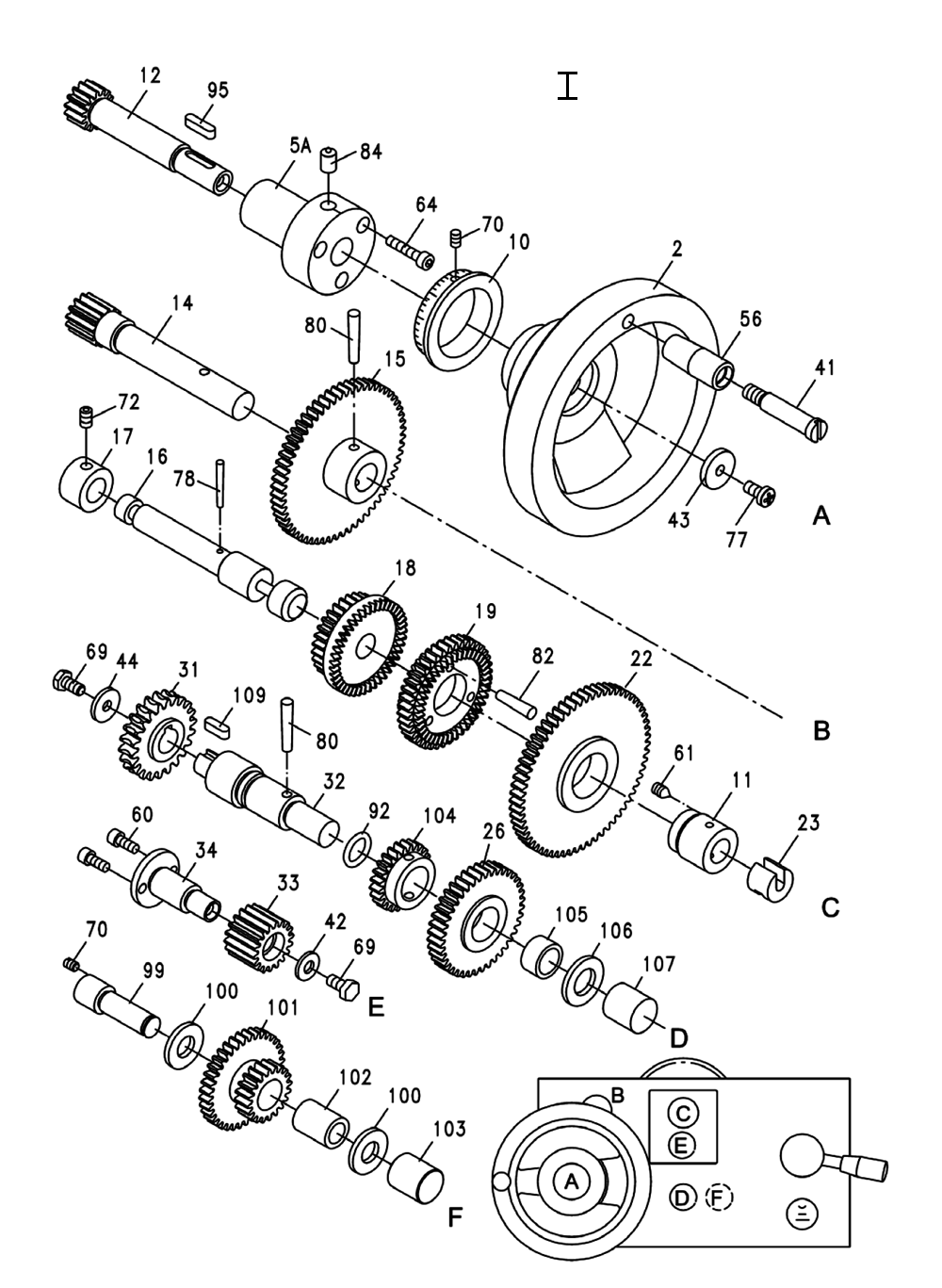

  • Fig-9

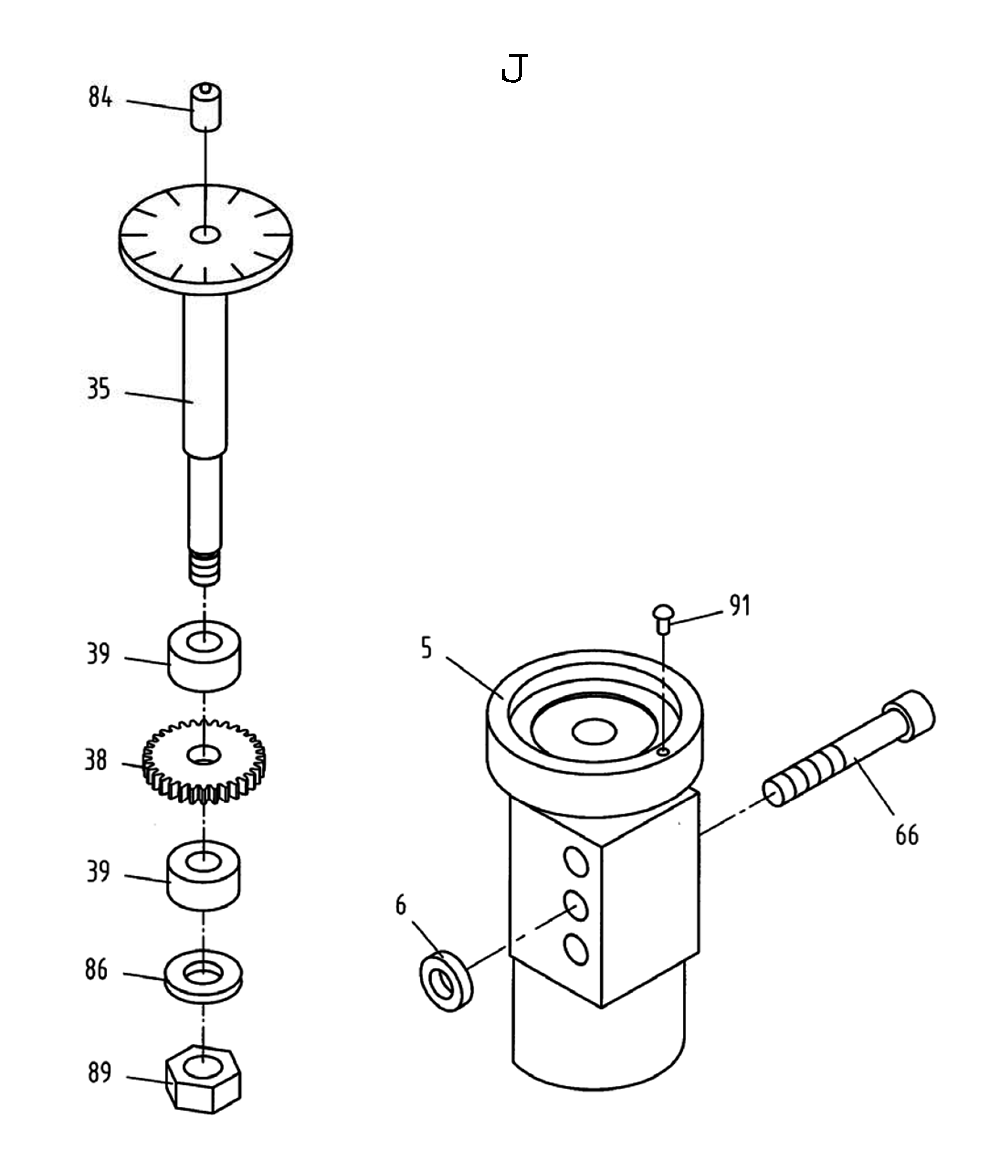

  • Fig-10

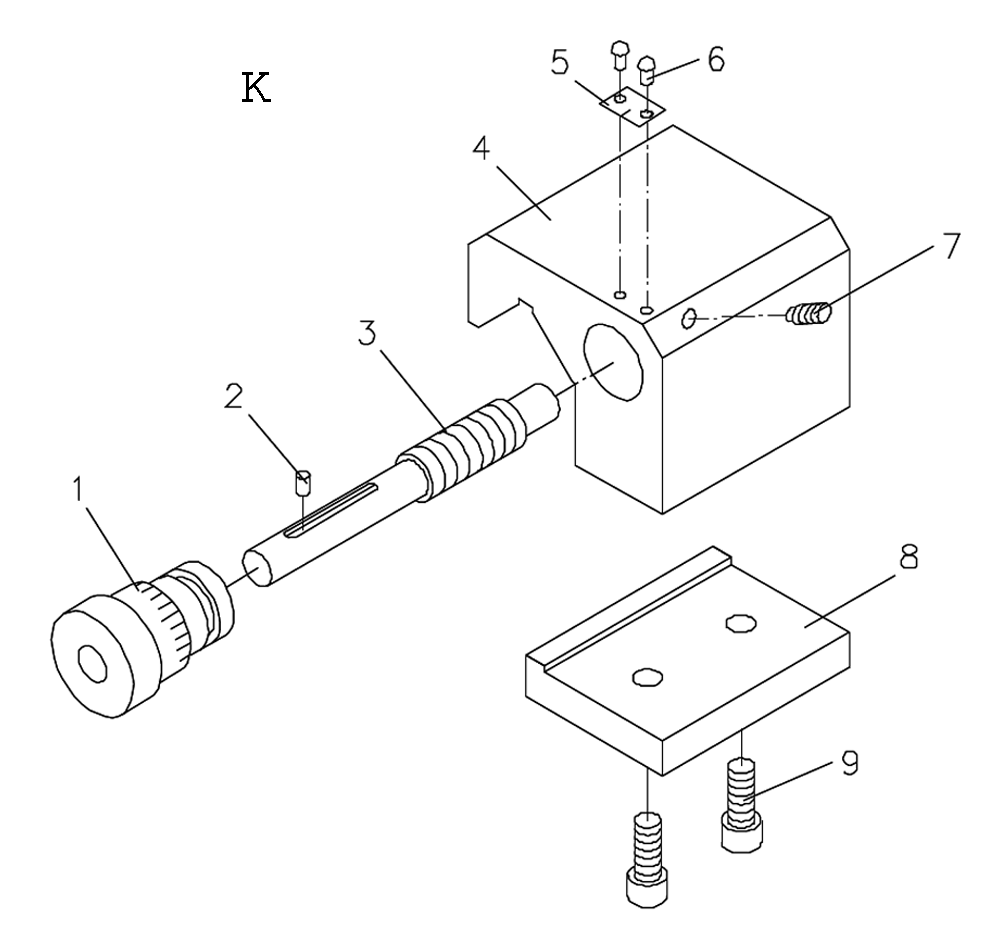

  • Fig-11

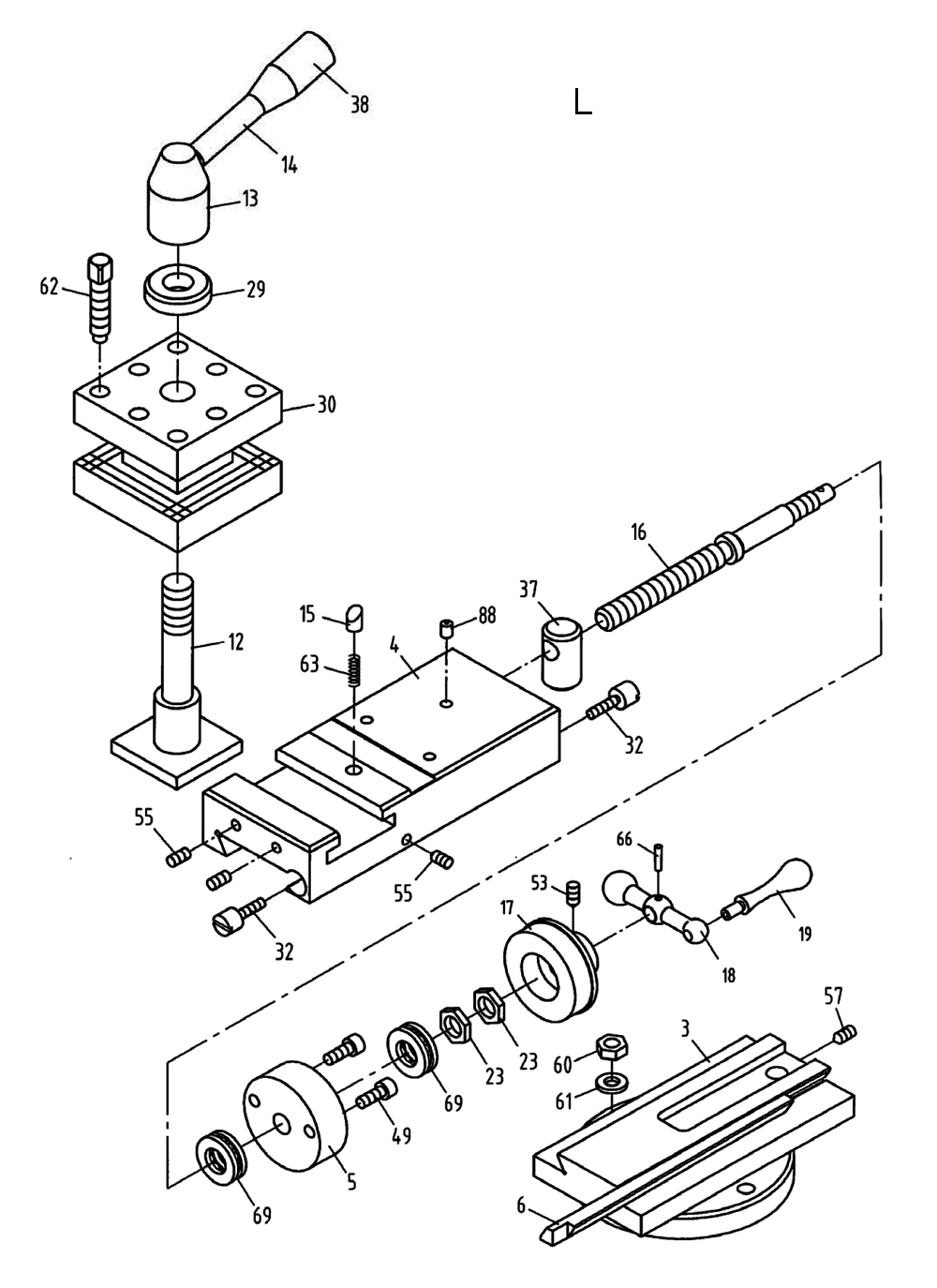

  • Fig-12

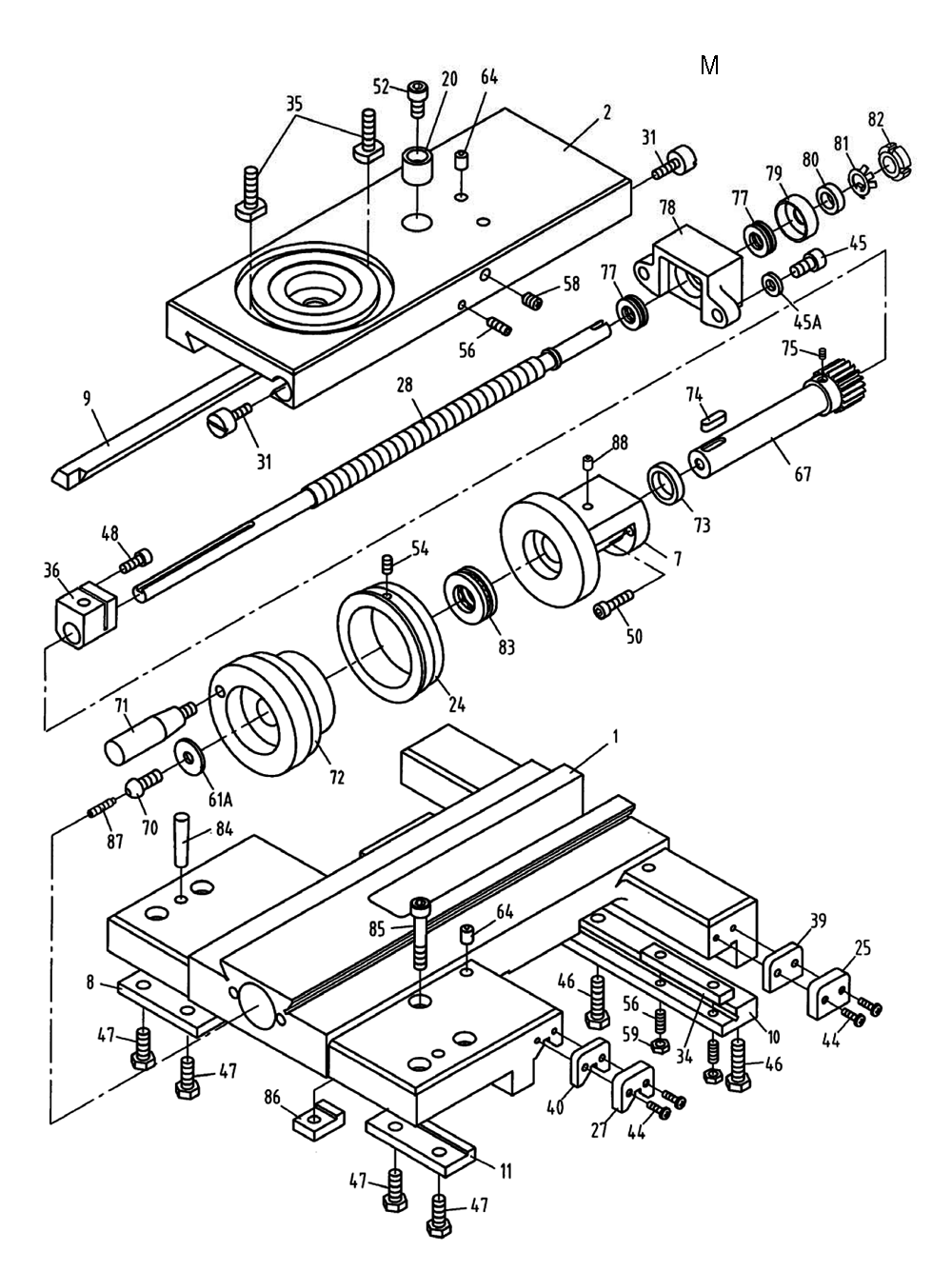

  • Fig-13

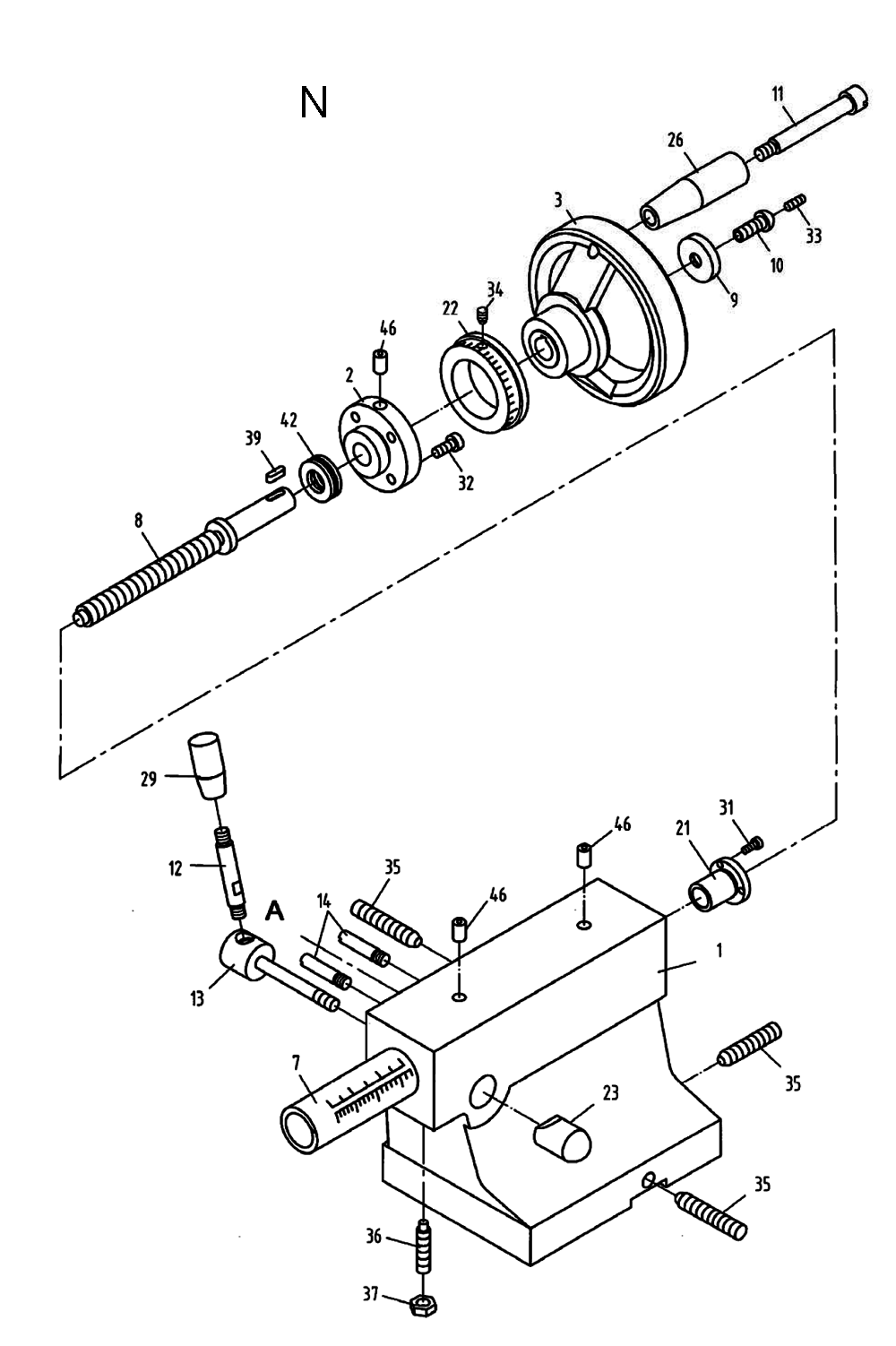

  • Fig-14

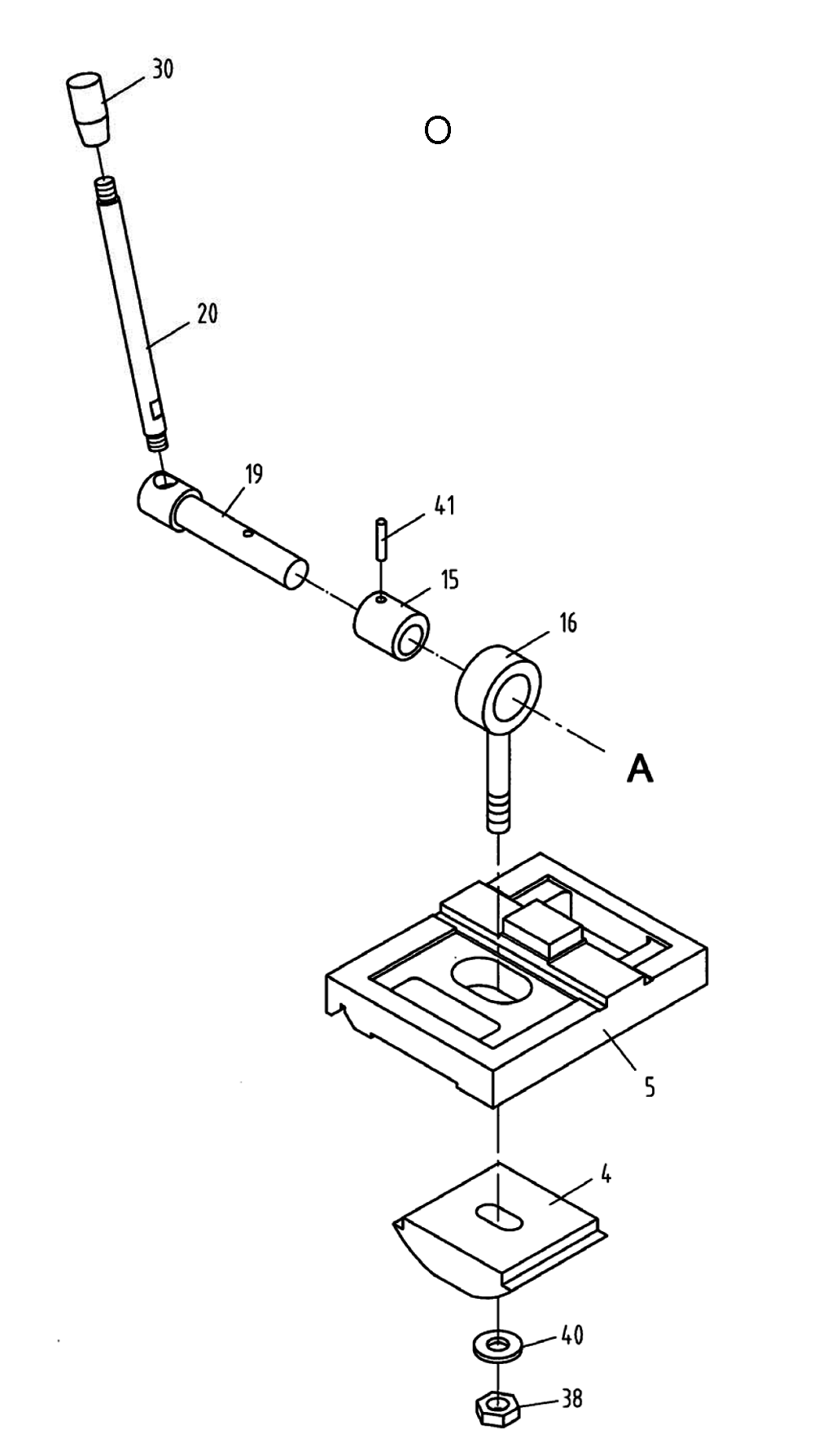

  • Fig-15

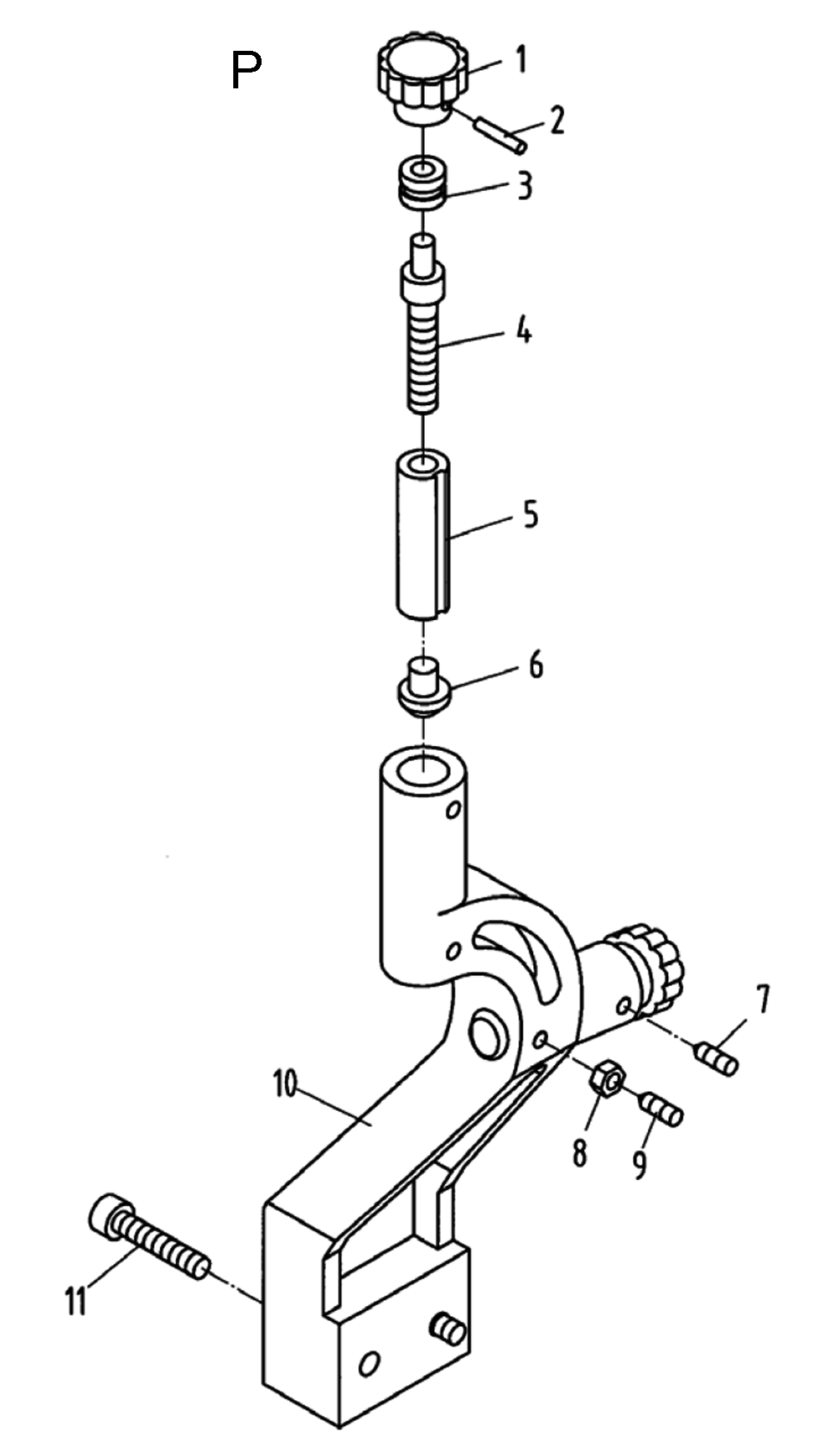

  • Fig-16

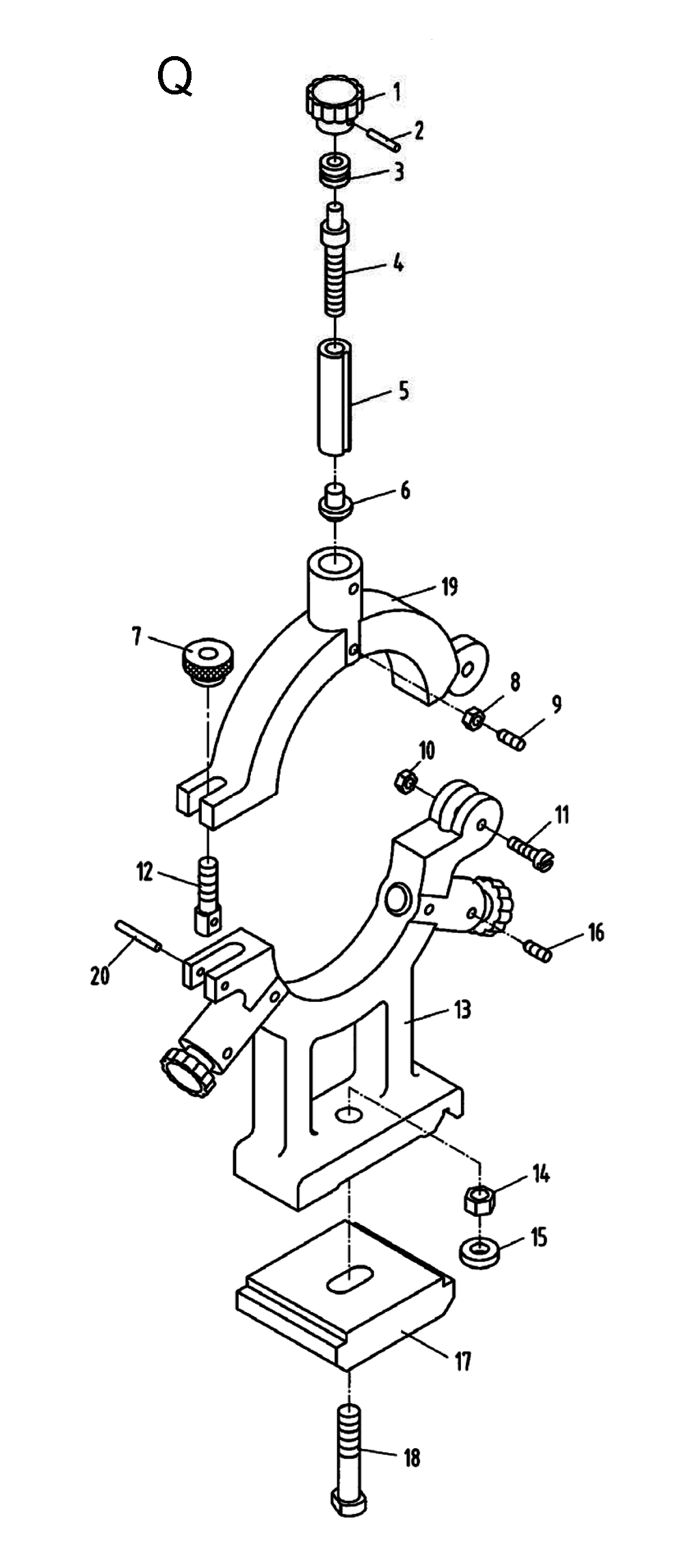

  • Fig-17

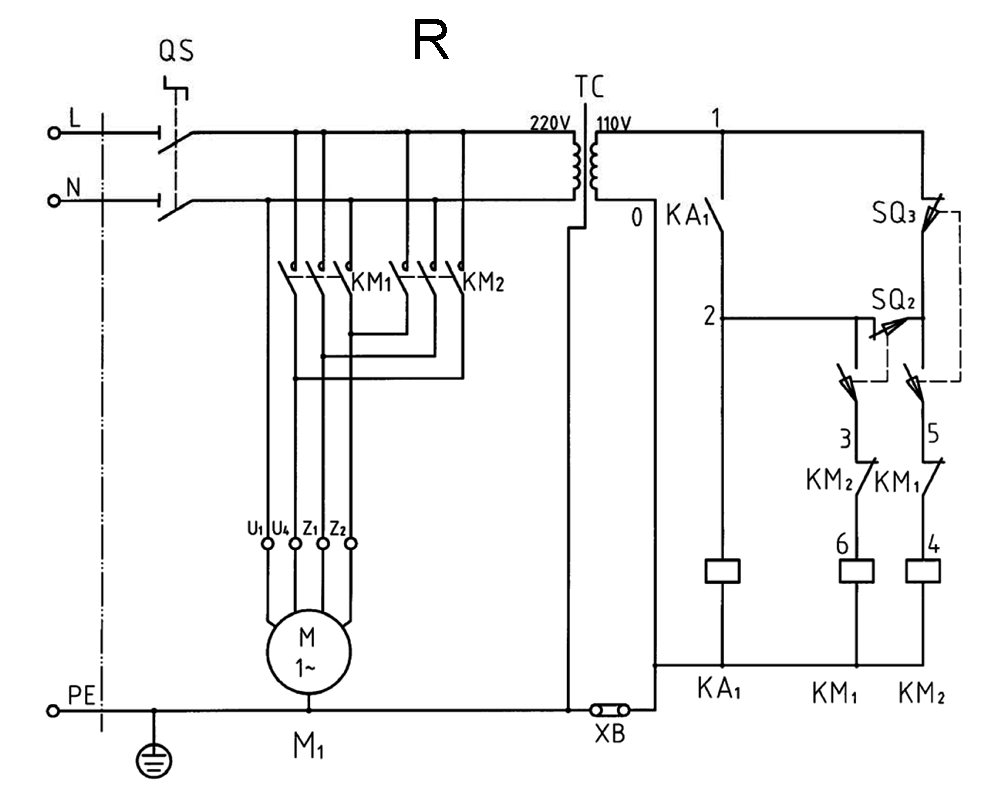

  • Fig-18

Download Jet 321120 Parts Diagram!

Jet 321120 Replacement Parts List  Other tools in Jet Lathes Machines Parts category

Fig# Image Part No Part Name Price Add To Cart
00. BDB1340A-1701 Lead Screw $471.74
00. BDB1340A-1702 Feed Rod $245.27
00. BDB1340A-1703 Shaft $163.57
00. GHB1340A-18701 Electrical Box $44.25
00. BDB1340A-18701 Electrical Box $38.68
00. BDB1340A-12701B Splash Guard *Drop Ship Item fee will apply* $135.09
00. BDB1340A-01701B Oil Plate $220.31
00. BDB1340A-05503 Rubber Mat $13.50
00. BDB1340A-05105 Top Cover $71.75
00. BDB1340A-05713 Connecting Sleeve $19.80
00. BDB1340A-05712 Connecting Sleeve $19.80
00. 32A5726A Gear $40.29
00. GHB1340-TSA Top Slide Assembly w/o Tool Post $395.69
00. Z08201 Live Center (not shown) $85.99
00. 8404 Arrow Plate (not shown) $3.61
00. 8405 Scale Plate (not shown) $3.61
00. GHB1340-FR Follow Rest Complete $203.37
00. GHB1340-SR Steady Rest Complete $277.02
00. GHB1340-FP Face Plate $205.52
00. GHB1340-TBC Tool Box Complete $379.01
00. 321449 Chuck $624.75
00. 321430 Chuck $571.56
00. GHB1340A-CG1 Change Gear $40.04
00. GHB1340A-CG2 Change Gear $40.29
00. GHB1340A-CG3 Change Gear $40.29
00. GHB1340A-CG4 Change Gear $40.04
00. GHB1340A-CG5 Change Gear $40.04
00. BDB1340-QS1 Main Power Switch (BDB-1 340A Only) $130.34
00. BDB1340-QS1-A Faceplate For Power Switch (BDB-1340A Only) $11.39
00. BDB1340-QS1-B Knob For Power Switch (BDB-1340A Only) $38.68
00. GHB1340-MP Motor Pulley $49.88
00. BDB1340-MP Motor Pulley $51.51
00. GHB1340-C Capacitor (same with BDB-1340A) $21.74
00. GHB1340-CC Capacitor Cover (same with BDB-1340A) $29.23
00. GHB1340-CSF Centrifugal Switch Fixture (same with BDB-1340A) $13.44
00. GHB1340-CSR Centrifugal Switch Rotor $12.17
00. BDB1340-CSR Centrifugal Switch Rotor $9.78
00. GHB1340A-EBC Electrical Box Complete $552.54
00. BDB1340A-EBC Electrical Box Complete $427.09
00. GHB1340-JB Motor Junction Box $9.73
00. BDB1340-JB Motor Junction Box $7.33
00. GHB1340A-RSB Rotary Switch Box $49.88
00. GHB1340A-SP Electric Switch Plate (GHB-1340A Only) $61.70
00. BDB1340A-32A5726A Gear $43.25
00. BDB1340A-02311 Nameplate (not shown) $9.73
00. BDB1340A-02304A Nameplate (not shown) $9.73
00. 4308 Nameplate (not shown) $9.73
00. VB-B32 V-Belt (not shown) $28.03
00. 321320 Motor (2HP, 1Ph, 60HZ 230V only for GHB-1340A) $414.81
00. 321321 Motor (2HP,1 Ph,60HZ 230V only for BDB-1 340A) … $330.85
00. TS-1550061 Flat Washer $3.61
00. TS-1504081 Socket Head Cap Screw $3.61
1. 04101B Headstock Casting $939.64
10. TS-1482021 Hex Head Bolt $3.61
11. 04501A Inlet Plug $9.07
13. BDB1340-H13 Oil Sight Glass $9.19
14. TS-1503031 Socket Head Cap Screw $3.61
15. TS-1490081 Hex Cap Screw $3.61
17. BDB1340-H17 Screw $3.61
55. 04733B Knob $21.63
83. 4310 Cover $853.68
85. 4705 Strut $3.61
86. BDB1340A-02118A Arm $83.46
87. TS-1523031 Set Screw $3.61
88. 04725B Plunger $9.73
89. BDB1340-H89 Cap Nut $5.05
90. 04734B Spring Sleeve $22.26
91. BDB1340-H91 Spring $3.61
92. 4721 Idle Shaft $48.20
93. BDB1340-H93 Oil Nipple $5.56
94. 4719 Gear $42.52
95. 4303 Bushing $18.48
96. 4720 Gear $56.78
97. BDB1340A-02717A Output Shaft $34.07
98. BB-6202ZR Ball Bearing $0.00

Discontinued

99. BDB1340A-H99 Key $3.61
100. TS-1540081 Hex Nut $3.61
101. BDB1340-H93 Oil Nipple $5.56
102. 4716 Spacer $5.53
103. 04119A Flange $3.61
104. BDB1340A-02718A Gear $50.22
105. GH1340A-05735 Gear $50.22
106. BDB1340-H106 Washer $3.61
107. 4714 Bolt $7.95
120. TS-1482021 Hex Head Bolt $3.61
121. BDB1340A-02722A Stud $5.05
122. BDB1340A-02305A End Cover $591.16
123. BDB1340-H123 Knob $20.99
124. BDB1340-H124 Knob $23.06
125. 4724 Cover $55.28
127. BDB1340-H127 Rubber Mat $25.10
128. TS-1503081 Socket Head Cap Screw $3.61
129. BDB1340-H129 C-Clip $3.61
133. BDB1340A-H133 C-clip for Shaft $3.61
134. BDB1340A-02124 Spacer $5.05
135. BDB1340A-H135 Plug $5.05
136. BDB1340A-H136 Sign Plate $0.00

Discontinued

137. BDB1340A-H137 Half Round Cap Screw $0.00

Discontinued

138. BDB1340A-H138 Sign Plate $100.55
00-B. VB-B33 V-Belt $0.00

Discontinued

1-C. GHB1340A-01101 Bed $2,867.25
1-E. 05101A Casting $627.23
1-H. GHB1340A-06101A Casting $624.75
1-K. GHB1340A-01707 Dial $44.25
1-M. 7101 Saddle $462.07
1-N. Z08101 Casting $454.53
1-P. GHB1340-1FR Knob $4.97
1-Q. GHB1340-1FR Knob $4.97
1-R. GHB1340-KA1 Magnetic Starter $70.54
10 -E. 32A5701 Lever $44.25
10 -I. 6510 Index Ring $44.25
10 -M. 7132 Strip $58.64
10 -Q. TS-2311061 Hex Nut $3.61
10 -Q. TS-1540041 Hex Nut $0.00

Discontinued

10-C. 01112 Pulley $0.00

Discontinued

10-N. Z08205 Screw $5.26
10-P. 10104 Base Casting $0.00

Discontinued

100 -I. GHB1340A-06114 Washer $7.80
100-E. TS-1502041 Socket Head Cap Screw $3.61
101 -E. GHB1340A-05105 Top Cover $67.06
101 -I. GHB1340A-06734 Gear $49.88
102 -E. 5723 Cover $39.94
102 -I. GHB1340A-06115 Collar $22.37
103 -E. GHB1340A-G103 Screw $3.61
103 -I. GHB1340A-A103 Shaft Plug $3.61
104 -E. 5722 Plate $16.46
104 -I. GHB1340A-06731 Gear $33.31
105 -E. GHB1340A-G105 Screw $3.61
105 -I. GHB1340A-06113 Collar $16.46
106 -E. GHB1340A-G106 Screw $3.61
106 -I. GHB1340A-06111 Washer $7.80
107 -E. GHB1340A-G107 Tapered Tap $3.61
107-I. GHB1340A-06112 Shaft Plug $21.18
108-E. 5724 Oil Drain Pipe $9.73
108-H. 6261 Half Nut Controlling Shaft $26.42
109 -E. 5108 Extending Plate $151.36
109-I. GHB1340A-A109 Key $6.15
10A-C. TS-1523041 Socket Set Screw $3.61
11 -E. 32A5110 Handle Base $44.25
11-C. 1203 Rack $31.46
11-I. Z06111 Cover $16.46
11-M. 7141 Front Strip $23.85
11-N. 8206 Screw $9.50
11-P. TS-1504071 Socket Head Cap Screw $3.61
11-Q. GHB1340-11SR Bolt $10.91
110 -A. 4729 Cam $32.27
110 -E. TS-1502061 "Socket Head Cap Screw $3.61
111-A. 4741 Pin $9.07
111-E. 5305 Slipper $20.89
112 -A. BDB1340-H112 Spring $4.07
112 -E. 5721 Slipper Shaft $13.50
113 -A. TS-1504041 Socket Head Cap Screw $3.61
113 -E. GHB1340A-G113 C-clip $3.61
114 -E. GHB1340A-G114 Pin $3.61
115 -E. 5107 Lever $22.37
116 -E. 5304 Sig n Disc $4.64
117-E. GHB1340A-G117 Oil Sight Glass $21.18
118 -F. GHB1340A-G118 Round Nut $4.97
119 -F. 5713 Connecting Sleeve $16.46
12 -I. 6212 Shaft $37.70
12 -L. 7205 Screw $27.80
12 -N. Z08207 Lever $8.57
12 -Q. 10206 Pivot Bolt $0.00

Discontinued

12-C. GHB1340A-12B Pin $3.61
120 -F. GHB1340A-G120 Pin $3.61
121 -F. 5707 Washer $3.61
122-F. 05708 Gear $0.00

Discontinued

123 -F. 5709 Inner Gear $39.94
124 -F. 5711 Washer $7.80
125-F. 5302 Oil Light Bushing $16.46
126-B. TS-1523011 Socket Set Screw $3.61
126-F. 05710 XI B Shaft $0.00

Discontinued

127 -F. GHB1340A-G127 Pin $3.61
128 -F. GHB1340A-G128 Screw $3.61
129 -F. 5301 Sliding Bearing $22.26
13 -C. 01204-2 Rack $338.27
13 -E. GHB1340A-05106 Cover $169.36
13 -L. 7206 Handle Base $22.26
13 -N. 8208 Shaft $37.20
13-H. 6213 Gear Pin $3.61
13-Q. 10102 Base Casting $0.00

Discontinued

130 -A. BDB1340-H130 0-Ring $5.56
130-F. TS-1503031 Socket Head Cap Screw $3.61
130-G. TS-1503031 Socket Head Cap Screw $3.61
131 -B. TS-1490041 Hex Cap Screw $3.61
131 -F. GHB1340A-05712 Connecting Sleeve $3.61
132 -B. TS-1504041 Socket Head Cap Screw $3.61
132 -G. TS-2360121 Flat Washer $3.61
133 -F. 5303 Bearing Housing $22.26
134-G. GHB1340A-G134 Hex Socket Cap Screw $3.61
14 -E. 5504 Gasket $9.66
14 -L. 7207 Handle Shaft $10.84
14 -N. 8209 Screw $9.50
14 -Q. TS-1540081 Hex Nut $3.61
14-C. 32A1105 Collar $13.50
14-I. 6214 Gear Shaft $31.46
15 -E. 32A5305 Slipper $16.46
15 -I. 6215 Gear $54.31
15 -L. 7209 Stop $16.46
15-1. TS-1540061 Hex Nut $3.61
15-1 -B. TS-1540061 Hex Nut $3.61
15-C. 32A1106 Collar $13.50
15-O. 8211 Collar $19.42
15-Q. TS-1550081 Washer $3.61
16 -C. GHB1340A-1701 Lead Screw $344.81
16 -I. 6216 Shaft $49.88
16 -L. 7210 Screw $45.43
16 -O. 8212 Screw $23.43
16-Q. TS-1523021 Socket Head Set Screw $3.61
16A-H. 6415 Bracket $12.59
17 -E. 32A5106 Lever $58.64
17 -L. 7212 Index Ring $33.31
17-C. 321728 Key $3.61
17-I. 6417 Collar $26.69
17-Q. 10103 Clamp Rod $0.00

Discontinued

18 -A. 4701 Spindle $924.97
18 -C. 321706 Collar $39.94
18 -E. 32A5302 Plate $4.97
18 -I. 6218 Gear $65.13
18-L. 7213 Ball Handle $33.31
18-Q. TH1340-18SR Clamp Screw $46.56
19 -A. BDB1340-H19 Key $9.96
19 -C. GHB1340A-1702 Feed Rod $175.86
19 -E. 32A5103 Handle $52.14
19 -I. 6219 Gear $49.88
19 -L. 7214 Handle $16.68
19 -O. 8213 Shaft $26.81
19 -Q. 10101 Top Casting $0.00

Discontinued

2-A. TS-1503051 Socket Head Cap Screw $3.61
2-C. 11-10 Break Block $540.28
2-E. 5715 Right cover $9.73
2-I. 6102 Handwheal $47.08
2-K. GHB1340A-MS02 Pin $3.61
2-M. 7102 Cross Slide $224.83
2-N. Z08102 Flange Cover $28.21
2-P. GHB1340-2FR Pin $3.61
2-Q. GHB1340-2FR Pin $3.61
2-R. GHB1340-KM1 Magnetic Starter $115.67
20 -A. BDB1340-H20 Key $7.95
20 -E. 32A5306 Slipper $21.63
20 -O. 8214 Lever $16.46
20-C. 1707 Brake Ring $7.80
20-M. 7216 Collar $9.07
20-Q. GHB1340-20SR Pin $3.61
21 -A. 4102 Collar $30.99
21 -C. GHB1340A-21B Spring $3.61
21 -F. 32A5113 Cover $22.37
21 -G. 32A5113 Cover $22.37
21-N. 08401 Nut $0.00

Discontinued

22 -A. BDB1340-H22 Oil Seal $13.55
22 -C. GHB1340A-1703 Shaft $155.76
22 -F. 32A5503 Gasket $4.96
22 -G. 32A5503 Gasket $4.96
22 -I. 6220 Gear $6.23
22 -N. 8402 Index Ring $37.20
23 -A. BDB1340-H23 0-Ring $9.07
23 -C. 32A1103A Bracket $3.61
23 -F. 32A5712 Shaft $52.14
23 -I. 6421 Shift Fork $16.46
23 -L. 7221 Nut $6.84
23 -N. 8403 Pivot Block $39.94
24 -H. 6222 Shift Lever $44.25
24 -M. 07222N Index Ring $46.45
24-C. TS-1503061 Socket Head Cap Screw $3.61
24-F. 32A5710A Gear $101.66
25 -A. BDB1340-H25 Shaft Pin $3.61
25 -F. 32A5719 Washer $77.09
25 -M. 7224 Plate $9.73
25-C. GHB1340A-25B Pin $3.61
25-H. 6223 Shift Handle $22.37
26 -A. BDB1340-H26 Spring $3.61
26 -C. 32A1710 Handle Hub $14.83
26 -I. GHB1340A-06704 Gear $44.25
26 -N. 8501 Handle $10.84
27 -A. 4703 Pin $5.56
27 -F. 5718 Gear $118.80
27 -M. 7227 Plate $4.97
27-C. TS-1524061 Socket Set Screw $3.61
28 -A. 4702 Nut $5.56
28 -C. 01710A Handle $16.68
28 -H. 6126 Bracket $46.92
28 -M. 07229N Screw $155.55
28A-C. GHB1340A-77 Pin $16.40
29 -A. 04117A Gear $237.43
29 -F. 5502 Gasket $4.64
29 -L. 7233 Washer $7.80
29-C. GHB1340A-29B Knob $4.96
29-H. 6427 Half Nut $48.11
29-N. GHB1340-29TS Handle $0.00

Discontinued

3 -K. GHB1340A-01716 Axle $22.37
3-A. BB-30212 Taper Roller Bearing $99.92
3-C. TS-1550071 Flat Washer $0.00

Discontinued

3-C. 5051911 Washer, M10 Flat $3.61
3-E. 5720 Left cover $7.80
3-H. 6103 Housing $52.14
3-L. 7103 Swivel Slide $105.17
3-N. 8103 Hand Wheel $34.12
3-P. 10208 Bushing $0.00

Discontinued

3-Q. 10203 Bushing $277.77

Discontinued

3-R. GHB1340-KM2 Magnetic Starter $115.67
30 -F. 5104 Bushing $66.81
30 -L. 7234 Post Base $188.03
30 -O. GHB1340-147 Knob $5.26
30-A. 4116 Pulley $88.22
30-C. TS-1522031 Socket Set Screw $3.61
30-H. 6228 Worm $70.54
31 -A. TS-1523031 Set Screw $3.61
31 -C. 1708 Collar $13.50
31 -F. 5714 Washer $21.63
31 -I. 6429 Gear $85.69
31 -M. 7236 Gib Adjusting Screw $5.26
31 -N. TS-1501031 Socket Head Cap Screw $3.61
32 -A. 4302 Bushing $86.37
32 -C. 32A1104A Bracket $125.52
32 -F. 5716 Shaft $100.55
32 -I. GHB1340A-06714 Shaft $26.59
32-L. 7237 Gib Adjusting Screw $4.85
32-N. TS-1503041 Socket Head Cap Screw $3.61
33 -A. 4301 Bushing $29.76
33 -I. 6231 Gear $44.25
33-C. GHB1340A-33B Pin $4.97
33-F. 32A5114 End cover $16.46
33-N. TS-1522061 Socket Set Screw $3.61
34 -A. 4115 Gear $228.55
34 -F. 32A5504 Gasket $4.96
34 -I. 6232 Shaft $22.67
34 -M. 7239 Gib Strip $6.15
34-C. TS-1504131 Socket Head Cap Screw $10.03
34-N. TS-1523031 Set Screw $3.61
35 -A. 4114 Spacer $20.44
35 -C. 32A1502 Plug $3.61
35 -F. 32A5716 Shaft $39.94
35 -M. 7240 T-Bolt $8.83
35-J. 6233 Threading Dial Shaft $66.65
35-N. GHB1340-35TS Set Screw $4.67
36 -N. GHB1340-36TS Screw $3.61
36-A. TS-1524021 Socket Set Screw $3.61
36-C. GHB1340A-36B Pin $4.96
36-F. 32A5714A Gear $52.14
36-M. 07415N Block $0.00

Discontinued

37 -A. BDB1340-H37 0-Ring $5.56
37 -L. 7430 Nut $33.31
37 -N. TS-1540061 Hex Nut $3.61
37-C. TS-1504121 Socket Head Cap Screw $3.61
37-F. 32A5715A Gear $39.94
38 -A. 04112A Spacer $16.46
38 -C. 32A1502 Plug $3.61
38 -L. 7508 Knob $5.26
38 -O. TS-1540081 Hex Nut $3.61
38-F. 32A5713A Gear $58.64
38-J. 6236 Gear $22.37
39 -F. 32A5708 Washer $9.73
39 -J. 6237 Spacer $9.07
39 -M. 7526 Wiper $8.24
39-A. 4113 Bearing Cover (rear) $60.56
39-C. GHB1340A-39B Oil Ball $3.61
39-N. GHB1340-39TS Key $6.75
4 -K. GHB1340A-01107 Stop $70.54
4-A. BDB1340-H4 Oil Seal $0.00

Discontinued

4-C. 01102 Gap $0.00

Discontinued

4-E. 32A5308 Slipper $21.63
4-H. 6104 Cover $74.01
4-L. 7104 Top Slide $141.90
4-O. 8104 Clamp Plate $22.67
4-P. 10204 Screw $0.00

Discontinued

4-Q. 10204 Screw $0.00

Discontinued

4-R. GHB1340-TC Control Transformer $113.57
40 -C. 32A1301 Switch Box $27.96
40 -H. 6238 Bar $22.37
40 -M. 7528 Wiper $6.89
40 -O. TS-2360121 Flat Washer $3.61
40-A. BDB1340-H40 Oil Seal $0.00

Discontinued

41 -A. BDB1340-H41 0-Ring $9.07
41 -C. TS-1504041 Socket Head Cap Screw $3.61
41 -F. 5719 Washer $7.80
41 -I. 6239 Screw $9.50
41 -O. GHB1340-41TS Pin $3.61
42 -A. 4713 Gear $56.77
42 -I. TS-1550041 Flat Washer $3.61
42 -N. BB-51102 Thrust Bearing $47.24
42-C. TS-1523051 Socket Set Screw $3.61
42-F. 05702 Gear $0.00

Discontinued

43 -A. 4743 Locking Nut $27.14
43 -C. 32A1705 Bushing $13.50
43 -F. 5703 Gear $63.62
43-I. Z06241 Washer $4.67
44 -B. 4704 Eccentric Shaft $196.95
44 -I. 6242 Washer $9.07
44-C. SB-6MM Steel Ball $3.61
44-F. 05704 Gear $0.00

Discontinued

44-M. GHB1340-44T Screw $3.61
45 -B. 04103A Bushing $9.73
45-C. GHB1340A-45B Spring $3.61
45-F. 5705 Gear $59.32
45-M. TS-1504051 Socket Head Cap Screw $4.37
45A-M. TS-1551061 Lock Washer $3.61
46 -B. 04109A Gear $119.86
46-C. TS-1524041 Socket Set Screw $3.61
46-F. 05706 Gear $0.00

Discontinued

46-M. GHB1340-46T Screw $3.61
46-N. GHB1340-43TS Oil Ball $0.00

Discontinued

47 -F. 5501 Gasket $31.56
47-B. TS-1523011 Socket Set Screw $3.61
47-M. GHB1340-47T Screw $3.61
47A-C. TS-1525021 Socket Set Screw $3.61
48 -F. 5103 Flange $66.65
48-B. 04111A Bushing $16.46
48-C. 32A1504 Switch Box Cover $78.34
48-M. TS-1503041 Socket Head Cap Screw $3.61
49 -F. 5717 Shaft $58.64
49-B. 4110 Moving Arm $25.10
49-C. TS-1505051 Socket Head Cap Screw $3.61
49-L. TS-1503051 Socket Head Cap Screw $3.61
5 -E. 32A5111A Lever $52.14
5-A. OS-709012 Oil Seal $28.26
5-C. TS-149105 Hex Cap Screw $0.00

Discontinued

5-J. Z06105 Threading Dial Body $95.99
5-K. ZX-03302 Sign Plate $3.61
5-L. 7111 Collar $26.69
5-O. 8105 Base $81.37
5-P. 10201 Sleeve $222.95

Discontinued

5-Q. 10201 Sleeve $222.95

Discontinued

5-R. GHB1340A-SQ2 Stroke Switch $12.70
50 -G. 32A5115 End Cover $21.63
50-B. TS-1504071 Socket Head Cap Screw $3.61
50-C. TS-1502021 Socket Head Cap Screw $3.61
50-H. 6548 Oil Filler Plug $3.61
50-M. TS-1503061 Socket Head Cap Screw $3.61
51 -B. 4726 Sleeve $3.61
51 -C. TS-1503061 Socket Head Cap Screw $3.61
52 -B. BDB1340-H52 Spring $7.33
52 -D. GHB1340A-18701 Electrical Box $44.25
52 -G. 32A5718A Gear $99.92
52 -H. 6551 O it Sight $9.03
52-M. TS-1504031 Socket Head Cap Screw $3.61
52A-D. BDB1340A-18701 Electrical Box $38.68
53 -B. 4725 Shaft $3.61
53 -G. 32A5721A Gear $135.02
53-C. TS-1540061 Hex Nut $3.61
53-H. 6553 Knob $5.26
53-L. TS-1523011 Socket Set Screw $3.61
54 -B. BDB1340-H54 Cap Nut $5.05
54 -G. 5701 Key shaft $111.96
54 -H. Z06554 Plug $3.61
54-M. TS-1523021 Socket Head Set Screw $3.61
54A-C. TS-1492061 Hex Cap Bolt $4.46
55 -B. 04733B Knob $21.63
55 -G. 5505 Gasket $4.64
55-D. GHB1340A-55B Screw $0.00

Discontinued

55-L. TS-1523031 Set Screw $3.61
56 -B. 4706 Shaft $14.46
56 -G. 5102 Cover $15.68
56 -I. 6556 Handle $10.84
56-D. GHB1340A-56B Nut $0.00

Discontinued

56-M. TS-1523071 Socket Set Screw $3.61
57 -B. 4707 Handle $19.98
57 -H. 6257 Spring $5.91
57-D. GHB1340A-57B Screw $0.00

Discontinued

57-L. TS-1524011 Set Screw $3.61
58 -B. BDB1340-H58 Knob $9.07
58 -D. GHB1340A-12701 Splash Guard $189.14
58 -G. 40A5736 Gear $149.26
58 -H. 6258 Spring $8.24
58-M. TS-1524021 Socket Set Screw $3.61
59 -B. 04104A Cam $46.56
59 -D. GHB1340A-01701 Oil Plate $164.15
59 -G. 40A5738 Collar $16.46
59 -H. 6260 Key $22.67
59-M. TS-2311061 Hex Nut $3.61
59-M. TS-1540041 Hex Nut $0.00

Discontinued

5A-I. 06105A Hub $9.07
6 -E. 32A5108A Lever $52.14
6-A. BB-30211 Taper Roller Bearing $99.92
6-C. TS-1490041 Hex Cap Screw $3.61
6-J. 6206 Washer $8.81
6-K. ZX-MS06 Pin $3.61
6-L. 7117 Gib $26.81
6-P. 10401 Brass Finger $26.69
6-Q. 10401 Brass Finger $26.69
6-R. GHB1340A-SQ3 Stroke Switch $44.25
60 -B. BDB1340-H60 Spring Pin $3.61
60 -D. GHB1340A-02302 Back Cover $81.91
60 -G. 40A5739 Screw $9.73
60-I. TS-1502031 Socket Head Cap Screw $3.61
60-L. TS-1540061 Hex Nut $3.61
61 -B. 4712 Input Shaft $131.93
61 -C. GHB1340-61B Pin $3.61
61 -G. 321719 Washer $4.64
61 -I. TS-1523011 Socket Set Screw $3.61
61 -L. TS-1550061 Flat Washer $3.61
61 -M. TS-1550061 Flat Washer $3.61
61A-M. GHB1340-65T Washer $0.00

Discontinued

62 -B. BDB1340-H62 Key $3.61
62 -G. 40A5740 Washer $8.24
62 -L. GHB1340-62T Screw $5.26
62-D. ZX-8712 Upper Hinge $0.00

Discontinued

62-H. TS-1503031 Socket Head Cap Screw $3.61
62A-G. 40A5740A Washer $7.95
63 -B. BDB1340-H63 Key $3.61
63 -G. 32A5726A Gear $40.29
63 -L. GHB1340-63T Spring $3.61
63-D. TS-1503041 Socket Head Cap Screw $3.61
63-H. TS-1503041 Socket Head Cap Screw $3.61
64 -G. 32A5119 Gear Frame $55.02
64 -M. GHB1340-64T Oil Ball $3.61
64-B. TS-1550081 Washer $3.61
64-D. GHB1340A-64B Pin $0.00

Discontinued

64-H. TS-1503061 Socket Head Cap Screw $3.61
64-I. TS-1503061 Socket Head Cap Screw $3.61
65 -G. 321718 Screw rod $9.73
65-B. TS-1540081 Hex Nut $3.61
65-D. ZX-8711 Lower Hinge $0.00

Discontinued

65-H. TS-1504061 Socket Head Cap Screw $3.61
66 -B. 4708 Cam $27.59
66 -D. GHB1340A-02105 Rear Side plate $155.76
66 -L. GHB1340-66T Pin $3.61
66-J. TS-1504101 Socket Head Cap Screw $3.61
67 -M. 7530 Gear Shaft $97.59
67-D. TS-1504031 Socket Head Cap Screw $3.61
67-E. GHB1340A-G67 Screw $4.97
67-H. GHB1340-A67 Screw $3.61
68 -B. 4709 Strut $13.50
68 -E. GHB1340A-G68 Tapered Tap $3.61
68-D. GHB1340A-68B Pin $0.00

Discontinued

68-H. TS-1523041 Socket Set Screw $3.61
69 -B. 04105A Swing Arm $44.25
69 -E. GHB1340A-G69 Socket Head Cap Screw $3.61
69 -L. GHB1340-69T Ball Bearing $16.46
69-C. GHB1340-69B Pin $6.15
69-I. TS-1503021 Socket Head Cap Screw $3.61
7-A. TS-1503041 Socket Head Cap Screw $3.61
7-C. TS-1550061 Flat Washer $3.61
7-E. 32A5307 Slipper $21.63
7-H. 6107 Gib $20.13
7-K. TS-1523031 Set Screw $3.61
7-M. 07120N Bearing Housing $49.32
7-N. 8202 Quill $214.33
7-P. TS-1523011 Socket Set Screw $3.61
7-Q. 10205 Lock Knob $338.69

Discontinued

7-R. GHB1340-XT1 Wiring Board $22.37
70-B. TS-1482021 Hex Head Bolt $3.61
70-C. GHB1340A-74B Set Screw $3.61
70-E. TS-1503061 Socket Head Cap Screw $3.61
70-I. TS-1522011 Socket Set Screw $3.61
70-L. 7545 Screw $7.35
70-M. TS-1504041 Socket Head Cap Screw $3.61
71 -C. TS-1504071 Socket Head Cap Screw $3.61
71 -F. TS-1504031 Socket Head Cap Screw $3.61
71 -G. TS-1504031 Socket Head Cap Screw $3.61
71 -H. TS-1523011 Socket Set Screw $3.61
71 -M. 7531 Handle $14.13
71-B. BB-6204ZR Ball Bearing $0.00

Discontinued

72 -B. 4107 Pulley $133.91
72 -C. TS-1551061 Lock Washer $3.61
72-E. GHB1340A-G72 Pin $4.97
72-I. TS-1523031 Set Screw $3.61
72-M. 7532 Compound Handle $38.83
73 -E. GHB1340A-G73 Pin $4.97
73 -M. 7533 Spacer $7.64
73-B. TS-1524021 Socket Set Screw $3.61
73-C. TS-1551071 Lock Washer $3.61
73-H. TS-1522051 Set Screw $3.61
74 -M. 7534 Key $8.24
74-C. TS-1550061 Flat Washer $3.61
74-H. GHB1340-A74 Set Screw $3.61
75 -B. 04106A Swing Arm $44.25
75 -E. GHB1340A-G75 Knob $3.61
75-C. TS-1504091 Socket Head Cap Screw $3.61
75-H. TS-1523031 Set Screw $3.61
75-M. 7535 Set Screw $7.35
76 -M. 7536 Key $7.05
76-B. TS-1503051 Socket Head Cap Screw $3.61
76-C. TS-2360121 Flat Washer $3.61
77 -E. GHB1340A-G77 Spring $3.61
77-B. BB-6204 Ball Bearing $20.22
77-D. TS-1502041 Socket Head Cap Screw $3.61
77-I. GHB1340A-77 Pin $16.40
77-M. BB-8101 Replaced by BB-51101 - Thrust Bearing $0.00

Discontinued

78-B. BDB1340A-04108 Pulley $59.80
78-D. GHB1340A-78B Pin $0.00

Discontinued

78-E. TS-1524021 Socket Set Screw $3.61
78-I. GHB1340-A78 Pin $3.61
78-M. 7538 Bearing Housing $44.25
79 -D. GHB1340A-02104 Front Side plate $105.11
79-E. SB-6.5MM STEEL BALL 6.5MM $3.61
79-H. GHB1340-A79 Pin $3.61
79-M. 7539 Bearing Dust Cover $9.96
8 -H. 6208 Handle Hub $22.67
8 -P. TS-1540041 Hex Nut $0.00

Discontinued

8 -P. TS-2311061 Hex Nut $3.61
8 -Q. TS-2311061 Hex Nut $3.61
8 -Q. TS-1540041 Hex Nut $0.00

Discontinued

8-B. TS-1524021 Socket Set Screw $3.61
8-C. GHB1340A-02703 End Cover $16.46
8-E. 32A5702 Shaft $9.73
8-K. GH1340A-01108 Clamping Plate $22.37
8-M. 7123 Strip $17.94
8-N. Z08203 Screw $0.00

Discontinued

8-R. GHB1340-XT2 Wiring Board $39.94
80 -B. 4711 Shaft $10.99
80 -E. GHB1340A-G80 C-clip $3.61
80 -M. 7540 Washer $8.24
80-I. GHB1340-A80 Pin $3.61
81 -F. GHB1340A-G81 C-clip $3.61
81 -G. GHB1340A-G81 C-clip $3.61
81 -H. GHB1340-A81 Pin $3.61
81 -M. 7541 Star Washer $7.29
82 -B. 4710 Spacer $7.39
82 -F. GHB1340A-G82 C-clip $3.61
82 -G. GHB1340A-G82 C-clip $3.61
82 -I. GHB1340-A82 Pin $3.61
82 -M. 7542 Locking Nut $9.07
