Hitachi SV12SF Sander & Polisher Parts

Hitachi SV12SF Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

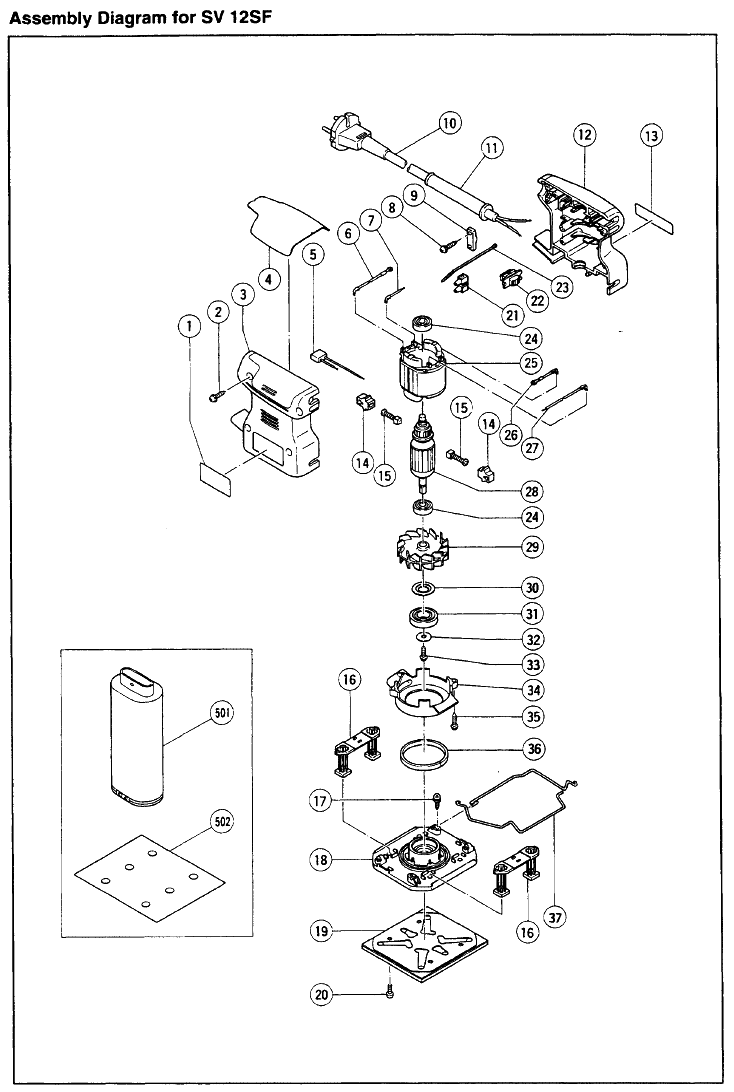

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	301-653	TAP SCREW w/FLANGE D4x20 C7SB	$1.24
4	311-947	GRIP TAPE SV12SF	$4.29
8	984750	TAP SCREW w/FLANGE D4x16 C8	$1.19
9	960266	CORD CLIP C7BD/SB C8 DH38YE	$1.19
11	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.19
11	938051	CORD ARMOR D10.1 M12V H45SB2	$1.19
14	930-483	BRUSH HOLDER	$2.04
15	999-041	CARBON BRUSH (pair) CJ110MV	$5.15
16	311-940	LEG SV12SF	$3.23
17	311-945	TAPPING SCREW (W/FLANGE) D4X10 (BLACK)	$1.19
18	311-976	BASE SV12SF	$4.08
20	949-216	MACHINE SCREW M4X10 (10 PCS.)	$1.19
21	938051	CORD ARMOR D10.1 M12V H45SB2	$1.19
22	311-948	SLIDE SWITCH SV12SG SV13YB/YA	$13.06
24	608VVM	BALL BEARING G10SR SP18SA	$7.02
29	311-941	BALANCER FAN SV12SF	$6.98
30	993-052	DUST WASHER SV12SG SV12SF	$1.27
31	600-1DD	BALL BEARING 6001DDCMPS2L	$8.98
32	875-249	THRUST WASHER NV50AA NV65AC	$1.53
33	935-196	MACHINE SCREW W/WASHER M4x12	$1.20
34	311-942	FAN GUIDE SV12SF	$1.50
35	956-384	TAPPING SCREW D4X20 SAT180	$1.55
36	311-946	FELT SV12SG SV12SF	$1.53
37	311-977	PAPER CLIP SV12SF	$3.23
