Hitachi S18SA Sander & Polisher Parts

Hitachi S18SA Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
3	944-005	BEARING CAP SP18SA/S18SA	$3.58

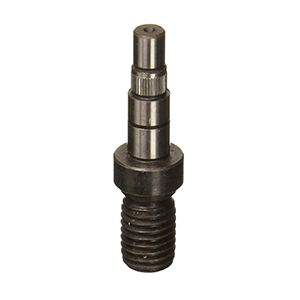

4	317-903	SPINDLE S18SA	$16.36
5	620-1DD	BALL BEARING SP18SA P12R	$8.52
6	939-542	RETAINING RING D12SHAFT 10 PCS	$2.54
7	316-321	TAPP.SCREWw/FLANGE D5x45	$1.97
8	318-017	GEAR COVER S18SA	$21.99
10	317-891	INNER COVER ASSY S18SA	$14.67
11	600-0DD	BALL BEARING 6000DDCMPS2L	$5.83
12	317-890	LOCK LEVER SP18SA/S18SA	$7.67
13	360-499U	ARMATURE ASSY 110-115V S18SA	$140.24
14	317-889	DUST SEAL SP18SA/S18SA	$1.67
15	608VVM	BALL BEARING G10SR SP18SA	$7.02
16	317-888	FAN GUIDE SP18SA/S18SA	$1.88
17	340-446C	STATOR ASSY 110V S18SA	$73.86
18	930-703	Brush Terminal	$2.59
19	317-896	HOUSING ASSY S18SA SP18SA	$33.79
21	958-900	BRUSH HOLDER CR13VA/V/2 CM4SB2	$7.02
22	999021	CARBON BRUSH (pair) G10/12SR2	$5.15
23	945-161	BRUSH CAP DH40FA/FB/MA/MB SB75	$1.67
24	938051	CORD ARMOR D10.1 M12V H45SB2	$1.19
25	317-894	TAIL COVER S18SA SP18SA	$1.58
26	302-086	SCREW W/FLANGE D4x20 WR12DM2	$1.27
29	317-892	HANDLE COVER S18SA SP18SA	$5.80
30	986011	TAP SCREW D5x30 GP2/S2 CR18DL	$1.55
31	311-741	TERMINAL (SINCE 8/2001) SP18V	$1.24
32	959144	TERMINAL 50051 10PS CC12Y	$3.23
33	302-477	SWITCH (C) 1P ScrewType w/Lock	$12.05
35	317-893	DUST PACKING SP18SA/S18SA	$1.88
36	980063	TERMINAL CR12V D13V DH38YE	$1.24
37	984750	TAP SCREW w/FLANGE D4x16 C8	$1.19
38	960266	CORD CLIP C7BD/SB C8 DH38YE	$1.19
39	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.19
