Hitachi P12RA Planer Parts

Hitachi P12RA Planer Parts Image

Hitachi P12RA Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Tool Diagram    (Click image to Zoom in) View larger Image

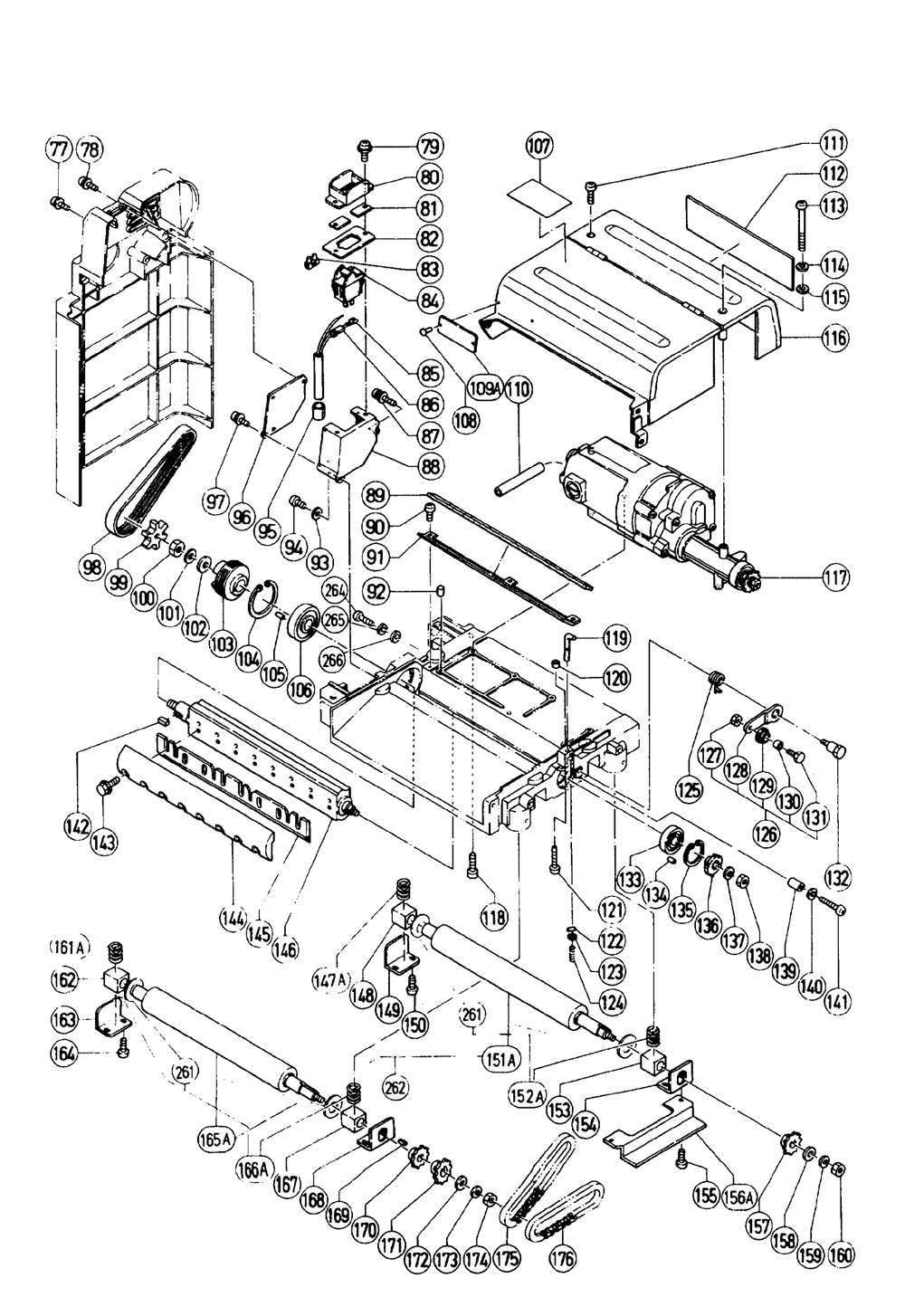

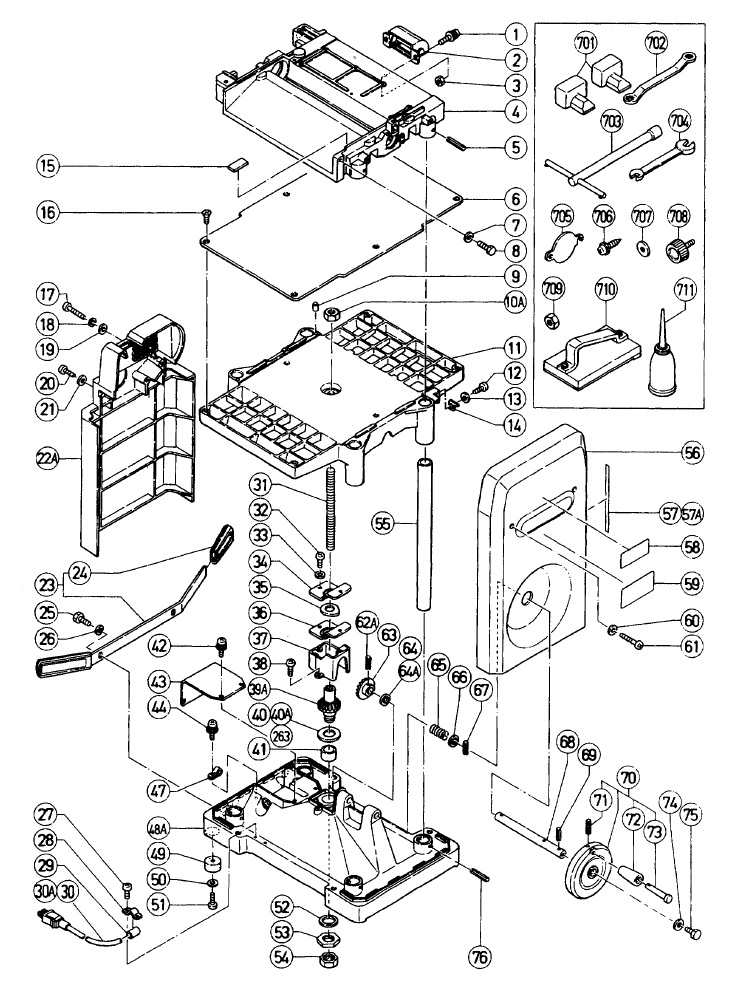

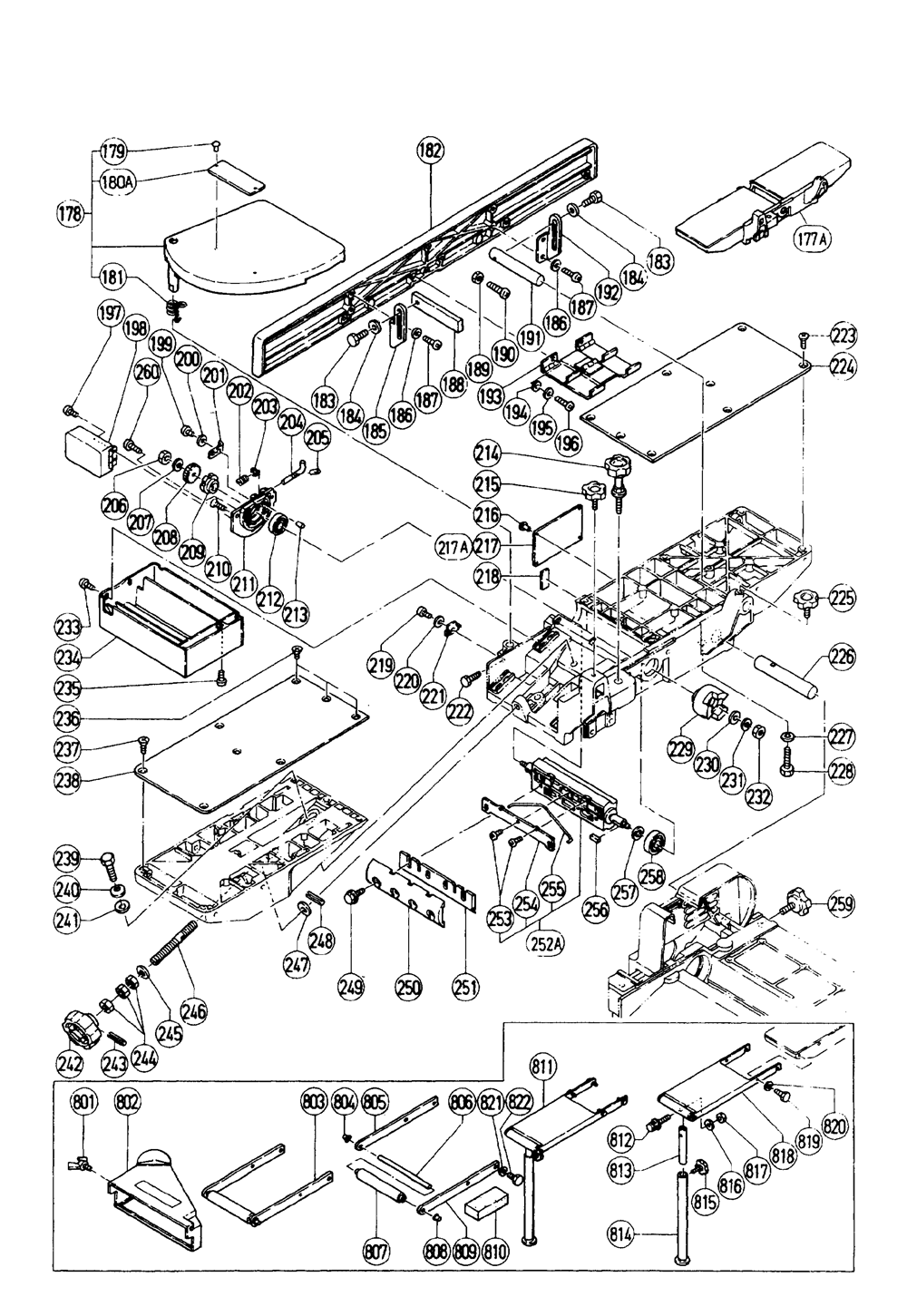

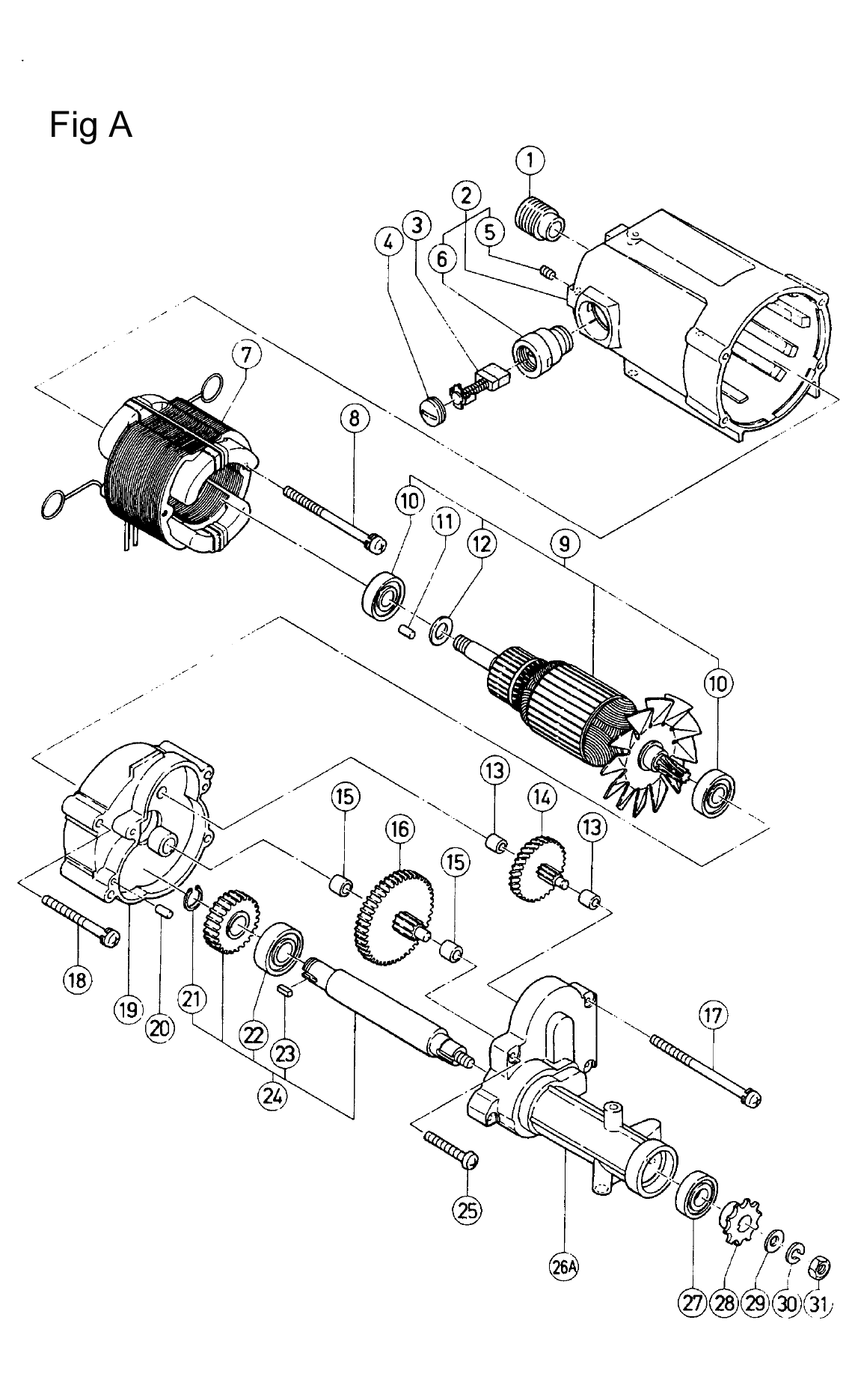

Hitachi P12RA Planer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 949451 LOCK WASHER M3 (10pc) CB75F $1.55
2 303-963 GAUGE P12RA/P12R $31.21
3 949451 LOCK WASHER M3 (10pc) CB75F $1.55
4 303-951 HEAD P12R/P12RA $190.78
5 949451 LOCK WASHER M3 (10pc) CB75F $1.55
6 302- 809 PLATE P12RA P12R $86.18
7 949-236 Machine Screw M5X10 (10 Pcs.) $1.55
8 949-612 BOLT M6X14 (10 PCS) P12R P12RA $1.55
10A 305-429 LOCK NUT M16 P12R/RA $4.80
11 303- 893 TABLE FOR AUTOMATIC FEED P12RA $289.00
12 949-236 Machine Screw M5X10 (10 Pcs.) $1.55
13 949-432 BOLT WASHER M6 (10 PCS.) $1.20
14 302- 810 INDICATOR P12R P12RA $1.27
16 949-331 FLAT HD SCREW M5x10 (10pc) $1.55
18 949451 LOCK WASHER M3 (10pc) CB75F $1.55
19 949-216 MACHINE SCREW M4X10 (10 PCS.) $1.19
20 949-216 MACHINE SCREW M4X10 (10 PCS.) $1.19
21 949-237 MACHINE SCREW M5X12 (10 PCS.) $1.33
22A 302- 849 SIDE COVER (B) P12RA P12R $30.30
23 303- 125 STEP ASSY (B) P12R P12RA $31.21
24 303- 109 GRIP P12R P12RA $3.60
25 949- 622 BOLT M8x16 (10pc) C10RAS P12RA $1.88
26 949451 LOCK WASHER M3 (10pc) CB75F $1.55
27 949-237 MACHINE SCREW M5X12 (10 PCS.) $1.33
28 996-534 CORD CLIP P12R P12RA $1.27
30A 303-949 CORD P12RA/P12R $23.20
30 500-400Z CORD, ELECTRICAL W/GROUND WIRE $31.47
31 302-804 FEED SCREW P12R/P12RA $10.36
32 949-235 MACHINE SCREW M5X8 (10 PCS.) $2.26
33 949451 LOCK WASHER M3 (10pc) CB75F $1.55
34 302-832 COVER (B) P12RA P12R $4.93
35 302-833 PACKING P12R P12RA $1.27
36 302-831 COVER (A) P12RA P12R $5.56
37 302-830 GEAR BOX P12R P12RA $12.05
38 949-431 BOLT WASHER M5 (10 PCS.) $1.88
39A 306- 091 BEVEL GEAR ASSY P12R/P12RA $32.69
40 302- 795 THRUST WASHER (A) P12R/P12RA $4.93
40A 938051 CORD ARMOR D10.1 M12V H45SB2 $1.19
41 302-796 BUSHING P12R P12RA $7.67
42 995- 046 MACHINE SCREW W/WASHER M5x12 $1.53
43 303- 939 TERMINAL COVER P12R P12RA $5.71
44 986011 TAP SCREW D5x30 GP2/S2 CR18DL $1.55
47 996-530 NYLON CLIP C8FB2 P12RA C12FA $1.24
48A 306-090 BASE ASSEMBLY P12R P12RA $421.72
49 964-851 BASE RUBBER $1.24
50 949-431 BOLT WASHER M5 (10 PCS.) $1.88
51 949-241 MACHINE SCREWS M5x20 10PS $2.42
52 302-797 THRUST WASHER (B) P12R/P12RA $2.87
53 302-798 SPECIAL NUT (A) P12R/P12RA $5.56
54 302-799 SPECIAL NUT (B) P12R/P12RA $7.67
56 302-806 SIDE COVER (A) P12RA P12R $29.92
58 303-964 CAUTION LABEL (A) P12RA $2.54
59 303-941 NAME PLATE P12RA $3.80
60 949-245 MACHINE SCREW M5X30 (10 PCS.) $2.04
61 949-431 BOLT WASHER M5 (10 PCS.) $1.88
62 949-548 ROLL PIN D4x25 (10pc) C12FSA $3.21
64 302-802 WASHER P12R/P12RA $1.27
65 976-233 SENSOR SPRING P12RA/P12R $2.87
66 932-314 WASHER P12RA P12R CB100F $1.55
67 949-548 ROLL PIN D4x25 (10pc) C12FSA $3.21
68 302-800 HANDLE SHAFT P12R P12RA $13.06
69 949-548 ROLL PIN D4x25 (10pc) C12FSA $3.21
70 302-803 HANDLE ASSY P12R/P12RA $16.70
71 949-548 ROLL PIN D4x25 (10pc) C12FSA $3.21
72 967-614 FEED GRIP (A) P12R P12RA $7.96
73 303-965 GRIP SHAFT P12 P12RA $3.60
74 949-431 BOLT WASHER M5 (10 PCS.) $1.88
75 949-611 BOLT M6X12 (10 PCS) P12R P12RA $1.55
76 949451 LOCK WASHER M3 (10pc) CB75F $1.55
77 988-889 TAPPING SCREW W/WASHER D4x25 $1.24
78 995-062 TAPPING SCREW W/WASHER D4 X 16 $1.27
79 995-062 TAPPING SCREW W/WASHER D4 X 16 $1.27
80 303-948 SWITCH GUARD P12RA P12R $24.20
81 304-004 VINYL COVER P12R/P12RA $1.88
82 303-947 SWITCH PLATE (A) P12RA P12R $2.87
83 303-946 PILLAR TERMINAL P12R P12RA $2.87
84 972-082Z SWITCH 1P SolderType CB75F $52.31
85 303-945 FASTON (C) P12R/P12RA $1.27
86 303-944 INSULATING SLEEVE P12R P12RA $1.27
87 986011 TAP SCREW D5x30 GP2/S2 CR18DL $1.55
88 302-828 SWITCH BOX P12RA P12R P100R $7.67
89 303-000 PACKING (A) P12R P12RA $1.27
90 949-236 Machine Screw M5X10 (10 Pcs.) $1.55
91 302-826 CHIP GUIDE P12R P12RA $2.87
92 303-001 PIN D8x10 P12R/P12RA $1.27
93 949-235 MACHINE SCREW M5X8 (10 PCS.) $2.26
94 949-236 Machine Screw M5X10 (10 Pcs.) $1.55
96 302-829 SWITCH COVER P12RA P12R $2.87
97 996-255 TAPPING SCREW W/WASHER D4 X 20 $1.27
98 302-815 BELT P12R P12RA $25.89
99 302-852 COUPLING RUBBER P12R P12RA $4.29
100 302-999 NUT (LEFT HAND) M10 P12R P12RA $2.25
101 302-760 BELLEVILLE SPRING M10 P12R/RA $1.27
102 302-998 WASHER (I) C15FB/C8FB2/P12RA/R $1.24
103 302-814 PULLEY (B) P12R P12RA $30.54
104 967-270 RETAINING RING P12RA D52SHAFT $2.59
105 946-362 BEARING LOCK CR10V CR12V D13 $1.24
106 6304VV BALL BEARING 6304VVCMAV2S $15.02
107 304-005 CAUTION LABEL (B) P12RA $1.59
108 949-510 RIVET D2.5x4.8 (10pc) C15FB $1.19
111 302-825 TAP SCREW D5x16 P12R P12RA $1.27
112 303-942 HITACHI LABEL P12RA $15.02
113 949-431 BOLT WASHER M5 (10 PCS.) $1.88
114 949451 LOCK WASHER M3 (10pc) CB75F $1.55
115 949-431 BOLT WASHER M5 (10 PCS.) $1.88
116 303-955 CHIP COVER P12R/P12RA $146.09
118 949451 LOCK WASHER M3 (10pc) CB75F $1.55
119 303-113 LOCK PIN P12R P12RA $4.93
120 303-002 SPACER D6x8 P12R/P12RA $1.27
121 972-793 BUTTON HD SOCKET SCREW $1.27
122 302-774 SLOTTED PIN D2x8 P12R/P12RA $1.27
123 968-643 RETAINING RING H90SB D4SHAFT $2.25
124 988-810 LOCK SPRING P12R P12RA $4.00
125 303-004 ARM SPRING P12R/P12RA $2.25
126 303-003 TENSIONER ASSY P12R P12RA $22.15
127 949-567 LOCK NUT M6 P12R P12RA 10PS $1.27
128 303-116 ARM P12RA P12R $3.87
129 303-117 ARM PIECE P12R/P12RA $10.36
130 303-118 METAL (A) P12R P12RA $1.27
131 303-119 SPECIAL BOLT M6x15 P12R P12RA $2.25
132 303-005 SPECIAL BOLT M8 P12R P12RA $3.87
133 620-2VV BALL BEARING 6202VVCMPS2L P12R $7.64
134 976-301 BEARING LOCK C8FB2 C10FS P12R $1.24
135 939-556 RetainingRing forD35shaft 10PS $11.04
136 302-823 LOCK RING (A) P12R P12RA $3.87
137 949451 LOCK WASHER M3 (10pc) CB75F $1.55
138 949-568 LOCK NUT M8 (10pc) C8FB2 $1.88
139 303-006 SPACER D4x10 P12R/P12RA $1.27
140 949451 LOCK WASHER M3 (10pc) CB75F $1.55
141 949-221 CR.RE.PAN HD SCREW M4x20 10PS $1.18
142 945-072 KEY M5x5x15mm P12R/P12RA $1.67
143 302-781 BOLT P12R/P12RA $1.55
144 973-819 BLADE HOLDER ASSY 2PC F1000A $95.35
146 316098 CUTTER BLOCK (A) ASSY P12R/RA $265.22
148 302-818 METAL P12R P12RA $4.93
149 972-017 METAL HOLDER (B) P12R P12RA $3.19
150 949-239 SCREWS M5x16 10PS NV50A1 CC12Y $1.75
153 302-818 METAL P12R P12RA $4.93
154 302-997 METAL HOLDER (A) P12R P12RA $2.87
155 949-239 SCREWS M5x16 10PS NV50A1 CC12Y $1.75
156 302-819 CHAIN COVER P12R P12RA $10.36
157 302-845 SPROCKET P12R P12RA $6.56
158 949-433 WASHER M8 C10FS CC14 10PS $1.24
159 949451 LOCK WASHER M3 (10pc) CB75F $1.55
160 949-568 LOCK NUT M8 (10pc) C8FB2 $1.88
162 302-818 METAL P12R P12RA $4.93
163 972-017 METAL HOLDER (B) P12R P12RA $3.19
164 949-239 SCREWS M5x16 10PS NV50A1 CC12Y $1.75
166 302-996 METAL SPRING (B) P12R P12RA $2.87
167 302-818 METAL P12R P12RA $4.93
168 302-997 METAL HOLDER (A) P12R P12RA $2.87
169 931-008 FEATHER KEY 4x4x12 C10FS P12RA $1.24
170 303-956 SPROCKET (A) P12R P12RA $29.92
171 302-845 SPROCKET P12R P12RA $6.56
172 949-433 WASHER M8 C10FS CC14 10PS $1.24
173 949451 LOCK WASHER M3 (10pc) CB75F $1.55
174 949-568 LOCK NUT M8 (10pc) C8FB2 $1.88
175 303-957 CHAIN (38 LINK) P12R P12RA $9.39
176 302-822 CHAIN (34 LINKS) P12R P12RA $10.36
178 303-940 SAFETY COVER (A) P12RA P12R $30.54
179 949-510 RIVET D2.5x4.8 (10pc) C15FB $1.19
180 973-948 CAUTION PLATE P12RA $2.32
181 947-603 SPRING (B) P12RA/R F1000A $3.80
182 304-002 GUIDE P12R/P12RA $119.33
183 988-167 HIGH TENSION BOLT M8x20 P12R $1.27
184 949-433 WASHER M8 C10FS CC14 10PS $1.24
185 302-769 GUIDE ARM (B) P12R/P12RA $3.60
186 949-245 MACHINE SCREW M5X30 (10 PCS.) $2.04
187 949-239 SCREWS M5x16 10PS NV50A1 CC12Y $1.75
188 302-788 GUIDE SHAFT (B) P12RA P12R $8.32
189 949-555 Hex Nut M5 NR83A NV50A1 10PS $1.24
190 949-243 MACHINE SCREW M5*0.8-25 10PS $1.97
191 302-787 GUIDE SHAFT (A) P12RA P12R $8.32
192 302-768 GUIDE ARM (A) P12R/P12RA $3.60
193 303-959 SAFETY COVER (C) P12RA P12R $37.77
194 998-980 SPACER C10FS C8FB2 P12RA P12R $1.24
195 949-432 BOLT WASHER M6 (10 PCS.) $1.20
196 949-236 Machine Screw M5X10 (10 Pcs.) $1.55
198 302-782 NUT COVER P12R/P12RA $7.67
200 949-429 WASHER M4 C8FB2 CC14 10PS $1.24
202 988-810 LOCK SPRING P12R P12RA $4.00
203 968-643 RETAINING RING H90SB D4SHAFT $2.25
204 302-773 LOCK PIN P12R/P12RA $3.60
205 302-774 SLOTTED PIN D2x8 P12R/P12RA $1.27
206 947-530 LEFT HAND NUT P12R/P12RA $1.67
207 949451 LOCK WASHER M3 (10pc) CB75F $1.55
208 302-775 NUT (A) P12R/P12RA $4.00
209 302-776 LOCK RING (B) P12R/P12RA $2.25
210 949-332 FLAT HD SCREW M5x12 P12RA 10PS $1.19
211 302-772 BEARING HOLDER (B) P12R/P12RA $24.46
212 600-1VV BALL BEARING 6001VVCMPS2L $9.97
213 976-301 BEARING LOCK C8FB2 C10FS P12R $1.24
214 303-127 KNOB BOLT M8x75 P12R P12RA $12.05
215 302-770 KNOB BOLT M6x15 P12R/P12RA $2.25
216 949-510 RIVET D2.5x4.8 (10pc) C15FB $1.19
220 949-429 WASHER M4 C8FB2 CC14 10PS $1.24
221 303-953 SCALE (C) P12R P12RA $3.23
222 949-613 BOLT M6x16 (10pc) C10FS C10RA $2.26
223 949-331 FLAT HD SCREW M5x10 (10pc) $1.55
224 302-765 JOINTER PLATE (B) P12RA P12R $40.92
225 302-770 KNOB BOLT M6x15 P12R/P12RA $2.25
226 302-853 SHAFT (B) P12R P12RA $14.03
227 949451 LOCK WASHER M3 (10pc) CB75F $1.55
228 949-628 BOLT M8x30 (10pc) CB75F P12R $2.87
229 302-851 COUPLING P12R P12RA $22.77
230 949-433 WASHER M8 C10FS CC14 10PS $1.24
231 949451 LOCK WASHER M3 (10pc) CB75F $1.55
232 949-568 LOCK NUT M8 (10pc) C8FB2 $1.88
233 949-431 BOLT WASHER M5 (10 PCS.) $1.88
234 303-960 CHUTE P12RA P12R $67.70
235 949-237 MACHINE SCREW M5X12 (10 PCS.) $1.33
236 949-792 FLAT HD SCREW M5x6 P12RA 10PS $1.55
237 949-331 FLAT HD SCREW M5x10 (10pc) $1.55
238 302-765 JOINTER PLATE (B) P12RA P12R $40.92
240 302-760 BELLEVILLE SPRING M10 P12R/RA $1.27
241 949-434 WASHER M10 10PS C8FB2 C12FSA $1.94
242 996-263 KNOB C10FS C8FB2 P12RA P12R $5.40
243 949-548 ROLL PIN D4x25 (10pc) C12FSA $3.21
244 965-502 SPECIAL NUT M10 P12RA P12R $1.27
245 949-434 WASHER M10 10PS C8FB2 C12FSA $1.94
246 302-761 FEED SCREW (B) P12R/P12RA $3.60
247 949-434 WASHER M10 10PS C8FB2 C12FSA $1.94
248 949-870 ROLL PIN D4x22 (10pc) C10RAS $3.23
249 302-781 BOLT P12R/P12RA $1.55
250 302-780 BLADE HOLDER (B) P12RA 2PS $27.22
252 302-777 CUTTER BLOCK (B) P12RA P12R $96.13
253 949-233 MACHINE SCREW M5X55 (10 PCS.) $2.59
254 302-779 SPRING COVER P12R P12RA $3.60
255 302-778 SPRING P12R P12RA $1.27
256 948-919 FEATHER KEY M4x4x15 H85 H90SB $1.24
257 302-848 DISTANCE WASHER P12R P12RA $4.93
258 608VVM BALL BEARING G10SR SP18SA $7.02
259 302-854 KNOB BOLT M8x25 P12R P12RA $4.29
260 949-431 BOLT WASHER M5 (10 PCS.) $1.88
261 305-193 PACKING P12R P12RA $6.98
262 305-189 FEED ROLLER SET P12RA/P12R $339.65
263 938051 CORD ARMOR D10.1 M12V H45SB2 $1.19
264 949-454 SPRING WASHER M5 (10 PCS.) $1.18
265 949451 LOCK WASHER M3 (10pc) CB75F $1.55
266 949-431 BOLT WASHER M5 (10 PCS.) $1.88
526A 309-685 GEAR CASE ASSY P12RA P12R $50.32
