Hitachi NV50AP2 Nailer Parts

Hitachi NV50AP2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

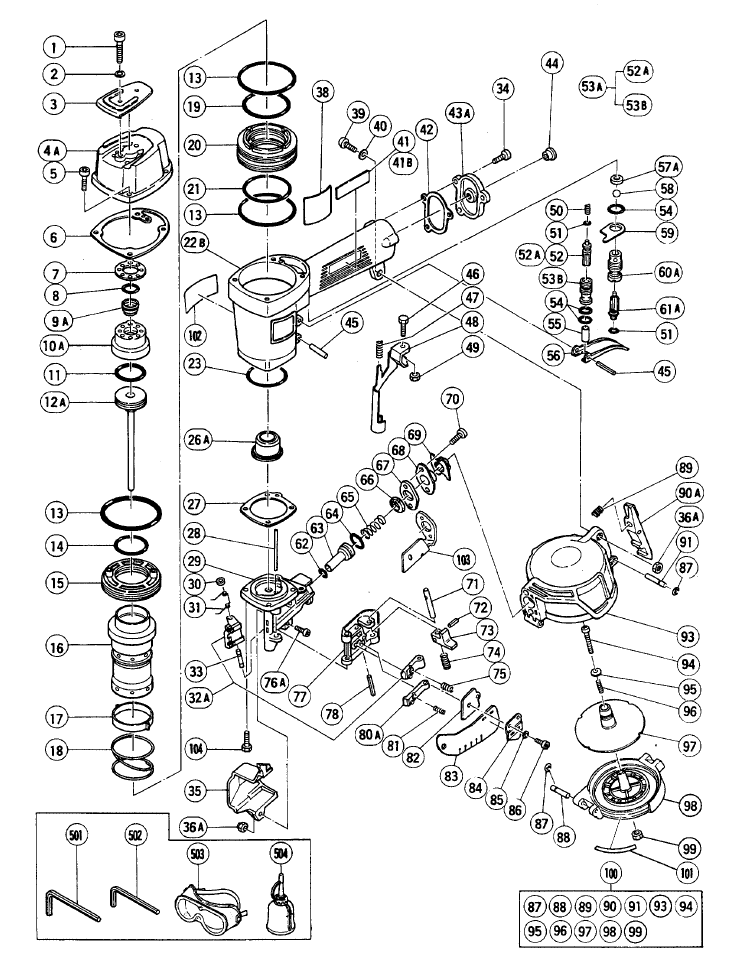

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	949-682	ROLL PIN D4x32 10PS NR90AD	$4.29
2	949451	LOCK WASHER M3 (10pc) CB75F	$1.55

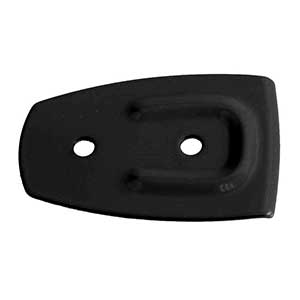

3	878-179	PISTON BUMPER NV45AB NV45AB2	$21.78
5	949-757	HEX SOCKET HD BOLT M5x20 10PS	$3.23

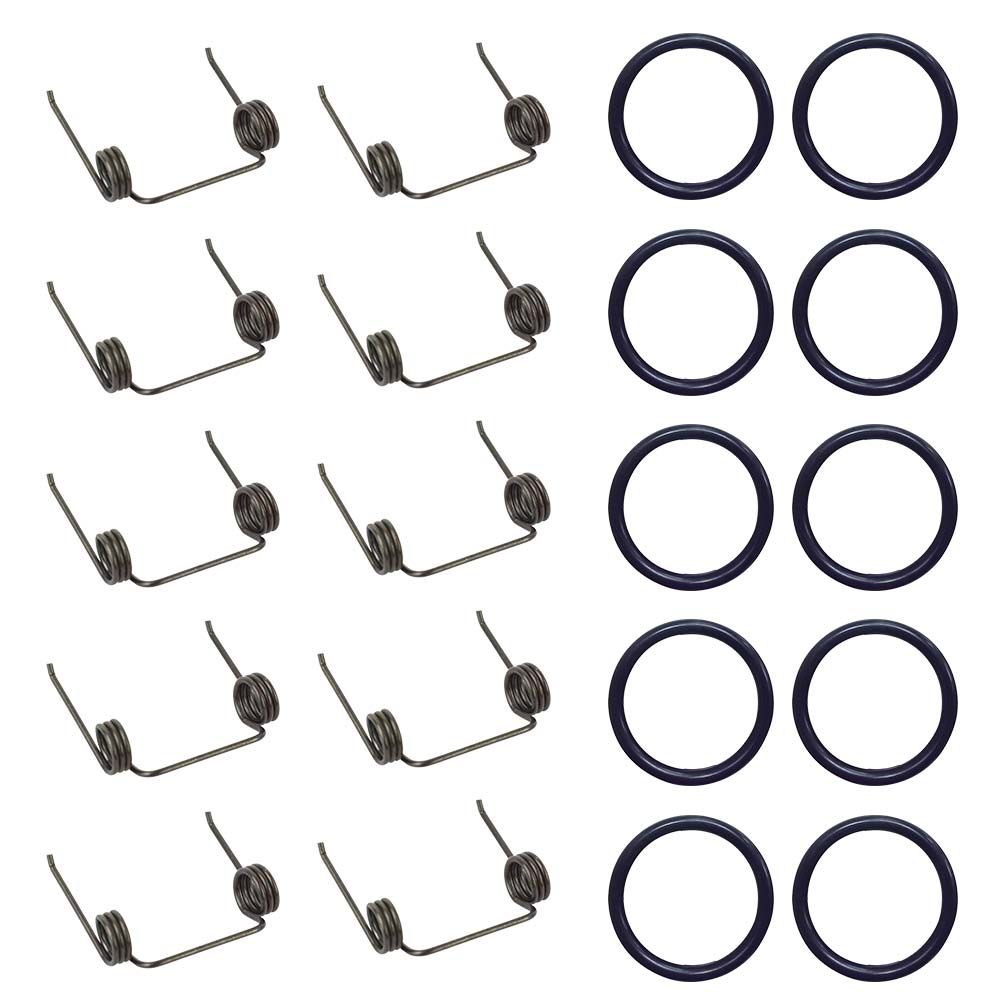

11	876-174	PISTON O-RING NV45AB/2 NT65A/2	$3.90

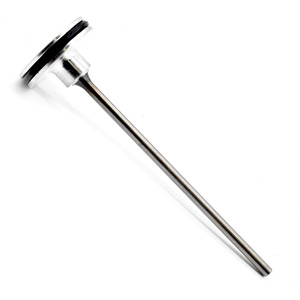

12A	877-898	PISTON (H) NV50A1	$134.55
13	876-161	O-RING (S-65)NT65A2/3 NV45AB/2	$3.23
14	877-126	CYLINDER O-RING (D) NT65A/2/3	$1.88
15	876-168	CYLINDER PLATE NT65A/A2/A3	$11.62
17	876-167	CYLINDER RING NT65A/2/NV45AB2	$1.20
18	876-172	CYLINDER SPRING NT65A/A2	$8.32
19	877-123	CYLINDER O-RING (A) NT65A/2/3	$2.59
20	877-122	CYLINDER GUIDE NT65A/A2/A3	$27.42
20B	725992R	SCREW SHOULDER 10PS NV50AP2	$15.15
21	877-124	CYLINDER O-RING (B) NV50A1/AA	$2.25
22B	882950	BODY (B) NV50A1 NV50AA	$163.95
23	877-125	CYLINDER O-RING (C) NT65A/A2	$2.25

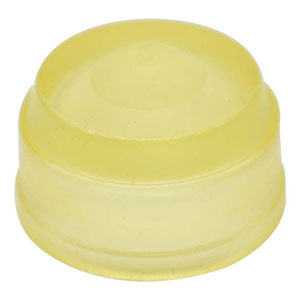

26A	878-179	PISTON BUMPER NV45AB NV45AB2	$21.78
27	876-673	GASKET (A) NV50A1/NV50AA	$1.19
28	877-823	NAIL GUIDE SHAFT NV65AC/NV50AP	$9.39
29	877-899	NOSE NV50A1 NV50AP	$297.95
30	877-826	FEEDER SHAFT RING NV45AB/VH650	$2.88
31	877-761	FEEDER SPRING NV45AB2	$2.88

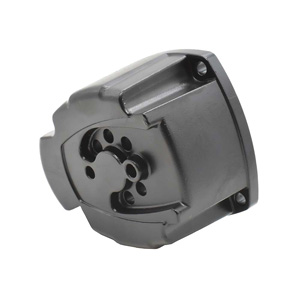

32A	880-270	FEEDER SET NV50A1	$37.77
33	877-825	FEEDER SHAFT NV45AB/NV45AB2	$10.36
34	949-821	HEX SKT HD BOLT M5x16 10PS	$3.02
36A	877-371	NYLON NUT M5 NR83A/AA NT65A2	$1.20
39	949-241	MACHINE SCREWS M5x20 10PS	$2.42
40	876-205	WASHER NT65A NV45AB/AC NV45AB2	$1.20
42	877-131	GASKET (D) NT65A/A2/A3 N3804A	$1.20
43A	880-036	CAP NV45AE NT65A2/A3 NV45AB/2	$7.23
44	872-035	DUST CAP N3824A/NC65AC/NR83A/	$1.19
46	875-650	SAFETY BOLT NR83A/AA NT65A/A2	$1.20
47	876-676	SAFETY SPRING	$1.20
48	877-890	PUSHING LEVER NV50A1	$29.66
49	949-555	Hex Nut M5 NR83A NV50A1 10PS	$1.24
51	874-820	PLUNGER O-RING NV45AB/2 NR83A	$1.88
53A	878-784	HEAD VALVE SPRING NC65AC	$3.58
57A	878-734	VALVE PACKING NR83A NR83AA	$1.20
63	877-475	FEED PISTON NV50A1	$17.14
64	873-570	O-RING (P 18) NV50A1/AP NV45AC	$1.55
66	877-476	BUMPER NV50A1 NV45AC NV50AP3	$2.59
67	877-477	FEED PISTON COVER (A) NV50A1	$1.20
68	877-478	FEED PISTON COVER (B) NV50A1	$3.23
69	877-479	MAGAZINE BUSHING NV65AC NV45AE	$1.88
70	949-819	HEX SOCKET HD BOLT M5x10 10PS	$2.88
73	877-374	GUIDE LOCK VH650 NV50AA NV50A1	$10.99
74	877-372	SPRING NV45AB/AB2 NV50AP/A1/AA	$2.59
75	878-881	VALVE BUSHING (B) NT65MA2/3	$40.92
80A	877-335	TRIGGER VALVE BUSHING NR83A	$7.97
80A	877-493	SUB NAIL STOPPER NV50A1 NV50AP	$22.51
81A	878-121	TRIGGER PLUNGER NR83A NR83AA	$1.87
83	877-475	FEED PISTON NV50A1	$17.14
83	877-470	COVER NV50A1	$1.88
84	873-570	O-RING (P 18) NV50A1/AP NV45AC	$1.55
84	877-471	COVER PLATE NV65AC/NV50A1	$2.25
85	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
87	877-477	FEED PISTON COVER (A) NV50A1	$1.20
87	872-971	RETAINING RING NV83A D3SHAFT	$1.20
88	877-478	FEED PISTON COVER (B) NV50A1	$3.23
88	949-811	HEX SOCKEHD BOLT M4x8 (10 PCS)	$2.59
88	877-152	HINGE PIN NV45AB NV50A1 NV50AA	$3.90
89	877-478	FEED PISTON COVER (B) NV50A1	$3.23
89	877-149	STOPPER SPRING NV45AB/AC	$1.20
91	877-150	STOPPER PIN NV45AB/AC/NV50AA	$3.90
93	877-908	POWER SET NV45AB2 NV45AB2(H)	$184.81
94	949-228	MACHINE SCREW M4x40 10PS	$1.55
97	877-893	NAIL HOLDER NV50A1 NV50AP	$10.99
98	877-894	HOLDER SPRING NV45AB/NT65AA	$1.19
98	877-895	MAGAZINE COVER NV50A1 NV50AP	$7.96
100	877-902	MAGAZINE ASSY NV50A1 NV50AP	$50.28
101	877-903	LABEL NV50A1/NV50AP	$1.19
104	878-181	NYLOCK HEX. SOCKET HD. BOLT M5	$1.24
