Hitachi NV50AG Nailer Parts

Hitachi NV50AG Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

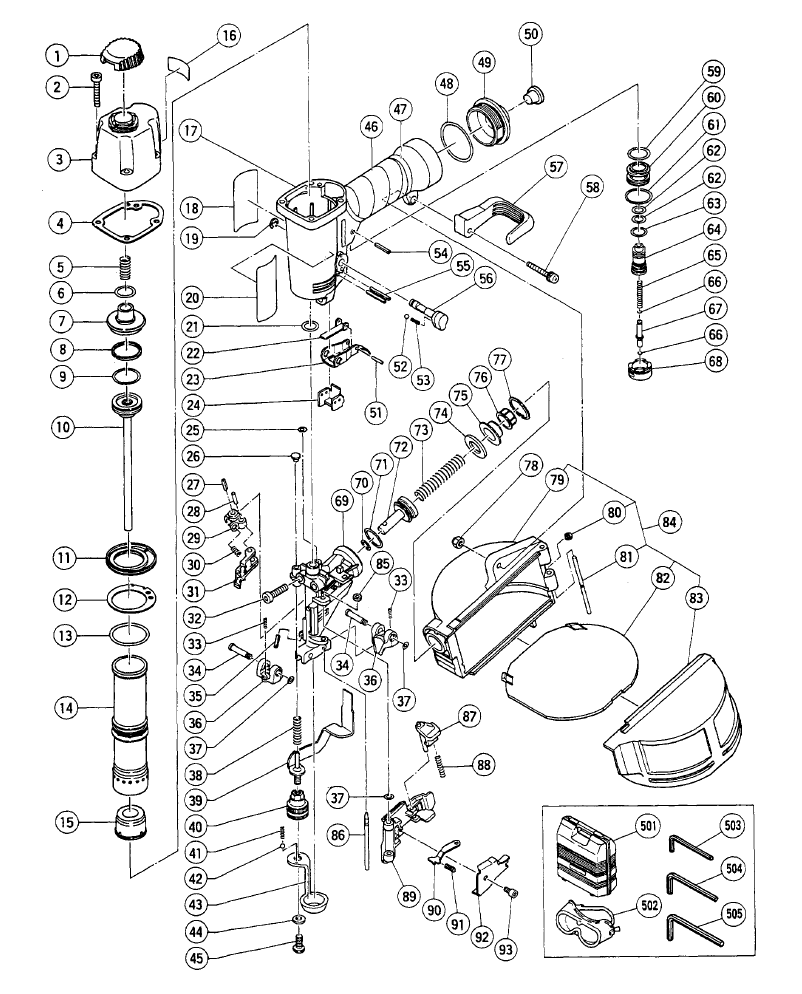

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	880- 191	TOP COVER NT50AD NV50AG	$8.32
2	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
4	880- 196	GASKET (A) NV50AG/NT50AD	$1.94
8	878- 596	PISTON RING NT45A NV50AG	$15.73
9	880-195	PISTON O-RING NV50AG/NT50AD	$1.20
13	986-374	O-RING NT32AE2 NT50AE2	$1.88
14	880-402	CYLINDER NV50AG	$52.36
15	880- 403	PISTON BUMPER NV50AG	$15.73
19	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.19
22	878 - 928	TRIGGER ARM NV50AE NV50AG	$23.84
23	878-927	TRIGGER NV50AE NV50AG	$25.54
27	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
28	983- 545	NEEDLE ROLLER C12LSH C12FCH	$1.19
29	878 - 132	FEEDER ARM NV65AH NV50AE/AG	$44.04
30	878- 340	FEEDER SPRING NV50AG/NV65AH	$1.20
31	880-433	FEEDER NV50AG	$47.18
32	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
33	880-447	SPRING NV50AG	$1.20
34	880 - 443	GUIDE SHAFT NV50AG	$14.74
35	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
36	880- 442	VERTICAL GUIDE NV50AG	$55.43
39	880- 171	PUSH LEVER (B) NV50AG	$50.32
40	880- 383	ADJUSTER (B) NV65AH NV50AG/E	$10.99
43	880- 434	PUSH LEVER (A) NV50AG	$70.78
44	880-081	WASHER NR90AC/AC2/3 NV65AH	$1.20
47	880-407	TAPE NR83A/AA NR90AC/AA NV83A	$1.88
48	880-183	O-RING (ID 37.2) NV65AH/NT50AD	$1.19
49	880-379	CAP NV50AP3 NV65AH NV45AC	$30.30
50	872-035	DUST CAP N3824A/NC65AC/NR83A/	$1.19
51	878-965	ROLL PIN D2 5x16 NV50AG/AE	$1.19
52	959-155	STEEL BALL D3.97 10PS DH38YE	$1.19
53	982-454	SPRING (C) NR90AC/2/3 NV50AP3	$1.19
54	949-518	ROLL PIN(10pc) NR83A2 C10FCD	$2.48
55	949-539	ROLL PIN D3x25 10PS C8FB2C10FS	$2.87
56	878-929	CHANGE KNOB NV50AE/NV50AG	$114.18
58	997-234	MACH SCREW W/WASHERS M5x35	$1.19
59	877-699	HEAD VALVE 0-RING NR90AC/65AK	$1.19
60	878-881	VALVE BUSHING (B) NT65MA2/3	$40.92
61	878-885	O-RING S-18 NR90AC/2/AA/NV45AC	$1.48
62	878-925	O-RING NR90AC/AA/AC2/3 NR65AK	$1.20
63	878-887	O-RING (I.D 11)NR90AC/AA/AC2/3	$1.88
64	878-922	VALVE PISTON NT65AA/MA NV50AE	$52.36
66	878-888	O-RING (ID1.8)NR90AC/AA/NV45AC	$1.20
67	878-923	PLUNGER NV50AE NV50AG	$47.18
68	878-880	VALVE BUSHING (A) NV50AE/AG	$67.70
69	880-430	NOSE NV50AG	$387.27
71	944-486	O-RING (1AP-20) NV50AG WH16	$1.19
73	880-445	FEED SPRING NV50AG	$1.88
74	877-711	BUMPER NV83A/2 NV50AG NV75AG	$2.25
75	880-331	FEED PISTON COVER NV65AH	$4.93
76	878-305	MAGAZINE BUSHING NV83A NV65AH	$1.20
77	939-555	RETAINING RING NV65AH 10PS	$6.98
78	877-371	NYLON NUT M5 NR83A/AA NT65A2	$1.20
80	872-971	RETAINING RING NV83A D3SHAFT	$1.20
81	880-439	HINGE PIN NV50AG	$7.67
82	880-438	NAIL HOLDER NV50AG	$7.67
83	880-437	MAGAZINE COVER NV50AG	$9.99
84	880-435	MAGAZINE ASSY NV50AG	$40.92
85	880-319	SHAFT RING NV65AH NV75AG	$1.88
87	878-103	GUIDE LOCK NC65AC NV50AP3	$12.69
88	880-446	SPRING NV65AH NV50AE NC65AC	$1.55
89	880-431	NAIL GUIDE NV50AG	$83.04
92	880-432	NAIL GUIDE COVER NV50AG	$6.56
93	880-413	NYLOCK HEX SK HD BOLT M4x10	$1.20
