Hitachi NT65MA4 Nailer Parts

Hitachi NT65MA4 Parts

Download Schematic

Time to buy a new tool?

Hitachi NT65MA4

2-1/2 Inch 15-Gauge ...

$179.99

Free Shipping

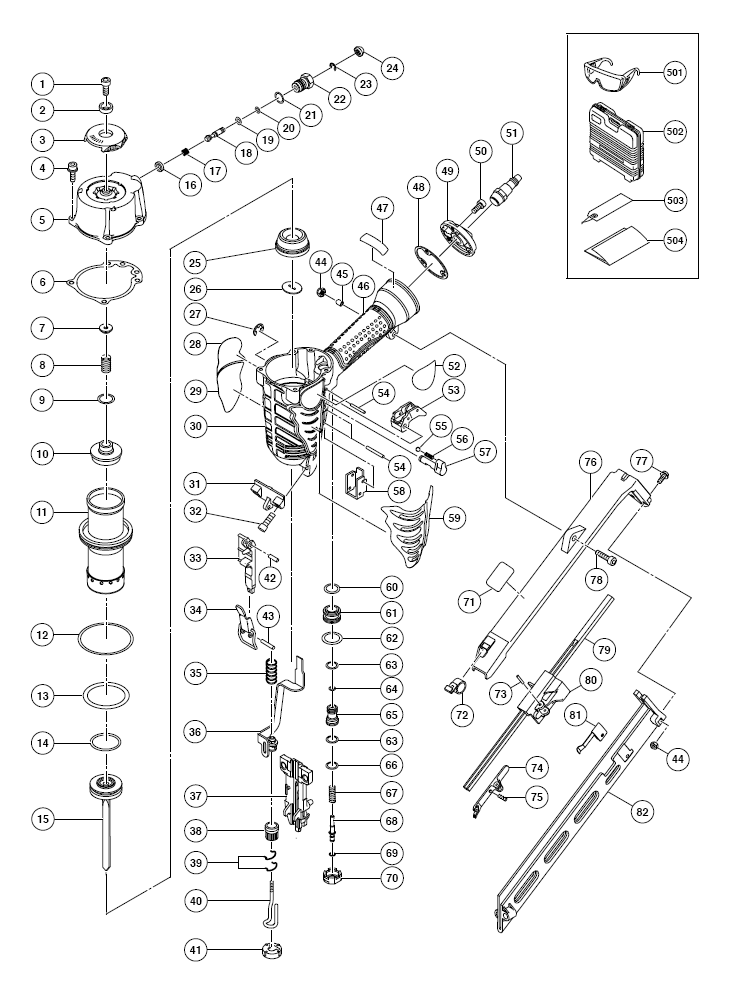

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	949-657	HEX SOCKET HD BOLT M6x12 10PS	$3.23
2	880-515	PLATE NR90AC/AA NV65AH NT65MA2	$6.98
3	885-673	TOP COVER NT65M2 NT65M3	$5.69
4	885-637	HX SCKT HD BOLT NT65M2/M3	$1.56
5	885-964	EXHAUST COVER NT65MA3	$23.47
6	885-965	GASKET NT65MA3	$4.27
7	882-914	HEAD BUMPER:NR65AK NV75AG	$6.98
8	882-913	HEAD VALVE SPRING NR65AK	$6.98
9	883-992	O-RING NR65AK NT65MA2 NV75AG	$2.27
10	882-927	HEAD VALVE (A) NR65AK NT65MA2	$14.60
11	884-329	CYLINDER NT65MA2 NT65MA3	$44.01
12	884-339	CYLINDER O-RING NT65MA3	$2.92
14	882-685	O-RING NV65AH NT65MA2 NT65MA3	$1.88
15	884-330	PISTON ASS'Y NT65MA2 NT65MA3	$73.87
16	884-338	VALVE PACKING NT65M2 NT65MA3	$1.56
17	881-900	SPRING NT65MA NT65MA2 NT65M	$1.88
18	884-333	PLUNGER NT65MA2 NT65M NT65M2	$3.53
19	873-093	O-RING (1AP-3)	$1.24
20	881-715	O-RING (S3) NT65MA NT65MA2	$1.27
21	987-105	O-RING NC65AC/NT65MA NT65MA2	$1.19
22	882-701	VALVE BUSHING NT65MA2 NT65M	$19.09
23	968-643	RETAINING RING H90SB D4SHAFT	$2.25
24	884-334	KNOB NT65MA2 NT65M NT65M2	$1.88
25	881-741	PISTON BUMPER NT65AA/NT65MA	$10.99
26	881-756	BUMPER SHEET NT65MA2 NT65AA	$1.20
27	955-479	RETAINING RING (E-TYPE) FOR D6 SHAFT	$1.46
30	885-963	BODY ASS'Y NT65MA3	$78.89
31	881-764	GUIDE PLATE (B) NT65AA N65MA2	$29.66
32	949-661	HEX SOCKET HD BOLT M6x30 10PS	$4.29
33	881-743	GUIDE BLADE (A) NT65AA NT65MA2	$55.43
34	884-323	LOCK LEVER NT65MA2 NT65M	$6.97
35	877-894	HOLDER SPRING NV45AB/NT65AA	$1.19
36	884-326	PUSHING LEVER (B) NT65MA2	$28.39
37	881-742	BLADE GUIDE NT65AA NT65MA2	$92.26
38	884-325	ADJUSTER NT65MA2 NT65M NT65M2	$3.53
39	881-765	RATCHET SPRING NT65MA2 NT65MA	$2.25
40	884-324	PUSHING LEVER (A) NT65MA3	$6.97
42	949-770	ROLL PIN D4X14 (10 PCS.)	$2.88
43	949-685	ROLL PIN D3x20 10PS NT65A2/A3	$2.88
44	877-371	NYLON NUT M5 NR83A/AA NT65A2	$1.20
45	881-774	SLEEVE NT65AA NT65MA NT65MA2	$3.58
48	884-342	GASKET (B) NT65M2 NT32AE2	$1.56
49	885-959	CAP (A) NT32AE2 NT50AE2	$6.68
50	949-821	HEX SKT HD BOLT M5x16 10PS	$3.02
53	884-145	TRIGGER (A) NT65MA2 NT65M	$6.97
54	949-865	ROLL PIN D3x28 (10 pc) NR90AC	$2.88
55	959-155	STEEL BALL D3.97 10PS DH38YE	$1.19
56	982-454	SPRING (C) NR90AC/2/3 NV50AP3	$1.19
57	884-335	CHANGE KNOB NT65MA2 NT65M	$5.26
58	884-336	PUSHING LEVER GUIDE NT65MA2/MA	$3.53
59	885-675	PROTECTOR NT65M2 NT65MA3	$5.69
60	877-699	HEAD VALVE 0-RING NR90AC/65AK	$1.19
61	878-881	VALVE BUSHING (B) NT65MA2/3	$40.92
62	878-885	O-RING S-18 NR90AC/2/AA/NV45AC	$1.48
63	878-925	O-RING NR90AC/AA/AC2/3 NR65AK	$1.20
64	981-317	O-RING (S-4) NR90AC/AC2/3/AD	$1.19
65	884-143	VALVE PISTON (B) NT65MA2 NT65M	$10.33
66	878-887	O-RING (I.D 11)NR90AC/AA/AC2/3	$1.88
67	884-966	PLUNGER SPRING NR90AD NT65M2	$1.84
68	884-144	PLUNGER (A) NT65MA2, NR90AC3	$3.53
69	878-888	O-RING (ID1.8)NR90AC/AA/NV45AC	$1.20
70	884-341	VALVE BUSHING (A) NT65MA3	$24.27
72	881-755	RIBBON SPRING NT65MA/2/3/4	$3.58
73	881-767	ROLL PIN D2.5x20 STAINLESS	$1.19
74	881-746	NAIL FEEDER (A) NT65AA NT65MA	$20.45
75	880-321	PUSHING SPRING NT65AA NT65MA	$1.19
76	881-752	MAGAZINE COVER NT65AA NT65MA	$10.36
77	885-997	MACHINE SCREW M5x15 (BLK)	$1.55
78	881-773	HEX SOCK HD BOLT w/FLNG M5x20	$1.88
79	884-327	NAIL RAIL NT65MA2 NT65MA3	$11.65
80	881-744	NAIL FEEDER (B) NT65AA NT65MA	$4.93
81	881-766	NAIL STOPPER NT65AA NT65MA	$3.58
82	885-962	MAGAZINE NT65MA3	$16.18
503	884-337	CAUTION TAG	$3.53
504	885-244	LEAFLET	$8.26
602	884-321	TRIGGER (A)	$55.46
603	881-778	PLUNGER (B) NT65AA NT65MA/3	$9.66
604	878-888	O-RING (ID1.8)NR90AC/AA/NV45AC	$1.20
605	880-672	VALVE PISTON (B) NR90AC/AC2/AA	$34.61
606	884-322	TRIGGER PIN	$20.46
607	881-768	"GRIP TAPE UNIVERSAL 21"" LONG"	$5.58
608	880-407	TAPE NR83A/AA NR90AC/AA NV83A	$1.88
