Hitachi NR90GR Nailer Parts

Hitachi NR90GR Parts

Download Schematic

Time to buy a new tool?

Hitachi NR90GR

3-1/2 Inch Gas Power...

$307.99

Free Shipping

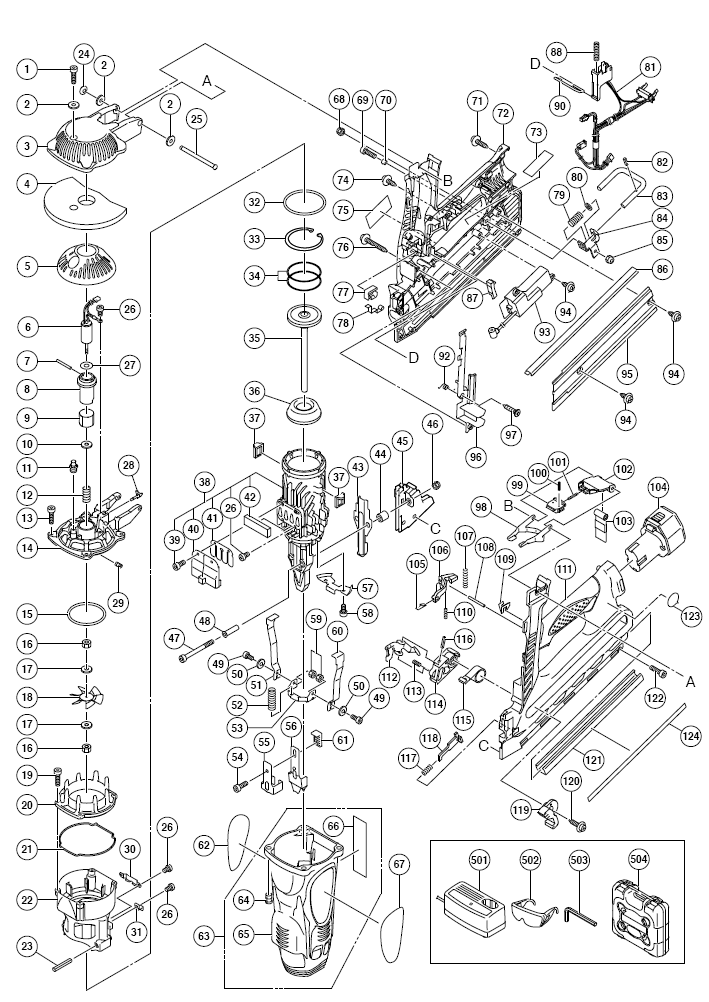

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	996-399	HEX SOCKET BOLT M5x12 w/FLANGE	$1.11
2	949-424	WASHER M5 D13 D13M 10PS NT65A3	$1.20
3	885-353	TOP COVER NR90GC	$9.40
4	885-274	FILTER NR90GC	$3.46
5	885-275	FILTER COVER NR90GC NR90GR	$3.46
9	885-314	MOUNT SLEEVE NR90GC NR90GC2	$1.84
10	885-320	SHAFT WASHER NR90GC NR90GC2	$1.84
12	885-319	MOTOR SPRING NR90GC NR90GC2	$1.84
13	949-757	HEX SOCKET HD BOLT M5x20 10PS	$3.23
14	885-308	CYLINDER HEAD NR90GC NR90GC2	$33.56
15	885-316	O-RING (I.D. 59.92) NR90GC/GR	$5.11
16	949-554	HEX NUT M4 10PS NR90GC/2 CB75	$1.18
17	949-423	WASHER M4 (10pc) DH40MA/MB	$1.19
18	885-311	FAN NR90GC NR90GC2	$5.11
19	949-754	HexSockHDBoltM4x16 NR90AC 10PS	$2.59
21	885-295	GASKET (A) NR90GC NR90GR	$3.46
22	885-296	CHAMBER NR90GC NR90GC2	$25.09
23	884-975	ROLL PIN D3x32 NR90AD/E NR90GC	$1.84
24	880-319	SHAFT RING NV65AH NV75AG	$1.88
25	885-277	SHAFT NR90GC NR90GC2	$3.46
27	885-313	RUBBER WASHER NR90GC NR90GC2	$1.84
28	885-317	ADAPTER NR90GC NR90GC2 NC40G	$1.84
29	961-681	HEX SOCKET SET SCREW M4x5 WH16	$1.55
30	885-297	CHAMBER LOCK PLATE NR90GC	$3.46
31	885-306	SWITCH PLATE NR90GC NR90GC2	$1.84
32	885-283	O-RING (I.D. 66.27) NR90GC/GR	$6.77
33	885-285	RETAINING RING NR90GC NR90GC2	$1.84
34	885-286	PISTON RING NR90GC NR90GC2	$10.68
35	885-619	PISTON	$56.07
36	885-289	PISTON BUMPER NR90GC NR90GR	$8.68
37	885-284	CHAMBER STOP RUBBER NR90GC	$1.84
38	885-618	CYLINDER ASS’Y	$103.17
39	949-812	HexSockHDBoltM4x10 CE16 10PS	$2.59
40	885-287	BUFER COVER NR90GC	$5.11
41	885-290	LEAD VALVE NR90GC NR90GC2	$1.84
42	885-288	MUFFLER NR90GC NR90AC2	$13.98
43	885-632	BLADE GUIDE (A)	$8.18
44	885-270	PLATE SLEEVE NR90GC NR90GR	$1.84
45	885-622	SIDE PLATE (A)	$26.62
46	945-255	U-NUT M5 NV45AB NV45AC NV50AA	$1.20
47	949-897	HEX SOCKET HD BOLT M5x50 10PS	$6.77
48	885-269	NOSE SLEEVE NR90GC NR90GC2	$1.84
49	949-812	HexSockHDBoltM4x10 CE16 10PS	$2.59
50	949-453	Spring Washer M4 (10 Pcs.)	$2.42
53	885-301	PUSHING LEVER CONNECTOR NR90GC	$5.11
54	949-819	HEX SOCKET HD BOLT M5x10 10PS	$2.88
56	885-271	PUSHING LEVER NR90GC	$11.99
57	885-625	CYLINDER PLATE (A)	$7.58
58	980-046	SL LCK HEX SCKT HD BOLT M5x10	$1.84
59	956-329	U-NUT M4 NR90GC NR90GC2	$1.16
60	885-787	PUSHING LEVER ARM (A) NR90GC	$6.68
61	885-272	ADJUSTER BUSH (S) NR90GC/GC2	$6.77
64	885-304	SCREW M5 NR90GC NR90GC2	$1.84
66	885-307	INSULATOR SHEET NR90GC/GC2	$1.84
68	876-465	NYLON NUT M4 NR83A/AA NR90AC	$1.19
69	949-820	HEX SKT HD BOLTM5x15 C12Y 10PS	$2.81
70	878-164	SLEEVE NV45AB NV45AB2 NV45AC	$15.73
71	302-086	SCREW W/FLANGE D4x20 WR12DM2	$1.27
74	305-812	TAP SCREW w/FLANGE D4x16 (BLK)	$1.06
76	301-815	SCREW (W/FLANGE) D4x45 M12V	$1.27
77	885-334	SWITCH MOUNT NR90GC NR90GC2	$1.84
78	885-347	SWITCH ARM NR90GC NR90GC2	$1.84
79	885-345	SPRING D12 NR90GC	$1.84
80	956-161	WASHER (B) SP18V NR90GC	$1.89
81	885-799	TRIGGER INTERNAL WIRE (C) SET	$55.55
82	949-900	ROLL PIN CD14F D3X14 10PCS	$3.70
83	885-343	HOOK NR90GC	$8.05
84	885-344	BRACKET NR90GC	$3.46
85	877-371	NYLON NUT M5 NR83A/AA NT65A2	$1.20
86	885-629	NAIL RAIL (A)	$11.28
87	885-628	PRISM (A)	$3.27
90	885-340	CHAMBER LOCK BAR NR90GC	$3.46
92	885-337	LOCK BAR SPRING NR90GC NR90GC2	$1.84
93	885-595	CONTROLLER NR90GC NR90GC2	$89.49
94	309-933	TAPPING SCREW D4x14 NR90GC/2	$1.16
95	885-630	MAGAZINE PLATE (A)	$6.37
96	885-339	WIRING COVER NR90GC NR90GC2	$3.46
97	885-346	FLAT HD TAPPING SCRW D4 NR90GC	$1.84
98	885-276	CELL LEVER NR90GC	$5.11
99	885-280	LATCH NR90GC NR90GC2	$1.84
100	949-859	ROLL PIN D2x8 (10 pc) NC40G	$1.53
101	885-281	SPRING D3.6 NR90GC NR90GC2	$1.84
102	885-352	CELL COVER NR90GC NR90GC2	$3.46
103	885-279	CELL RUBBER NR90GC	$3.46
107	885-518	SPRING NR90GC NR90GC2	$1.84
108	885-349	PIN D2.5 NR90GC NR90GC2	$1.84
109	885-329	LEVER STOPPER NR90GC	$1.84
110	885-350	SPRING D2.95 NR90GC	$1.84
111	885-620	HANDLE (C)	$37.85
112	885-621	NAIL FEEDER	$6.37
113	883-687	SPRING NR90AC2/3 NR90GC2/R2	$1.88
114	885-324	NAIL FEEDER (B) NR90GC NR90GC2	$3.46
115	885-325	RIBBON SPRING NR90GC NR90GC2	$8.05
116	949-506	ROLL PIN D4x28 (10pc) F1000A	$2.91
117	885-328	SPRING NR90GC NR90GC2	$1.84
118	885-623	PUSHING LEVER STOPPER (A)	$4.81
119	885-322	FEEDER KNOB NR90GC	$3.46
120	302-089	SCREW W/FLANGE D5X20 BLACK	$1.24
121	885-354	MAGAZINE GUARD NR90GC NR90GC2	$8.68
122	880-003	HEX SCKT HD BOLT M4x18 NR90GC	$1.16
