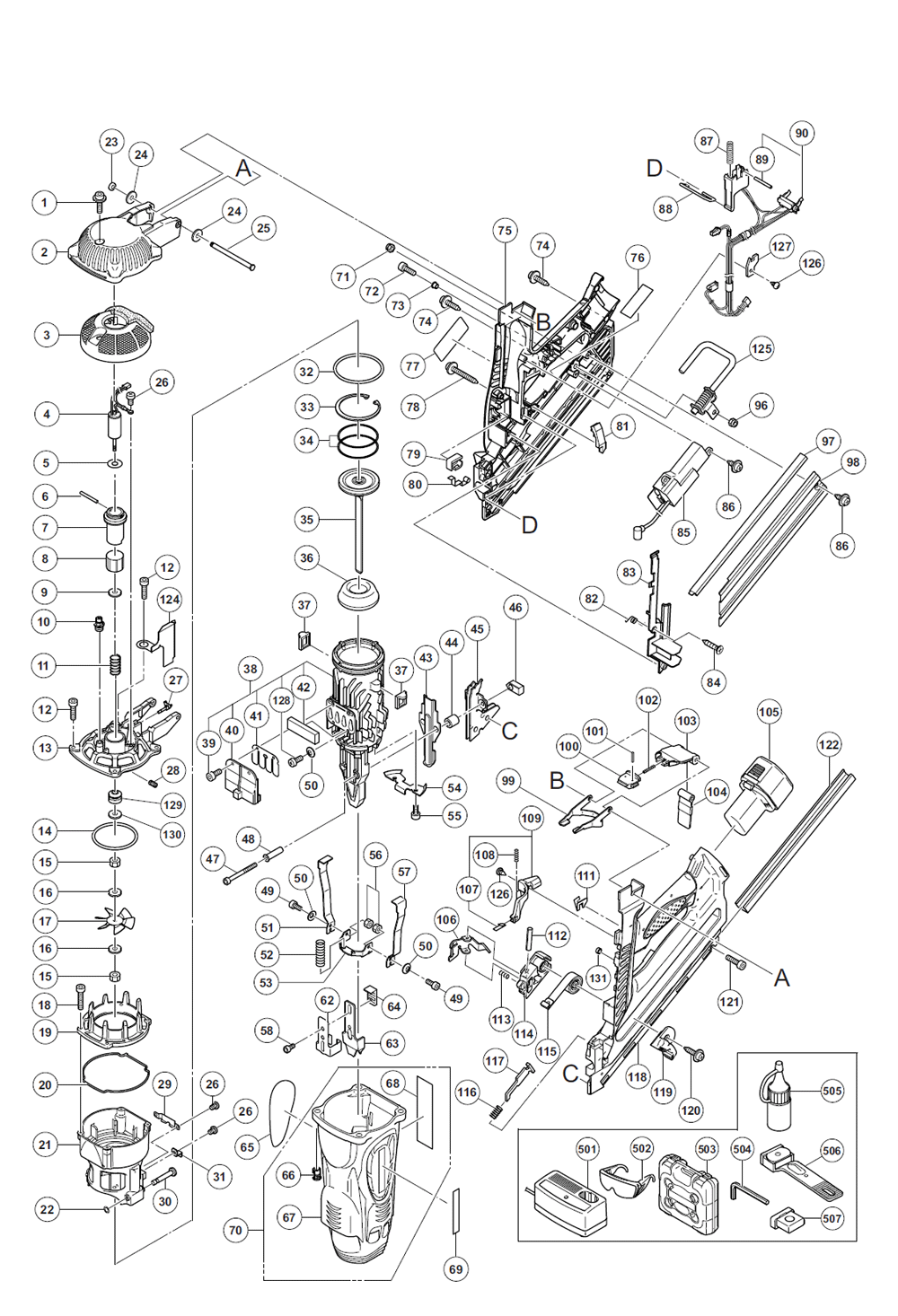

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	996-399	HEX SOCKET BOLT M5x12 w/FLANGE	$1.11
2	886-142	TOP COVER	$8.66
3	886-129	FILTER	$34.72
5	885-313	RUBBER WASHER NR90GC NR90GC2	$1.84
8	885-314	MOUNT SLEEVE NR90GC NR90GC2	$1.84
9	885-320	SHAFT WASHER NR90GC NR90GC2	$1.84
11	885-319	MOTOR SPRING NR90GC NR90GC2	$1.84
12	949-757	HEX SOCKET HD BOLT M5x20 10PS	$3.23
13	885-308	CYLINDER HEAD NR90GC NR90GC2	$33.56
14	885-316	O-RING (I.D. 59.92) NR90GC/GR	$5.11
15	949-554	HEX NUT M4 10PS NR90GC/2 CB75	$1.18
16	949-423	WASHER M4 (10pc) DH40MA/MB	$1.19
17	885-311	FAN NR90GC NR90GC2	$5.11
18	949-754	HexSockHDBoltM4x16 NR90AC 10PS	$2.59
20	886-133	GASKET (B)	$1.72
21	885-296	CHAMBER NR90GC NR90GC2	$25.09
22	878-607	PLUNGER O-RING NR90GR2/GC2	$1.19
23	880-319	SHAFT RING NV65AH NV75AG	$1.88
24	949-431	BOLT WASHER M5 (10 PCS.)	$1.88
25	885-277	SHAFT NR90GC NR90GC2	$3.46
27	885-317	ADAPTER NR90GC NR90GC2 NC40G	$1.84
28	961-681	HEX SOCKET SET SCREW M4x5 WH16	$1.55
29	885-297	CHAMBER LOCK PLATE NR90GC	$3.46
30	886-484	PIN (A)	$1.87
31	885-306	SWITCH PLATE NR90GC NR90GC2	$1.84
32	885-283	O-RING (I.D. 66.27) NR90GC/GR	$6.77
33	885-285	RETAINING RING NR90GC NR90GC2	$1.84
34	885-286	PISTON RING NR90GC NR90GC2	$10.68
35	885-291	PISTON DRIVER NR90GC NR90GC2	$83.58
36	885-289	PISTON BUMPER NR90GC NR90GR	$8.68
37	885-284	CHAMBER STOP RUBBER NR90GC	$1.84
38	885-361	CYLINDER ASS'Y NR90GC NR90GC2	$109.94
39	949-812	HexSockHDBoltM4x10 CE16 10PS	$2.59
40	886-467	BUFFER COVER (A)	$1.72
41	885-290	LEAD VALVE NR90GC NR90GC2	$1.84
42	885-288	MUFFLER NR90GC NR90AC2	$13.98
43	885-355	BLADE GUIDE NR90GC NR90GC2	$5.11
44	885-270	PLATE SLEEVE NR90GC NR90GR	$1.84
45	885-326	SIDE PLATE NR90GC NR90GC2	$17.88
46	886-544	SPECIAL NUT M5	$7.65
47	886-545	NYLOCK HEX. SOCKET HD. BOLT M5X50	$1.87
48	885-269	NOSE SLEEVE NR90GC NR90GC2	$1.84
49	886-241	SEAL LOCK HEX. SOCKET HD. BOLT M4X10	$1.87
50	886-242	BELLEVILLE SPRING M4	$1.87
51	886-546	PUSHING LEVER ARM (C)	$5.26
52	886-245	PUSHING LEVER SPRING (A)	$1.75
53	885-301	PUSHING LEVER CONNECTOR NR90GC	$5.11
54	885-299	CYLINDER PLATE NR90GC NR90GC2	$5.11
55	980-046	SL LCK HEX SCKT HD BOLT M5x10	$1.84
56	956-329	U-NUT M4 NR90GC NR90GC2	$1.16
57	886-547	PUSHING LEVER ARM (D)	$5.26
58	949-819	HEX SOCKET HD BOLT M5x10 10PS	$2.88
62	886-128	PUSHING STOPPER	$6.37
63	886-144	PUSHING LEVER (A)	$6.98
64	885-272	ADJUSTER BUSH (S) NR90GC/GC2	$6.77
66	885-304	SCREW M5 NR90GC NR90GC2	$1.84
67	886-134	HOUSING	$25.91
68	885-307	INSULATOR SHEET NR90GC/GC2	$1.84
70	886-244	HOUSING ASS'Y	$34.72
71	876-465	NYLON NUT M4 NR83A/AA NR90AC	$1.19
72	949-820	HEX SKT HD BOLTM5x15 C12Y 10PS	$2.81
73	878-164	SLEEVE NV45AB NV45AB2 NV45AC	$15.73
74	302-086	SCREW W/FLANGE D4x20 WR12DM2	$1.27
75	886-256	HANDLE (B)	$40.95
78	301-815	SCREW (W/FLANGE) D4x45 M12V	$1.27
79	885-334	SWITCH MOUNT NR90GC NR90GC2	$1.84
80	885-347	SWITCH ARM NR90GC NR90GC2	$1.84
81	885-338	PRISM NR90GC NR90GC2	$3.46
82	885-337	LOCK BAR SPRING NR90GC NR90GC2	$1.84
83	885-339	WIRING COVER NR90GC NR90GC2	$3.46
84	885-346	FLAT HD TAPPING SCRW D4 NR90GC	$1.84
85	885-595	CONTROLLER NR90GC NR90GC2	$89.49
86	309-933	TAPPING SCREW D4x14 NR90GC/2	$1.16
87	885-828	TRIGGER SPRING NR90GC NR90GR	$1.75
88	885-340	CHAMBER LOCK BAR NR90GC	$3.46
89	885-349	PIN D2.5 NR90GC NR90GC2	$1.84
90	885-798	TRIGGER LEAD WIRE(A)SET NR90GC	$55.55
96	877-371	NYLON NUT M5 NR83A/AA NT65A2	$1.20
97	885-341	NAIL RAIL NR90GC NR90GC2	$7.42
98	885-342	MAGAZINE PLATE NR90GC NR90GR2	$5.11
99	886-141	CELL LEVER (A)	$6.24
100	885-280	LATCH NR90GC NR90GC2	$1.84
101	949-859	ROLL PIN D2x8 (10 pc) NC40G	$1.53
102	885-281	SPRING D3.6 NR90GC NR90GC2	$1.84
103	885-352	CELL COVER NR90GC NR90GC2	$3.46
104	886-131	CELL RUBBER (A)	$1.72
106	885-323	NAIL FEEDER (A) NR90GC NR90GC2	$6.77
108	885-518	SPRING NR90GC NR90GC2	$1.84
109	886-147	SWITCH LEVER (B) ASS'Y	$6.98
110	885-349	PIN D2.5 NR90GC NR90GC2	$1.84
111	886-138	LEVER STOPPER	$3.59
112	949-506	ROLL PIN D4x28 (10pc) F1000A	$2.91
113	883-687	SPRING NR90AC2/3 NR90GC2/R2	$1.88
114	885-324	NAIL FEEDER (B) NR90GC NR90GC2	$3.46
115	885-325	RIBBON SPRING NR90GC NR90GC2	$8.05
116	885-328	SPRING NR90GC NR90GC2	$1.84
117	885-327	PUSHING LEVER STOPPER NR90GC	$1.84
119	886-246	FEEDER KNOB	$3.59
120	302-089	SCREW W/FLANGE D5X20 BLACK	$1.24
121	880-003	HEX SCKT HD BOLT M4x18 NR90GC	$1.16
122	885-354	MAGAZINE GUARD NR90GC NR90GC2	$8.68
124	886-253	WIRING PLATE	$1.87
126	885-714	TAPPING SCREW D3	$1.72
127	886-548	WIRING PLATE (B)	$1.87
128	303-631	SEAL LOCK SCREW M4X6 (BLACK)	$1.19
129	886-470	SHAFT COVER	$1.72
130	886-471	WASHER	$1.72
