Hitachi NR90GC Nailer Parts

Hitachi NR90GC Nailer Parts Image

Hitachi NR90GC Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

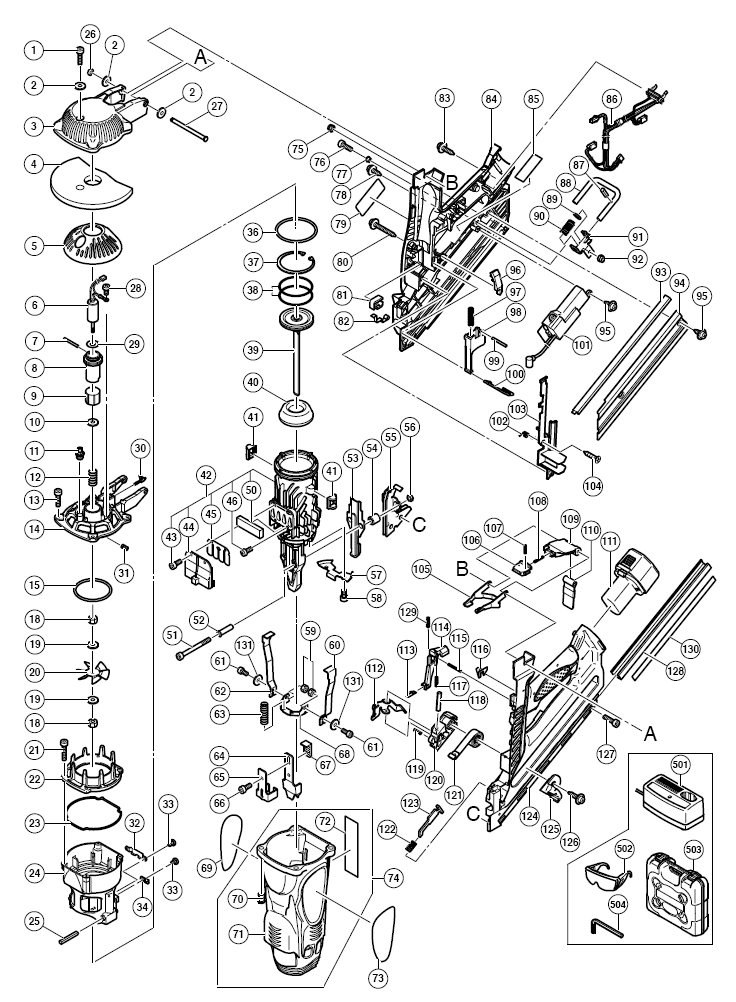

Hitachi NR90GC Nailer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 996-399 HEX SOCKET BOLT M5x12 w/FLANGE $0.95
1 949-665 HEX SOCKET HD BOLT M5x14 10PS $2.39
2 949-424 WASHER M5 D13 D13M 10PS NT65A3 $1.02
3 885-353 TOP COVER NR90GC $7.72
4 885-274 FILTER NR90GC $2.86
5 885-275 FILTER COVER NR90GC NR90GR $2.86
9 885-314 MOUNT SLEEVE NR90GC NR90GC2 $1.54
10 885-320 SHAFT WASHER NR90GC NR90GC2 $1.54
12 885-319 MOTOR SPRING NR90GC NR90GC2 $1.54
13 949-757 HEX SOCKET HD BOLT M5x20 10PS $2.67
14 885-308 CYLINDER HEAD NR90GC NR90GC2 $29.64
15 885-316 O-RING (I.D. 59.92) NR90GC/GR $4.21
18 949-554 HEX NUT M4 10PS NR90GC/2 CB75 $1.00
19 949-423 WASHER M4 (10pc) DH40MA/MB $1.01
20 885-311 FAN NR90GC NR90GC2 $4.21
21 949-754 HexSockHDBoltM4x16 NR90AC 10PS $2.15
23 885-295 GASKET (A) NR90GC NR90GR $2.86
24 885-296 CHAMBER NR90GC NR90GC2 $20.57
25 884-975 ROLL PIN D3x32 NR90AD/E NR90GC $1.54
25A 885-921 PIN NR90GC NR90GR $4.17
26 880-319 SHAFT RING NV65AH NV75AG $1.57
27 885-277 SHAFT NR90GC NR90GC2 $2.86
28 949-214 MACH. SCREW M4x6 10PCS C10FC $2.10
29 885-313 RUBBER WASHER NR90GC NR90GC2 $1.54
30 885-317 ADAPTER NR90GC NR90GC2 NC40G $1.54
31 961-681 HEX SOCKET SET SCREW M4x5 WH16 $1.31
32 885-297 CHAMBER LOCK PLATE NR90GC $2.86
33 949-214 MACH. SCREW M4x6 10PCS C10FC $2.10
34 885-306 SWITCH PLATE NR90GC NR90GC2 $1.54
36 885-283 O-RING (I.D. 66.27) NR90GC/GR $5.57
37 885-285 RETAINING RING NR90GC NR90GC2 $1.54
38 885-286 PISTON RING NR90GC NR90GC2 $8.78
39 885-291 PISTON DRIVER NR90GC NR90GC2 $75.24
40 885-289 PISTON BUMPER NR90GC NR90GR $7.14
41 885-284 CHAMBER STOP RUBBER NR90GC $1.54
41A 885-284 CHAMBER STOP RUBBER NR90GC $1.54
42 885-361 CYLINDER ASS'Y NR90GC NR90GC2 $102.02
43 949-812 HexSockHDBoltM4x10 CE16 10PS $2.15
42 885-361 CYLINDER ASS'Y NR90GC NR90GC2 $102.02
43 949-812 HexSockHDBoltM4x10 CE16 10PS $2.15
44 885-287 BUFER COVER NR90GC $4.21
44 885-287 BUFER COVER NR90GC $4.21
45 885-290 LEAD VALVE NR90GC NR90GC2 $1.54
46 949-214 MACH. SCREW M4x6 10PCS C10FC $2.10
45 885-290 LEAD VALVE NR90GC NR90GC2 $1.54
46 949-214 MACH. SCREW M4x6 10PCS C10FC $2.10
50 885-288 MUFFLER NR90GC NR90AC2 $11.48
50 885-288 MUFFLER NR90GC NR90AC2 $11.48
51 949-897 HEX SOCKET HD BOLT M5x50 10PS $5.57
51 949-897 HEX SOCKET HD BOLT M5x50 10PS $5.57
52 885-269 NOSE SLEEVE NR90GC NR90GC2 $1.54
52 885-269 NOSE SLEEVE NR90GC NR90GC2 $1.54
53 885-355 BLADE GUIDE NR90GC NR90GC2 $4.21
53 885-355 BLADE GUIDE NR90GC NR90GC2 $4.21
54 885-270 PLATE SLEEVE NR90GC NR90GR $1.54
54 885-270 PLATE SLEEVE NR90GC NR90GR $1.54
55 885-326 SIDE PLATE NR90GC NR90GC2 $14.66
55 885-326 SIDE PLATE NR90GC NR90GC2 $14.66
56 945-255 U-NUT M5 NV45AB NV45AC NV50AA $1.02
56 945-255 U-NUT M5 NV45AB NV45AC NV50AA $1.02
57 885-299 CYLINDER PLATE NR90GC NR90GC2 $4.21
57 885-299 CYLINDER PLATE NR90GC NR90GC2 $4.21
58 980-046 SL LCK HEX SCKT HD BOLT M5x10 $1.54
58 980-046 SL LCK HEX SCKT HD BOLT M5x10 $1.54
59 956-329 U-NUT M4 NR90GC NR90GC2 $0.98
59 956-329 U-NUT M4 NR90GC NR90GC2 $0.98
60 885-302 PUSHING LEVER ARM (A) $3.16
61 949-812 HexSockHDBoltM4x10 CE16 10PS $2.15
60A 885-787 PUSHING LEVER ARM (A) NR90GC $5.50
61 878-356 SEAL LCK HEX SCKT HD BLT M4x10 $1.02
62 885-303 PUSHING LEVER ARM (B) $3.16
62A 885-789 PUSHING LEVER ARM (B) NR90GC $6.01
64 885-271 PUSHING LEVER NR90GC $9.85
64 885-271 PUSHING LEVER NR90GC $9.85
65 885-273 PUSHING STOPPER NR90GC $2.86
66 949-819 HEX SOCKET HD BOLT M5x10 10PS $2.40
65 885-273 PUSHING STOPPER NR90GC $2.86
66 949-819 HEX SOCKET HD BOLT M5x10 10PS $2.40
67 885-272 ADJUSTER BUSH (S) NR90GC/GC2 $5.57
67 885-272 ADJUSTER BUSH (S) NR90GC/GC2 $5.57
68 885-301 PUSHING LEVER CONNECTOR NR90GC $4.21
68 885-301 PUSHING LEVER CONNECTOR NR90GC $4.21
70 885-304 SCREW M5 NR90GC NR90GC2 $1.54
71A 885-822 HOUSING NR90GC NR90GR $20.83
71 885-298 HOUSING $24.63
72 885-307 INSULATOR SHEET NR90GC/GC2 $1.54
74A 885-823 HOUSING ASS'Y NR90GC NR90GR $27.83
75 876-465 NYLON NUT M4 NR83A/AA NR90AC $1.01
74 885-362 HOUSING ASS’Y $32.91
75 876-465 NYLON NUT M4 NR83A/AA NR90AC $1.01
76 949-820 HEX SKT HD BOLTM5x15 C12Y 10PS $2.33
76 949-820 HEX SKT HD BOLTM5x15 C12Y 10PS $2.33
77 878-164 SLEEVE NV45AB NV45AB2 NV45AC $12.91
77 878-164 SLEEVE NV45AB NV45AB2 NV45AC $12.91
80 301-815 SCREW (W/FLANGE) D4x45 M12V $1.07
78 305-812 TAP SCREW w/FLANGE D4x16 (BLK) $0.90
81 885-334 SWITCH MOUNT NR90GC NR90GC2 $1.54
82 885-347 SWITCH ARM NR90GC NR90GC2 $1.54
83 302-086 SCREW W/FLANGE D4x20 WR12DM2 $1.07
80 301-815 SCREW (W/FLANGE) D4x45 M12V $1.07
81 885-334 SWITCH MOUNT NR90GC NR90GC2 $1.54
84A 886-034 HANDLE (B) ASS'Y NR90GC $32.88
82 885-347 SWITCH ARM NR90GC NR90GC2 $1.54
86A 885-798 TRIGGER LEAD WIRE(A)SET NR90GC $50.02
83 302-086 SCREW W/FLANGE D4x20 WR12DM2 $1.07
87 949-900 ROLL PIN CD14F D3X14 10PCS $3.06
88 885-343 HOOK NR90GC $6.63
84 885-330 HANDLE (B) $38.90
89 956-161 WASHER (B) SP18V NR90GC $1.59
90 885-345 SPRING D12 NR90GC $1.54
87 949-900 ROLL PIN CD14F D3X14 10PCS $3.06
91 885-344 BRACKET NR90GC $2.86
92 877-371 NYLON NUT M5 NR83A/AA NT65A2 $1.01
88 885-343 HOOK NR90GC $6.63
89 956-161 WASHER (B) SP18V NR90GC $1.59
93 885-341 NAIL RAIL NR90GC NR90GC2 $6.10
90 885-345 SPRING D12 NR90GC $1.54
94 885-342 MAGAZINE PLATE NR90GC NR90GR2 $4.21
91 885-344 BRACKET NR90GC $2.86
95 309-933 TAPPING SCREW D4x14 NR90GC/2 $0.98
92 877-371 NYLON NUT M5 NR83A/AA NT65A2 $1.01
96 885-338 PRISM NR90GC NR90GC2 $2.86
93 885-341 NAIL RAIL NR90GC NR90GC2 $6.10
97A 885-828 TRIGGER SPRING NR90GC NR90GR $1.47
99 949-551 ROLL PIN D2.5x10 10PS VH650 $1.58
94 885-342 MAGAZINE PLATE NR90GC NR90GR2 $4.21
95 309-933 TAPPING SCREW D4x14 NR90GC/2 $0.98
100 885-340 CHAMBER LOCK BAR NR90GC $2.86
96 885-338 PRISM NR90GC NR90GC2 $2.86
101 885-595 CONTROLLER NR90GC NR90GC2 $80.56
97 885-336 TRIGGER SPRING $1.63
102 885-337 LOCK BAR SPRING NR90GC NR90GC2 $1.54
98 885-335 TRIGGER $3.02
99 949-551 ROLL PIN D2.5x10 10PS VH650 $1.58
103 885-339 WIRING COVER NR90GC NR90GC2 $2.86
100 885-340 CHAMBER LOCK BAR NR90GC $2.86
104 885-346 FLAT HD TAPPING SCRW D4 NR90GC $1.54
105 885-276 CELL LEVER NR90GC $4.21
101 885-595 CONTROLLER NR90GC NR90GC2 $80.56
106 885-280 LATCH NR90GC NR90GC2 $1.54
102 885-337 LOCK BAR SPRING NR90GC NR90GC2 $1.54
107 949-859 ROLL PIN D2x8 (10 pc) NC40G $1.29
103 885-339 WIRING COVER NR90GC NR90GC2 $2.86
108 885-281 SPRING D3.6 NR90GC NR90GC2 $1.54
104 885-346 FLAT HD TAPPING SCRW D4 NR90GC $1.54
109 885-352 CELL COVER NR90GC NR90GC2 $2.86
105 885-276 CELL LEVER NR90GC $4.21
110 885-279 CELL RUBBER NR90GC $2.86
106 885-280 LATCH NR90GC NR90GC2 $1.54
107 949-859 ROLL PIN D2x8 (10 pc) NC40G $1.29
108 885-281 SPRING D3.6 NR90GC NR90GC2 $1.54
112 885-323 NAIL FEEDER (A) NR90GC NR90GC2 $5.57
109 885-352 CELL COVER NR90GC NR90GC2 $2.86
113A 885-824 TENSION PLATE NR90GR $1.47
110 885-279 CELL RUBBER NR90GC $2.86
114A 885-825 SWITCH LEVER (B) NR90GC $2.71
115 885-349 PIN D2.5 NR90GC NR90GC2 $1.54
116 885-329 LEVER STOPPER NR90GC $1.54
112 885-323 NAIL FEEDER (A) NR90GC NR90GC2 $5.57
117 885-350 SPRING D2.95 NR90GC $1.54
118 949-506 ROLL PIN D4x28 (10pc) F1000A $2.41
119 883-687 SPRING NR90AC2/3 NR90GC2/R2 $1.57
115 885-349 PIN D2.5 NR90GC NR90GC2 $1.54
120 885-324 NAIL FEEDER (B) NR90GC NR90GC2 $2.86
116 885-329 LEVER STOPPER NR90GC $1.54
121 885-325 RIBBON SPRING NR90GC NR90GC2 $6.63
117 885-350 SPRING D2.95 NR90GC $1.54
122 885-328 SPRING NR90GC NR90GC2 $1.54
118 949-506 ROLL PIN D4x28 (10pc) F1000A $2.41
123 885-327 PUSHING LEVER STOPPER NR90GC $1.54
119 883-687 SPRING NR90AC2/3 NR90GC2/R2 $1.57
124 885-321 HANDLE (A) NR90GC $32.37
120 885-324 NAIL FEEDER (B) NR90GC NR90GC2 $2.86
125 885-322 FEEDER KNOB NR90GC $2.86
126 302-089 SCREW W/FLANGE D5X20 BLACK $1.05
121 885-325 RIBBON SPRING NR90GC NR90GC2 $6.63
122 885-328 SPRING NR90GC NR90GC2 $1.54
127 880-003 HEX SCKT HD BOLT M4x18 NR90GC $0.98
123 885-327 PUSHING LEVER STOPPER NR90GC $1.54
128 885-354 MAGAZINE GUARD NR90GC NR90GC2 $7.14
124 885-321 HANDLE (A) NR90GC $32.37
129 885-518 SPRING NR90GC NR90GC2 $1.54
125 885-322 FEEDER KNOB NR90GC $2.86
131 949451 LOCK WASHER M3 (10pc) CB75F $1.31
126 302-089 SCREW W/FLANGE D5X20 BLACK $1.05
132 878-607 PLUNGER O-RING NR90GR2/GC2 $1.01
127 880-003 HEX SCKT HD BOLT M4x18 NR90GC $0.98
128 885-354 MAGAZINE GUARD NR90GC NR90GC2 $7.14
129 885-518 SPRING NR90GC NR90GC2 $1.54
