Hitachi NR90ADPR

3-1/2 Inch Paper Col...

$207.99

Free Shipping

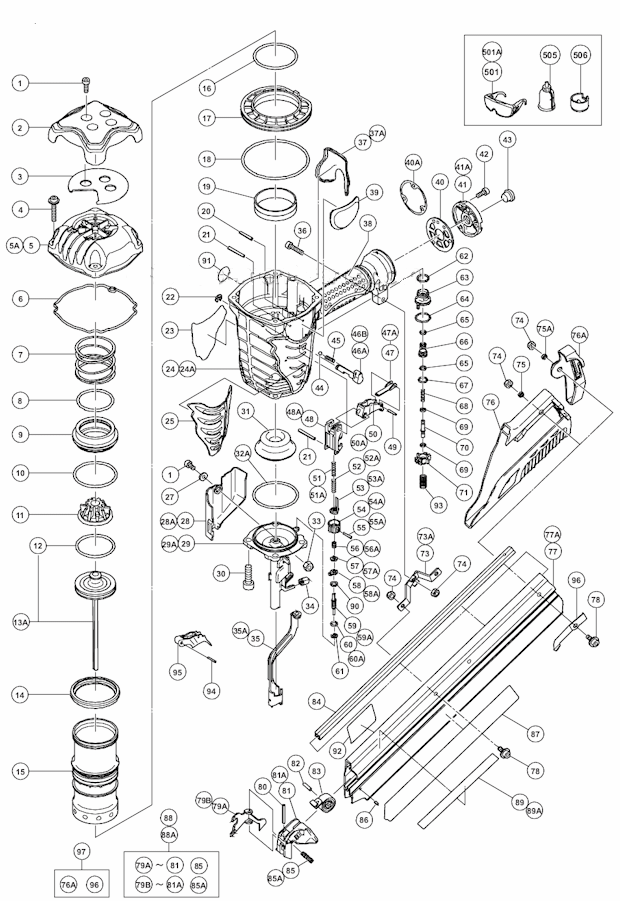

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	949-665	HEX SOCKET HD BOLT M5x14 10PS	$2.87
2	884-952	HEAD GUARD NR90AD NR90AE	$13.98
3	884-986	SHEET NR90AD NR90AE	$3.46
6	884-953	GASKET (A) NR90AD NR90AE	$5.11
7	884-949	HEAD VALVE SPRING NR90AD	$5.11
8	884-947	O-RING (I.D. 49.4) NR90AD	$1.84
9	884-946	HEAD VALVE NR90AD NR90AE	$20.50
10	884-948	O-RING (I.D. 59.4) NR90AD	$1.84
12	884-958	PISTON O-RING NR90AD NR90AE	$1.84

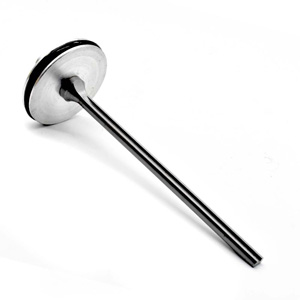

13A	885-917	Piston Assembly	$70.64
14	884-945	VALVE RUBBER NR90AD NR90AE	$11.31
15	884-941	CYLINDER NR90AD NR90AE	$56.78
16	884-942	O-RING (I.D.59.6) NR90AD	$1.84
17	884-944	CYLINDER PLATE NR90AD	$3.46
18	884-943	O-RING (I.D. 94.6) NR90AD	$3.46
19	877-317	CYLINDER RING NR83A/2 NR90AD/E	$1.88
20	949-539	ROLL PIN D3x25 10PS C8FB2C10FS	$2.87
21	884-975	ROLL PIN D3x32 NR90AD/E NR90GC	$1.84
22	955-479	RETAINING RING (E-TYPE) FOR D6 SHAFT	$1.46
24	884-940	BODY ASS'Y NR90AD NR90AE	$83.58
25	884-956	PROTECTOR NR90AD NR90AE	$7.42
27	876-205	WASHER NT65A NV45AB/AC NV45AB2	$1.20
28	884-976	PUSHING LEVER COVER (A) NR90AD	$1.84
29	884-961	NOSE NR90AD	$127.27
29A	886-863	Nose	$117.33
30	306-437	NYLOCK HEX BOLT M8x30 H65	$1.67
31	884-959	PISTON BUMPER NR90AD NR90AE	$19.21
32A	884-989	O-RING (ID 60) NR90AD/E/F	$1.84
33	877-371	NYLON NUT M5 NR83A/AA NT65A2	$1.20
34	884-985	NOSE RUBBER NR90AD NR90AE	$1.84
35	884-970	PUSHING LEVER (A) NR90AD	$19.84
35A	886-865	PUSHING LEVER (A) ASS'Y	$18.33
36	949-670	HexSockHDBoltM6x22 NR90AC 10PS	$3.75
37	884-987	GRIP RUBBER (B) NR90AD	$5.11
40	883-678	GASKET (B) NR90AC3/AE NV75AG	$3.58
40A	884-342	GASKET (B) NT65M2 NT32AE2	$1.56
41	884-954	CAP NR90AD NR90AE	$6.77
41A	881-949	CAP NR90AC NR90AC2 NR65AK	$5.27
42	949-821	HEX SKT HD BOLT M5x16 10PS	$3.02
43	872-035	DUST CAP N3824A/NC65AC/NR83A/	$1.19
44	959-155	STEEL BALL D3.97 10PS DH38YE	$1.19
45	982-454	SPRING (C) NR90AC/2/3 NV50AP3	$1.19
46A	885-658	CHANGE KNOB (C) NT65M2 NT32AE2	$14.48
46B	886-265	CHANGE KNOB (C)	$2.77
47	884-988	TRIGGER ARM (C) NR90AD NR90AE	$3.46
47A	885-689	TRIGGER ARM (C) NT65M2 NT32AE2	$2.96
48A	886-864	PUSHING LEVER GUIDE	$3.23
49	881-951	ROLL PIN D2.5 x 16 NR65AK	$1.88
50	884-967	TRIGGER (C) NR90AD NR90AE	$6.77
50A	885-657	TRIGGER (C) ASS'Y NT65M2	$13.93
51	883-302	PUSHING LEVER SPRING(B) NR90AD	$1.84
51A	886-861	PUSH LEVER SPRING (B)	$1.72
52	883-305	PUSHING LEVER SPRING(A) NR90AD	$1.84
52A	886-860	PUSH LEVER SPRING (A)	$1.72
53	884-972	PUSHING LEVER (C) NR90AD	$5.11
53A	886-867	PUSH LEVER (C)	$4.74
54	884-974	ADJUSTER NR90AD NR90AE	$1.84
54A	886-872	ADJUSTER	$1.72
55	880-093	ROLL PIN D2x16 NV75AG NR90AD	$1.20
55A	886-873	ROLL PIN D2 X 16	$1.72
56	882-890	ADJUSTER SPRING NV75AG NR90AD	$1.88
56A	886-870	ADJUSTER SPRING	$1.72
57	884-973	ADJUSTER PLATE (C) NR90AD/AE	$1.84
57A	886-869	ADJUSTER PLATE (C)	$1.72
58	882-886	ADJUSTER PLATE (A) NV75AG	$3.53
58A	886-868	ADJUSTER PLATE (A)	$3.23
59	884-971	PUSHING LEVER (B) NR90AD	$6.77
59A	886-866	PUSH LEVER (B)	$6.26
60	872-822	O-RING (S-5) NV75AG NR90AD	$3.21
60A	886-871	O-RING	$3.23
61	872-971	RETAINING RING NV83A D3SHAFT	$1.20
62	877-763	FEED PISTON O-RING NV45AB2/AE	$1.20
63	884-963	VALVE BUSHING (B) NR90AD/E/F	$1.84
64	873-570	O-RING (P 18) NV50A1/AP NV45AC	$1.55
65	676-531	O-RING (P-7) NR90AD/E/F NT65M2	$1.29
66	884-964	VALVE PISTON NR90AD/E/F NT65M2	$1.84
67	872-654	O-RING (1AP-10) CR13VA/B CR10V	$1.67
68	884-966	PLUNGER SPRING NR90AD NT65M2	$1.84
69	878-888	O-RING (ID1.8)NR90AC/AA/NV45AC	$1.20
70	884-965	PLUNGER NR90AD NT65M2 NR90AE	$5.11
71	884-962	VALVE BUSHING (A) NR90AD/E/F	$1.84
73	884-984	HANDLE ARM NR90AD	$6.77
73A	886-877	Handle Arm	$6.26
74	963-837	NYLON NUT M6 NR83AA/2/3 NC65AC	$1.20
75	883-499	SLEEVE NR83AA2 NR90AC2 NR83AA3	$1.88
75A	886-273	SLEEVE	$1.50
76	884-979	MAGAZINE COVER NR90AD	$10.01
76A	887-493	Magazine Cover	$3.23
77	884-977	MAGAZINE NR90AD	$83.58
77A	886-858	Magazine	$74.30
78	984-443	HEX SOCKET HD BOLT M6x12 CR10V	$1.27
79A	884-981	NAIL FEEDER (A) NR90AD	$6.77
79B	886-875	Nail Feeder	$6.26
80	949-682	ROLL PIN D4x32 10PS NR90AD	$4.29
81	884-982	NAIL FEEDER (B) NR90AD	$5.11
81A	886-876	Nail Feeder (B)	$4.74
82	943-364	NEEDLE ROLLER D4x20 DH38YE	$1.24
83	883-503	RIBBON SPRING-NR83AA2 NR90AC2	$9.67
84	884-978	NAIL RAIL NR90AD	$11.31
85	884-983	FEEDER SPRING NR90AD	$1.84
85A	886-278	FEEDER SPRING	$1.50
86	949-749	ROLL PIN D3x8 10PS VB16Y NC40G	$2.25
87	884-955	LABEL (B) NR90AD	$3.46
88	884-980	NAIL FEEDER ASS'Y NR90AD	$15.26
88A	887-490	Nail Feeder Assembly	$22.07
90	981-317	O-RING (S-4) NR90AC/AC2/3/AD	$1.19
96	886-280	NAIL STOPPER	$2.77
97	887-488	Magazine Cover Assembly	$16.51
601	881-768	"GRIP TAPE UNIVERSAL 21"" LONG"	$5.58
602	880-407	TAPE NR83A/AA NR90AC/AA NV83A	$1.88
604	884-953	GASKET (A) NR90AD NR90AE	$5.11
605	884-947	O-RING (I.D. 49.4) NR90AD	$1.84
606	884-948	O-RING (I.D. 59.4) NR90AD	$1.84
607	884-958	PISTON O-RING NR90AD NR90AE	$1.84
608	884-942	O-RING (I.D.59.6) NR90AD	$1.84
609	884-943	O-RING (I.D. 94.6) NR90AD	$3.46
610	877-317	CYLINDER RING NR83A/2 NR90AD/E	$1.88
613	884-993	TRIGGER (D)	$12.56
614	884-995	PUSH LEVER GUIDE (B)	$4.81
615	884-994	TRIGGER ARM SPRING	$4.81
616	949-518	ROLL PIN(10pc) NR83A2 C10FCD	$2.48
