Hitachi NR83A2 Nailer Parts

Hitachi NR83A2 Parts

Hitachi NR83A2 Replacement Parts

Download Schematic

Time to buy a new tool?

Hitachi NR83A2

Full Head Framing Na...

$275.99

Free Shipping

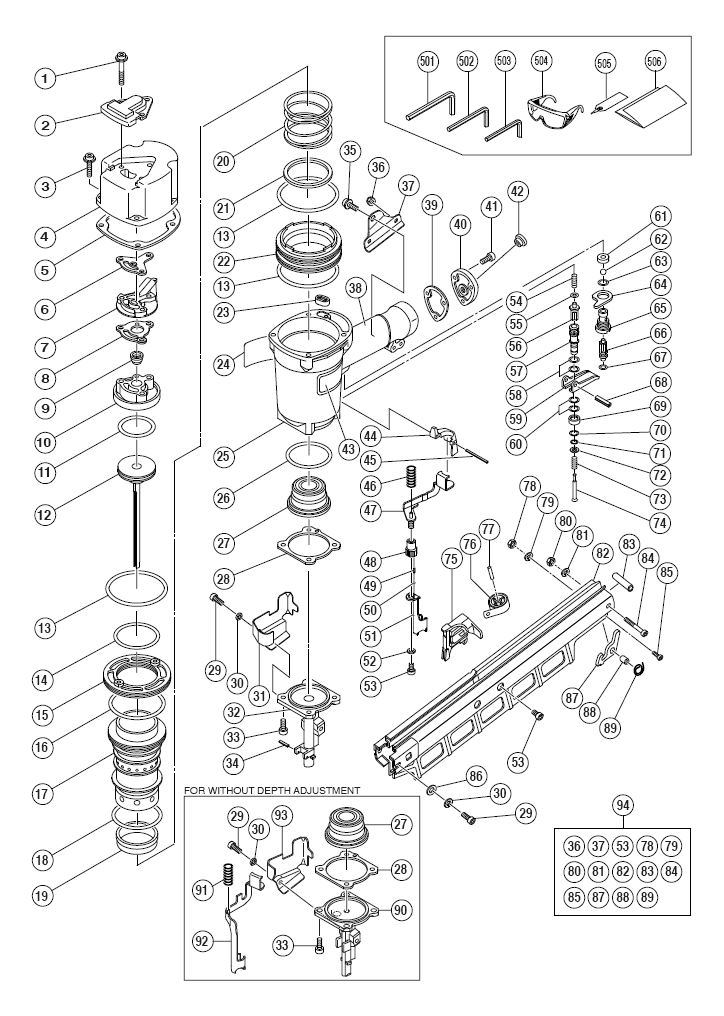

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	883-509	HEX SOCKET HD BOLT M6x45NR83A2	$3.58
2	877-330	TOP COVER NR83A/2 NR83AA/2/3	$5.56
3	883-507	HEX SOCKET HD BOLT M6x25NR83A2	$3.58
4	877-324	EXHAUST COVER NR83A/2 NR83AA	$24.32
5	877-325	GASKET(B) NR83A/2 NR83AA/NV83A	$4.94
6	877-329	GASKET (F) NR83A/NR83AA/NV83A	$1.88
7	877-328	EXHAUST PIECE NR83A NR83A2	$19.21
8	877-854	GASKET (C) NR83A/2 NR83AA/2/3	$2.59
9	884-110	EXHAUST VALVE NR83A2 NR83AA3	$5.26
10	877-307	HEAD CAP/GASKET SET NR83A/2	$37.77
11	877-368	O-RING (1AP-48) NR83A/AA/AA2	$2.25
12	885-915	Replaces 877-323 PISTON DRIVER NR83A2 NR83A	$78.33
13	877-316	O-RING (S-90) NR83A/2 H90SB	$2.88
14	877-312	CYLINDER O-RING (I.D 63.1)	$2.25
15	877-318	CYLINDER PLATE NR83A NR83A2	$9.89
16	877-313	CYLINDER O-RING 79.3 NR83A/2	$2.25
17	884-068	CYLINDER NR83A/2 NR83AA/2/3	$50.79
18	877-314	CYLINDER O-RING 69.3 NR83A/2	$2.25
19	877-317	CYLINDER RING NR83A/2 NR90AD/E	$1.88
20	877-321	CYLINDER SPRING NR83A NR83A2	$1.87
21	877-322	BASE WASHER NR83A NR83A2	$2.59
22	877-310	CYLINDER GUIDE NR83A NR83A2	$24.68
23	877-327	PACKING (G) NR83A NR83A2	$1.20
24	884-070	WARNING LABEL NR83A/2 NR83AA2	$1.88
25	883-506	BODY ASSEMBLY NR83AA2/3 NR83A2	$98.45
26	877-315	CYLINDER O-RING 63.9 NR83A/2	$2.25
27	883-511	PISTON BUMPER (B) NR83A2	$16.43
28	877-334	GASKET (A) NR83A NR83A2	$2.59
29	878-426	HI TENSION BOLT M6x18 NR83A/2	$1.20
30	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
30	949-455	Spring Washer M6 (10 Pcs.)	$1.24
31	884-061	GUARD (A) NR83A2	$3.53
32	884-060	NOSE NR83A2	$143.10
33	883-492	NYLOCK HEX SOCKT HD BOLT M8x22	$3.58
34	949-518	ROLL PIN(10pc) NR83A2 C10FCD	$2.48
35	883-505	NYLOCK BOLT w/flange M8x16	$3.58
36	963-837	NYLON NUT M6 NR83AA/2/3 NC65AC	$1.20
37	884-066	HANDLE ARM (B) NR83A2	$3.53
39	877-331	GASKET (D) NR83A/2 NR83AA/2/3	$1.20
40	878-311	CAP NR83A/2 NR83AA/2/3 NV65AC	$5.26
41	949-658	HEX SOCKEHD BOLT M5x18 10PS	$2.87
42	872-035	DUST CAP N3824A/NC65AC/NR83A/	$1.19
44	884-119	GUARD (B) NR83A2 NR83AA3	$3.53
45	884-025	ROLL PIN D3x45 NV83A2 NR83AA3	$1.88
46	884-067	SPRING NR83A2	$1.88
47	884063	PUSHING LEVER (B) NR83A2	$19.79
49	880-175	Adjuster Spring	$1.88
50	959-148	STEEL BALL D3.175 WH16 10PS	$1.20
51	884-062	PUSHING LEVER (A) NR83A2	$6.97
52	880-081	WASHER NR90AC/AC2/3 NV65AH	$1.20
53	949-657	HEX SOCKET HD BOLT M6x12 10PS	$3.23
54	875-643	PLUNGER SPRING	$1.20
55	874-436	O-RING (P-4)	$1.19
56	884-113	PLUNGER (A) NR83A2 NR83AA3	$3.53
57	884-111	VALVE BUSHING NR83A2 NR83AA3	$17.76
58	884-112	O-RING NR83A2 NR83AA3 NT65A3	$1.88
59	876-203	TRIGGER NR83A/AA NV45AB NV65AC	$2.88
61	878-734	VALVE PACKING NR83A NR83AA	$1.20
62	875-645	URETHANE BALL (C) D7.14 NR83A	$4.29
63	875-638	O-RING (S-12)	$1.88
64	875-644	VALVE PLATE NR83A/AA NV45AB/2	$1.20
65	877-335	TRIGGER VALVE BUSHING NR83A	$7.97
66	878-121	TRIGGER PLUNGER NR83A NR83AA	$1.87
67	874-820	PLUNGER O-RING NV45AB/2 NR83A	$1.88
68	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
68	949-866	ROLL PIN D3X30 (10 PCS.)	$3.90
69	884-116	VALVE SLEEVE(A) NR83A2 NR83AA3	$3.53
70	876-316	O-RING (S-7) NR83AA3 NR83A2	$1.88
71	878-723	PLUNGER O-RING NR83AA3	$1.20
72	949-424	WASHER M5 D13 D13M 10PS NT65A3	$1.20
73	884-115	PLUNGER (B) SPRING NR83A2	$1.88
74	884-114	PLUNGER (B) NR83A2 NR83AA3	$5.26
75	877-393Z	NAIL FEEDER NR83A NR83A2	$49.11
76	878-422	RIBBON SPRING NR83A NR90AA	$7.96
77	878-418	NEEDLE ROLLER NR83A NR90AC	$1.88
78	876-465	NYLON NUT M4 NR83A/AA NR90AC	$1.19
79	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
79	949-453	Spring Washer M4 (10 Pcs.)	$2.42
80	877-371	NYLON NUT M5 NR83A/AA NT65A2	$1.20
81	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
81	949-454	SPRING WASHER M5 (10 PCS.)	$1.18
82	884-065	MAGAZINE BASE NR83A NR83A2	$61.58
83	876-550	SLEEVE NR83A NR83A2	$1.20
84	949-824	HexSockHDBoltM5x45 NR83A 10PS	$4.29
85	949-650	HEX SOCKET HD BOLT M4x15 10PS	$2.59
86	877-402	WASHER NR83A NR90AA NR83A2	$3.87
87	877-396Z	STOP LEVER NR83A NR83A2	$4.94
88	877-398	COLLAR NR83A NR83A2	$2.88
89	877-397	STOPPER SPRING NR83A NR83A2	$4.29
90	884-076	NOSE NR83A2(S) NR83A	$256.01
91	884-077	SPRING (A) NR83A2(S) ONLY	$1.88
92	884-074	PUSHING LEVER NR83A2(S) ONLY	$15.06
93	884-075	GUARD NR83A2(S) ONLY	$3.53
94	885-827	MAGAZINE ASS'Y NR83A2	$92.25
505	882-413	CAUTION TAG	$1.88
506	882-414	LEAFLET	$1.88
601	881-768	"GRIP TAPE UNIVERSAL 21"" LONG"	$5.58
602	880-407	TAPE NR83A/AA NR90AC/AA NV83A	$1.88
