Hitachi N5008AC2

7/16 Inch Standard C...

$259.99

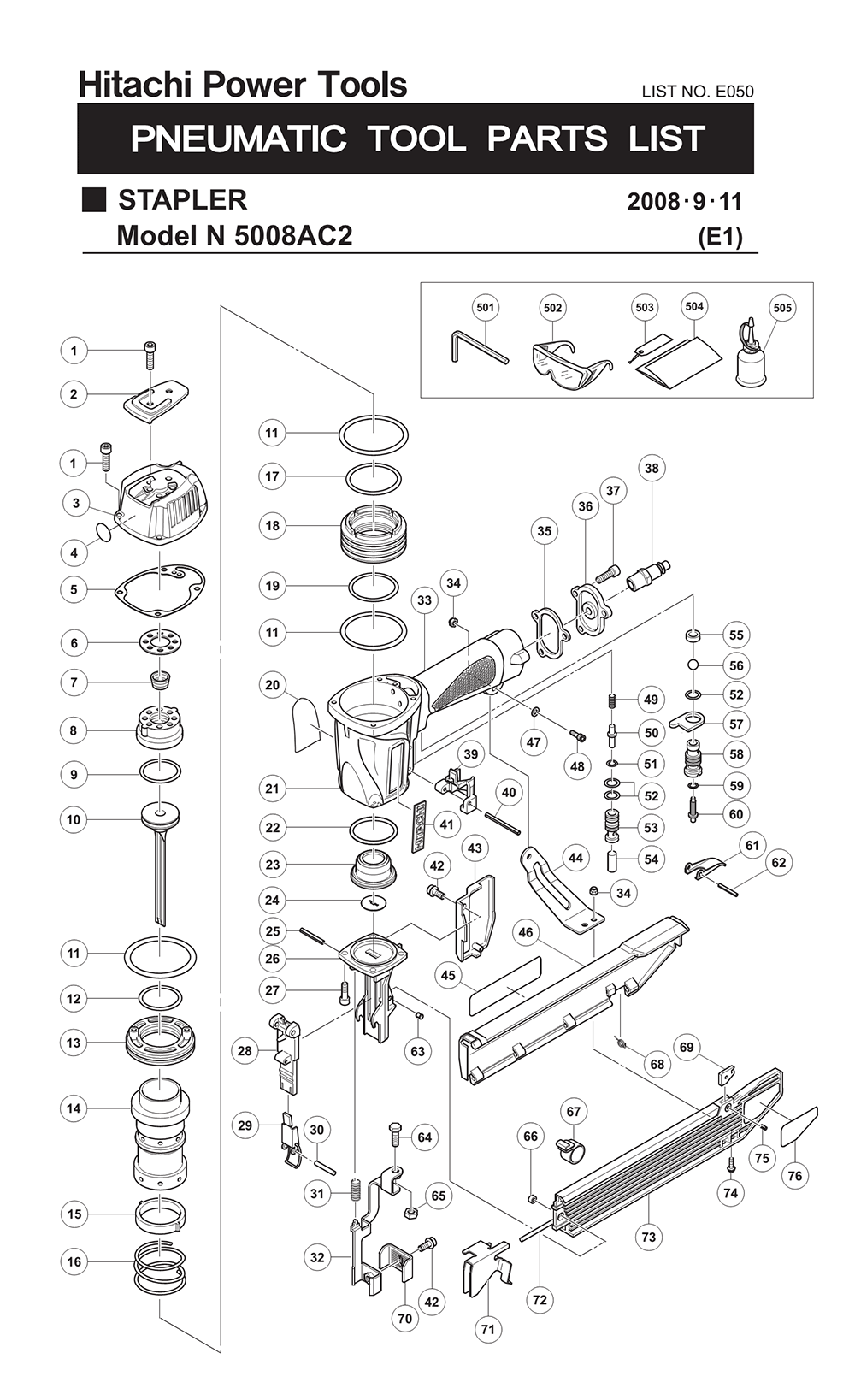

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	949-757	HEX SOCKET HD BOLT M5x20 10PS	$2.68
2	876-179	TOP COVER NV45AB NT65A/2/3	$1.02
3	886-444	Exhaust Cover	$18.23
4	883-513	WARNING LABEL(A)	$1.61
5	883-892	GASKET (F)	$1.74
6	886-466	Gasket (C)	$1.32
7	878-539	EXHAUST VALVE NT65A/NT65A2	$6.01
8	878-026	HEAD CAP NT65A/NT65A2/3	$69.26
9	876-174	PISTON O-RING NV45AB/2 NT65A/2	$3.22
10	883-716	PISTON DRIVER N5008AC N5008AC2	$88.63
11	885-793	O-Ring (I.D. 64.5)	$2.67
12	877-126	CYLINDER O-RING (D) NT65A/2/3	$1.57
13	876-168	CYLINDER PLATE NT65A/A2/A3	$9.54
14	885-792	CYLINDER	$32.16
15	876-167	CYLINDER RING NT65A/2/NV45AB2	$1.02
16	876-172	CYLINDER SPRING NT65A/A2	$6.84
17	877-123	CYLINDER O-RING (A) NT65A/2/3	$2.15
18	877-122	CYLINDER GUIDE NT65A/A2/A3	$24.22
19	877-124	CYLINDER O-RING (B) NV50A1/AA	$1.87
21	886-443	Body Assy	$72.80
22	877-125	CYLINDER O-RING (C) NT65A/A2	$1.87
23	886-434	PISTON BUMPER	$4.54
24	883-712	BUMPER SHEET N5008AC N5008AC2	$1.57
25	949-547	ROLL PIN D4x36 (10 PCS) NT65A2	$3.55
26	886-717	NOSE	$84.38
27	878-181	NYLOCK HEX. SOCKET HD. BOLT M5	$1.06
28	886-718	BLADE GUIDE	$14.20
29	886-441	LOCK LEVER	$4.94
30	949-685	ROLL PIN D3x20 10PS NT65A2/A3	$2.40
31	877-873	SPRING (B) NT65A2/A/N5008AA/AC	$1.02
32	883-714	PUSHING LEVER N5008AC N5010A	$19.54
34	877-371	NYLON NUT M5 NR83A/AA NT65A2	$1.01
36	885-795	Cap	$5.38
37	949-821	HEX SKT HD BOLT M5x16 10PS	$2.50
39	884-356	VALVE GUARD N5024A/2 N5021A	$2.93
40	884-025	ROLL PIN D3x45 NV83A2 NR83AA3	$1.57
42	878-540	NYLOCK BOLT W/FLANGE M5x8	$1.02
43	883-724	GUARD N5008AC/2 N5010A	$2.96
44	883-723	HANDLE ARM N5008AC N5008AC2	$5.74
46	883-718	MAGAZINE COVER N5008AC N5024A	$6.84
47	876-205	WASHER NT65A NV45AB/AC NV45AB2	$1.02
48	949-658	HEX SOCKEHD BOLT M5x18 10PS	$2.38
49	886-725	Plunger Spring	$1.29
50	878-542	PLUNGER (A) NT65A/A2 N5008AC/2	$1.95
51	877-705	PLUNGER O-RING NT65A/2 N5024A2	$1.02
52	875-638	O-RING (S-12)	$1.73
53	877-880	VALVE BUSHING N5008AC/2 NT65A2	$30.57
54	877-882	PLUNGER (B) NT65A2 N5008AC/2	$7.72
55	878-734	VALVE PACKING NR83A NR83AA	$1.02
56	875-645	URETHANE BALL (C) D7.14 NR83A	$3.55
57	875-644	VALVE PLATE NR83A/AA NV45AB/2	$1.02
58	877-335	TRIGGER VALVE BUSHING NR83A	$6.55
59	874-820	PLUNGER O-RING NV45AB/2 NR83A	$1.57
60	878-121	TRIGGER PLUNGER NR83A NR83AA	$1.56
61	876-203	TRIGGER NR83A/AA NV45AB NV65AC	$2.39
62	949-866	ROLL PIN D3X30 (10 PCS.)	$3.56
63	881-044	PIN N5008AC/2 N5010A	$4.08
64	875-650	SAFETY BOLT NR83A/AA NT65A/A2	$1.02
65	949-555	Hex Nut M5 NR83A NV50A1 10PS	$1.06
66	881-045	SHAFT RING N5008AC/2 N5010A	$1.87
67	881-047	RIBBON SPRING N5008AC/2 N5010A	$12.91
68	881-043	COVER SPRING N5008AC/2 N5010A	$1.30
69	881-039	MAGAZINE PIECE N5008AC/2	$2.44
71	886-724	STAPLE FEEDER	$8.22
72	883-719	HINGE PIN N5008AC/2 N5024A/2	$2.96
73	883-717	MAGAZINE ASSY N5008AC N5008AC2	$17.32
74	678-653	MACHINE SCREW W/WASHER M5x14	$1.07
75	881-040	ROLL PIN D3X6 N5008AC/2 CJ110V	$1.01
503	882-413	CAUTION TAG	$1.73
601	881-768	"GRIP TAPE UNIVERSAL 21"" LONG"	$4.60
602	880-407	TAPE NR83A/AA NR90AC/AA NV83A	$1.58
