Hitachi N5008AC Stapler Parts

Hitachi N5008AC Parts

Download Schematic

Time to buy a new tool?

Hitachi N5008AC

2 Inch 16 Ga Standar...

$278.99

Free Shipping

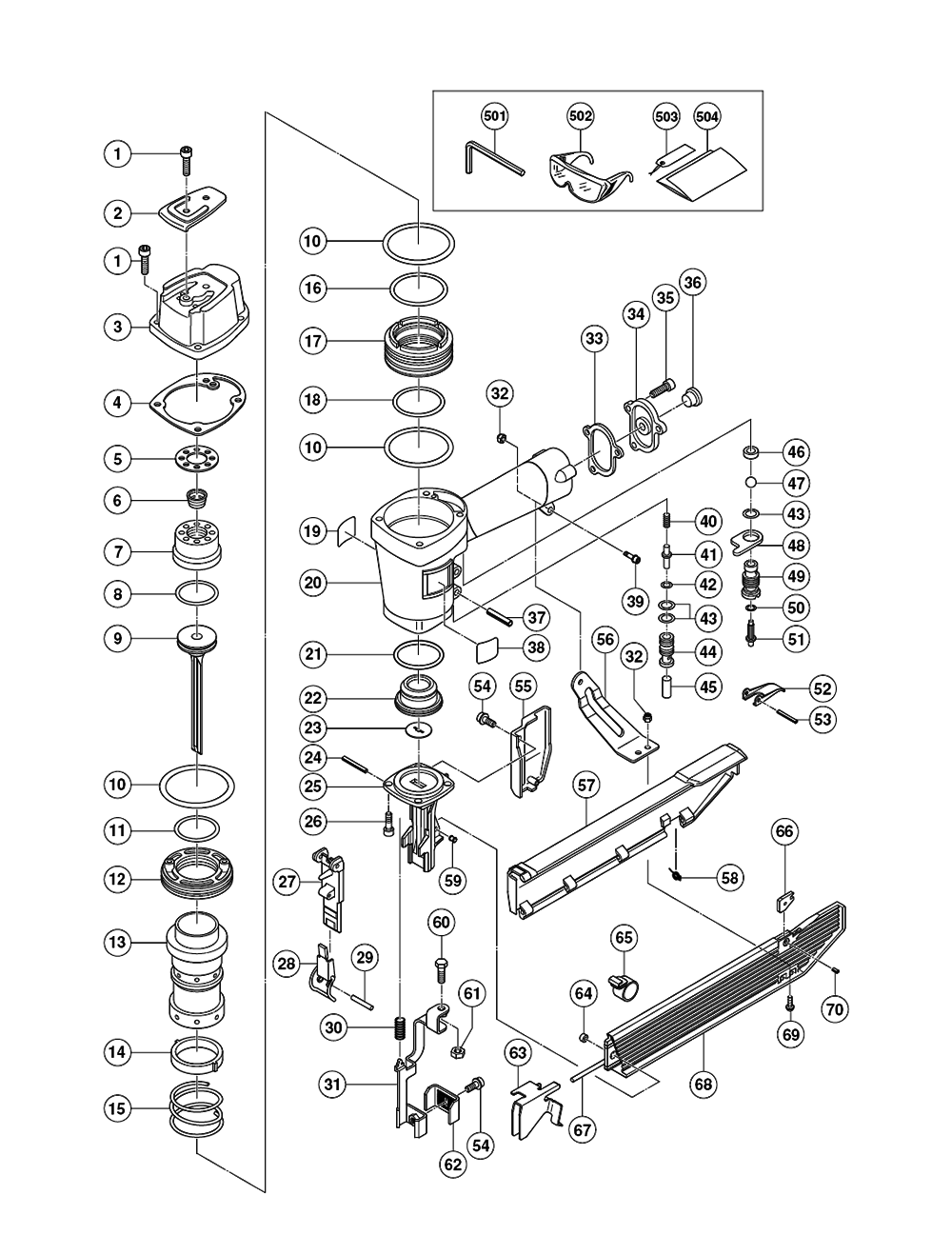

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	949-757	HEX SOCKET HD BOLT M5x20 10PS	$3.23
2	876-179	TOP COVER NV45AB NT65A/2/3	$1.20
3	886-444	Exhaust Cover	$20.03
5	883-892	GASKET (F)	$1.89
6	886-466	Gasket (C)	$1.43
7	878-539	EXHAUST VALVE NT65A/NT65A2	$7.30
8	878-026	HEAD CAP NT65A/NT65A2/3	$76.94
9	876-174	PISTON O-RING NV45AB/2 NT65A/2	$3.90
10	883-716	PISTON DRIVER N5008AC N5008AC2	$98.45
11	885-793	O-Ring (I.D. 64.5)	$2.92
12	877-126	CYLINDER O-RING (D) NT65A/2/3	$1.88
13	876-168	CYLINDER PLATE NT65A/A2/A3	$11.62
14	885-792	CYLINDER	$32.80
15	876-167	CYLINDER RING NT65A/2/NV45AB2	$1.20
16	876-172	CYLINDER SPRING NT65A/A2	$8.32
17	877-123	CYLINDER O-RING (A) NT65A/2/3	$2.59
18	877-122	CYLINDER GUIDE NT65A/A2/A3	$27.42
19	877-124	CYLINDER O-RING (B) NV50A1/AA	$2.25
21	886-443	Body Assy	$72.80
22	877-125	CYLINDER O-RING (C) NT65A/A2	$2.25
23	886-434	PISTON BUMPER	$4.97
24	883-712	BUMPER SHEET N5008AC N5008AC2	$1.88
25	949-547	ROLL PIN D4x36 (10 PCS) NT65A2	$4.29
26	886-717	NOSE	$84.38
27	878-181	NYLOCK HEX. SOCKET HD. BOLT M5	$1.24
28	886-718	BLADE GUIDE	$15.60
29	886-441	LOCK LEVER	$5.41
30	949-685	ROLL PIN D3x20 10PS NT65A2/A3	$2.88
31	877-873	SPRING (B) NT65A2/A/N5008AA/AC	$1.20
32	883-714	PUSHING LEVER N5008AC N5010A	$23.84
34	877-371	NYLON NUT M5 NR83A/AA NT65A2	$1.20
36	885-795	Cap	$5.90
37	949-821	HEX SKT HD BOLT M5x16 10PS	$3.02
39	884-356	VALVE GUARD N5024A/2 N5021A	$3.53
40	884-025	ROLL PIN D3x45 NV83A2 NR83AA3	$1.88
41	886-342	Hitachi Plate	$1.75
42	878-540	NYLOCK BOLT W/FLANGE M5x8	$1.20
43	883-724	GUARD N5008AC/2 N5010A	$3.58
44	883-723	HANDLE ARM N5008AC N5008AC2	$6.98
46	883-718	MAGAZINE COVER N5008AC N5024A	$8.32
47	876-205	WASHER NT65A NV45AB/AC NV45AB2	$1.20
48	949-658	HEX SOCKEHD BOLT M5x18 10PS	$2.87
49	886-725	Plunger Spring	$1.40
50	878-542	PLUNGER (A) NT65A/A2 N5008AC/2	$2.33
503	882-413	CAUTION TAG	$1.88
601	881-768	"GRIP TAPE UNIVERSAL 21"" LONG"	$5.58
602	880-407	TAPE NR83A/AA NR90AC/AA NV83A	$1.88
