Hitachi M12SC Router Parts

Hitachi M12SC Router Parts Image

Hitachi M12SC Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

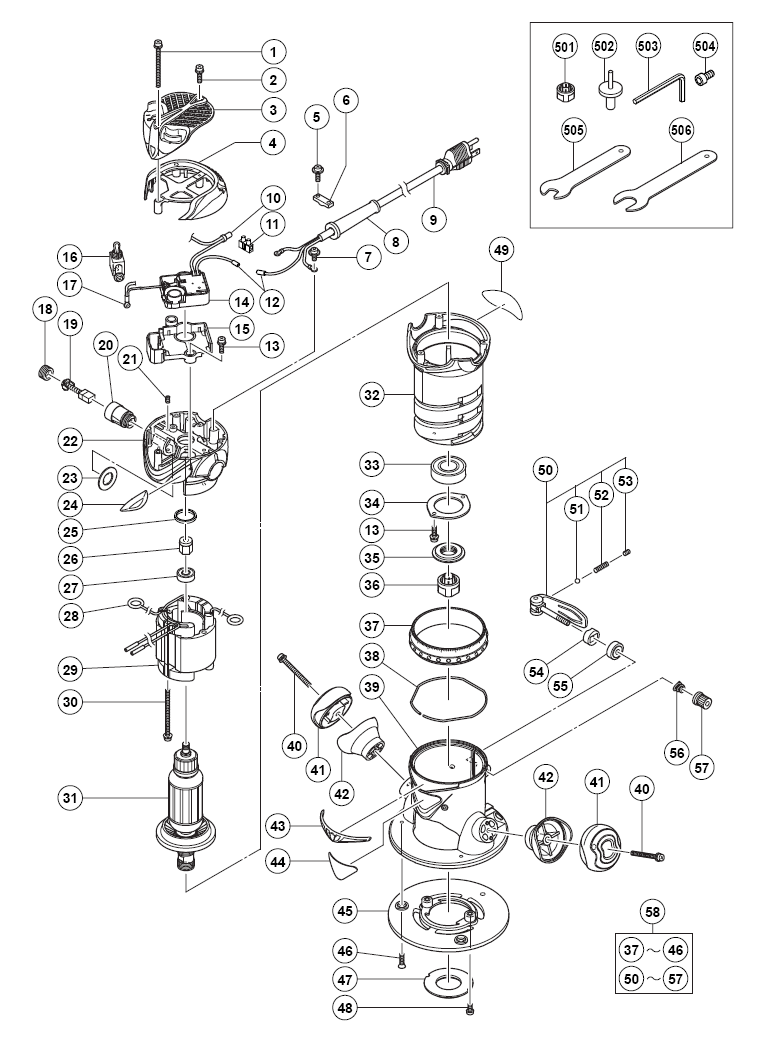

Hitachi M12SC Router Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 307-365 MACHINE SCREW M4x55 w/WASHERS $0.98
2 317-200 MACHINE SCREW W/WASHER M4x8 $1.59
3 323-306 HEAD COVER (B) KM12SC M12SC $3.58
4 323-266 HEAD COVER (A) KM12SC KM12VC $13.68
5 954-878 MACHINE SCREWS M4x16 w/WASHERS $0.98
6 937-631 CORD CLIP M12V2 M12SA2 C8FB2 $1.01
7 317-333 MACH. SCREW (w/SP WASHER) M4x6 $1.58
8 938051 CORD ARMOR D10.1 M12V H45SB2 $1.01
9 500-399Z CORD M12SC KM12SC/VC M12VC $26.20
10 957-150-040 CTRL.PARTS(CARB.),DCS340 $14.61
11 938051 CORD ARMOR D10.1 M12V H45SB2 $1.01
12 981373 TUBE(D) C15FB C10FS C8FB2 $1.24
13 307-081 MACHINE SCREW M4x12 w/WASHERS $0.98
14 323-307 CONTROLLER CIRCUIT KM12SC $49.53
15 323-274 SWITCH HOLDER KM12VC KM12SC $1.57
16 955-509 SWITCH 1P ScrewType M8 M8V $11.24
17 930-804 TERMINAL M4.0 10PS DH40FA/MB $2.68
18 935-829 BRUSH CAP H45MA/H45SB2 $1.01
19 999021 CARBON BRUSH (pair) G10/12SR2 $4.25
20 957-051 BRUSH HOLDER C7SC KM12SC $4.47
21 938051 CORD ARMOR D10.1 M12V H45SB2 $1.01
22 323-256 STATOR HOLDER ASS'Y KM12SC $24.89
23 930-706 STOP PLATE KM12SC KM12VC $0.98
24 323-552 HITACHI PLATE (C) M12VC M12SC $1.32
25 323-420 RUBBER RING KM12SC KM12VC $1.32
26 307-093 MAGNET KM12SC KM12VC $13.60
27 608VVM BALL BEARING G10SR SP18SA $5.78
28 926-208-001 SPRING WASHER 8, DPC7000 $2.51
29 340-595D STATOR ASS'Y 120v KM12SC $16.88
30 943-430 SCREW M5x60 C7SC KM12SC $0.98
31 360-668U ARMATURE ASS'Y 120v KM12VC $76.55
32 323-255 HOUSING KM12SC KM12VC $31.65
33 600-4VV BALL BEARING 6004VVCMPS2L $9.36
34 323-257 BEARING COVER KM12SC KM12VC $1.32
35 323-258 THRUST NUT KM12SC KM12VC $2.46
37 323-260 RING KM12SC KM12VC $1.57
38 323-264 STOPPER PIN KM12SC KM12VC $1.32
39 323-259 BASE (A) KM12SC KM12VC $29.39
40 323-263 MACHINE SCREW M6x40 w/WASHERS $2.65
41 323-261 HANDLE (B) KM12SC KM12VC $2.46
42 323-262 HANDLE (A) KM12SC KM12VC $2.46
43 323-423 DECORATION PLATE(B) KM12SC $1.32
44 323-422 HITACHI PLATE (A) KM12SC $1.32
45 323-265 SUB BASE (A) KM12SC KM12VC $7.38
46 949-332 FLAT HD SCREW M5x12 P12RA 10PS $1.01
48 949-234 SCREWS M5x6 10PS M12V C10RA2 $1.01
50 323-270 LEVER (A) ASS'Y KM12SC KM12VC $9.63
51 959-155 STEEL BALL D3.97 10PS DH38YE $1.01
52 982-454 SPRING (C) NR90AC/2/3 NV50AP3 $1.01
53 938051 CORD ARMOR D10.1 M12V H45SB2 $1.01
54 323-268 LEVER SLEEVE KM12SC KM12VC $1.32
55 323-269 LEVER HOLDER KM12SC KM12VC $2.46
56 306-024 SPRING W6VB2 W6VA3 W8VB/2 $1.29
57 323-271 KNOB NUT KM12SC KM12VC $2.46
58 323-348 FIXED BASE ASS'Y KM12SC KM12VC $74.30
