Hitachi M12SA2 Router Parts

Hitachi M12SA2 Parts

Download Schematic

Time to buy a new tool?

Hitachi M12SA2

3 1/4HP Single Speed...

$211.99

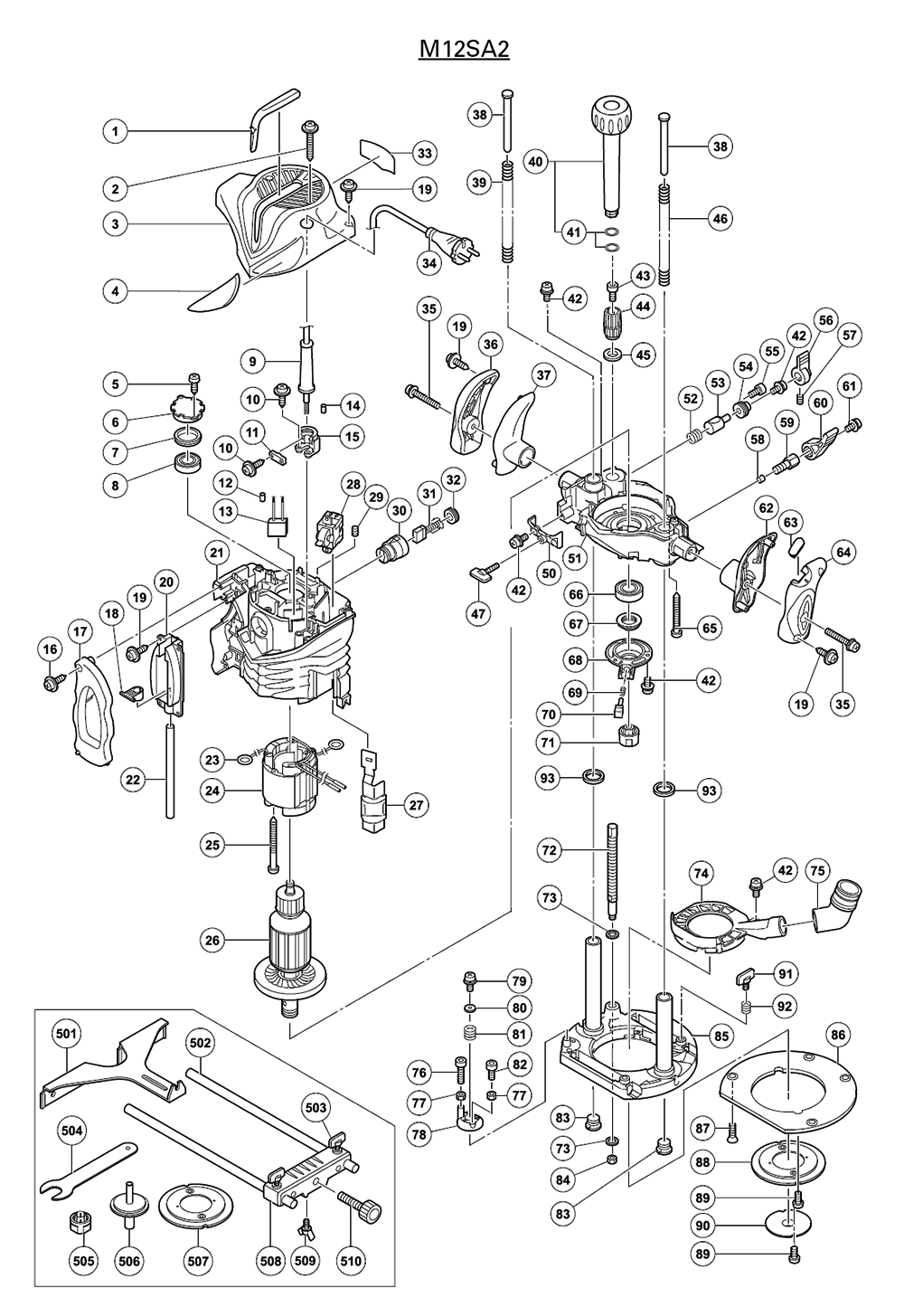

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	305-490	TAPP.SCREWw/FLANGE D4x3 H55SC	$1.27
3	325-168	HEAD COVER	$33.36
5	325-200	CONTROLLER CIRCUIT (C) DIAL SET 100-120V	$130.67
6	301-797	MAGNET	$7.23
7	954-017	Tapping Screw D4X12	$1.24
8	325-169	BEARING BUSHING	$10.66
9	325-184	RUBBER RING	$1.50
10	620-0VV	BALL BEARING 6200VVCMPS2L	$6.67
11	959-141	CONNECTOR 50092 (10 PCS.)	$6.26
12	961-820	TUBE (D)	$1.27
13	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.19
13	938051	CORD ARMOR D10.1 M12V H45SB2	$1.19
14	984750	TAP SCREW w/FLANGE D4x16 C8	$1.19
15	937-631	CORD CLIP M12V2 M12SA2 C8FB2	$1.19
16	981373	TUBE(D) C15FB C10FS C8FB2	$1.48
16	961-820	TUBE (D)	$1.27
17	325-203	CORD HOLDER	$1.55
18	302-086	SCREW W/FLANGE D4x20 WR12DM2	$1.27
19	325-170	FRONT COVER (B)	$5.71
20	325-198	MARKER	$1.55
21	305-812	TAP SCREW w/FLANGE D4x16 (BLK)	$1.06
22	325-197	POLE HOLDER	$2.97
23	325-219	HOUSING ASS’Y	$89.04
24	325-196	STOPPER POLE (A)	$5.71
25	958-032	BRUSH TERMINAL G18SE2 G23SC2	$1.55

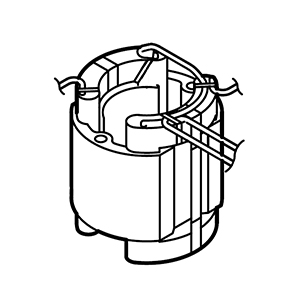

26	340-659C	STATOR ASS’Y 120V	$89.04
27	961-400	TAP SCREW D5x70 WR22SA	$1.55

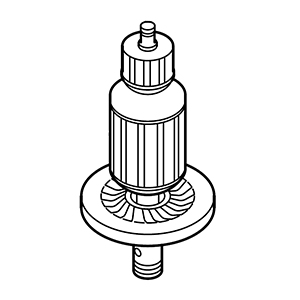

28	360-748U	ARMATURE ASS’Y 110V-120V	$206.40
29	325-960	LEVER	$5.45
30	301-821	SWITCH (2P PILLAR TYPE) W/O LOCK	$21.45
31	938-477	Hex. Socket Set Screw M5X8	$1.19
32	980-487	BRUSH HOLDER G18SE2 G23SC2	$8.45
33	999-044	CARBON BRUSH (pair) P12RA M12V	$5.15
33	P06	Carbon Brush Set	$8.50
34	940-540	BRUSH CAP CC12Y G18SE2 G23SC2	$1.67
36	500-242Z	CORD	$40.92
37	307-443	MACHINE SCREW (W/WASHERS) M6X30 (BLACK)	$1.10
38	325-220	HANDLE (L) B	$9.02
39	325-171	HANDLE (L) A	$4.31
40	325-180	SPRING GUIDE	$2.97
41	325-177	PLUNGE SPRING (R)	$2.97
42	325-214	KNOB (B) ASS’Y	$6.26
43	872-654	O-RING (1AP-10) CR13VA/B CR10V	$1.67
44	935-196	MACHINE SCREW W/WASHER M4x12	$1.20
45	984-509	SEAL LOCK HX.SKT.HD BOLT M5x14	$1.24
46	325-194	KNOB (C)	$1.55
47	325-195	GUIDE SLEEVE	$1.55
48	325-176	PLUNGE SPRING (L)	$2.97
49	301-801	WING BOLT M6x27 M12V M8V	$1.27
52	325-173	FRONT COVER (C)	$7.09
53	325-205	END BRACKET	$75.23
53	326-043	END BRACKET	$76.44
54	325-193	SPRING	$1.55
55	325-192	SPECIAL NUT TR12	$11.48
56	325-191	SPECIAL BOLT M20	$4.31
57	949-811	HEX SOCKEHD BOLT M4x8 (10 PCS)	$2.59
58	325-190	LEVER (B)	$6.26
60	971-848	LOCK PIECE M12V M8V TR12	$1.24
61	325-187	LOCK SCREW M10	$7.90
62	322-601	LEVER (A) W/O STOPPER	$6.88
63	997-314	SCREW w/WASHERS M6x10 C10FS	$1.24
64	325-172	HANDLE (R) A	$4.31
66	325-202	CORD (A)	$13.97
67	325-962	HANDLE (R) B	$8.62
68	307-100	TAPPING SCREW D5X50	$1.10
69	600-4VV	BALL BEARING 6004VVCMPS2L	$11.40
70	325-186	THRUST NUT	$7.90
71	325-185	BEARING COVER	$18.34
72	325-183	LOCK SPRING (A)	$1.50
73	325-182	PUSHING BUTTON	$2.83
74	325-199	COLLET CHUCK 12MM	$11.00
75	325-207	BELLOWS (A)	$15.93
76	325-189	SPECIAL BOLT TR12	$11.48
77	325-188	WASHER	$1.55
78	325-210	DUST GUIDE	$7.90
79	325-215	DUST GUIDE ADAPTER	$5.13
80	949-662	HexSockHDBoltM5x25 NV45AB 10PS	$3.23
82	325-181	STOPPER BLOCK	$7.09
83	317-200	MACHINE SCREW W/WASHER M4x8	$1.89
84	962-569	WASHER (B)	$1.20
85	971-858	SPRING (A) M12V TR12 M8V	$1.55
86	949-765	HEX SOCKET HD BOLT M5x12 10PS	$2.87
87	325-178	STOPPER BOLT	$5.71
88	949-558	NUT M8 (10 PCS.)	$1.73
89	325-206	BASE	$62.79
90	325-179	SUB BASE	$9.85
91	992-013	FLAT HD SCREW M5x14 C7SB C8	$1.24

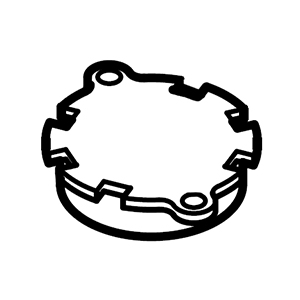

92	325-211	TEMPLATE GUIDE ADAPTER	$18.34
93	949-234	SCREWS M5x6 10PS M12V C10RA2	$1.19
95	301-806	WING BOLT M6x15 M12V C10FCB	$1.24
96	947-859	LOCK SPRING C7BD C7SB C8 M12V	$1.24
97	323-426	FELT KM12SC KM12VC M12V2	$1.72
502	325-216	GUIDE BAR (A)	$11.48
503	301-806	WING BOLT M6x15 M12V C10FCB	$1.24
506	325-223	CENTERING GAUGE	$13.14
508	325-217	BAR HOLDER	$19.21
509	949-394	WING BOLT M6x10 (10 pc) C15FB	$7.67
511	325-224	TEMPLATE GUIDE ADAPTER	$18.34
