Hitachi H45MR Demolition Hammer Parts

Hitachi H45MR Demolition Hammer Parts Image

Hitachi H45MR Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image
Hitachi H45MR Demolition Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 315-529 FRONT CAP H45MA/H60MA/H60MB $3.58
2 320-802 GRIP (A) H45MR H45MRY $6.98
3 320-803 RING H45MR H60MR H60MRV $1.88
4 320-804 NEEDLE HOLDER H45MR H60MR $29.93
5 313-421 NEEDLE ROLLER D8x20 DH40MA/B $5.56
6 320-806 SPRING (A) H45MR H45MRY $6.98
7 317-088 RETAINING RING H60MRV D42SHAFT $3.60
8 320-810 BALL HOLDER H45MR H60MR H60MRV $13.06
9 320-807 GRIP (B) H45MR H45MRY $3.58
10 320-808 GRIP (C) H45MR H45MRY $5.27
11 959-150 STEEL BALL D6.35 10PS DH38YE $1.67
12 981-942 SEAL LOCK BOLT M6x25 H45SB/MR $1.97

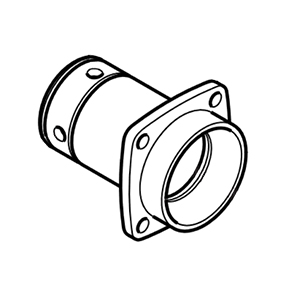

13 320-809 FRONT COVER H45MR $83.09
14 980-879 O-RING (S-34) NV65AH/NT65AA/MA $1.20
15 990-067 O-RING (1AS-50) NV45AC H45MR/Y $1.97
16 320-805 RETAINER SLEEVE H45MR H45MRY $98.41
18 320-811 HAMMER HOLDER (A) H45MR $34.61
19 319-572 O-RING (S-25) H45MR H45FRV $1.88
20 320-813 SECOND HAMMER H45MR $37.77
21 320-817 DAMPER (C) H45MR H45FRV $3.58
22 320-814 HAMMER HOLDER (B) H45MR $11.33
23 320-815 DAMPER (B) H45MR H45FRV $3.58
25 320-816 HAMMER HOLDER (C) H45MR $1.88
26 320-822 STRIKER H45MR H45FRV $17.42
27 320-823 O-RING H45MR H45FRV $3.58
28 320-818 CYLINDER HOLDER H45MR H45FRV $6.98
30 320-821 SPRING (C) H45MR H45FRV $3.58
32 320-826 PISTON PIN H45MR H45FRV $5.27
33 320-824 PISTON H45MR H45FRV $5.27
34 320-825 CONNECTING ROD H45MR H45FRV $3.58
35 986-940 SEAL LOCK HEX SOCKET HD BOLT $1.27
36 983-162 HEX SKT HD BOLT M4x12 DH38YE $1.20
38 320-831 CRANK COVER H45MR H45FRV $8.32
40 953327 CORD ARMOR D8.8 D10VH SV13YB $1.19
41 938051 CORD ARMOR D10.1 M12V H45SB2 $1.19
42 320-829 CRANKSHAFT H45MR H45FRV $40.92
43 930-511 FEATHER KEY 4x4x10mm H45MRY $2.59
44 980-760 SEAL LOCK HEX SOCKET M5X12 $1.20
45 980-761 BEARING COVER H45MR H45FRV $8.27
46 620-3DD BALL BEARING H45MR DH40MR/FR $9.34
47 310-119 OIL SEAL H45FRV H45MRY H45MR $3.87
48 320-828 CYLINDER CRANK CASE H45MR $67.70
50 320-837 HANDLE PACKING (A) H45MR $3.58
51 310-124 HANDLE DAMPER H45SB2 H45MA $4.57
52 310-123 TRANSATORY UNIT H45SB2/MA $12.70
53 320-830 FIRST GEAR H45MR H45FRV $28.41
54 939-299 NEEDLE BEARING (M661) DH38YE $11.33
55 320-841 GEAR COVER ASSEMBLY H45MR $37.77
56 317-107 BOLT M8 H60MRV H60MR H45FRV $3.58
57 317-106 HANDLE HOLDER (B) H60MB H60MA $3.58
59 320-635 BAND H45MR H45FRV H60MR H60MRV $7.20
60 317-108 GRIP H60MB H60MA H45MR H45FRV $10.65
62 935-829 BRUSH CAP H45MA/H45SB2 $1.19
63 999-073 CARBON BRUSH AUTO (pair) CR10V $16.19
63 P07 This item will be shipped Free Carbon Brush Set Replaces Hitachi 999-073, 981-6... $9.99
64 971-001 BRUSH HOLDER DH40MR/Y DH40FR $6.98
65 938051 CORD ARMOR D10.1 M12V H45SB2 $1.19
66 320-834 TAIL COVER H45MR H45FRV $9.99
67 877-839 SL LK HEX HD BOLT M5x10 H90SB $1.24
68 620-1DD BALL BEARING SP18SA P12R $8.52
69 302-429 DUST WASHER (B) C7BD C7SB C8 $1.27
70 360-571U ARMATURE ASSEMBLY H45MR $107.37
71 320-832 FAN GUIDE H45MR H45FRV $1.88
73 340-519G STATOR ASSEMBLY H45MR $61.58
74 930-703 Brush Terminal $2.59
75 930-804 TERMINAL M4.0 10PS DH40FA/MB $3.23
76 982-631 WASHER (A)H45SB2 DH24PE/B/C/B2 $0.94
77 608VVM BALL BEARING G10SR SP18SA $7.02
78 320-833 HOUSING ASSY H45MR H45FRV $95.35
79 320-836 SLEEVE (B) H45MR H45FRV $1.88
80 320-838 HANDLE PACKING (B) H45MR $5.27
81 984-509 SEAL LOCK HX.SKT.HD BOLT M5x14 $1.24
82 980-754 INTERNAL WIRE HOLDER H45MR $8.32
83 991-690 SEAL LOCK HEX SOC.HDBOLT M5x12 $1.24
84 986011 TAP SCREW D5x30 GP2/S2 CR18DL $1.55
87 986011 TAP SCREW D5x30 GP2/S2 CR18DL $1.55
88 317-492 SUPPORT (B) H45MR DH30PC2 $1.88
91 306-143 SWITCH (B) 1P H45MA H60MA/MB $19.81
93 307-028 SCREW W/FLANGE D4x25 CR13VA/2 $1.19
94 959-140 CONNECTOR 50091 (10 PCS.) $3.50
95 938051 CORD ARMOR D10.1 M12V H45SB2 $1.19
96 959-141 CONNECTOR 50092 (10 PCS.) $6.26
98 984-750 TAP SCREW w/FLANGE D4x16 C8 $1.19
99 960266 CORD CLIP C7BD/SB C8 DH38YE $1.19
99 981373 TUBE(D) C15FB C10FS C8FB2 $1.48
100 949-423 WASHER M4 (10pc) DH40MA/MB $1.19
101 981373 TUBE(D) C15FB C10FS C8FB2 $1.48
102 980063 TERMINAL CR12V D13V DH38YE $1.24
102 992-810 TERMINAL H45MA DH40FA/FB/MA/MB $1.19
102 930-804 TERMINAL M4.0 10PS DH40FA/MB $3.23
103 953327 CORD ARMOR D8.8 D10VH SV13YB $1.19
103 938051 CORD ARMOR D10.1 M12V H45SB2 $1.19
104 500-434Z CORD, ELECTRICAL, 2 WIRE C7SB $23.20
104 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
