Hitachi G23SR Electric Grinder Parts

Hitachi G23SR Electric Grinder Parts Image

Hitachi G23SR Parts

Download Schematic

Time to buy a new tool?

Hitachi G23SR

9 Inch Angle Grinder...

$141.99

Free Shipping

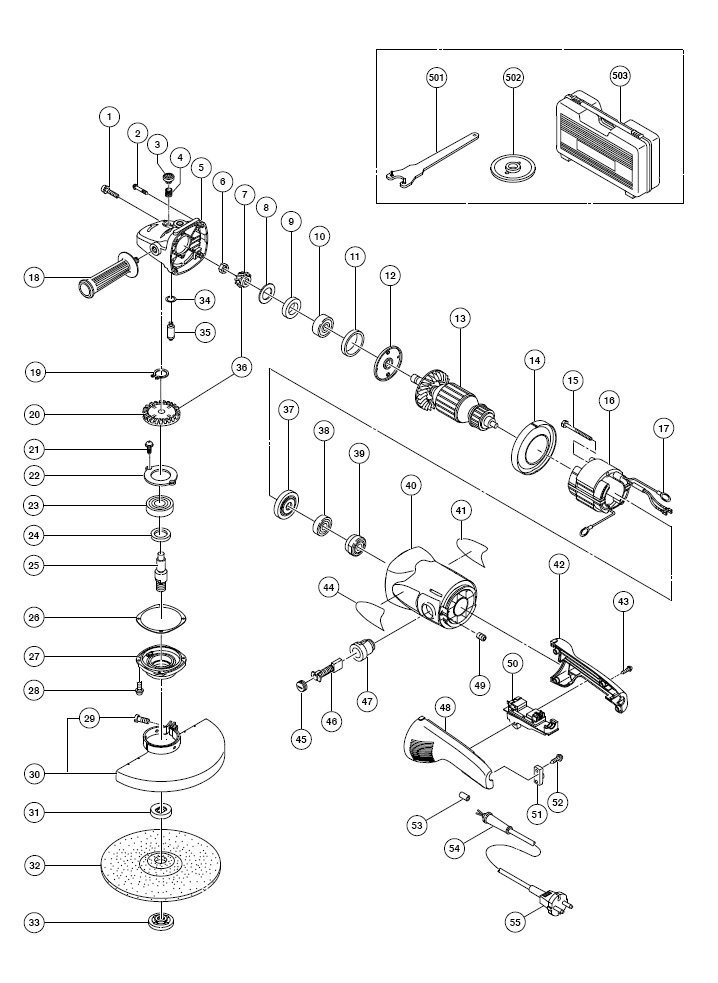

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	315-636	SEAL LOCK SCREW (W/SP.WASHER)M5X14(BLACK)	$1.89
2	323-209	TAPPING SCREW (W/FLANGE) D5X35 (BLACK)	$1.83
3	306-888	PUSHING BUTTON	$1.48
4	320-219	SPRING	$1.52
5	320-217	GEAR COVER ASS’Y	$20.74
6	320-226	SPECIAL NUT M10	$1.52
7	320-243	PINION	$9.67
8	320-221	SEAL WASHER	$1.52
9	320-222	FELT PACKING	$1.52
10	630-1VV	BALL BEARING 6301VVCMPS2L	$12.55
11	994-208	RUBBER RING (B)	$1.48
12	320-220	BEARING COVER (A)	$2.84
13	360-762U	ARMATURE 120V	$97.25
14	320-215	FAN GUIDE	$1.52
15	961-501	HEX. HD. TAPPING SCREW D5X60	$1.55
16	340-664D	STATOR ASS’Y 120V	$52.61
17	958-032	BRUSH TERMINAL G18SE2 G23SC2	$1.55
19	939-542	RETAINING RING D12SHAFT 10 PCS	$2.54
20	320-224	GEAR	$21.28
21	949-236	Machine Screw M5X10 (10 Pcs.)	$1.55
22	320-229	BEARING COVER (B)	$1.52
23	630-2VV	BALL BEARING 6302VVCMPS2L	$12.94
24	990-852	FELT PACKING (B)	$1.48
25	321-541	SPINDLE	$10.33
26	320-228	SEAL PLATE	$1.52
27	320-227	PACKING GLAND	$5.44
28	994-192	HEX. SOCKET HD. BOLT (W/FLANGE) M5X16	$1.48
29	949-656	HexSockHDBoltM8x20 C10FC2 10PS	$5.38
34	320-218	O-RING	$1.52
35	306-890	LOCK PIN	$1.92
36	320-241	GEAR AND PINION ASS’Y	$29.47
37	320-216	DUST SEAL	$1.52
38	600-0VV	BALL BEARING 6000VVCMPS2L	$10.83
39	321-536	BEARING BUSHING	$13.68
40	325-640	HOUSING	$61.85
42	325-641	HANDLE (B)	$9.20
43	305-812	TAP SCREW w/FLANGE D4x16 (BLK)	$1.06
45	940-540	BRUSH CAP CC12Y G18SE2 G23SC2	$1.67
46	999-044	CARBON BRUSH (pair) P12RA M12V	$5.15
46	P06	Carbon Brush Set	$8.50
46	999-074	CARBON BRUSH AUTO (pair) H85	$16.19
47	980-487	BRUSH HOLDER G18SE2 G23SC2	$8.45
48	325-642	HANDLE (A)	$8.69
49	938-477	Hex. Socket Set Screw M5X8	$1.19
50	322-614	SWITCH (2P PILLAR TYPE) W/SAFETY LOCK	$47.63
51	960266	CORD CLIP C7BD/SB C8 DH38YE	$1.19
52	984750	TAP SCREW w/FLANGE D4x16 C8	$1.19
53	981373	TUBE(D) C15FB C10FS C8FB2	$1.48
53	961-820	TUBE (D)	$1.27
54	958-049	CORD ARMOR D8.2 SAT180 SP18V	$1.19
54	940-778	CORD ARMOR D10.7 C10FA C15FB	$3.19
55	500-453Z	CORD, ELECTRICAL, 2 WIRES	$36.27
56	949-457	SPRING WASHER M8 (10 PCS.)	$1.18
57	937-911	SET RING A	$3.19
58	322-549	SWITCH COVER	$3.01
59	930-804	TERMINAL M4.0 10PS DH40FA/MB	$3.23
