Hitachi G10SR2 Electric Grinder Parts

Hitachi G10SR2 Electric Grinder Parts Image

Hitachi G10SR2 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

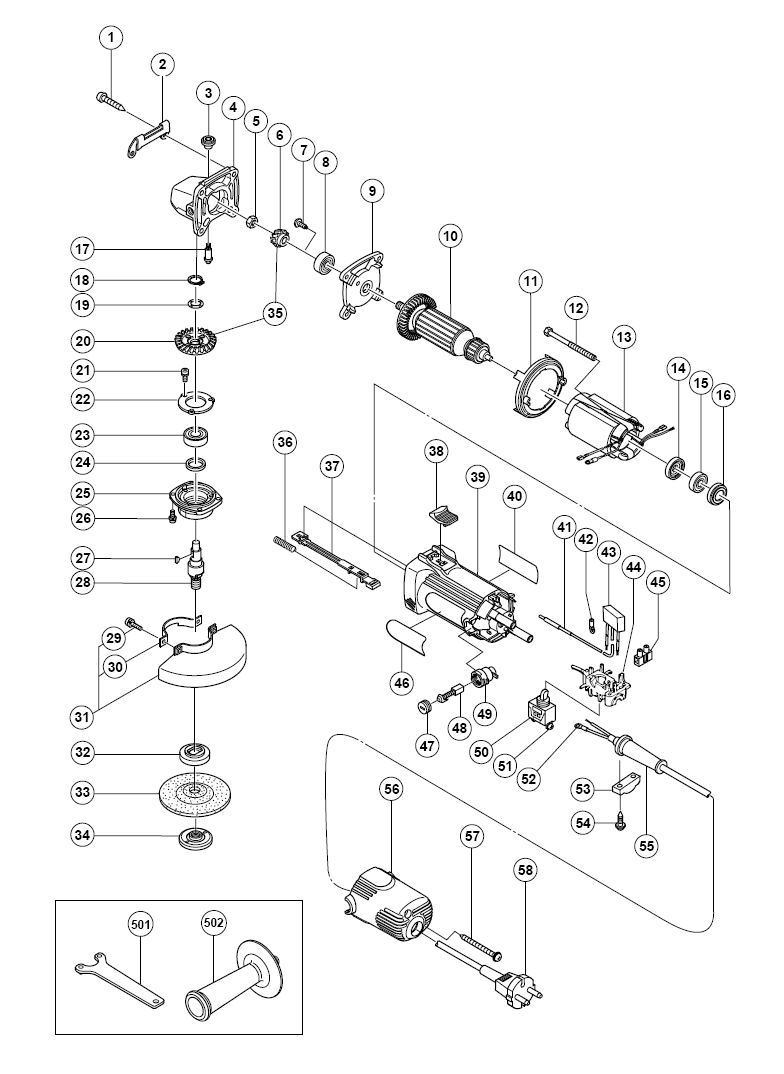

Hitachi G10SR2 Electric Grinder Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 320-523 TAPPING SCREW D5x25 G10/12SR2 $1.58
2 302-149 GUARD PLATE G10SD1 G12S1 G10SR $2.39
3 301-944 PUSHING BUTTON G18DL G14DSL $1.07
4 314-125 GEAR COVER ASSY G12SR G12SR2 $11.23
5 309-191 SPECIAL NUT M6 G10SR2 G12SR2 $0.94
6 321-724 PINION G10SR2 / G12SR2 $6.81
7 314-430 SLOT HD SCREW (seal lock)M4x10 $1.02
8 608VVM BALL BEARING G10SR SP18SA $5.78
9 301-935 INNER COVER G10SR G12SR G10SD1 $4.08
10 360-605U ARMATURE ASS'Y 120v G10SR2 $66.50
11 306-840 FAN GUIDE D10YB G10SR2 G12SR2 $1.87
12 963-712 HEX HD. TAPPING SCREW D4x65 $0.85
13 340-552D STATOR G10SR2 G12SR2 120v $23.94
14 321-722 DUST SEAL G10SR2 / G12SR2 $1.58
15 626-VVM BALL BEARING 626VVC2PS2L DH24 $5.78
16 309-929 RUBBER BUSHING D10YB CN16SA $1.01
17 301-943 LOCK PIN G10SD1 G10SR/2 G12SE $2.39
18 316-487 RETAINING RING G10SR2 D11SHAFT $1.58
19 316-486 WAVE WASHER G10SR2 / G12SR2 $1.58
20 321-725 GEAR G10SR2 G12SR2 $6.81
21 987-201 SEAL LOCK SCREW w/WASHER M4x10 $1.07
22 938-058 BEARING COVER (B) G10SR/G12SR $1.07
23 600-1VV BALL BEARING 6001VVCMPS2L $8.19
24 301-946 FELT PACKING G10SR2 G12SR2/S2 $1.07
25 301-947 PACKING GLAND G10SR G12SR $3.33
26 987-203 SEAL LOCK SCREW W/WASHER M4x12 $1.07
27 302-047 WOODRUFF KEY G12S2 G12SR2 $1.01
28 321-728 SPINDLE M10x1.25 G10SR2 $5.74
29 308-386 MACHINE SCREW M5x16 G10/12SR3 $1.01
30 301-949 SET PLATE G10SR G12SR G10SD1 $0.88
31 301-948 WHEEL GUARD ASSY G10SR/SR2/3 $5.33
35 321-723 GEAR AND PINION ASS'Y G10SR2 $13.44
36 314-429 SPRING D10YB G12S2 G12SR2 $1.01
37 314-427 SLIDE BAR G10SS G12SS CN16SA $1.12
38 314-428 SLIDE KNOB G12S2 G12SA2 G12SA3 $1.13
39 321-721 HOUSING ASS'Y G10SR2 / G12SR2 $13.45
42 980063 TERMINAL CR12V D13V DH38YE $1.06
43 986011 TAP SCREW D5x30 GP2/S2 CR18DL $1.31
44 314-432 SWITCH HOLDER CN16SA CE16SA $1.81
45 938051 CORD ARMOR D10.1 M12V H45SB2 $1.01
47 936-551 BRUSH CAP D10YB G10SR2 G12SR2 $1.46
48 999021 CARBON BRUSH (pair) G10/12SR2 $4.25
49 313-777 BRUSH HOLDER D10YB G12SR2 $2.15
50 314-603 SWITCH 1P SolderType D10YB $11.22
51 305-499 MACHINE SCREW w/WASHER M3.5x6 $1.02
52 980063 TERMINAL CR12V D13V DH38YE $1.06
53 937-631 CORD CLIP M12V2 M12SA2 C8FB2 $1.01
54 984750 TAP SCREW w/FLANGE D4x16 C8 $1.01
55 953327 CORD ARMOR D8.8 D10VH SV13YB $1.01
56 321-726 TAIL COVER G10SR2 G12SR2 $6.28
57 301-815 SCREW (W/FLANGE) D4x45 M12V $1.07
58 500240z CORD, ELECTRICAL, 2 WIRES $14.86
