Hitachi DV18DV Cordless Drill Parts

Hitachi DV18DV Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

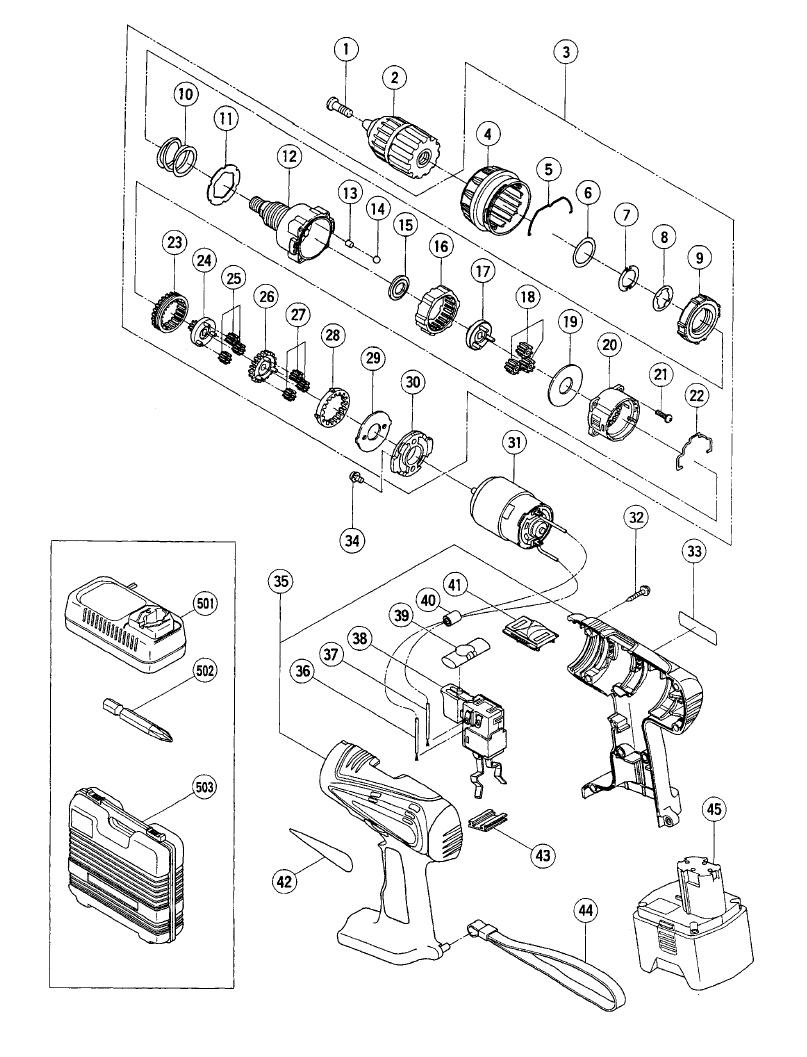

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	311-959	SPECIAL SCREW LH M6x23 DS18DL	$2.25
5	319-754	CLICK SPRING DS12DVB DS14DVB	$3.58
6	320-088	O-RING DV14DV	$1.88
7	320-089	LOCK WASHER DV14DV	$3.58
8	320-090	SWITCH PLATE DV14DV	$3.58
9	319-743	NUT DS12DVB DS14DVB DS18DVB	$1.88
10	319-742	SPRING DS14DVB DS18DVB DV14DV	$3.58
11	319-741	THRUST WASHER DS14DVB DS18DVB	$1.88
13	319-744	ROLLER DS9/12/14DVF/2	$1.88
14	306-936	STEEL BALL DS10/13DV2 DS14DV	$1.19
15	319-746	SPACER WASHER DS14DVB DS18DVB	$1.88
16	319-745	RING GEAR DS14DVB DS18DVB	$3.58
19	312-704	WASHER (A) DS10/13DV2 DS14DV	$2.25
20	319-748	REAR CASE DS12DVB DS14DVB	$3.58
21	320-087	SCREW SET M3x12 (4PS) DV14DV	$5.27
22	319-753	SHIFT ARM DS14DVB DS18DVB	$3.58
23	319-750	SLIDE RING GEAR DS14DVB	$5.27
26	319-751	PINION (B) DS14DVB DS18DVB	$3.58
28	319-752	FIRST RING GEAR DS14DVB DS18DV	$5.27
29	312-716	WASHER (B) DS9/12/14DVF/2	$2.25
30	316-955	MOTOR SPACER DS12DVB	$5.27
31	319-756	MOTOR DS18DVB DV18DV	$55.43
32	313-687	TAP SCREW W/FLANGE D3x16	$1.19
36	319-759	INTERNAL WIRE (BLACK) 100L	$1.83
37	319-758	INTERNAL WIRE (RED) 130L	$1.83
38	320-091	DC SPEED CONTROL SWITCH	$58.53
39	319-760	PUSH BUTTON DV24DV DS12DVB	$1.88
41	318-234	SHIFT KNOB FDS9/12 DV14/18DV	$1.88
43	315-141	TERMINAL SUPPORT A DS14DV	$1.88
44	306-952	STRAP DN10DYK DS10DV2/ DS13DV2	$6.98
