Hitachi DV16VSS Cordless Impact Wrenches & Driver Parts

Hitachi DV16VSS Parts

Download Schematic

Time to buy a new tool?

Hitachi DV16VSS

5/8 Inch 5.4-Amp Ham...

$69.99

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	995-344	FLAT HD SCREW LH M6x25 DV20VB2	$1.29
4	948-001	RETAINING RING D13VB2 DV20VB	$1.70
5	971-654	DUST SEAL DV16V DV20VB DV20V2	$2.15
6	331-522	Spindle	$5.00
7	322-514	Spring	$1.44
8	330-682	Distance Ring	$1.21
9	600-2VV	BALL BEARING 6002VVCMPS2L	$8.43
10	939-544	RETAINING RING D13 D15SHAFT	$2.80
11	322-657	Tapping Screw (W/Flange) D4 X 60 (Black)	$1.61

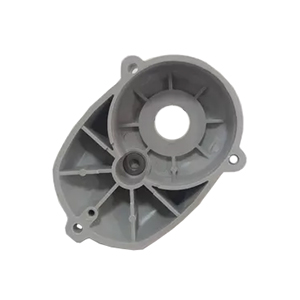

12	330-726	Gear Cover	$4.59
13	330-683	Gear	$13.05
14	959-150	STEEL BALL D6.35 10PS DH38YE	$1.41
15	301-815	SCREW (W/FLANGE) D4x45 M12V	$1.07
16	330-680	Tapping Screw (W/Sp Washer) D4 X 20	$1.21
17	330-677	Ratchet	$8.62

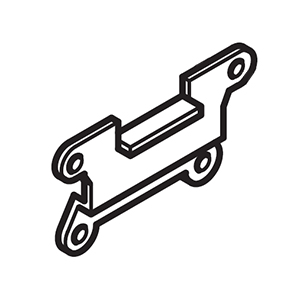

18	330-678	Bushing	$1.21
19	330-679	Bolt M3	$2.13

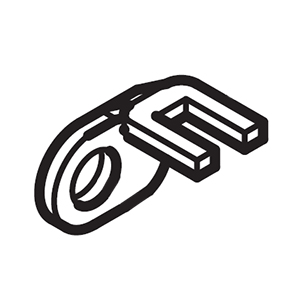

20	330-676	Change Plate	$1.21
22	322-510	Change Lever	$1.44

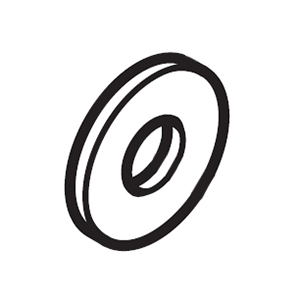

23	323-096	Felt Packing	$2.13
24	330-674	Washer (A)	$1.21
25	608-DDM	BALL BEARING 608DDC2PS2L C10FS	$6.03
26	360-863U	Armature Assembly 120V	$44.30
28	950-515	TAP SCREW D4x50 (10pc) W8VB	$1.06
29	340-742D	Stator 120V	$22.24
31	330-715	Handle Cover	$4.22
32	301-653	TAP SCREW w/FLANGE D4x20 C7SB	$1.05
33	330-719	HITACHI LABEL	$2.21
36	955-203	BRUSH HOLDER CJ110MV D13VB2	$3.11
37	999-041	CARBON BRUSH (pair) CJ110MV	$4.25
38	981373	TUBE(D) C15FB C10FS C8FB2	$1.24
39	937-631	CORD CLIP M12V2 M12SA2 C8FB2	$1.01
40	984750	TAP SCREW w/FLANGE D4x16 C8	$1.01
42	330-717	Internal Wire (Brown)	$1.21
43	330-718	Internal Wire (Blue)	$1.21
45	500240z	CORD, ELECTRICAL, 2 WIRES	$14.86
