Hitachi DS14DVB Cordless Drill Parts

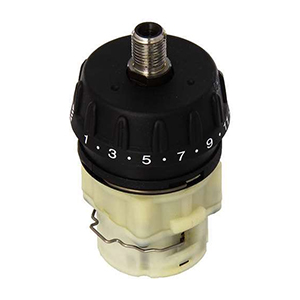

Hitachi DS14DVB Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

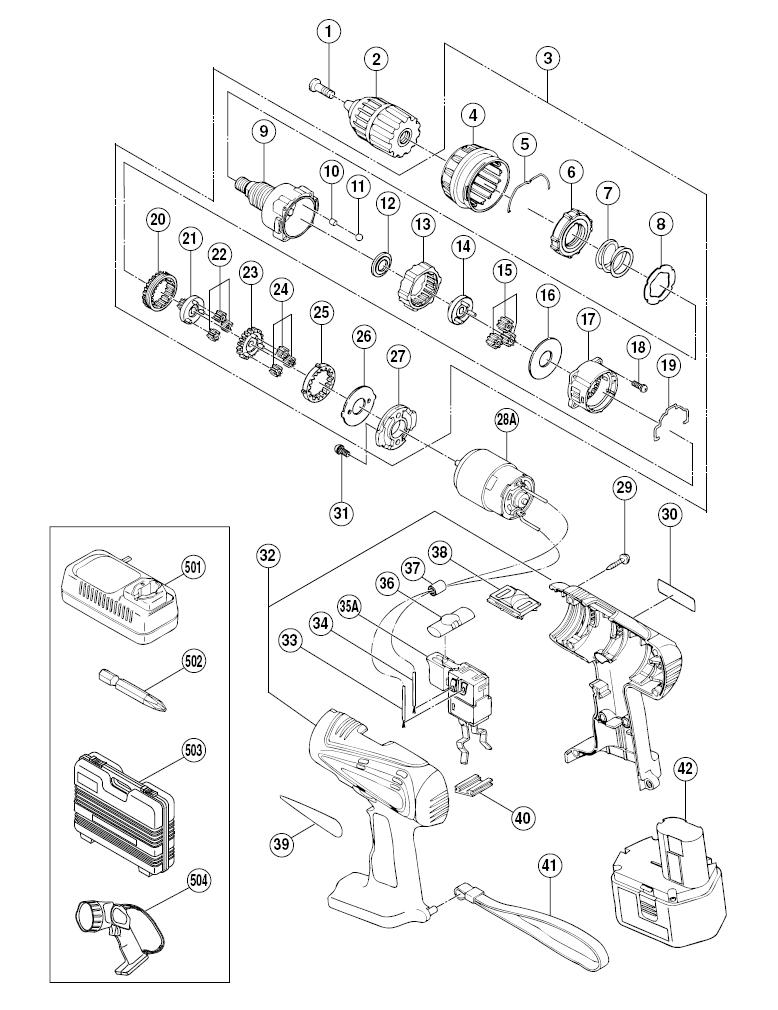

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	311-959	SPECIAL SCREW LH M6x23 DS18DL	$2.25
4	319-755	CAP DS12DVB DS14DVB DS18DVB	$6.98
5	319-754	CLICK SPRING DS12DVB DS14DVB	$3.58
6	319-743	NUT DS12DVB DS14DVB DS18DVB	$1.88
7	319-742	SPRING DS14DVB DS18DVB DV14DV	$3.58
8	319-741	THRUST WASHER DS14DVB DS18DVB	$1.88
10	319-744	ROLLER DS9/12/14DVF/2	$1.88
11	306-936	STEEL BALL DS10/13DV2 DS14DV	$1.19
12	319-746	SPACER WASHER DS14DVB DS18DVB	$1.88
13	319-745	RING GEAR DS14DVB DS18DVB	$3.58
16	312-704	WASHER (A) DS10/13DV2 DS14DV	$2.25
17	319-748	REAR CASE DS12DVB DS14DVB	$3.58
18	312-712	SCREW SET D3x12 DS13DV2/DS14DV	$2.25
19	319-753	SHIFT ARM DS14DVB DS18DVB	$3.58
20	319-750	SLIDE RING GEAR DS14DVB	$5.27
23	319-751	PINION (B) DS14DVB DS18DVB	$3.58
25	319-752	FIRST RING GEAR DS14DVB DS18DV	$5.27
26	312-716	WASHER (B) DS9/12/14DVF/2	$2.25
27	316-955	MOTOR SPACER DS12DVB	$5.27
28A	320-144	MOTOR DV14DV	$47.07
29	991-672	TAPP.SCREWw/WASH.D3x16 DS13DV2	$1.24
33	319-759	INTERNAL WIRE (BLACK) 100L	$1.83
34	319-758	INTERNAL WIRE (RED) 130L	$1.83
35A	320-145	DC SPEED CONTROL SWITCH DV14DV	$58.53
36	319-760	PUSH BUTTON DV24DV DS12DVB	$1.88
38	318-234	SHIFT KNOB FDS9/12 DV14/18DV	$1.88
40	315-141	TERMINAL SUPPORT A DS14DV	$1.88
41	306-952	STRAP DN10DYK DS10DV2/ DS13DV2	$6.98
