Hitachi DS14DL Cordless Screwdriver Parts

Hitachi DS14DL Cordless Screwdriver Parts Image

Hitachi DS14DL Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Hitachi DS14DL
14.4-Volt Lithium-Io...
$191.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

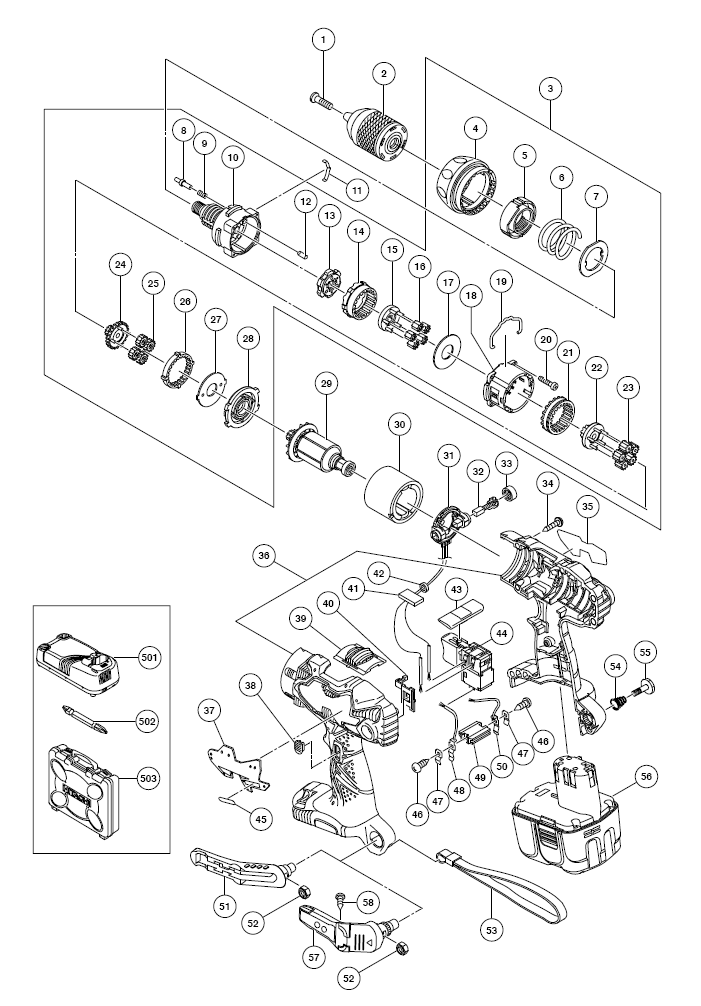

Hitachi DS14DL Cordless Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 311-959 SPECIAL SCREW LH M6x23 DS18DL $2.25
3 322-969 GEAR BOX ASS'Y DS14DMR DS18DMR $159.04
4 322-991 FRONT CAP DS14DMR DS18DMR $17.88
5 322-974 NUT DS14DMR DS18DMR $3.46
6 323-228 SPRING DS14DMR DS18DMR $3.46
7 322-973 THRUST WASHER DS14DMR DS18DMR $1.84
8 322-972 STOPPER DS14DMR DS18DMR $3.46
9 322-971 STOPPER SPRING DS14DMR DS18DMR $1.84
10 322-970 FRONT CASE DS14DMR DS18DMR $42.69
11 323-231 CLICK SPRING DS14DMR DS18DMR $1.84
12 322-975 PIN SET (6PC) DS14DMR DS18DMR $22.49
13 322-976 LOCK RING DS14DMR DS18DMR $10.68
14 322-977 RING GEAR DS14DMR DS18DMR $7.42
15 322-978 CARRIER DS14DMR DS18DMR $3.46
16 322-979 PLANET GEAR (C) SET (5PC) $5.11
17 322-980 WASHER (A) DS14DMR DS18DMR $1.84
18 322-981 REAR CASE DS14DMR DS18DMR $5.11
19 322-990 SHIFT ARM DS14DMR DS18DMR $1.84
20 315-817 SCREW SET D3X12 (6PCS) FDS9/12 $6.98
21 322-983 SLIDE RING GEAR DS14DMR $6.77
22 322-982 PINION (C) DS14DMR DS18DMR $6.77
23 322-984 PLANET GEAR (B) SET (5PC) $5.11
24 322-985 PINION (B) DS14DMR DS18DMR $5.11
25 322-987 PLANET GEAR (A) SET (4PC) $3.46
26 322-986 FIRST RING GEAR DS14DMR $5.11
27 322-988 WASHER (B) DS14DMR DS18DMR $1.84
28 322-989 MOTOR SPACER DS14DMR DS18DMR $3.46
29 360-658 ARMATURE & PINION SET DS14DMR $48.57
30 322-996 MAGNET DS14DMR DS18DMR $14.48
31 322-993 BRUSH BLOCK DS14DMR DS18DMR $30.74
32 999-054 CARBON BRUSH (pair) WH/WR18DL $6.98
33 319-918 BRUSH CAP WH9DM WH/WR18DL $3.58
34 313-687 TAP SCREW W/FLANGE D3x16 $1.19
36 326-280 HOUSING (A).(B) SET $27.77
37 326-279 PLATE (A) $27.25
38 326-276 LEVER (A) $1.55
39 324-137 SHIFT KNOB DS14/18DMR/DL $2.96
40 326-277 LEVER (B) $1.55
42 323-229 FERRITE CORE DV18DVC DV18DCL $1.72
43 322-997 PUSHING BUTTON DS14DMR DS18DMR $1.56
44 333-640 DC SPEED CONTROL SWITCH Replaces 322-994 $39.67
46 958-715 TAP SCREW D4x10 DH50SB C7D $1.55
47 996-118 HOLDER SPRING WH8DC C6DC $2.87
48 323-003 TERMINAL DS14DMR DS18DMR $1.56
49 320-997 TERMINAL PIECE C6DC2 DV14/18DL $1.84
50 322-995 TERMINAL DS14DMR/DL DS18DMR/DL $1.56
51 320-287 HOOK ASSEMBLY WH9DM DS14DMR $5.27
52 320-288 LOCK NUT M5 WH9DM WH/WR14DM $1.88
53 306-952 STRAP DN10DYK DS10DV2/ DS13DV2 $6.98
54 319-926 HOOK SPRING WH9DM WH12DM $1.88
55 320-881 SPECIAL SCREW (A) M5 $1.88
58 321-672 TAPPING SCREW D2x6 WH12DM2 $1.88
601 323-001 SIDE HANDLE $7.31
