Hitachi DH50SBK Rotary Hammer Parts

Hitachi DH50SBK Rotary Hammer Parts Image

Hitachi DH50SBK Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Hitachi DH50SBK
2 Inch Spline Shank ...
$765.99
Tool Diagram    (Click image to Zoom in) View larger Image

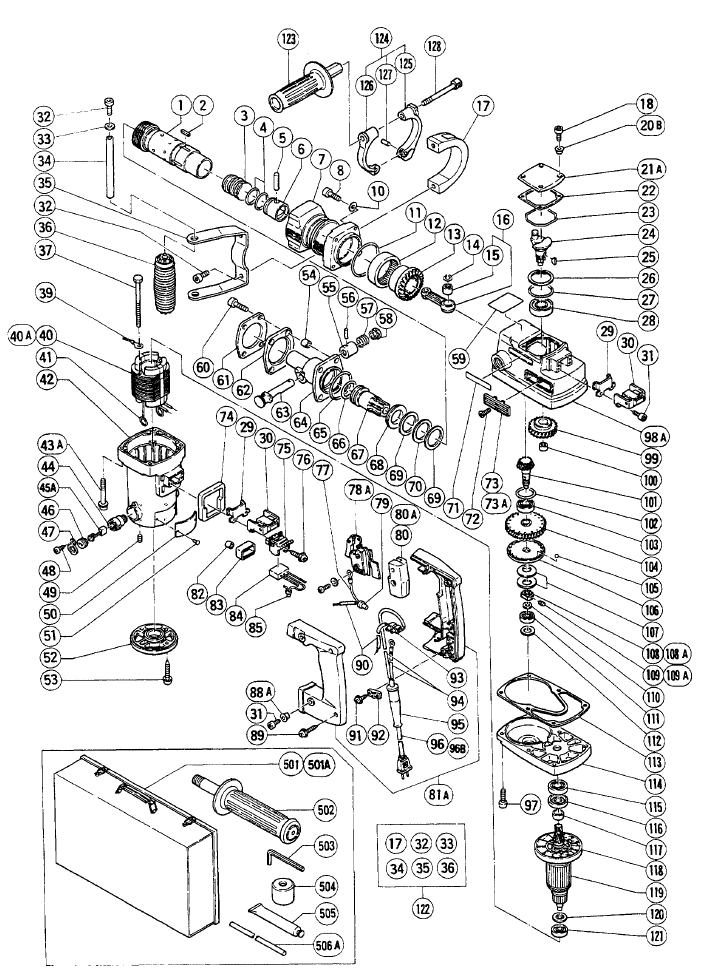

Hitachi DH50SBK Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 993-231 Cylinder $244.38
2 971-750 FEATHER KEY 3x3x20 DH38YE $1.24
3 993-252 Striker $50.32
4 985-773 O-Ring (A) $8.67
5 955-593 PISTON PIN DH50SB DH50MB $3.23
6 985-772 PISTON DH50SBK DH50MB $55.43
7 993-247 Cylinder Case $169.92
8 993-237 Seal Lock Hex. Socket HD. Bolt M6X35 $1.24
10 949-432 BOLT WASHER M6 (10 PCS.) $1.20
11 985-779 O-RING (D) DH50SB DH50MB $2.59
12 985-782 Needle Bearing (M526320) $28.72
13 985-775 Third Gear $87.18
14 939-542 RETAINING RING D12SHAFT 10 PCS $2.54
15 980-756 Needle Bearing (NSK AJ50 1203) $11.33
16 985-771 Connecting Rod Assy $47.18
17 986-960 Holder (A) $40.92
18 983-162 HEX SKT HD BOLT M4x12 DH38YE $1.20
20B 990-146 Distance Piece (A) $1.27
21A 991-716 Crank Cover $8.67
22 980-749 Seal Packing $1.24
23 980-744 O-Ring (S - 55) $2.87
24 985-763 Crank Shaft $67.70
25 932-815 Woodruff Key 3X13 $1.67
26 948-227 RETAINING RING WH16 WR12DH $1.55
27 985-765 O-Ring (B) $2.25
28 620-4DD BALL BEARING 6204DDCMPS2L EC16 $11.92
29 980-750 GUIDE PLATE DH50SB H45SB H55SC $19.81
30 980-727 HANDLE RUBBER DH50SB H55SC $15.02
31 984-509 SEAL LOCK HX.SKT.HD BOLT M5x14 $1.24
32 949-656 HexSockHDBoltM8x20 C10FC2 10PS $5.38
33 986-963 Washer (C) $1.55
34 986-962 Shaft $16.43
35 986-961 Holder (B) $15.80
36 944-951 GRIP DH50SB/H55SC/H65 $8.93
37 961-400 TAP SCREW D5x70 WR22SA $1.55
40 985-471C Stator Assy 110V - 115V $83.05
41 937-623 BRUSH TERMINAL C8 C7SB/2 H55SC $1.24
42 985-435 Housing Assy $110.35
43A 994-085 Hex. Socket HD. Bolt (W/Flange) M6X60 $1.97
44 983-362 BRUSH HOLDER C7BD C7SB C8 $7.02
45A 999-071 Carbon Brush (Auto Stop Type) (1 Pair) $16.19
46 961-781 Brush Cap $3.02
47 981-959 CAP COVER DH38YE DH50SB $2.59
48 958-715 TAP SCREW D4x10 DH50SB C7D $1.55
49 938-477 Hex. Socket Set Screw M5X8 $1.19
51 949-510 RIVET D2.5x4.8 (10pc) C15FB $1.19
53 985-480 Tapping Screw (W/Washer) D5X20 $1.19
54 986-892 Collar $5.71
55 993-241 Spring Case $21.78
56 943-364 NEEDLE ROLLER D4x20 DH38YE $1.24
57 993-242 Stopper Spring $2.04
58 993-243 Stopper Sleeve $8.67
60 986-894 SEAL LOCK HEX HD.SOCKET BOLT $1.24
61 986-891 Plate $8.67
62 986-890 Front Damper (A) $14.50
63 993-240 Stop Lever $61.53
64 993-236 Front Cover $259.24
65 986-896 O-Ring (F) $2.04
66 986-882 O-RING DH40FA DH40FB DH50SB $11.18
68 993-235 DAMPER WASHER DH50SB $13.39
69 993-234 DAMPER DH40FA DH40FB DH50SB $5.71
70 993-233 WASHER DH50SB DH40FA/FB DH50SB $2.25
72 993-244 SEAL LOCK FLAT HD SCREW M4x12 $1.27
73 980-735 Wind Guide $3.38
73A 991-713 Wind Guide (B) $1.24
74 980-751 Handle Packing $1.67
75 985-469 Internal Wire Holder $10.40
76 985-605 TAP SCREW w/washer D5x25 H55SC $1.55
78A 992-891 SWITCH (A) 1P ScrewType DH38YE $26.52
79 959-141 CONNECTOR 50092 (10 PCS.) $6.26
80 981-869 SUPPORT DH50SB H85 H90SB $8.18
80A 990-082 SUPPORT (E) DH38YE DH50SB H85 $8.18
81A 993-254 Handle (A).(B) Set $47.18
83 985-474 Wire Support $2.59
84 994-273 NOISE SUPPRESSOR $6.58
88A 991-711 Distance Piece (B) $1.20
89 981-814 Tapping Screw (W/Washer) D4X30 $1.24
91 982-095 TAPP.SCREWw/WASHER D4x20 D13 $1.55
92 960266 CORD CLIP C7BD/SB C8 DH38YE $1.19
93 938-307 Pillar Terminal $3.23
95 940-778 CORD ARMOR D10.7 C10FA C15FB $3.19
96B 500-434Z CORD, ELECTRICAL, 2 WIRE C7SB $23.20
96B EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
97 992-803 SEAL LOCK HEX HD BOLT M6 X 20 $1.24
98A 987-020 Crank Case $76.94
99 985-764 First Gear $34.61
100 939-299 NEEDLE BEARING (M661) DH38YE $11.33
101 985-770 Third Pinion $64.68
102 984-483 O-RING (S-36) $2.04
103 620-2DD BALL BEARING 6202DDCMPS2L P12R $8.62
104 985-766 Second Gear $83.04
105 959-150 STEEL BALL D6.35 10PS DH38YE $1.67
106 985-767 Clutch Plate $40.92
107 985-768 Belleville Spring $3.19
108A 300-042 Special Nut $15.26
109 962-782 SET SCREW M5x6 C7SC D13 $1.55
110 944- 516 BEARING WASHER (B) DH50SB SB75 $1.55
112 944-525 BEARING WASHER (C) DH38YE DH40 $1.24
114 993-248 Gear Cover $58.53
115 620-2VV BALL BEARING 6202VVCMPS2L P12R $7.64
116 985-439 Oil Seal (FPM 807) $11.64
117 985-438 Sleeve $24.20
118 985-482 Fan $8.18
119 985-472U Armature Assy 115V $182.60
120 985-436 Dust Washer $1.27
121 620-0VV BALL BEARING 6200VVCMPS2L $6.67
