Hitachi DH50MRY

2 Inch SDS Max Low V...

$977.99

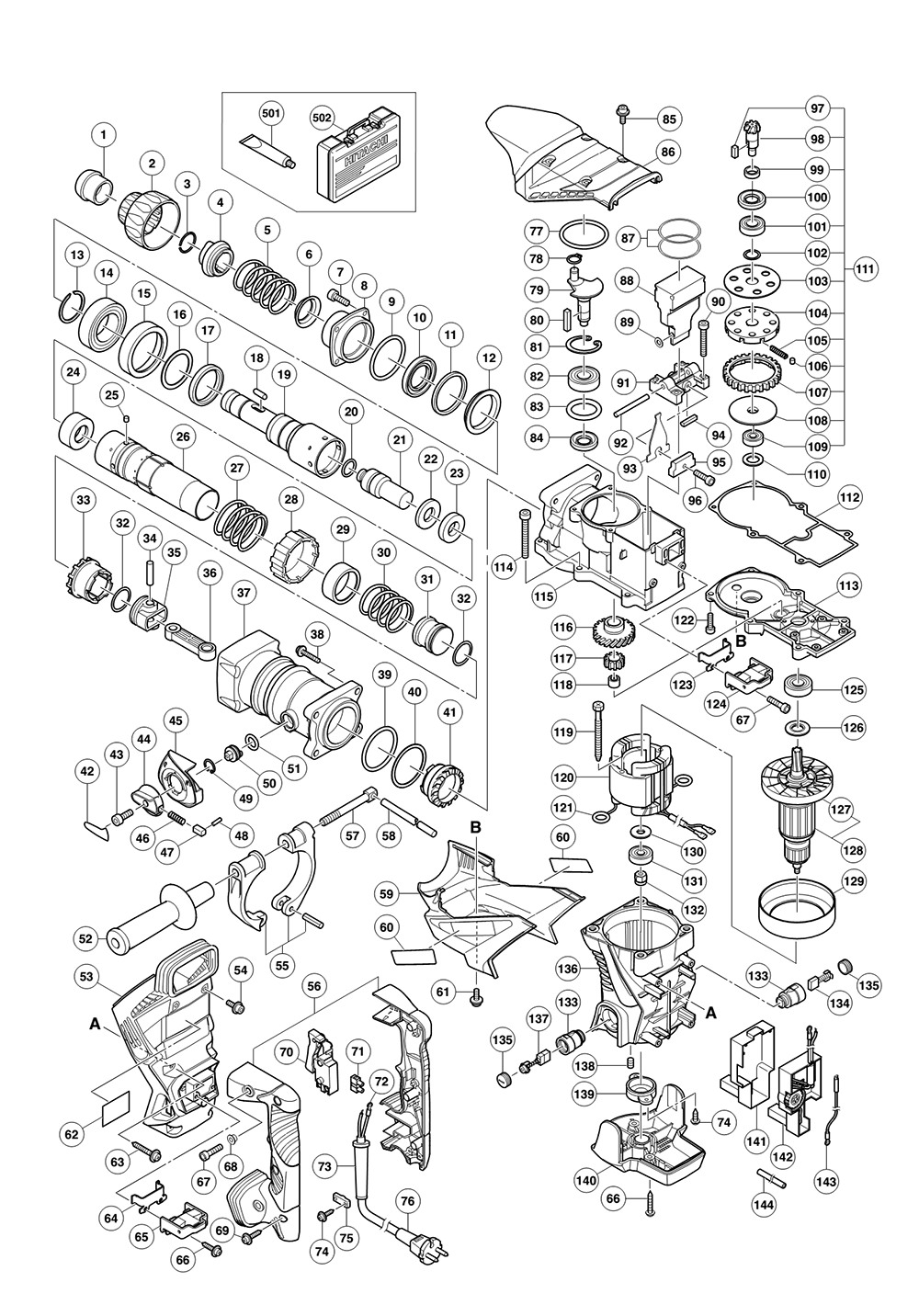

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	321-306	FRONT CAP DH40MR DH45MR	$3.53
2	328-900	GRIP	$3.59
3	318-590	STOPPER RING DH50MB DH40MR	$1.88
4	328-899	NEEDLE HOLDER	$19.48
5	313-419	RETAINER SPRING DH40MA/MB	$3.23
6	318-589	SPRING HOLDER	$5.27
7	985-479	SEAL LOCK HEX HD BOLT M8x25	$2.87
8	318-587	FRONT COVER DH50MB	$30.24
9	878-863	O-RING (S-70):NR65AK NV75AG	$2.59
10	318-588	OIL SEAL DH50MB DH50MRY	$8.66
11	318-586	URETHANE RING DH50MB DH50MRY	$7.60
12	318-585	URETHANE RING HOLDER DH50MB	$3.58
13	318-582	RETAINING RING DH50MB DH50MRY	$6.97
14	600-8CM	BALL BEARING DH50MB DH50MRY	$18.68
15	318-581	SLEEVE DH50MB DH50MRY	$34.61
16	328-884	THRUST WASHER (A)	$3.59
17	328-883	RETAINER DAMPER	$3.59
18	313-421	NEEDLE ROLLER D8x20 DH40MA/B	$5.56
19	328-882	RETAINER SLEEVE	$158.27
20	986-104	O'RING (1AS-60) DH38YE..DH40..	$1.20
21	328-885	SECOND HAMMER	$23.19
22	328-886	DAMPER WASHER	$8.33
23	328-887	DAMPER	$3.59
24	328-888	DAMPER HOLDER	$13.07
25	328-891	NEEDLE PIN D8X6	$1.87
26	328-889	CYLINDER	$119.48
27	328-895	LOCK SPRING	$5.26
28	318-562	LOCK SLEEVE DH50MB DH50MRY	$7.60
30	328-893	CLUTCH SPRING	$3.59
31	328-890	STRIKER	$21.16
32	328-880	O-RING	$5.26
33	328-894	CLUTCH	$64.75
34	328-879	PISTON PIN	$5.26
35	328-877	PISTON	$7.65
36	328-878	CONNECTING ROD	$8.36
37	328-896	CYLINDER CASE	$67.83
38	990-083	HexSockHDBoltM8x35 H55SCK	$1.24
39	985-779	O-RING (D) DH50SB DH50MB	$2.59
40	328-897	THRUST WASHER (B)	$5.26
41	328-898	BEVEL GEAR	$61.71
43	983-162	HEX SKT HD BOLT M4x12 DH38YE	$1.20
45	328-901	LEVER HOLDER	$3.59
46	321-310	LEVER SPRING DH40MR DH40FR	$1.88
47	321-311	PUSHING BUTTON DH40MR DH40FR	$1.88
48	321-312	PIN D2x10 DH40MR DH40FR	$1.88
49	311-229	RETAINING RING DH40MR D20SHAFT	$1.20
50	324-934	LEVER SHAFT	$21.72
51	873-095	O-RING (P16) CJ65V2/VA2 DH40FA	$1.19
53	328-910	BACK COVER	$29.35
54	998-485	HEX SOCKET HD BOLT M5x14DH40MR	$1.20
55	318-575	HANDLE HOLDER DH50MB DH50MRY	$30.24
56	328-920	HANDLE (A).(B) SET	$29.35
57	318-576	HANDLE BOLT DH50MB DH50MRY	$11.68
59	328-909	HOOD	$18.13
61	998-471	HEX. SOCKET HD. BOLT M5X12	$1.19
63	328-707	TAPPING SCREW (W/FLANGE) D5X30 (BLACK)	$1.43
64	980-750	GUIDE PLATE DH50SB H45SB H55SC	$19.81
65	980-727	HANDLE RUBBER DH50SB H55SC	$15.02
66	305-558	SCREW W/FLANGE D5x25 C10FS	$1.48
67	990-079	SEAL LOCK HEX HD BOLT M5x16	$1.24
68	991-711	Distance Piece (B)	$1.20
69	307-028	SCREW W/FLANGE D4x25 CR13VA/2	$1.19
70	990-941	SWITCH (B) (1P SCREW TYPE) W/O LOCK	$28.42
71	938-307	Pillar Terminal	$3.23
72	980063	TERMINAL CR12V D13V DH38YE	$1.24
72	930-804	TERMINAL M4.0 10PS DH40FA/MB	$3.23
73	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.19
73	938051	CORD ARMOR D10.1 M12V H45SB2	$1.19
74	984750	TAP SCREW w/FLANGE D4x16 C8	$1.19
75	960266	CORD CLIP C7BD/SB C8 DH38YE	$1.19
75	981-987Z	Cord Clip	$1.19
76	500-453Z	CORD, ELECTRICAL, 2 WIRES	$36.27
77	877-314	CYLINDER O-RING 69.3 NR83A/2	$2.25
78	939-542	RETAINING RING D12SHAFT 10 PCS	$2.54
79	328-868	CRANK SHAFT	$50.37
80	328-869	FEATHER KEY 3X3X25	$1.87
81	948-227	RETAINING RING WH16 WR12DH	$1.55
82	620-4DD	BALL BEARING 6204DDCMPS2L EC16	$11.92
83	985-765	O-Ring (B)	$2.25
84	328-867	OIL SEAL	$5.26
85	994-192	HEX. SOCKET HD. BOLT (W/FLANGE) M5X16	$1.48
86	328-908	CRANK COVER	$17.45
87	878-713	Cylinder O-Ring (B)	$2.24
88	328-902	WEIGHT	$44.09
89	957-585	WASHER	$1.20
90	306-061	SEAL LOCK HEX. SOCKET HD. BOLT M5X30	$1.10
91	328-903	BASE	$18.80
92	328-904	WEIGHT PIN	$5.26
93	328-905	LEAF SPRING	$3.59
94	328-907	WEIGHT BUMPER	$1.87
95	328-906	SPRING HOLDER	$6.98
96	990-079	SEAL LOCK HEX HD BOLT M5x16	$1.24
97	944-109	FEATHER KEY 3X3X8	$3.37
98	328-873	BEVEL PINION	$25.91
99	328-874	COLLAR	$12.04
100	328-867	OIL SEAL	$5.26
101	620-2DD	BALL BEARING 6202DDCMPS2L P12R	$8.62
102	313-058	WASHER DH40FB/MB/FA/MA	$1.19
103	318-552	WASHER (A) DH50MB DH50MRY	$7.60
104	318-554	GEAR HOLDER DH50MB DH50MRY	$13.72
105	329-095	SPRING (C)	$1.87
106	313-057	NEEDLE PIN D 6x6 DH40FB/MB/FA	$4.57
107	328-875	SECOND GEAR	$37.85
108	328-876	SPACER	$16.78
110	944-525	BEARING WASHER (C) DH38YE DH40	$1.24
111	328-872	SLIP CLUTCH ASS’Y	$131.43
112	328-881	SEAL PACKING	$3.59
113	328-916	GEAR COVER	$47.24
114	986-940	SEAL LOCK HEX SOCKET HD BOLT	$1.27
115	328-866	CRANK CASE	$89.34
116	328-870	FIRST GEAR	$31.57
117	328-871	SECOND PINION	$13.07
118	939-299	NEEDLE BEARING (M661) DH38YE	$11.33
119	953-121	HEX TAPPING SCREW D5x50 C7BMR	$1.19
120	340-712G	STATOR ASS’Y 120V	$98.62
121	958-032	BRUSH TERMINAL G18SE2 G23SC2	$1.55
122	321-313	SEAL LK HEX SOCKET HD BOLT	$1.88
123	980-750	GUIDE PLATE DH50SB H45SB H55SC	$19.81
124	980-727	HANDLE RUBBER DH50SB H55SC	$15.02
125	620-2DD	BALL BEARING 6202DDCMPS2L P12R	$8.62
126	980-700	DUST WASHER (B) DH38YE H45SB	$1.24
127	318-918	FAN DH50MB DH45MR DH50MRY	$8.67
128	360-819U	ARMATURE ASS’Y 120V	$220.88
129	328-917	FAN GUIDE	$3.59
130	944-954	BEARING WASHER H65 H90SB	$1.24
131	620-1VV	BALL BEARING 6201VVCMPS2L	$6.67
132	301-797	MAGNET	$7.23
133	980-487	BRUSH HOLDER G18SE2 G23SC2	$8.45
134	999-044	CARBON BRUSH (pair) P12RA M12V	$5.15
134	P06	Carbon Brush Set	$8.50
135	940-540	BRUSH CAP CC12Y G18SE2 G23SC2	$1.67
136	328-915	HOUSING ASS’Y	$52.47
137	999-074	CARBON BRUSH AUTO (pair) H85	$16.19
138	938-477	Hex. Socket Set Screw M5X8	$1.19
139	328-918	BEARING HOLDER	$10.00
140	328-919	TAIL COVER	$13.07
141	328-914	CASE (B)	$5.26
142	328-912	CONTROLLER CIRCUIT 120V	$125.47
144	326-541	VINYL TUBE (I.D.9.5XT0.56X85)	$1.75
